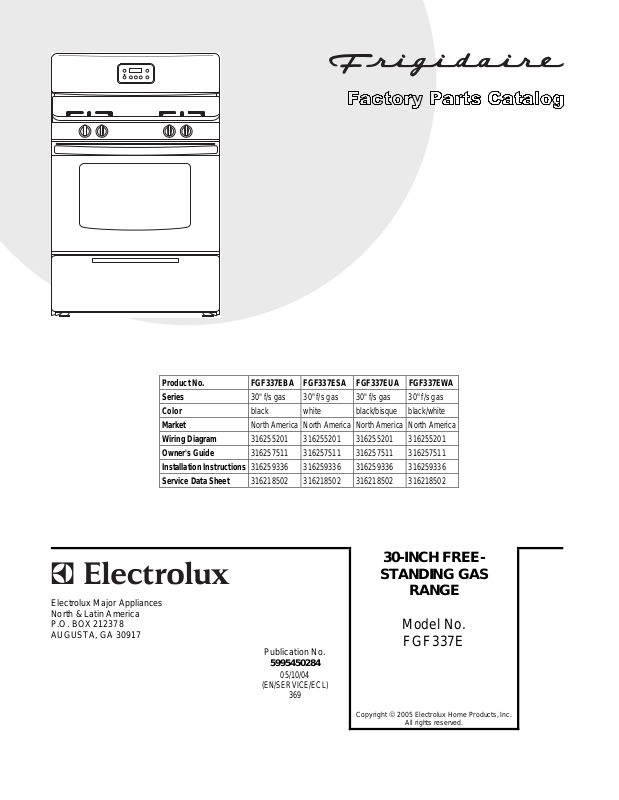

Page 1
Product No. FGF337EBA FGF337ESA FGF337EUA FGF337EWA
Series 30" f/s gas 30" f/s gas 30" f/s gas 30" f/s gas
Color black white black/bisque black/white
Market North America North America North America North America
Wiring Diagram 316255201 316255201 316255201 316255201
Owner's Guide 316257511 316257511 316257511 316257511
Installation Instructions 316259336 316259336 316259336 316259336
Service Data Sheet 316218502 316218502 316218502 316218502
FGF337E.eps T24G0024.eps L24B0008.eps T24V0005.eps L24T0011.eps L24D0014.eps
316255201D.eps 316255201S.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995450284
05/10/04
(EN/SERVICE/ECL)
369
30-INCH FREE-
STANDING GAS
RANGE
Model No.
FGF337E
Copyright © 2005 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995450284 FGF337E
BACKGUARD
10/05 2
Page 3
FGF337E Publication No: 5995450284
BACKGUARD
POS. NO PART NO. DESCRIPTION
1 316416100 A B C D Shield, backguard, rear wall
15 316411405 A - C D Support, backguard, black, RH
15 316411403 - B - - Support, backguard, white, RH
15A 316411404 A - C D Support, backguard, black, LH
15A 316411402 - B - - Support, backguard, white, LH
19 316445218 A - C D Panel, backguard, black
19 316445219 - B - - Panel, backguard, white
20 # 316222802 A B C D Clock/Timer, electronic, ES100
20A 316220701 A - C D Overlay, clock, black
20A 316220700 - B - - Overlay, clock, white
23 316441600 A B C D Bracket-clock mtg, black
24 # 316246001 A - C D Switch, rocker, black
24 316246000 - B - - Switch, rocker, white, oven light
36 316220002 A - C D Knob, top valve, black, 4
36 316220000 - B - - Knob, top valve, white, (4)
40 316204990 A - C D Panel, manifold, black
40 316204989 - B - - Panel, manifold, white
42 316270600 A - C D Trim, extrusion, black
42 316270601 - B - - Trim, extrusion, grey
56 316230701 A B C D Shield, backguard, inner
* 316021105 A B C D Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B C D Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B C D Screw, 8-18 x 0.5, chrome
* 316021110 A B C D Screw, 8-18 x 0.5, black
Model Index: A FGF337E (FGF337EBA)
B FGF337E (FGF337ESA)
C FGF337E (FGF337EUA)
D FGF337E (FGF337EWA)
# Functional Parts
3 10/05
* Non-Illustrated Parts
Page 4
Publication No: 5995450284 FGF337E
BURNER
10/05 4
Page 5
FGF337E Publication No: 5995450284
BURNER
POS. NO PART NO. DESCRIPTION
1 # 316219500 A B C D Pipe, manifold
2 # 5303935232 A B C D Valve, 9.5k/12k burner, w/mtg screw
2C # 5303935234 A B C D Valve, 9.5K burner, w/mtg screw
* 316215600 A B C D Screw, valve mtg., 1/4 - 20
3 # 316219004 A B C D Wiring Harness, w/igntr switch
8 # 316135701 A B C D Module, spark
10 # 316212300 A B C D Burner, sealed, 12K
10C# 316212400 A B C D Burner, sealed, 9.5K
11 # 316237801 A B C D Ignitor/orifice assy., top burner, front, 12K, w/holder, tube
11B# 316237701 A B C D Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube
11C# 316237800 A B C D Ignitor/orifice assy., top burner, front, 9.5K, w/holder, tube
13 316207000 A B C D Tube, 3/8, aluminum, rgltr to manf, with fittings
14 # 316091706 A B C D Regulator, pressure
14* 316021104 A B C D Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt
15 316091600 A B C D Bracket, regulator
16 316065006 A B C D Tube, valve to regul, 3/8
17 # 3203459 A B C D Valve, safety
18 # 316114300 A B C D Burner, oven
19 # 5303935066 A B C D Ignitor, oven kit, w/nut & instr
19*# 316119301 A B C D Ignitor-oven
20 3203265 A B C D Baffle, oven burner
21 5303013272 A B C D Nut, hex head sems
37 316240600 A B C D Screw, assy mtg, ignitor/orifice
44 316237901 A B C D Orifice, top burner, 12K
44C 316237902 A B C D Orifice, top burner, 9.5K
47 GRLP2 A B C D LP Conversion Kit, w/instructions
47* 316248105 A B C D Instructions, LP kit
48 3018603 A B C D Bracket, support, oven burner
49 3131438 A B C D Bracket, safety valve
* # 316253700 A B C D Wiring Harness, ignitor module
* 5303271648 A B C D Screw, wafer hd sq dr, 8-18AB x 0.5
Model Index: A FGF337E (FGF337EBA)
B FGF337E (FGF337ESA)
C FGF337E (FGF337EUA)
D FGF337E (FGF337EWA)
# Functional Parts
5 10/05
* Non-Illustrated Parts
Page 6
Publication No: 5995450284 FGF337E

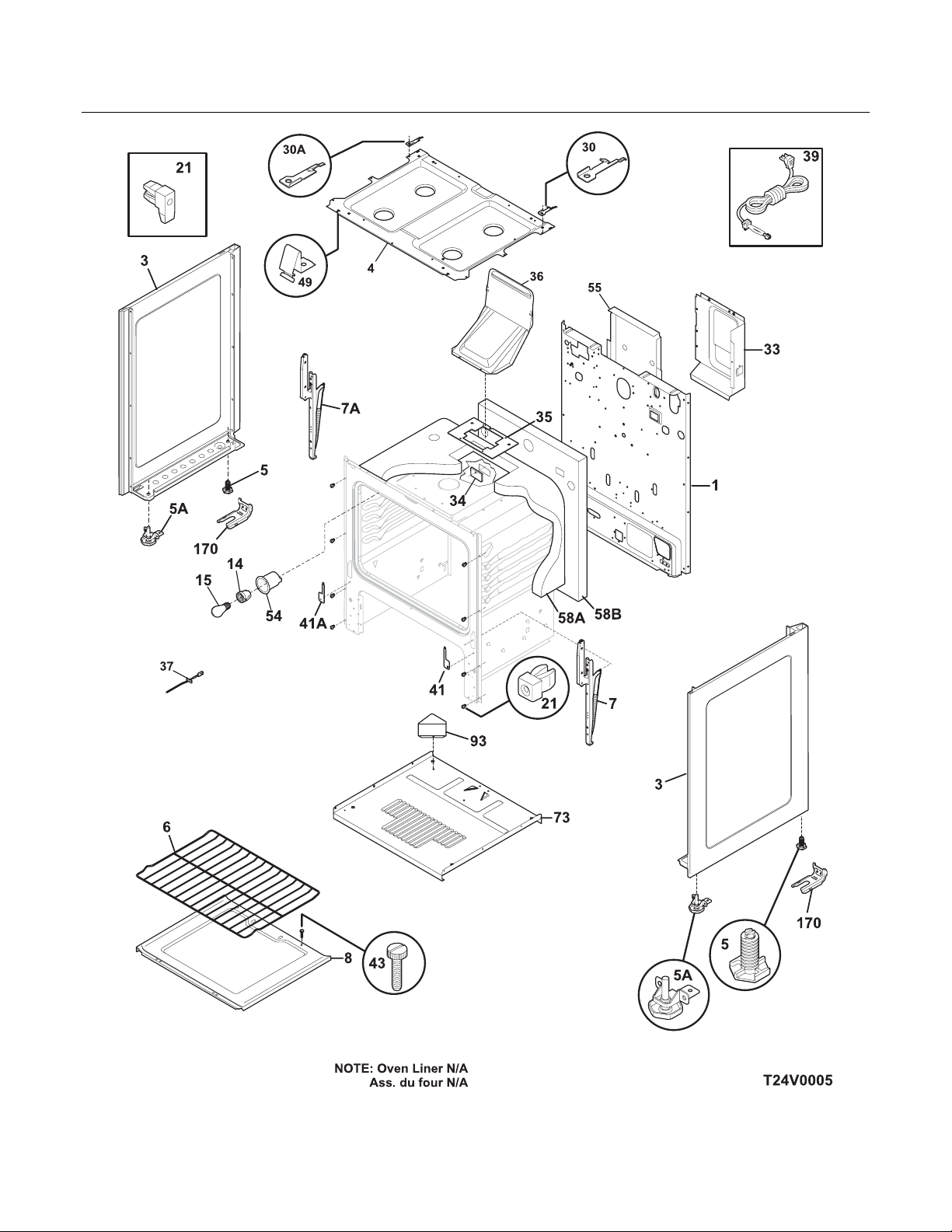

BODY
10/05 6
Page 7
FGF337E Publication No: 5995450284
BODY
POS. NO PART NO. DESCRIPTION
1 316029415 A B C D Panel, main back
3 316400104 A - - - Panel, bodyside, black, RH
3 316400105 A - - - Panel, bodyside, black, LH
3 316400102 - B - D Panel, bodyside, white, RH
3 316400103 - B - D Panel, bodyside, white, LH
3 316400106 - - C - Panel, bodyside, bisque, RH
3 316400107 - - C - Panel, bodyside, bisque, LH
4 316201403 A B C D Burner Box
5 316272900 A B C D Screw, leveling, plastic, rear, (2)
5A 316407201 A B C D Leveling Leg Assy, metal, front, (2), bracket & leg
6 316067902 A B C D Rack, oven
7 316216508 A B C D Hinge, oven door, RH
7A 316216509 A B C D Hinge, oven door, LH
8 5303300701 A B C D Panel, oven bottom
8* 316064600 A B C D Support, oven bottom
14 316116400 A B C D Receptacle, oven light
15 5303013071 A B C D Bulb/Lamp, light
21 316408000 A B C D Clip, bodyside
30 316217700 A B C D Bracket, hinge, RH, main top
30A 316217701 A B C D Bracket, hinge, LH, main top
33 316055600 A B C D Shield, spark module, galv steel
34 3018607 A B C D Plate, cover
35 316116600 A B C D Gasket, flue
36 316208902 A B C D Flue, black
37 # 316233900 A B C D Probe, oven temp
39 3202006 A B C D Cord, electric power
41 316233400 A B C D Cover, hinge cutout, RH
41A 316233500 A B C D Cover, hinge cutout, LH
43 3131732 A B C D Screw, 8-18 x 1.438, oven bottom
49 316234200 A B C D Clip, maintop mtg, (2)
54 5303271606 A B C D Housing, oven light
55 5303289358 A B C D Shield, flue
58A 3017142 A B C D Insulation, oven wrapper
58B 316054202 A B C D Insulation, 1", oven back
73 316109902 A B C D Base, low broil
93 316110000 A B C D Shield, ignitor, metal
170 5303935180 A B C D Anti-tip Kit, w/bracket, screw
170* 316107200 A B C D Bracket, anti-tip
170* 316112500 A B C D Template, anti-tip
170* 316116000 A B C D Screw, concrete, 1.75", anti-tip brkt
* 316253308 A B C D Harness, main
* 316435800 A B C D Plate, weight, (3)
* 5303305345 A - C D Paint, touch-up, black
* 5304414035 - - C - Paint, touch-up, bisque
* 316021105 A B C D Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B C D Screw, cup pt, 8-18 x 0.375, chrome
* 316021110 A B C D Screw, 8-18 x 0.5, black
* 316089500 A B C D Screw, 10-16 x .486
* 5303271648 A B C D Screw, wafer hd sq dr, 8-18AB x 0.5
* 5303285179 A B C D Screw, wafer head, 8-32T x 0.500, black
Model Index: A FGF337E (FGF337EBA)
B FGF337E (FGF337ESA)
C FGF337E (FGF337EUA)
D FGF337E (FGF337EWA)
# Functional Parts
7 10/05
* Non-Illustrated Parts
Page 8
Publication No: 5995450284 FGF337E

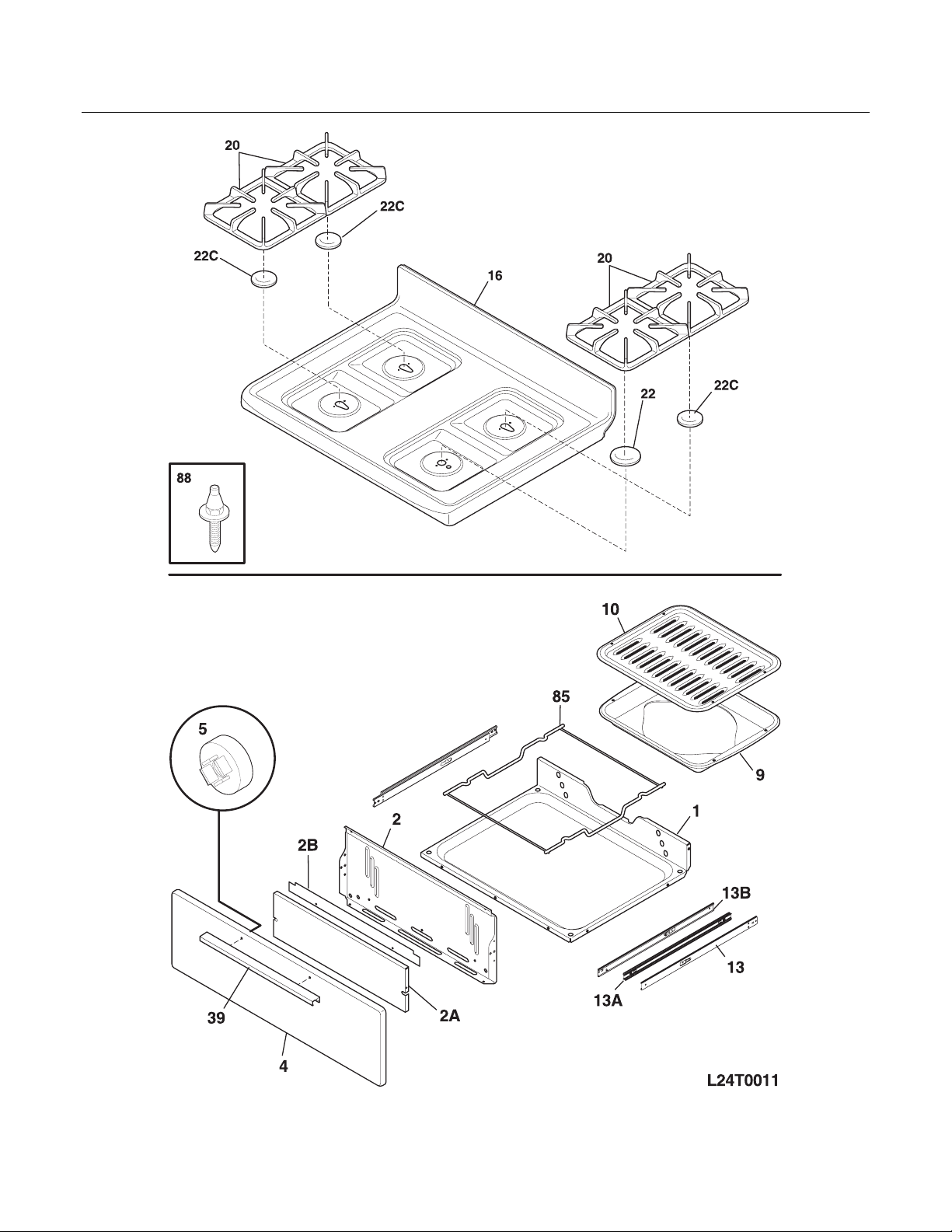

TOP/DRAWER
10/05 8
Page 9
FGF337E Publication No: 5995450284
TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 316110201 A B C D Carriage, low broil
2 316236401 A B C D Liner, low broil
2A 316110800 A B C D Shield, broiler
2B 316237600 A B C D Shield, low broil, top
4 316231212 A - - - Panel, drawer, black
4 316231211 - B - D Panel, drawer, white
4 316231214 - - C - Panel, drawer, bisque
5 316129100 A B C D Fastener, push-in nut, nylon, spacer
9 316081900 A B C D Pan, broiler
10 316082000 A B C D Insert, broiler pan
13 316111502 A B C D Glide, low broil, chassis
13A 316111600 A B C D Glide, low broil, inner
13B 316111501 A B C D Glide, low broil, outer
16 316202331 A - - - Main Top, black
16 316202332 - B - D Main Top, white
16 316202334 - - C - Main Top, bisque
20 316202400 A - C D Grate, black
20 316202401 - B - - Grate, gray
22 316213600 A - C D Cap, 12K burner, black
22 316213601 - B - - Cap, 12K burner, gray
22C 316213 50 0 A - C D Cap, 9.5K burner, black
22C 316213501 - B - - Cap, 9.5K burner, gray
39 316019512 A - - - Handle, drawer, black
39 316019511 - B - D Handle, drawer, white
39 316019513 - - C - Handle, drawer, bisque
85 316115600 A B C D Rack, low broil
88 316099500 A B C D Pin, guide, (2)
* 316021105 A B C D Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 A B C D Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 A B C D Screw, 8-18 x 0.5, chrome
* 316021110 A B C D Screw, 8-18 x 0.5, black
* 316021120 A B C D Screw, shoulder head, 8-18 x 5/8, (2), square drive
Model Index: A FGF337E (FGF337EBA)
B FGF337E (FGF337ESA)
C FGF337E (FGF337EUA)
D FGF337E (FGF337EWA)
# Functional Parts
9 10/05
* Non-Illustrated Parts
Page 10
Publication No: 5995450284 FGF337E

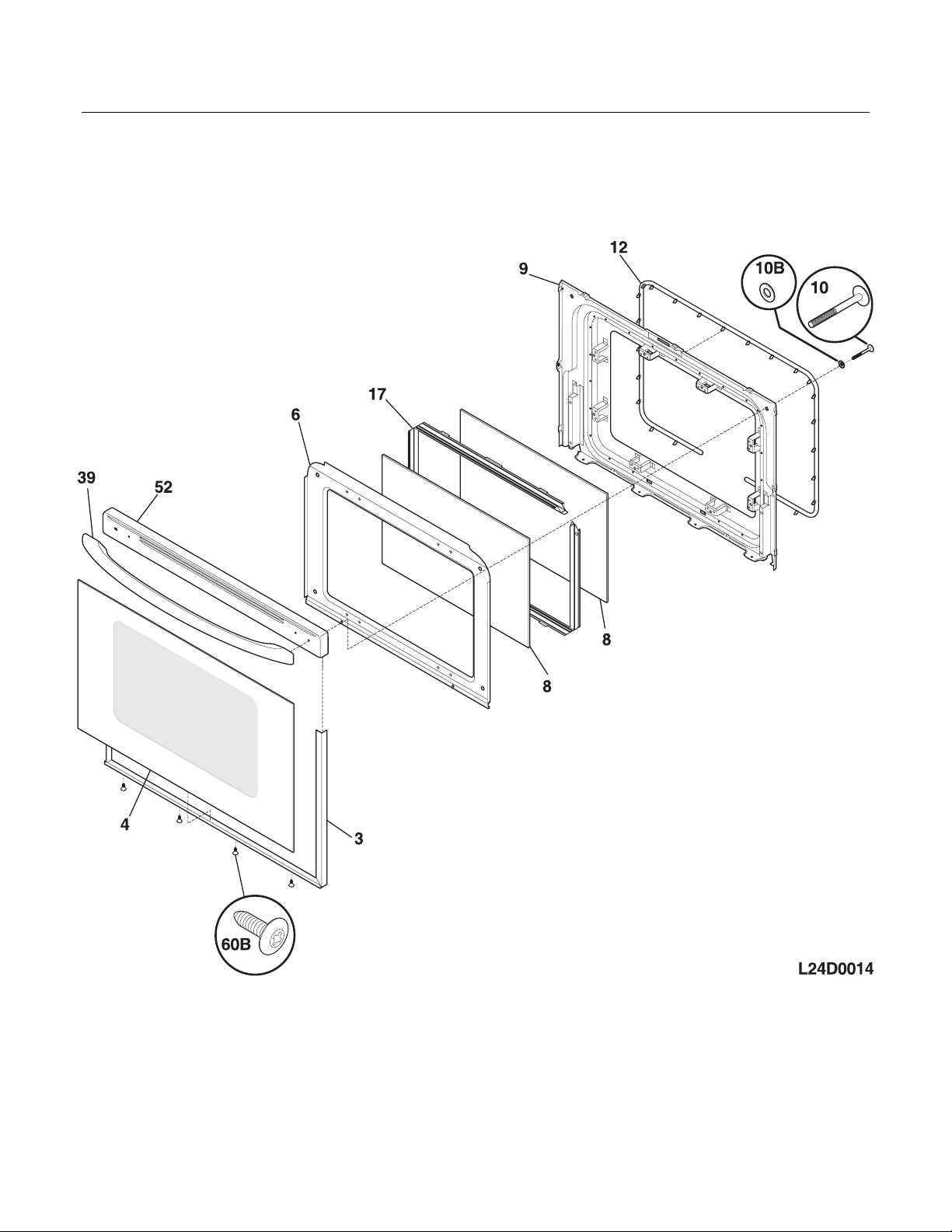

DOOR
10/05 10
Page 11
FGF337E Publication No: 5995450284
DOOR
POS. NO PART NO. DESCRIPTION
3 5303935191 A - C D Trim kit-door, 3 sided, black, w/tape and foil
3 5303935192 - B - - Trim kit-door, 3 sided, white, w/tape and foil
4 316202820 A - C D Glass, oven door, black, outer
4 316202818 - B - - Glass, oven door, white, outer
6 316222711 A B C D Shield, wool, black, oven door
8 316237100 A B C D Glass, oven door, clear, heat barrier
9 316230617 A B C D Liner, oven door
10 316278700 A B C D Screw, wafer head, 10-14 x 1 3/8, handle mtg
10B 316008401 A B C D Washer, 3/4 OD x 1/4 ID, steel
12 316239700 A B C D Seal, oven door
17 316264 60 1 A B C D Spacer, door glass, (2)
39 316270200 A - C D Handle, door, black
39 316270201 - B - - Handle, door, white
52 316201005 A - C D Cap, door trim, black
52 316201003 - B - - Cap, door trim, white
60B 316021110 A B C D Screw, 8-18 x 0.5, black
* 316433600 A B C D Label, anti-tip
* 316021109 A B C D Screw, 8-18 x 0.5, chrome
* 5303271648 A B C D Screw, wafer hd sq dr, 8-18AB x 0.5
* 5303285179 A B C D Screw, wafer head, 8-32T x 0.500, black
Model Index: A FGF337E (FGF337EBA)
B FGF337E (FGF337ESA)
C FGF337E (FGF337EUA)
D FGF337E (FGF337EWA)
# Functional Parts
11 10/05
* Non-Illustrated Parts
Page 12
Publication No: 5995450284 FGF337E

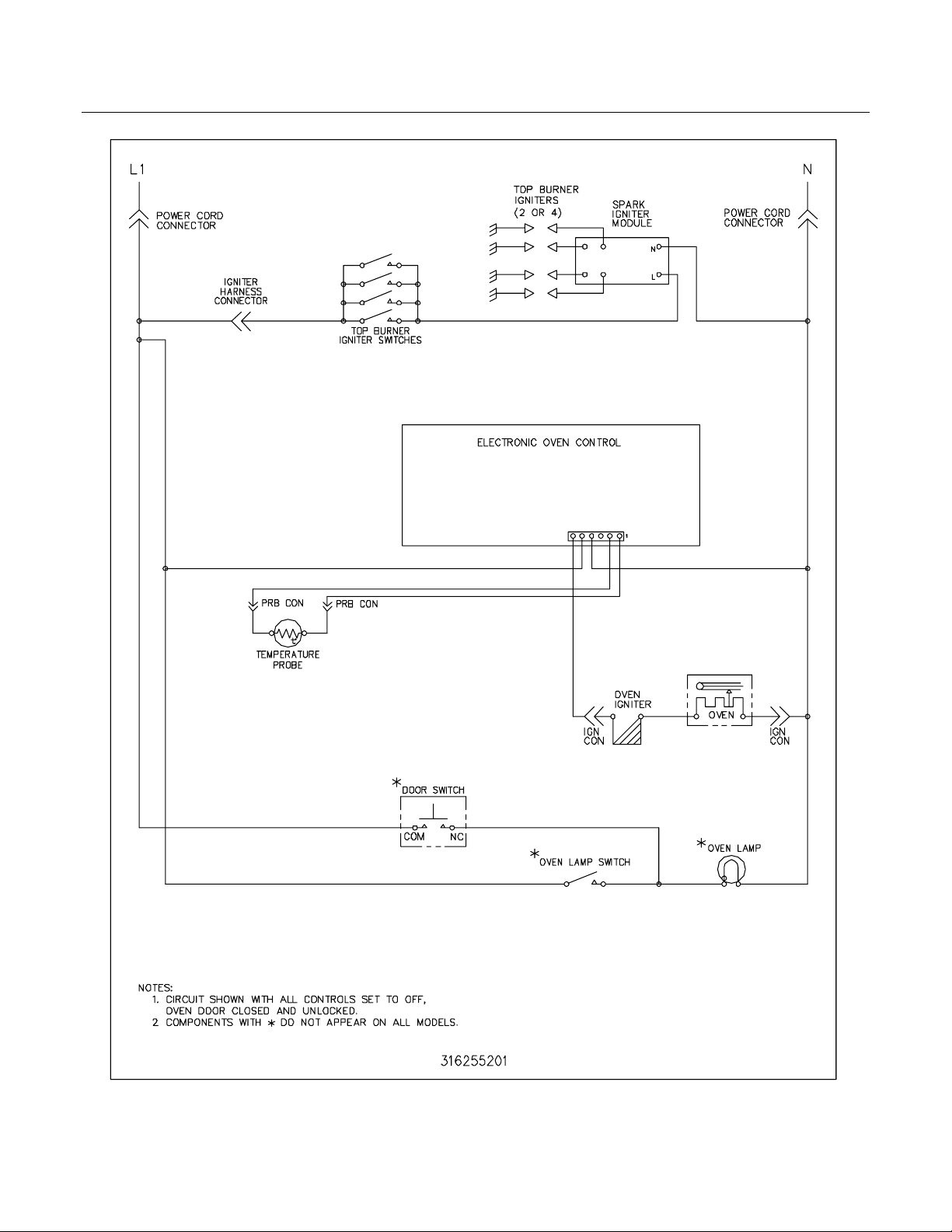

WIRING SCHEMATIC
10/05 12
Page 13
FGF337E Publication No: 5995450284

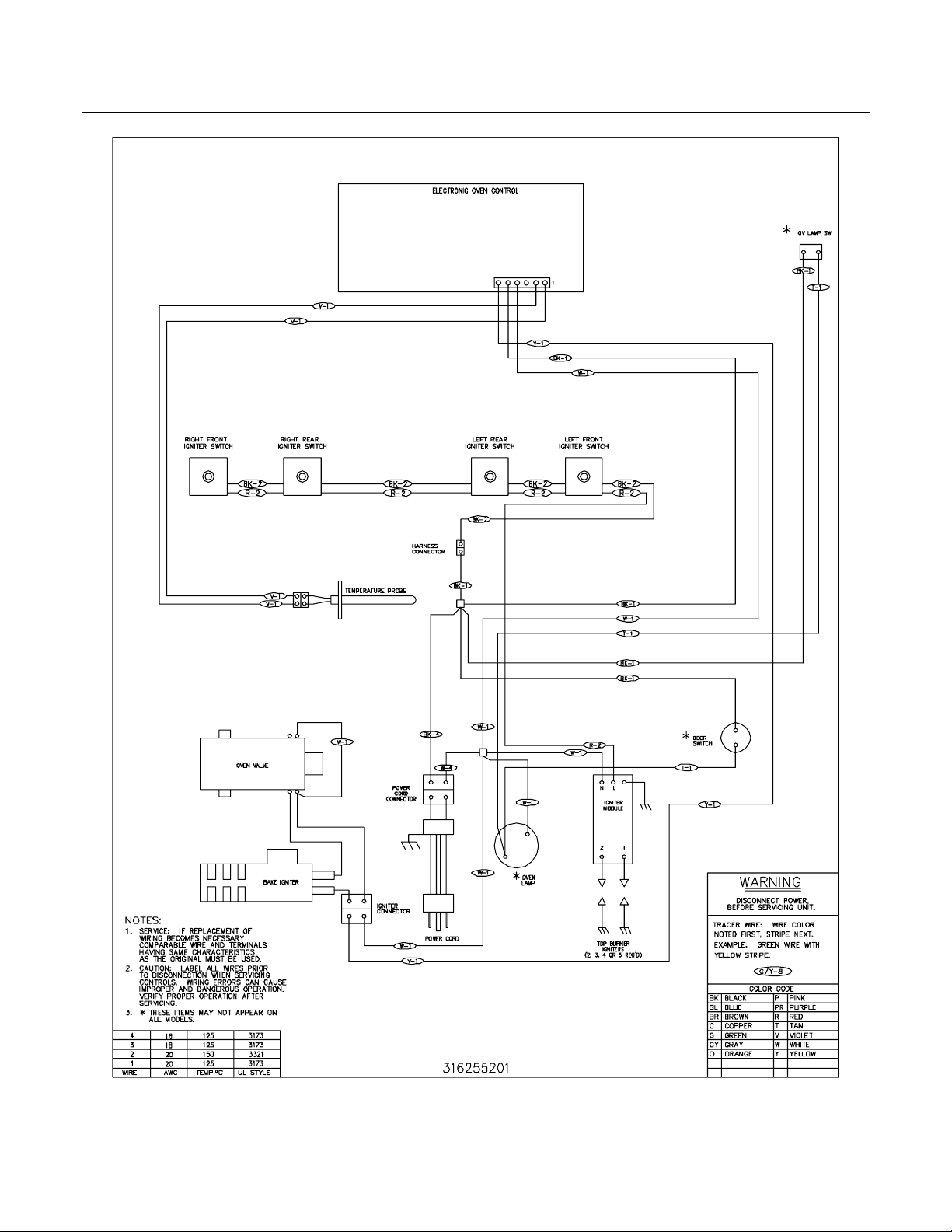

WIRING DIAGRAM
# Functional Parts
13 10/05
* Non-Illustrated Parts
