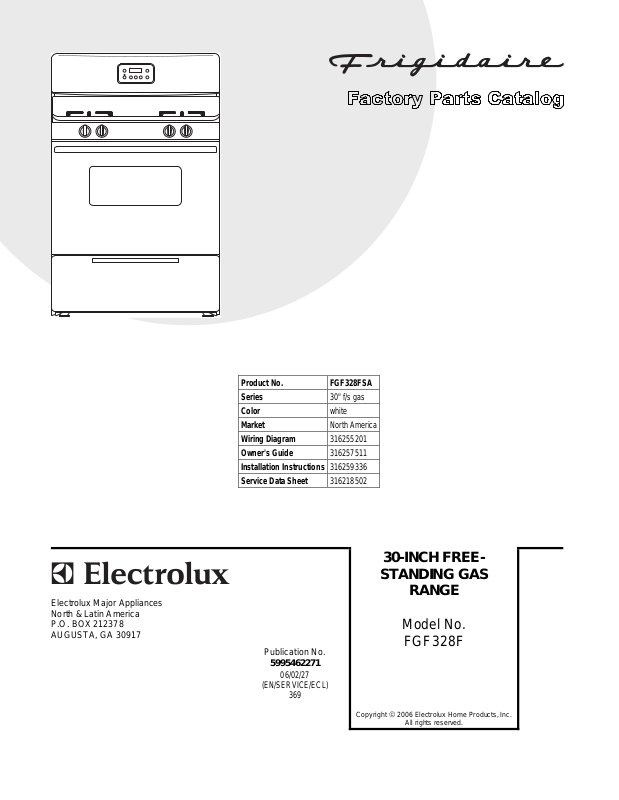

Page 1
FGF328F.eps T24G0024.eps T24B0014.eps T24V0048.eps L24T0011.eps T24D0025.eps
316255201D.eps 316255201S.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No. FGF328FSA
Series 30" f/s gas
Color white
Market North America
Wiring Diagram 316255201
Owner's Guide 316257511
Installation Instructions 316259336
Service Data Sheet 316218502
Publication No.
5995462271
06/02/27
(EN/SERVICE/ECL)
369
30-INCH FREE-
STANDING GAS
RANGE
Model No.
FGF328F
Copyright © 2006 Electrolux Home Products, Inc.
All rights reserved.
Page 2
Publication No: 5995462271 FGF328FSA
BACKGUARD
02/06 2
Page 3
FGF328FSA Publication No: 5995462271
BACKGUARD
POS. NO PART NO. DESCRIPTION
1 316416100 Shield, backguard, rear wall
15 316411403 Support, backguard, white, RH
15A 316411402 Support, backguard, white, LH
19 316445219 Panel, backguard, white
20 # 316222802 Clock/Timer, electronic, ES100
20A 316220700 Overlay, clock, white
23 316441600 Bracket-clock mtg, black
24 # 316448701 Switch, rocker, white, oven light
36 316220000 Knob, top valve, white, (4)
40 316204989 Panel, manifold, white
42 316270601 Trim, extrusion, grey
56 316230701 Shield, backguard, inner
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 Screw, 8-18 x 0.5, chrome
* 316021110 Screw, 8-18 x 0.5, black
# Functional Parts
3 02/06
* Non-Illustrated Parts
Page 4
Publication No: 5995462271 FGF328FSA
BURNER
02/06 4
Page 5
FGF328FSA Publication No: 5995462271
BURNER
POS. NO PART NO. DESCRIPTION
1 # 316446800 Manifold Pipe
2 # 5303935232 Valve, 9.5k/12k burner, w/mtg screw
2C # 5303935234 Valve, 9.5K burner, w/mtg screw
* 316215600 Screw, valve mtg., 1/4 - 20
3 # 316219004 Wiring Harness, w/igntr switch
8 # 316135701 Module, spark
10 # 316212300 Burner, sealed, 12K
10C# 316212400 Burner, sealed, 9.5K
11 # 316237801 Ignitor/orifice assy., top burner, front, 12K, w/holder, tube
11B# 316237701 Ignitor/orifice assy., top burner, rear, 9.5K, w/holder, tube
11C# 316237800 Ignitor/orifice assy., top burner, front, 9.5K, w/holder, tube
13 316447100 Tube, 3/8, aluminum, rgltr to manf, with fittings
14 # 316091706 Regulator, pressure
14* 316021104 Screw, hex, 8-18 x 3/8, nick, (3), regulator brkt
15 316091600 Bracket, regulator
16 316065006 Tube, valve to regul, 3/8
17 # 3203459 Valve, safety
18 # 316114300 Burner, oven
19 # 5303935066 Ignitor, oven kit, w/nut & instr
19*# 316119301 Ignitor-oven
20 3203265 Baffle, oven burner
21 5303013272 Nut, hex head sems
37 316240600 Screw, assy mtg, ignitor/orifice
44 316237901 Orifice, top burner, 12K
44C 316237902 Orifice, top burner, 9.5K
47 GRLP2 LP Conversion Kit, w/instructions
47* 316248105 Instructions, LP kit
48 3018603 Bracket, support, oven burner
49 3131438 Bracket, safety valve
* # 316253700 Wiring Harness, ignitor module
* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5
# Functional Parts
5 02/06
* Non-Illustrated Parts
Page 6
Publication No: 5995462271 FGF328FSA

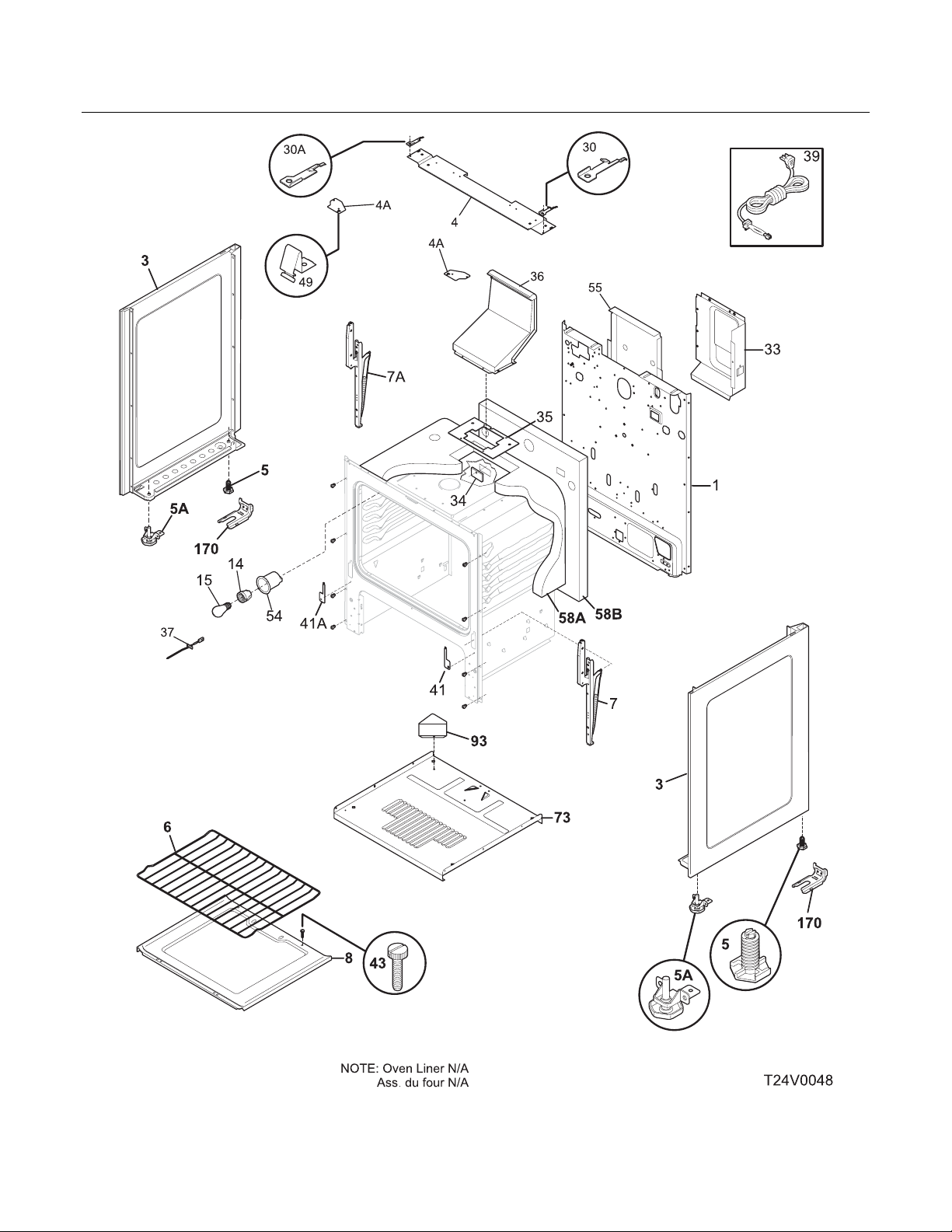

BODY
02/06 6
Page 7
FGF328FSA Publication No: 5995462271
BODY
POS. NO PART NO. DESCRIPTION
1 316029415 Panel, main back
3 316400116 Panel, bodyside, white, RH
3 316400117 Panel, bodyside, white, LH
4 316447000 Bracket, chassis support, rear
4A 316446900 Bracket, chassis, front, (2)
5 316272900 Screw, leveling, plastic, rear, (2)
5A 316407201 Leveling Leg Assy, metal, front, (2), bracket & leg
6 316067902 Rack, oven
7 316216502 Hinge, oven door, RH
7A 316216503 Hinge, oven door, LH
8 5303300701 Panel, oven bottom
8* 316064600 Support, oven bottom
14 316116400 Receptacle, oven light
15 5303013071 Bulb/Lamp, light
30 316217700 Bracket, hinge, RH, main top
30A 316217701 Bracket, hinge, LH, main top
33 316055600 Shield, spark module, galv steel
34 3018607 Plate, cover
35 316116600 Gasket, flue
36 316208902 Flue, black
37 # 316233900 Probe, oven temp
39 3202006 Cord, electric power
41 316233400 Cover, hinge cutout, RH
41A 316233500 Cover, hinge cutout, LH
43 3131732 Screw, 8-18 x 1.438, oven bottom
49 316234200 Clip, maintop mtg, (2)
54 5303271606 Housing, oven light
55 5303289358 Shield, flue
58A 3017142 Insulation, oven wrapper
58B 316054202 Insulation, 1", oven back
73 316109902 Base, low broil
93 316110000 Shield, ignitor, metal
170 5303935180 Anti-tip Kit, w/bracket, screw
170* 316107200 Bracket, anti-tip
170* 316112500 Template, anti-tip
170* 316116000 Screw, concrete, 1.75", anti-tip brkt
* # 316253308 Harness, main
* 316435800 Plate, weight, (3)
* 5303321319 Paint, touch-up, white
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 Screw, cup pt, 8-18 x 0.375, chrome
* 316021110 Screw, 8-18 x 0.5, black
* 316089500 Screw, 10-16 x .486
* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5
* 5303285179 Screw, wafer head, 8-32T x 0.500, black
# Functional Parts
7 02/06
* Non-Illustrated Parts
Page 8
Publication No: 5995462271 FGF328FSA

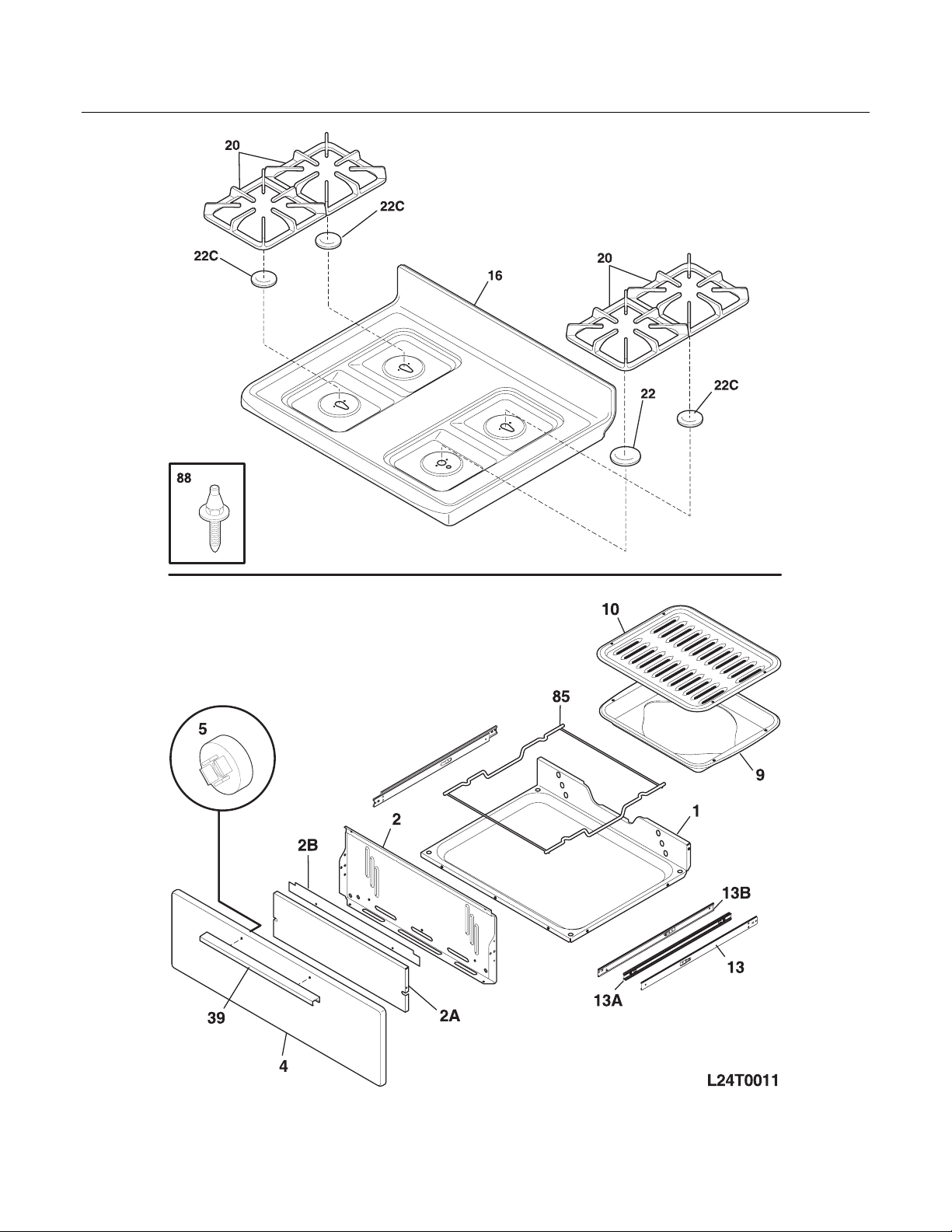

TOP/DRAWER
02/06 8
Page 9
FGF328FSA Publication No: 5995462271
TOP/DRAWER
POS. NO PART NO. DESCRIPTION
1 316110201 Carriage, low broil
2 316236401 Liner, low broil
2A 316110800 Shield, broiler
2B 316237600 Shield, low broil, top
4 316231211 Panel, drawer, white
5 316129100 Fastener, push-in nut, nylon, spacer
9 316081900 Pan, broiler
10 316082000 Insert, broiler pan
13 316111502 Glide, low broil, chassis
13A 316111600 Glide, low broil, inner
13B 316111501 Glide, low broil, outer
16 316202332 Main Top, white
20 316213800 Grate, black
22 316213600 Cap, 12K burner, black
22C 316213 50 0 Cap, 9.5K burner, black
39 316019511 Handle, drawer, white
85 316115600 Rack, low broil
88 316099500 Pin, guide, (2)
* 316021105 Screw, hex head cup pt, 8-18 x 0.375, black
* 316021108 Screw, cup pt, 8-18 x 0.375, chrome
* 316021109 Screw, 8-18 x 0.5, chrome
* 316021110 Screw, 8-18 x 0.5, black
* 316021120 Screw, shoulder head, 8-18 x 5/8, (2), square drive
# Functional Parts
9 02/06
* Non-Illustrated Parts
Page 10
Publication No: 5995462271 FGF328FSA

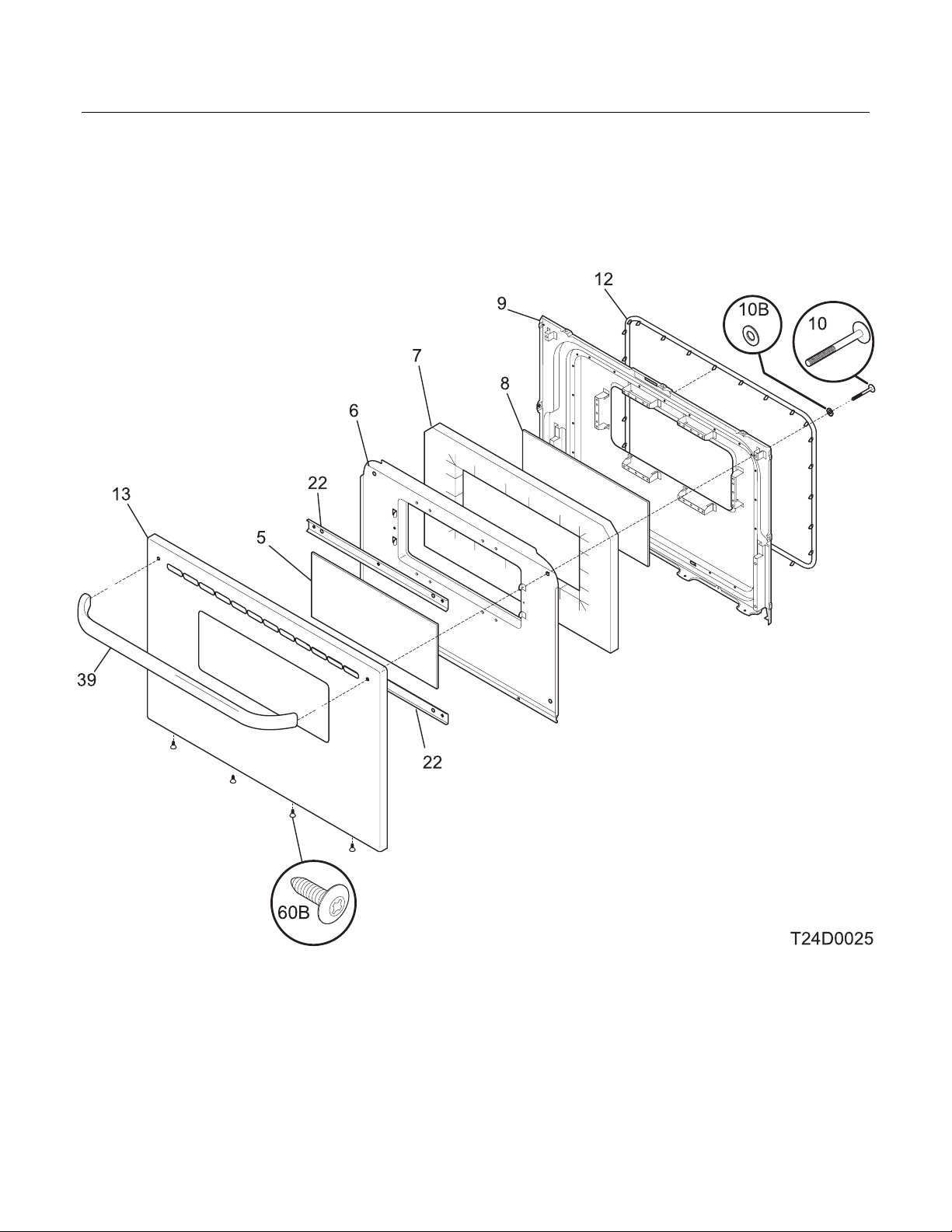

DOOR
02/06 10
Page 11
FGF328FSA Publication No: 5995462271
DOOR
POS. NO PART NO. DESCRIPTION
5 316458300 Glass, oven door, clear, outer
6 316222709 Shield, oven door, wool
7 316236800 Insulation, oven door
8 316088600 Glass, oven door, inner
9 316230616 Liner, oven door
10 316001009 Screw, waf hd sq, 10-24 x 1.88, (2), handle mtg
10B 316008401 Washer, 3/4 OD x 1/4 ID, steel
12 316239700 Seal, oven door
13 316202702 Panel, oven door, white
22 5303272476 Retainer, glass, (2), angle
39 316248301 Handle, oven door, white
60B 316021110 Screw, 8-18 x 0.5, black
* 316433600 Label, anti-tip
* 316245600 Seal, door, air gap
* 316102207 Foil, 1.5" x 29", aluminum, clear
* 316021109 Screw, 8-18 x 0.5, chrome
* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5
* 5303285179 Screw, wafer head, 8-32T x 0.500, black
# Functional Parts
11 02/06
* Non-Illustrated Parts
Page 12
Publication No: 5995462271 FGF328FSA

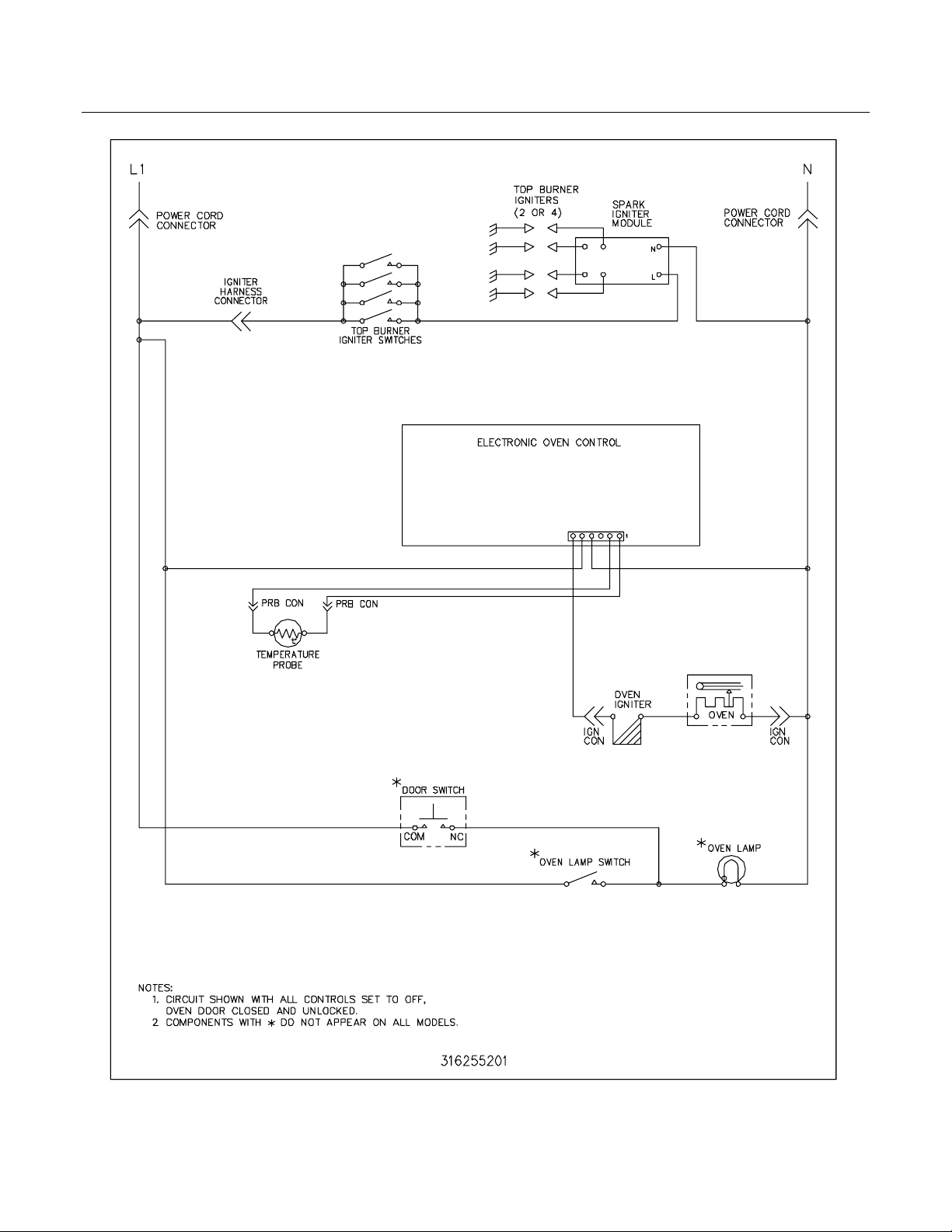

WIRING SCHEMATIC
02/06 12
Page 13
FGF328FSA Publication No: 5995462271

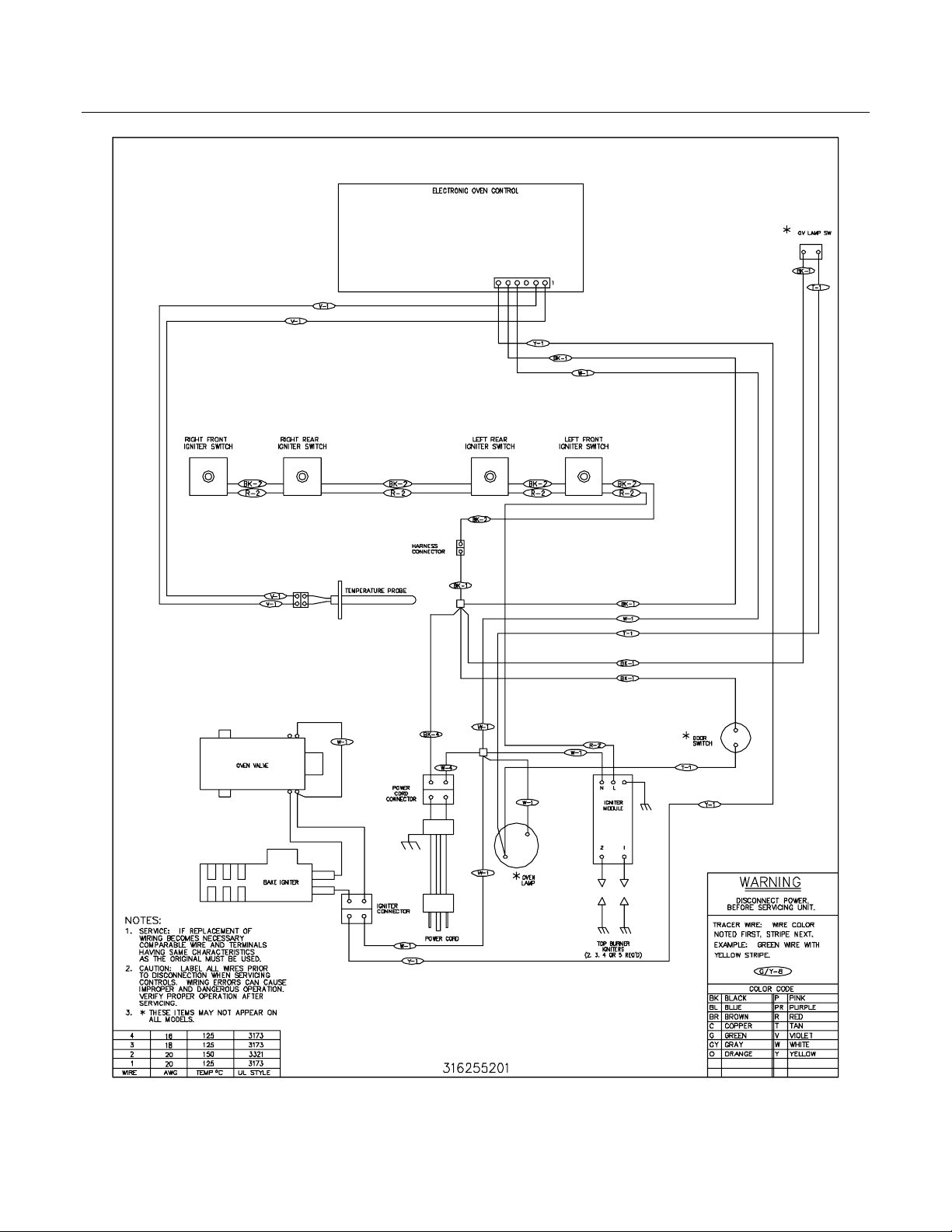

WIRING DIAGRAM
# Functional Parts
13 02/06
* Non-Illustrated Parts
