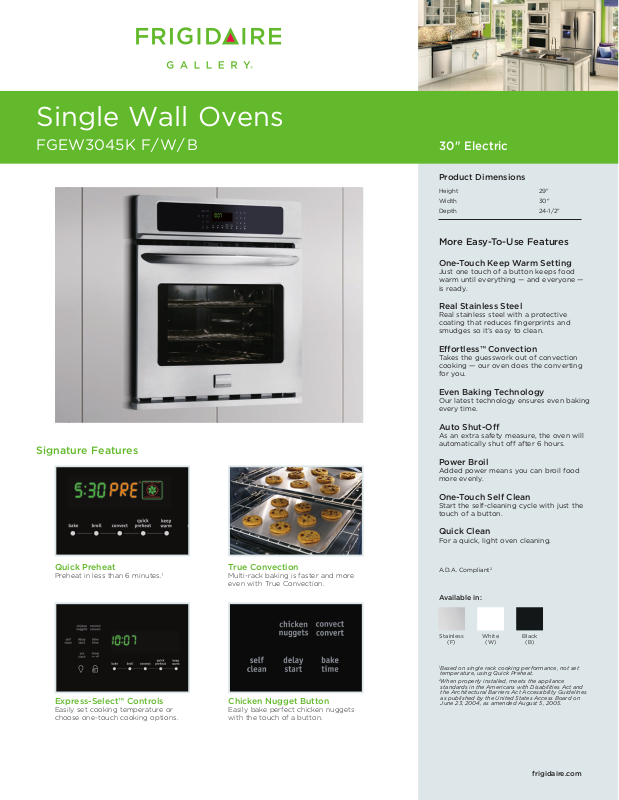

Frigidaire FGEW3045KB User Manual

Single Wall Ovens

FGEW3045K F/ W/ B

Signature Features

30" Electric

Product Dimensions

Height 29"

Width 30"

Depth 24-1/2"

More Easy-To-Use Features

One-Touch Keep Warm Setting

Just one touch of a button keeps food warm until everything — and everyone — is ready.

Real Stainless Steel

Real stainless steel with a protective coating that reduces fingerprints and smudges so it’s easy to clean.

Eortless™ Convection

Takes the guesswork out of convection cooking — our oven does the converting for you.

Even Baking Technology

Our latest technology ensures even baking every time.

Auto Shut-O

As an extra safety measure, the oven will automatically shut off after 6 hours.

Power Broil

Added power means you can broil food more evenly.

Quick Preheat

Preheat in less than 6 minutes.

Express-Select™ Controls

Easily set cooking temperature or choose one-touch cooking options.

True Convection

Multi-rack baking is faster and more even with True Convection.

Chicken Nugget Button

Easily bake perfect chicken nuggets with the touch of a button.

One-Touch Self Clean

Start the self-cleaning cycle with just the touch of a button.

Quick Clean

For a quick, light oven cleaning.

A.D.A. Compliant

Available in:

Stainless

(F)

Based on single rack cooking performance, not set temperature, using Quick Preheat.

When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005.

White

(W)

Black

(B)

frigidaire.com

Features

Spacer

Oven Control / Timing System

Window

Exterior Door Finish

Handle Design

Oven Cleaning System

Express-Select™

Extra-Large

Real Stainless Steel (F), Color-Coordinated (W/B)

Stainless Steel (F), Color-Coordinated (W/B)

Self Clean

Oven Controls

Bake / Broil

Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

Oven Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Bake

Self-Clean

Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Control Lock

Auto Oven Shuto

Oven Lock-Out

Yes / Variable (400 - 500 °F)

Eortless™

Yes / No / Yes

Yes

Quick

Yes

Quick

2, 3, 4 Hours

Yes

Oven Features

Capacity (Cu. Ft.)

Convection System

Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Bake / Broil Element (Watts)

4.2

True Convection

Yes

2 Heavy Duty, 1 Oset Rack

Even Baking Technology

Power Broil

3,400 / 3,400

Optional Accessories

3"-High Bottom Trim – Stainless Steel (F) / White (W) /Black (B)

(F) PN # 318258707 (W) PN # 318258703 (B) PN # 318258704

Certiﬁcations

A.D.A. Compliant

Sabbath Mode (Star-K® Certiﬁed)

Yes

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @ 240 / 208 Volts

Amps @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Approved for Under-Counter Installation

Shipping Weight (Approx.)

16-1/2" x 24-1/8" x 18-1/32"

Left Bottom Rear

240V / 208V / 60Hz

4.1 /3.0

17.0 / 15.0

Yes

175 Lbs.

Single Wall Ovens

FGEW3045K F / W / B 30" Electric

NOTE: For planning purposes only. Always consult local and national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height

B - Width

C - Depth

D - Height (Wrapper)

E - Width (Wrapper)

Depth with Door Open 90˚

29"

30"

24-1/2"

27-3/16"

28-1/4"

44-1/2"

Cutout Dimensions –

Height (min.) / (max.)

Width (min.) / (max.)

Depth (min.)

27-1/4" / 28-5/8"

28-1/2" / 29"

23-1/2"

•

USA

10200 David Taylor Drive

•

CANADA

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

Accessories information available

on the web at frigidaire.com

Specifications

subject to change.
