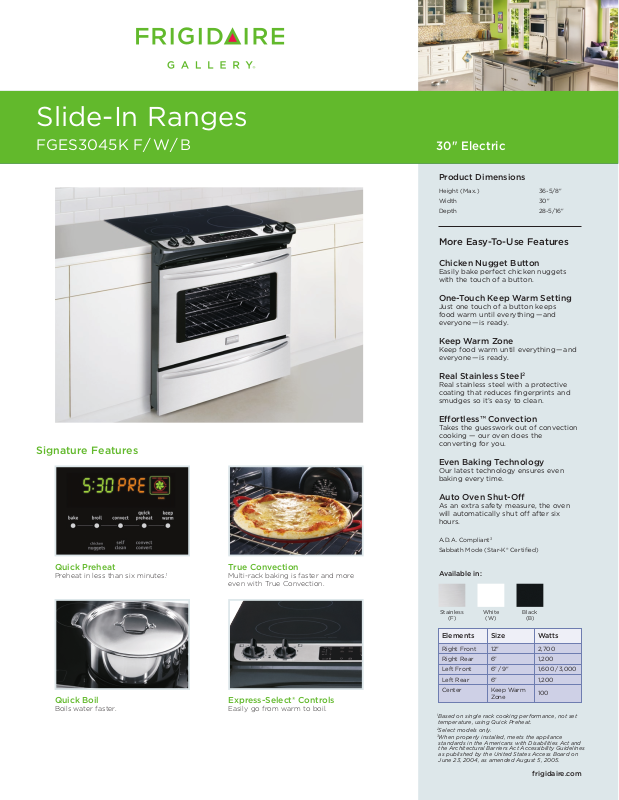

Frigidaire FGES3045K F-W-B User Manual
Slide-In Range
Slide-In Ranges
FPES3085K F
FGES3045K F/ W/ B
Signature Features
30" Electric30" Electric
Product Dimensions
Height (Max.) 36-5/8"
Width 30"
Depth 28-5/16"
More Easy-To-Use Features
Chicken Nugget Button
Easily bake perfect chicken nuggets
with the touch of a button.
One-Touch Keep Warm Setting
Just one touch of a button keeps
food warm until everything — and
everyone — is ready.
Keep Warm Zone
Keep food warm until everything — and
everyone — is ready.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the
converting for you.
Even Baking Technology
Our latest technology ensures even
baking every time.
2
Quick Preheat
Preheat in less than six minutes.
Quick Boil
Boils water faster.
Auto Oven Shut-O
As an extra safety measure, the oven
will automatically shut off after six
hours.
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Available in:
Stainless
(F)
Elements
Right Front
Right Rear
Left Front
Left Rear
Center
Express-Select® Controls
Easily go from warm to boil.
1
Based on single rack cooking performance, not set
temperature, using Quick Preheat.
2
Select models only.
3
When properly installed, meets the appliance
standards in the Americans with Disabilities Act and
the Architectural Barriers Act Accessibility Guidelines
as published by the United States Access Board on
June 23, 2004, as amended August 5, 2005.
3
White
(W)
Size
12"
6"
6" / 9"
6"
Keep Warm
Zone
Black
(B)
Watts
2,700
1,200
1,600 / 3,000
1,200
100
frigidaire.com
Features
B
A
Extreme
protrusion
C
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Express-Select®
Black Ceramic Glass (F)
Color-C. Ceramic Gl. (W/B)
Extra-Large
Real Stainless Steel (F),
Color-Coordinated (W/B)
Stainless Steel (F),
Color-Coordinated (W/B)
Black
True Convection
Self Clean
Storage
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Start
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Lower Drawer Control
Yes / Variable
(400 – 550 °F)
Yes
Yes / Yes / Yes
Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes
Yes
Yes / Yes
6 Hours
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Center Element (Watts)
12" – 2,700
6" – 1,200
6" / 9" – 1,600 / 3,000
6" – 1,200
Keep Warm Zone – 100
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Drawer Rack
4.2
1
Yes
2 Heavy Duty,
1 Oset
Even Baking Technology
Power Broil
3,400 / 3,400
Certifications
A.D.A. Compliant
Sabbath Mode (Star-K® Certified)
1
Yes
Yes
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Amps @ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
When properly installed, meets the appliance standards in the
Americans with Disabilities Act and the Architectural Barriers Act
Accessibility Guidelines as published by the United States
Access Board on June 23, 2004, as amended August 5, 2005.
16-1/2" x 24-1/8" x 18-1/32"
Left Bottom Rear
240V / 208V / 60 Hz
12.4 / 9.3
51.7 /44.7
40
240 Lbs.
Slide-In Ranges
FGES3045K F/ W/ B 30" Electric
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

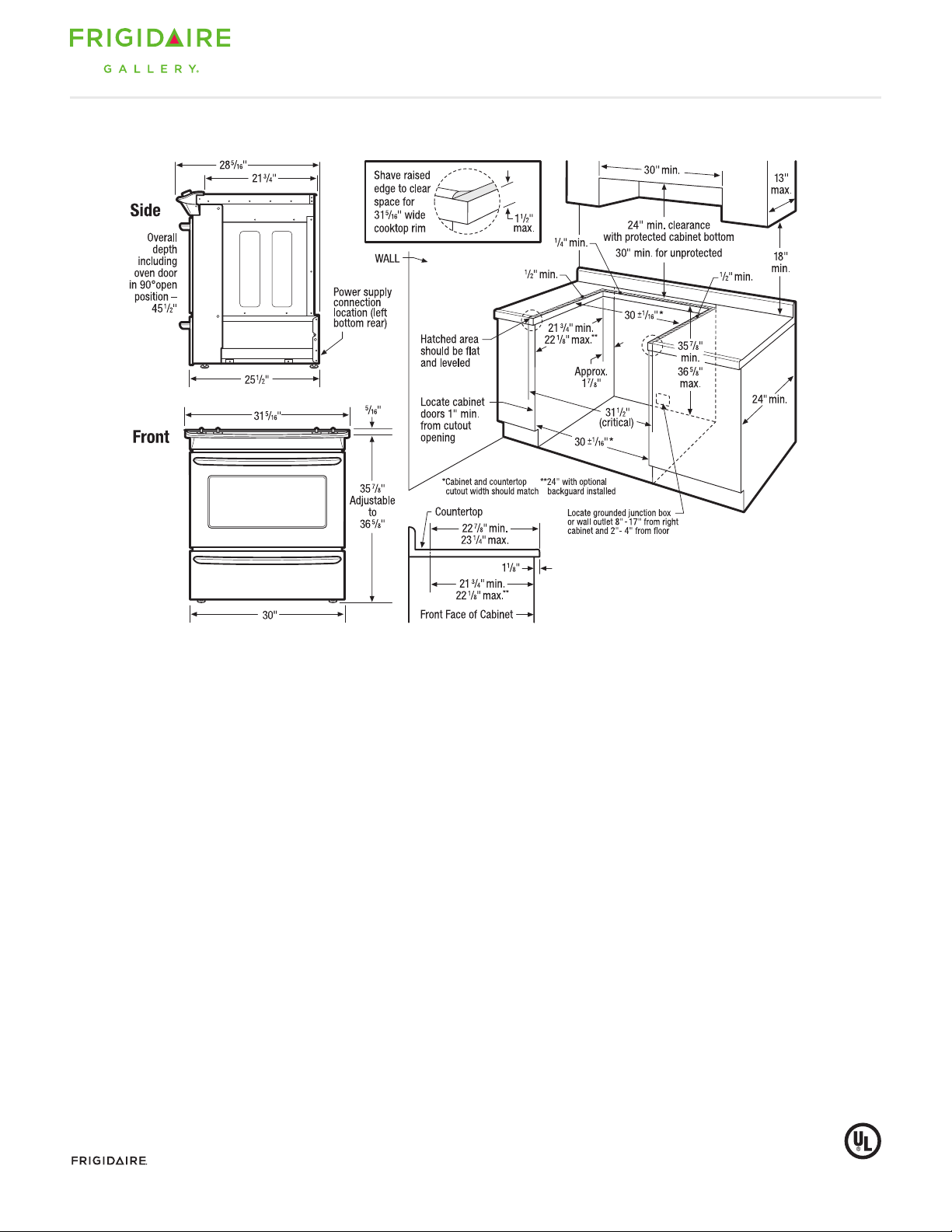

Product Dimensions
A - Height (Max.)
B - Width
C - Depth
Depth with Door Open 90˚
36-5/8"
30"
28-5/16"
45-1/2"
Cutout Dimensions
Height (Min.) / (Max.)
Width (Min.) / (Max.)*
Depth (Min.) / (Max.)**
*Cutout and countertop cutout width should match.
**24" with optional backguard installed.
35-7/8" / 36-5/8"
29-15/16" / 30-1/16"
21-3/4" / 22-1/8"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FGES3045K 02/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
