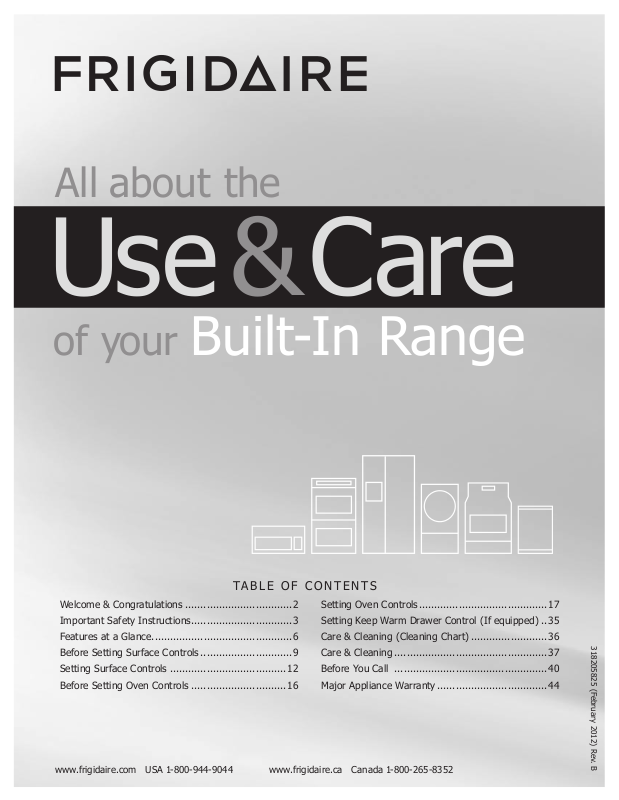

Frigidaire FGES3045KF, FGES3065KW, FGES3065KB, FGES3065KF, FGES3045KW User Manual

...

All about the

Use & Care

of your Built-In Range

TABLE OF CONTENTS

Welcome & Congratulations ...................................2

Important Safety Instructions .................................3

Features at a Glance ..............................................6

Before Setting Surface Controls ..............................9

Setting Surface Controls ......................................12

Before Setting Oven Controls ............................... 16

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

Setting Oven Controls .......................................... 17

Setting Keep Warm Drawer Control (If equipped) .. 35

Care & Cleaning (Cleaning Chart) ......................... 36

Care & Cleaning ..................................................37

Before You Call ..................................................40

Major Appliance Warranty ....................................44

318205825 (February 2012) Rev. B

WELCOME & CONGRATULATIONS

Product Registration

The PRODUCT REGISTRATION CARD

should be ﬁ lled in completely,

signed and returned to Electrolux Home Products.

Serial Plate Location

Congratulations on your purchase of a new appliance! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority.

We know you’ll enjoy your new appliance and Thank You for choosing our product. We hope you consider us for future purchases.

PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your product may not have all the described features. The graphics shown are representative. The graphics on your appliance may not look exactly like those shown. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

NOTE



Please attach sales receipt here for future reference.

Please record your model and serial numbers below for future reference.

Model Number:

Serial Number:

Purchase Date:

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance. Save these instructions for future reference.

DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

WARNING

This symbol will help alert you to situations

that may cause serious bodily harm, death or

property damage.

CAUTION

This symbol will help alert you to situations that may cause bodily injury or property damage.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

WARNING

Tip Over Hazard

• Remove all tape and packaging wrap before using the appliance. Destroy the carton and plastic bags after unpacking the appliance. Never allow

children to play with packaging material. Do not remove the wiring label and other literature attached to the appliance. Do not remove model/serial number plate.

• Proper Installation. Be sure your appliance is properly installed and grounded by a qualiﬁ ed

technician in accordance in the United States with the National Electrical Code ANSI/NFPA No.

70-latest edition, and local code requirements,

and in Canada with CSA C22.1 PART 1-latest

edition and local code requirements. Install only per installation instructions provided in the literature package for this range.

Ask your dealer to recommend a qualiﬁ ed technician

and an authorized repair service. Know how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in case of an emergency.

• User Servicing. Do not repair or replace any part of the appliance unless speciﬁ cally

recommended in the manuals. All other servicing

should be done only by a qualiﬁ ed technician to

reduce the risk of personal injury and damage to the appliance.

• Never modify or alter the construction of an appliance by removing leveling legs, panels, wire covers, anti-tip brackets/screws, or any other part of the product.

A child or adult can tip the range • and be killed.

Verify the anti-tip device has been •

installed to ﬂ oor or wall.

Ensure the anti-tip device is re-engaged to ﬂ oor or •

wall when the range is moved. Do not operate the range without the anti-tip device •

in place and engaged. Failure to follow these instructions can result in •

death or serious burns to children and adults.

Range Leveling Leg

To check if the anti-tip bracket is installed properly, use both arms and grasp the rear edge of range back. Carefully attempt to tilt range forward. When properly installed, the range should not tilt forward.

Refer to the anti-tip bracket installation instructions supplied with your range for proper installation.

Anti-Tip Bracket

WARNING

Stepping, leaning, sitting or pulling down on the door or the drawer of this appliance can result

in serious injuries and also cause damage to the

appliance. Do not allow children to climb or play around the appliance. The weight of a child on an open door may cause the appliance to tip, resulting in serious burns or other injury. An open drawer when hot may cause burns.

WARNING

Do not use the oven or warm & serve drawer (if equipped) for storage.

• Storage in or on Appliance. Flammable materials should not be stored in an oven, near surface burners or in the warm & serve drawer (if equipped). This includes paper, plastic and cloth

items, such as cookbooks, plastic ware and towels, as

well as ﬂ ammable liquids. Do not store explosives, such

as aerosol cans, on or near the appliance. Flammable

materials may explode and result in ﬁ re or property

damage.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

Do not store items of interest to children in the

cabinets above the appliance. Children climbing on the cooktop to reach items could be seriously injured.

• Do not leave children alone. Children should not

be left alone or unattended in the area where an

appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

• DO NOT TOUCH SURFACE UNITS, AREAS NEAR

THESE UNITS, OVEN HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN OR WARMER

DRAWER (if equipped). Both surface units and oven heating elements may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do

not touch, or let clothing or other ﬂ ammable materials touch these areas until they have had sufﬁ cient time

to cool. Among these areas are the cooktop, surfaces facing the cooktop, the oven vent openings and surfaces near these openings, oven door and window.

• Wear Proper Apparel. Loose-ﬁ tting or hanging garments should never be worn while using the appliance. Do not let clothing or other ﬂ ammable

materials contact hot surfaces.

WARNING

NEVER use your appliance as a space heater to

heat or warm the room.

• Do Not Use Water or Flour on Grease Fires. Smother the ﬁ re with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat

or grease may catch ﬁ re if allowed to become too hot.

• Use Only Dry Pot holders. Moist or damp pot

holders on hot surfaces may result in burns from steam. Do not let the pot holders touch hot surface

units. Do not use a towel or other bulky cloth instead of a pot holder.

• Do Not Heat Unopened Food Containers. Buildup of pressure may cause the container to burst and

result in injury.

• Remove the oven door from any unused appliance if it is to be stored or discarded.

IMPORTANT

Do not attempt to operate the appliance during a power failure. If the power fails, always turn off

the unit. If the unit is not turned off and the power resumes, the appliance will not operate and an error message will be displayed. Once the power resumes, reset the clock and the oven function.

CAUTION

Electronic controllers can be damaged by cold

temperatures. When you use your appliance for the ﬁ rst time, or if it has not been used for a long period of time, make sure that it has been exposed to a temperature above 0°C/32°F for at least 3 hours before connecting it to the power supply.

IMPORTANT INSTRUCTIONS FOR USING YOUR COOKTOP

• Know which knob controls each surface heating

unit. Place pan of food on the element before turning it on, and turn the element off before removing the pan.

•

Use Proper Pan Size—This appliance is equipped with

one or more surface burners of different sizes. Select

utensils having ﬂ at bottoms large enough to cover the

surface unit. The use of undersized utensils will expose a portion of surface heating unit to direct contact and may result in ignition of clothing. Proper relationship of

utensil to the surface will also improve efﬁ ciency.

• Utensil Handles Should Be Turned Inward

and Should Not Extend Over Adjacent Surface

Units—To reduce the risk of burns, ignition of

ﬂ ammable materials, and spillage due to unintentional

contact with the utensil. The handle of the utensil should be positioned so that it is turned inward, and does not extend over adjacent surface unit.

• Do not use Searing Grill on the cooktop—The Searing grill is not designed for use on the cooktop.

Doing so may result in a ﬁ re.

• Never Leave Surface Units Unattended—Boilovers

cause smoking and greasy spillovers that may ignite, or a pan that has boiled dry may melt.

• Protective Liners—Do not use aluminum foil to line oven bottom or any other part of the appliance. Only use aluminum as recommended for baking if used as a cover placed on the food. Any other used of protective liners or aluminum foil may result in a risk of electric

shock or ﬁ re or a short circuit.

• Glazed Cooking Utensils—Only certain types of glass,

glass/ceramic, ceramic, earthenware, or other glazed

IMPORTANT SAFETY INSTRUCTIONS

utensils are suitable for cooktop service without breaking due to the sudden change in temperature. Check the manufacturer’s recommendations for cooktop use.

• Do Not Use Decorative Surface Burner Covers. If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop.

FOR GLASS COOKTOP ONLY

• Do Not Clean or Operate a Broken Cooktop— If cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a

risk of electric shock. Contact a qualiﬁ ed technician

immediately.

• Clean Cooktop Glass with Caution— If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid a steam burn. Some cleaners can produce harmful fumes if applied to a hot surface.

• Avoid Scratching the Cooktop Glass with Sharp

Objects.

IMPORTANT SAFETY INSTRUCTIONS FOR USING YOUR OVEN

• Use Care When Opening Oven Door or Warm

& Serve Drawer (if equipped)—Stand to the side

of the appliance when opening the door/drawer of a hot appliance. Let hot air or steam escape before you remove or replace food in the oven/drawer.

• Keep Oven Vent Ducts Unobstructed. The oven is

vented at the front above the oven door. Touching the surfaces in this area when the oven is operating may cause severe burns. Also, do not place plastic or heatsensitive items on or near the oven vent. These items could melt or ignite.

WARNING

NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with

materials such as aluminum foil. Doing so blocks

air ﬂ ow through the oven and may cause carbon

monoxide poisoning. Aluminum foil linings may trap

heat, causing a ﬁ re hazard.

• Placement of Oven/Warm & Serve Drawer (if

equipped) Racks. Always place oven/Warm & Serve

Drawer (if equipped) racks in desired location while appliance is cool. Remove all utensils from the rack before removing rack. If rack must be moved while oven is hot, use extreme caution. Use pot holders and grasp the rack with both hands to reposition. Do not let

pot holders contact the hot oven element or interior of the oven/Warm & Serve Drawer (if equipped).

• Do not use a broiler pan without its insert. Broiler pan and grid allow dripping fat to drain and be kept away from the high heat of the broiler.

• Do not cover the broiler grid or oven bottom

with aluminum foil. Exposed fat and grease could ignite.

• Do not touch a hot oven light bulb with a damp

cloth. Doing so could cause the bulb to break. Disconnect the appliance or shut off the power to the appliance before removing and replacing the bulb.

IMPORTANT SAFETY INSTRUCTIONS FOR CLEANING YOUR OVEN

• Clean the appliance regularly to keep all parts free of grease that could catch ﬁ re. Exhaust fan

ventilation hoods and grease ﬁ lters should be kept

clean. Do not allow grease to accumulate. Greasy

deposits in the fan could catch ﬁ re. Refer to the hood

manufacturer’s instructions for cleaning.

• Cleaners/Aerosols—Always follow the manufacturer’s recommended directions for use. Be aware that excess residue from cleaners and aerosols may ignite causing damage and/or injury.

• Clean in the self-cleaning cycle only the parts of the appliance listed in this Owner’s Guide. Before

using the self-cleaning cycle of the appliance, remove all utensils stored in the appliance.

• Do not clean the oven door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

• Do not use oven cleaners. No oven cleaner or oven liner protective coating of any kind should be used in or around any part of the appliance.

• Remove oven racks. Oven racks color will change if left in the oven during a self-cleaning cycle.

CAUTION

The health of some birds is extremely sensitive to the fumes given off during the self-clean cycle of any wall oven. Move birds to another well ventilated room.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

FEATURES AT A GLANCE - MODEL A

set

clock

123

456

789

bake broilconvect

cancelstart

chicken

nuggets

delay start

bake time

quick

preheat

keep warm

self clean

convect convert

on·off

low

med

keepwarm

zone

Your built-in range Features:

1. Electronic oven control with kitchen timer.

2. Left front element control.

3. Left rear element control.

4. Right rear element control.

5. Right front element control.

6. Keep warm zone control.

7. Element on indicator light.

8. Automatic oven door light switch.

9. Self-clean door latch.

10. Oven vent.

11. Broil element.

12. Self-cleaning oven interior.

13. Convection bake cooking system.

14. Oven interior light with removable cover.

15. Adjustable interior oven rack(s).

16. Large 1-piece oven door handle.

17. Full width oven door with window.

18. Storage drawer.

19. 6” single radiant element.

20. Keep warm radiant element.

21. 6” single radiant element.

22. 6”/9” double radiant element.

23. 12” single radiant element.

24. Ceramic glass cooktop.

25. Hot surface indicator light.



NOTE

The features shown for your appliance may vary according to model type & color.

Your built-in range Features:

set

clock

123

456

789

bake broilconvect

cancelstart

chicken

nuggets

delay start

bake time

quick

preheat

keep warm

self

clean

convect convert

on·off

low

med

keepwarm

zone

1. Electronic oven control with kitchen timer.

2. Electronic element control digital displays.

3. Keep warm zone control.

4. Warm & serve drawer control.

5. Left front element control.

6. Left rear element control.

7. Right rear element control.

8. Right front element control.

9. Element on indicator light.

10. Cooktop on indicator light.

11. Automatic oven door light switch.

12. Self-clean door latch.

13. Oven vent.

14. Broil element.

15. Self-cleaning oven interior.

16. Convection bake cooking system.

17. Oven interior light with removable cover.

18. Adjustable interior oven rack(s).

19. Large 1-piece oven door handle.

20. Full width oven door with window.

21. Warm & serve drawer with large 1-piece handle.

FEATURES AT A GLANCE - MODEL B

22. 6” single radiant element.

23. Keep warm radiant element.

24. 6” single radiant element.

25. 6”/9” double radiant element.

26. 9”/12” double radiant element.

27. Ceramic glass cooktop.



NOTE

The features shown for your appliance may vary according to model type & color.

FEATURES AT A GLANCE - MODEL C

set

clock

keepwarm drawer

on·off

123

456

789

bake broilconvect

cancelst ar t

pizza

chicken

nuggets

add

amin

delay start

bake time

powerplus

preheat

keep warm

self clean

convect convert

low

med

favorite

14 14

Your built-in range Features:

1. Electronic oven control with kitchen timer.

2. Left rear burner control.

3. Keep warm zone control.

4. Warm & serve drawer control.

5. Left front element control.

6. Left rear element control.

7. Right rear element control.

8. Right front element control.

9. Element on indicator light.

10. Cooktop on indicator light.

11. Automatic oven door light switch.

12. Self-clean door latch.

13. Oven vent.

14. 2 Oven interior light with removable cover.

15. Broil element.

16. Self-cleaning oven interior.

17. Convection bake cooking dual fan system.

18. Adjustable interior oven rack(s).

19. Large 3-piece oven door handle.

20. Full width oven door with window.

21. Warm & serve drawer.

22. 7” single radiant element.

23. Keep warm radiant element.

24. 5”/7” double radiant element.

25. Bridge radiant element.

26. 7” single radiant element.

27. 9” single radiant element.

28. Ceramic glass cooktop.



NOTE

The features shown for your appliance may vary according to model type & color.

BEFORE SETTING SURFACE CONTROLS

About the ceramic glass cooktop

The ceramic cooktop has radiant surface elements located below the surface of the glass. The design of the ceramic cooktop outlines the area of the surface element underneath. Be sure to match the pan size with the diameter of the element outline on the cooktop and only

ﬂ at-bottom cookware should be used.

The type and size of cookware, the number of surface elements in use and their settings, are all factors that will affect the amount of heat that will spread to areas beyond the surface elements. The areas surrounding the elements may become hot enough to cause burns.

About the radiant surface elements

The element temperature rises gradually and evenly. As the temperature rises, the element will glow red. To maintain the selected setting the element will cycle on and off. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle.

For efﬁ cient cooking, turn off the element several minutes

before cooking is complete. This will allow residual heat to complete the cooking process.

Element ON & hot surface indicator lights

Your appliance is equipped with two different types of radiant surface control indicator lights that will glow on the backguard- the Element On indicator light and the hot surface indicator lights.

The element ON indicator lights are located on the control panel (Figure 1) between the two radiant element control knob and will glow when a surface element is turned ON.

Model A only: The hot surface indicator light located on the cooktop (Figure 2) will glow when any surface cooking area heats up and will remain on until the glass cooktop has cooled to a MODERATE level.

Figure 2 - Model A only

Hot surface indicator light location.

NOTE



Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is too small for the radiant element or if the

cookware bottom is not ﬂ at.

Be sure to read detailed instructions for ceramic glass cooktop cleaning in the General Care & Cleaning section and Before You Call checklist section of this Use and Care Guide.

Figure 1

Element ON indicator light location.

BEFORE SETTING SURFACE CONTROLS

The electronic surface element control

(ESEC) (Models B & C only)

The Electronic Surface Element Control (ESEC) feature includes digital display windows. The ESEC feature provides a numeric digital setting for the radiant surface element positions on the cooktop. These settings work the same way as normal knob setting indicators work except the settings are displayed in digital windows.

The available ESEC display settings

The ESEC control provides various heat levels from Hi (Figure 2) to Lo (Figure 5) and OFF (Figure 1). The settings between 3.0 and 9.5 increase or decrease in increments of .5 (1/2). The settings between 1.2 and

3.0 are Simmer settings which decrease or increase in increments of .2 (1/5) to Lo (Figure 5; lowest Simmer setting) for more precise settings at lower heat levels. Use the Recommended Surface Setting Chart to determine the correct setting for the kind of food you are preparing.

ESEC power failure indicator message (PF)

When the range is ﬁ rst plugged in or when the power

supply to the range has been interrupted, the ESEC control will display the message "PF" (Power Failure; Figure 6). After a few seconds the "PF" message will disappear from the display.

ESEC hot element indicator message (HE)

After using any of the single or dual radiant element positions the cooktop will become very hot. Even after turning the control knob to OFF, the cooktop will remain hot for some time. The ESEC control monitors the temperature of the cooktop and displays the message “HE” (hot element) warning when the cooktop is still too hot to touch (Figure 4). If the HE message appears in the window, the control can still be turned ON again for use.

ESEC error indicator message (Er)

An error message will be displayed (glowing “Er”) at power up (or after a power failure) if ANY of the surface control knobs were left in the ON positions (Figure 7). If a power failure should occur, be sure to set all of the surface control knobs to the OFF position. This will reset the surface controls. Once the surface controls have been set to the OFF positions, the surface controls should return to normal operation. If the surface controls do not function and the “Er” message remains in any display after following these procedures, contact your authorized servicer for assistance.

ESEC Lockout Feature ( - - )

The ESEC feature will not operate during a Self-Clean cycle or when the Lockout feature is active. Whenever the Lockout feature is active, “ - - “ will appear in any ESEC digital display windows (See Figure 8) to show that all surface elements can not be activated.

Figure 1

Figure 4

Surface cooking settings

Use the chart to determine the correct setting for the type of food you are preparing.

Note: The size and type of cookware used will inﬂ uence

the setting needed for best cooking results.

Recommended Setting for Surface Element

Setting Type of Cooking

HIGH (HI) Start most foods; bring water to a boil

MEDIUM HIGH (8-10)

MEDIUM (6) Maintain a slow boil; thicken sauces

MEDIUM LOW (2 - 4)

LOW (LO) Keep warm, melting and simmering.



Radiant elements have a limiter that allows the element to cycle on and off, even at the HI setting. This helps to prevent damage to the ceramic smooth top. Cycling at the HI setting is normal and can occur if the cookware is too small for the radiant element or if the cookware

bottom is not ﬂ at.

Fig. 2

Figure 2

Figure 5

Control knobs shown are typical only.

and pan broiling.

Continue a rapid boil; frying, deep fat frying.

and gravies; steaming vegetables.

Keep foods cooking; poaching and stewing.

Figure 3

Figure 6

Figure 7

Figure 8

NOTE

BEFORE SETTING SURFACE CONTROLS

Using proper cookware

The size and type of cookware used will inﬂ uence the

setting needed for best cooking results. Be sure to follow the recommendations for using proper cookware as illustrated in Figures 1 & 2.

Cookware should have ﬂ at bottoms that make good

contact with the entire surface heating element (Figure

1). Check for ﬂ atness by rotating a ruler across the

bottom of the cookware (Figure 2).

Cookware material types

The cookware material determines how evenly and quickly heat is transferred from the surface element to the pan bottom. The most popular materials available are:

Aluminum- Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining & pitting). If aluminum pans slide across the ceramic glass cooktop, they may leave metal marks which will resemble scratches. Remove these marks immediately.

Copper- Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (see Aluminum above).

Stainless steel- Slow heat conductor with uneven cooking results. Is durable, easy to clean and resists staining.

Cast iron- A poor heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

Porcelain-enamel on metal- Heating characteristics will vary depending on base material. Porcelain-enamel coating must be smooth to avoid scratching ceramic cooktops.

Glass- Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the glass.

Figure 1

Figure 2

NOTE



Due to the high intensity of heat generated by the surface elements, the glass surface will turn green when the element will be turned off. This phenomenon is normal and the glass will come back to its original white color after it has completely cooled down. (White glass cooktops only).

SETTING SURFACE CONTROLS

Single radiant surface elements (all models)

The cooktop has 2 or 3 SINGLE radiant surface elements: the left rear position (Figures 1, 2 & 3), the right rear position (Figures 1 and 2), and the right front position (Figures 1 and 3). The left rear element may also be used with the Bridge element (Model C only - Figure 3).

To Operate the Single Radiant Surface Elements

1. Place correctly sized cookware on the radiant surface element.

2. Push in and turn the surface control knob in either direction to the desired setting (Figure 4). Start most cooking operations on a higher setting and then turn

to a lower setting to ﬁ nish cooking. Each surface

element provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small for the surface heating area.

3. When cooking has completed, turn the surface control knob to OFF before removing the cookware.

NOTE



The surface “Element On” indicator lights will glow when one or more elements are turned on. A quick

glance at these indicator lights when cooking is ﬁ nished

is an easy check to be sure all surface elements are turned off.

Figure 1 - Model A Figure 2 - Model B

Figure 3 - Model C

NOTE



See Recommended Setting for Surface Element table on page 10.

CAUTION

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on cooktop when it is in use. These

items could melt or ignite. Potholders, towels or

wooden spoons could catch ﬁ re if placed too close to

the surface elements.

CAUTION

Do not allow aluminum foil, or ANY material that can melt to make contact with the ceramic glass

cooktop. If these items melt on the cooktop they will damage the ceramic cooktop.

Figure 4 - Control knob shown is typical only.

CAUTION

Radiant surface elements may appear to have cooled after they have been turned OFF. HE (Hot Element) message (Models B & C) or the hot surface indicator light (Model A) will turn ON and will continue to glow until the glass cooktop has cooled down to a moderate level. The glass surface may still be hot and burns may occur if the glass surface is touched before the indicator light has turned OFF. The message may remain on even though the controls are turned OFF.

Dual Surface Radiant Element (all models)

The cooktop is equipped with 1 or 2 dual radiant surface elements located at the left front (Figures 1& 2) and the right front (Figure 2) or the right rear (Figure 3) position. Symbols around the knob are used to indicate which coil of the dual radiant element will heat. The symbol indicates that only the inner coil will heat (Figure

4). The symbol indicates that both inner and outer coils will heat (Figure 5). You may switch from either coil setting at any time during cooking.

To Operate the Dual Surface Element

1. Place correctly sized cookware on the dual surface element.

2. Push in and turn the control knob to the inner coil symbol for smaller cookware (Figure 4) or to inner and outer coil symbol for larger cookware (Figure 5). Turn the knob to adjust the setting if needed. Start most cooking operations on a higher setting and then

turn to a lower setting to ﬁ nish cooking. Each surface

3. When cooking has completed, turn the surface

control knob to OFF before removing the

cookware.

SETTING SURFACE CONTROLS

Figure 1 - Model A

Figure 3 - Model C

Figure 2 - Model B

NOTE



The surface “Element On” indicator lights will glow when one or more elements are turned on. A quick

glance at these indicator lights when cooking is ﬁ nished

is an easy check to be sure all surface elements are turned off.

CAUTION

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on cooktop when it is in use. These items could melt or

ignite. Potholders, towels or wooden spoons could catch

ﬁ re if placed too close to the surface elements.

CAUTION

Do not allow aluminum foil, or ANY material that can melt to make contact with the ceramic glass

cooktop. If these items melt on the cooktop they will damage the ceramic cooktop.

Figure 5Figure 4

NOTE



See Recommended Setting for Surface Element table on page 10.

CAUTION

SETTING SURFACE CONTROLS

Bridge surface radiant element (Model C only)

The cooktop is equipped with a “BRIDGE” surface element located at the left front and middle (Fig. 1) positions. The Bridge can be used when cooking with rectangular (like a griddle) or oval shaped cookware. The element will maintain an even temperature setting across both portions of the Bridge. If needed for normal cookware, the Bridge element can work like a single element without the Bridge (Fig. 4). The symbol indicates that only the front potion will heat (Fig. 2). The symbol indicates that both front and middle portions will heat (Fig. 3). You may switch from either coil setting at any time during cooking.

To Operate the Bridge Surface Element

1. Place correctly sized cookware on the Bridge surface element.

2. Push in and turn the control knob as shown in Figure 2 to heat the front portion of the Bridge element for normal shaped cookware or in Figure 3 for larger or rectangular shaped cookware. Turn the knob to adjust the setting if needed. Start most cooking operations on a higher setting and then turn to a

lower setting to ﬁ nish cooking. Each surface element

provides a constant amount of heat at each setting. A glowing red surface heating area extending beyond the bottom edge of the cookware indicates the cookware is too small. Please note that not all

cookware will ﬁ t the Bridge element correctly.

3. When cooking has completed, turn the surface control knob to OFF before removing the cookware.

The BRIDGE element may also be used in combination with the left rear single element (Fig. 6). Because these elements have 2 different controls, one element can be used to cook while the other element may be used to keep food warm.

Figure 1

Figure 2 Figure 3

CAUTION

Do not place plastic items such as salt and pepper shakers, spoon holders or plastic wrappings on cooktop when it is in use. These items could melt or

ignite. Potholders, towels or wooden spoons could catch

ﬁ re if placed too close to the surface elements.

Do not allow aluminum foil, or ANY material that can melt to make contact with the ceramic glass

cooktop. If these items melt on the cooktop they will damage the ceramic cooktop.

NOTE



The surface “Element On” indicator lights will glow when one or more elements are turned on. A quick glance at

these indicator lights when cooking is ﬁ nished is an easy

check to be sure all surface elements are turned off.

Figure 4

Front portion

only

Figure 5

Front & Middle

portions

Figure 6

Front & Middle

plus Left Rear

CAUTION

Radiant surface elements may appear to have cooled after they have been turned OFF. HE (Hot Element) message will turn ON and will continue to glow until the glass cooktop has cooled down to a moderate level. The glass surface may still be hot and burns may occur if the glass surface is touched before the indicator light has turned OFF. The message may remain on even though the controls are turned OFF.

+ 30 hidden pages
