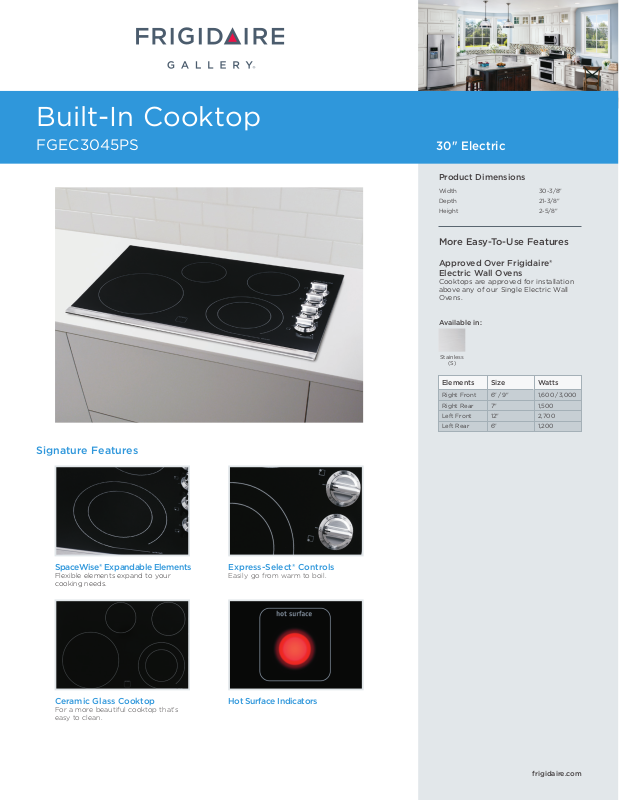

FRIGIDAIRE FGEC3045PS User Manual

Built-In Cooktop

FGEC3045PS

30" Electric

Product Dimensions

Width 30-3/8"

Depth 21-3/8"

Height 2-5/8"

More Easy-To-Use Features

Approved Over Frigidaire®
Electric Wall Ovens

Cooktops are approved for installation
above any of our Single Electric Wall
Ovens.

Available in:

Stainless

(S)

Elements

Right Front

Right Rear

Left Front

Left Rear

Size

6" / 9"

7"

12"

6"

Watts

1,600 / 3,000

1,500

2,700

1,200

Signature Features

SpaceWise® Expandable Elements

Flexible elements expand to your
cooking needs.

Ceramic Glass Cooktop

For a more beautiful cooktop that’s
easy to clean.

Express-Select® Controls

Easily go from warm to boil.

Hot Surface Indicators

frigidaire.com

A

B

C

Features

Controls

Surface Type

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Hot Surface Indicators

Control Location

Knob Color

Knob Type

Express-Select®

Black Ceramic Glass

6" / 9" - 1,600 / 3,000

7" - 1,500

12" - 2,700

6" - 1,200

Yes

Right Side

Stainless Steel

Cast Metal

Specifications

Power Supply Connection Location

Voltage Rating

Connected Load
(kW Rating) @ 240 / 208 Volts

Amps @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Approved for Electric Single
Wall Oven Combination Installation

Shipping Weight (Approx.)

1

Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC
only electrical supply with ground required on separate circuit fused on
both sides of line.

2

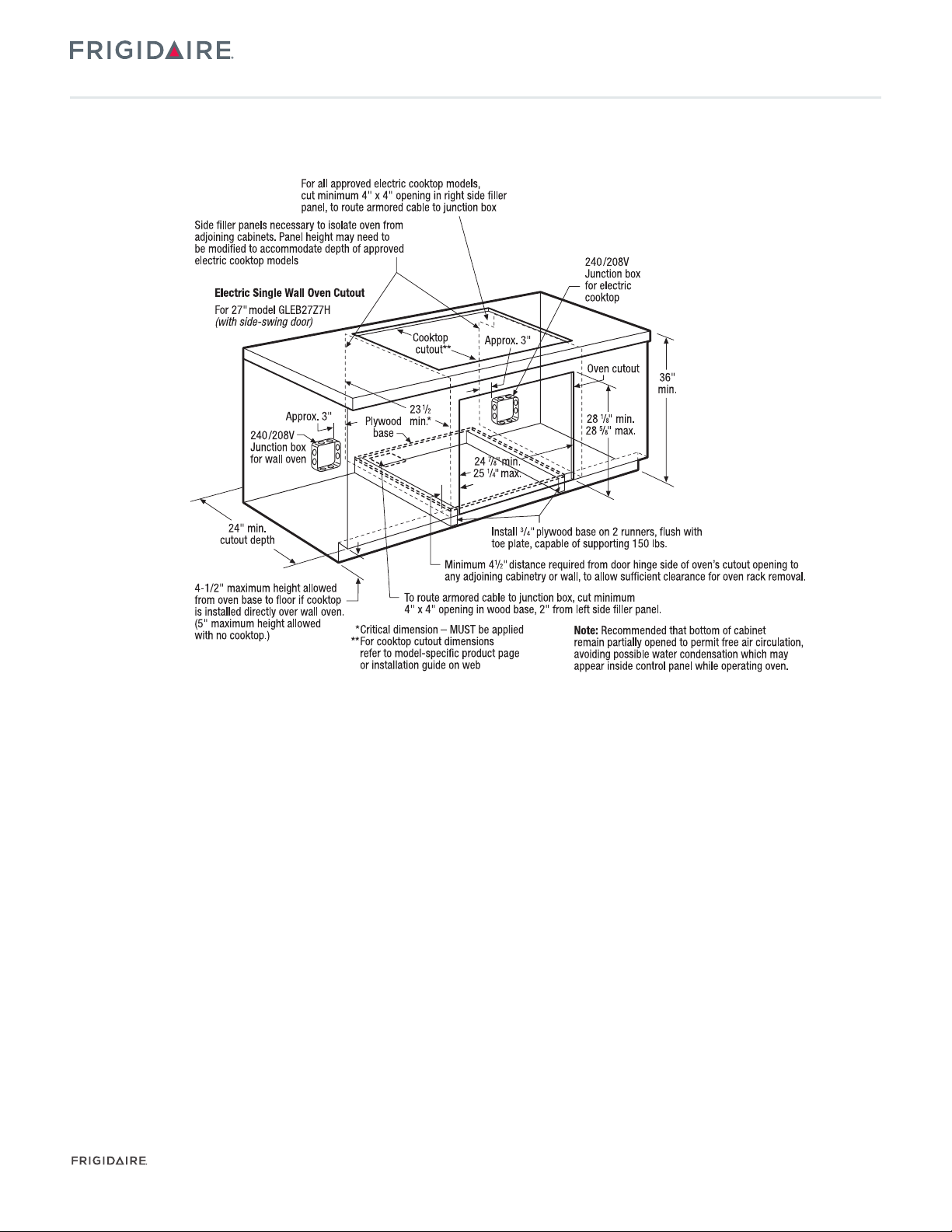

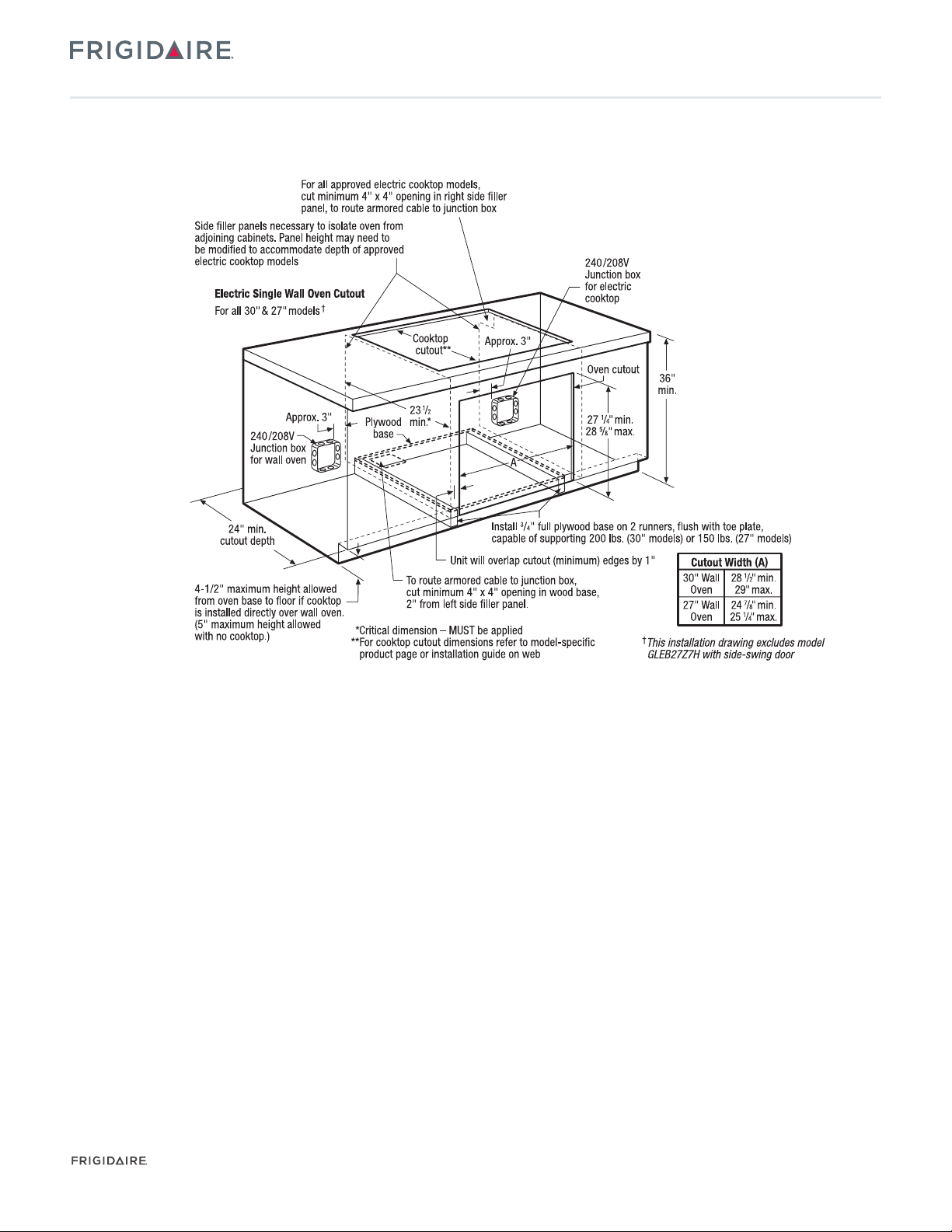

Cooktops are approved for installation above any of our Electric Single
Wall Ovens.

1

2

Right Rear

240V /208V / 60Hz

8.4 / 6.3

35.0 / 30.3

40

Yes

60 Lbs.

Built-In Cooktop

FGEC3045PS 30" Electric

NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web
at frigidaire.com.

Product Dimensions

A - Width

B - Depth

C - Height

30-3/8"

21-3/8"

2-5/8"

Cutout Dimensions

Width (Min.) / (Max.)

Depth (Min.) / (Max.)

Height

29-5/8" / 29-7/8"

20-1/4" / 20-1/2"

5"

Granite Countertop

Installation Kit available.

•

USA

10200 David Taylor Drive

•

CANADA

FGEC3045P 12/13 © 2013 Electrolux Home Products, Inc.

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

Accessories information available

on the web at frigidaire.com

Specifications

subject to change.
