Frigidaire FGBM19WNVD Part List

Product No. FGBM19WNVDA FGBM19WNVFA

Series Gallery Gallery

Market North America North America

Color black stainless stainless

Volts 120 120

Watts 1000 1000

Wiring Diagram A06823416 A06823416

Owner's Guide A06823414 A06823414

Installation Instructions A06823415 A06823415

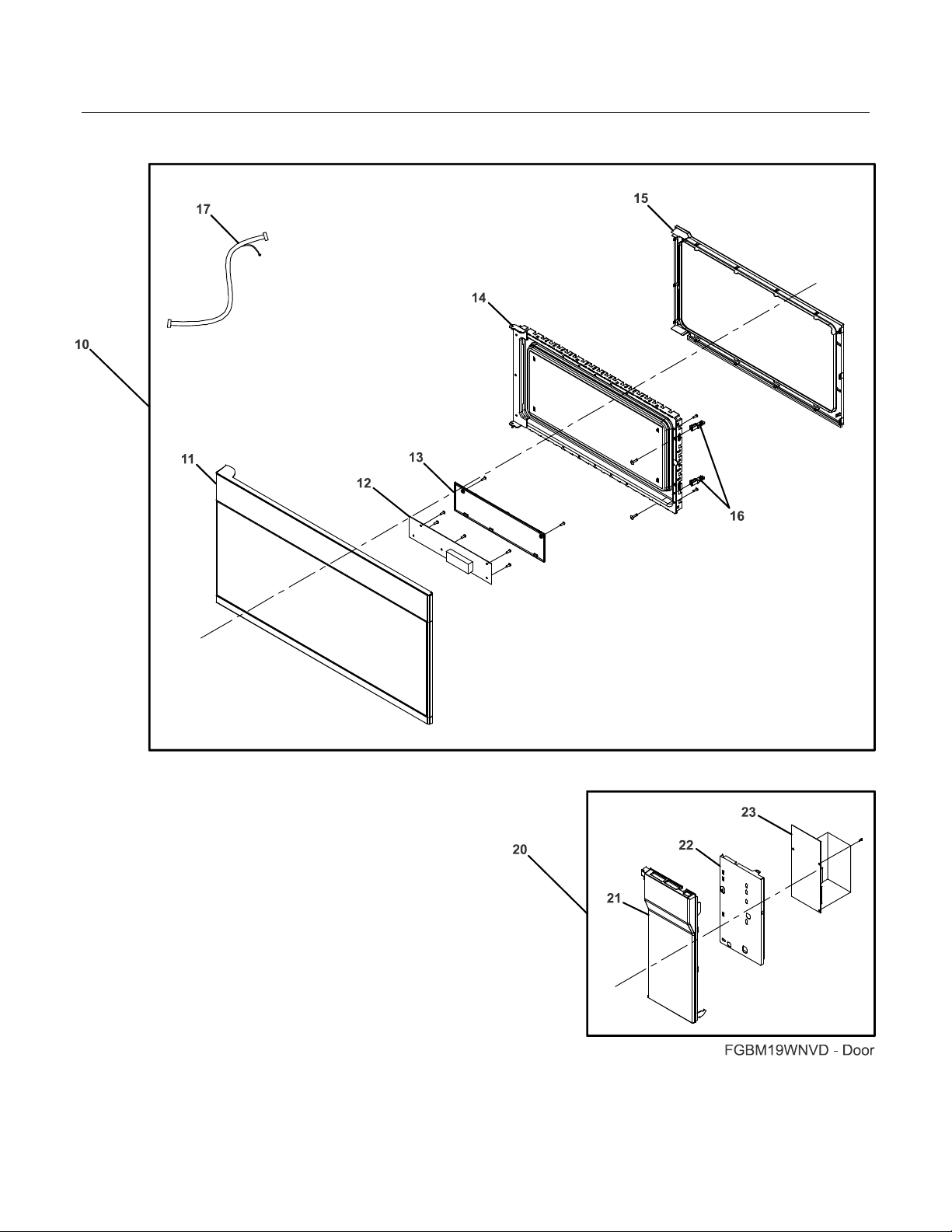

FGBM19WNVF-Cover.jpeg FGBM19WNVD - Cabinet.wmf FGBM19WNVD ­Door.wmf A06823416.wmf

Frigidaire

P.O. BOX 8020
CHARLOTTE, NC 28262

Publication No.

5995719647

20/01/13

(EN/SERVICE/ECL)

099

OVER-RANGE

MICROWAVE

Model No.

FGBM19WNV

Publication No: 5995719647 FGBM19WNV

OVEN,CABINET

01/20 2

FGBM19WNV Publication No: 5995719647

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

10 # 5304523362 A - Door Assembly, complete, black stainless
10 # 5304523271 - B Door Assembly, complete, stainless, w/display board
20 # 5304523274 A B Control Assembly, complete, w/pc board
31 5304523276 A B Cover, wave guide
32 5304509642 A B Support A, shelf
33 5304509643 A B Support B, shelf
34 5304523277 A B Cover, stirrer
35 5304509455 A B Tape, lamp
41 5304523256 A B Base, assembly
42 5304517871 A B Filter, grease
43 5304509441 A B Frame, lens holder
44 5304509443 A B Lens, cooktop lamp, glass
45 5304509442 A B Cover, lamp
51 # 5304515184 A B Transformer, power, HV
52 # 5304509470 A B Magnetron, high voltage
53 # 5304513471 A B Motor, turntable
54 # 5304523278 A B Capacitor, high voltage
55 # 5304515185 A B Diode, high voltage
56 # 5304512501 A B Power Cord, electric
57 # 5304513462 A B Thermostat, 120/0 *V
58 # 5304513463 A B Thermostat, 70/40 *V
59 # 5304515178 A B Thermostat, cutout, oven cavity
60 # 5304513461 A B Thermostat, 160/95 *V
61 # 5304523279 A B Harness, wiring, main
62 # 5304509652 A B Sensor, humidity
63 # 5304509453 A B Capacitor, start
64 # 5304523280 A B Motor, vent/blower
65 # 5304517874 A B Fuse, noise filter
66 # 5304512523 A B Filter, noise, electronic
67 # 5304517872 A B Lamp, LED
68 # 5304509460 A B Switch, interlock, primary
69 # 5304520021 A B Microswitch, monitor
70 # 5304520020 A B Microswitch, secondary
71 # 5304504073 A B Wire, connector, PC board
80 # 5304523281 A B Cooling Fan, assembly
91 5304523259 A B Bracket, interlock, upper
92 5304523260 A B Bracket, interlock, lower
93 5304523261 A B Lever, interlock, upper
94 5304523262 A B Lever, interlock, lower
95 5304523263 A B Spring, interlock, upper
96 5304523264 A B Spring, interlock, lower
101 5304523282 A B Base, transformer
102 5304509477 A B Retainer, capacitor strap
103 5304523283 A B Deflector, air guide
104# 5304515183 A B Thermostat
105 5304523284 A B Wrapper, outer cabinet
106 5304509436 A B Mounting Nut Kit
107 5304513481 A B Cover, vent motor
108 5304509485 A B Adapter, exhaust, damper frame

Model Index: A FGBM19WNV (FGBM19WNVDA)
B FGBM19WNV (FGBM19WNVFA)

# Functional Parts 3 01/20
* Non-Illustrated Parts
