Dishwashers
FGBD2434P F / W / B
24" Built-In
Product Dimensions
Height (Adjustable) 33-1/2"– 35"
Width 24"
Depth (Including Door) 25"
More Easy-To-Use Features
Energy Saver Dry Option
No heat dry option.
2-4-6 Hour Delay Start
Set your dishwasher to run on your
schedule.
Smudge-Proof™ Stainless Steel
Real Stainless Steel with a protective
coating reduces fingerprints and
smudges so it’s easy to clean.
NSF® Certified
Sanitize cycle removes 99.9% of common
household bacteria.
Multiple-Cycle Option
Features easy-to-use cleaning cycle
options including Top Rack, Rinse Only
and Heavy Wash.
1
Signature Features
Quiet Dishwasher
A quiet performance every time so it
won’t interrupt your time at home.
Eortless™ Dry
Get outstanding drying performance
with Effortless™ Dry.
Fits-More™ Capacity
Our large capacity, tall-tub dishwasher
fits up to 14 place settings so you can
wash even more at once.
Built With American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built and
engineered in the U.S.A.
Express-Select® Controls
Easily select options with the touch
of a button.
Stay-Put Door
The door that stays put at whatever
angle you open it.
Low-Rinse Aid Indicator Light
High Temperature Wash
ENERGY STAR®
NSF® International
Certification
Available in:
Stainless
(F)
1
Select model only.
White
(W)
Black
(B)
frigidaire.com
Page 2
Features
Control Design
Digital Display
Door Latch / Stay-Put Door Hinge Design
Low Rinse-Aid Indicator Light
Interior Design / Interior Color
Wash System
Wash Levels / Wash Speeds
DishSense™ Technology
AquaSurge™ Technology
Sound Package
Filter / Filter Trap
Soft Food Disposer
dB Level
Drying System
Slimline Express-Select®
Yes / Yes
Tall Tub / White
Direct
5 / 1
UltraQuiet™ III
Plastic / Removable
Yes
55
Eortless™ Dry
Cycles
Number of Cycles
Heavy
Normal
Light
Quick
Favorite
China Crystal
Rinse Only
Energy Saver Plus
Upper Rack Wash Only
Cycle Indicator Light / Control Lock
4
Yes
Yes
Yes
Yes
Yes / Yes
Options
Heat / No Heat Dry
Hi-Temp Wash
NSF® Certified Sanitize Rinse
Delay Start
Yes / Yes
Yes
Yes
2–4–6 Hour
Rack System
Rack Design
Rack Coating
Upper Rack –
Rack Handles
Stemware / Champagne Glass Holders
Fold-Down Tines
Cup Shelves
Versa-Tray™
Adjustable Rack
Lower Rack –
SpaceWise® Silverware Basket
Fold-Down Tines
Small Items Cover
Deluxe
Nylon TufRacks™
Yes
Yes
2
Ultra 1
Certifications
ENERGY STAR®
NSF® International Certification
Yes
Yes
Specifications
Water Inlet Location
Water Usage (Gallons)
Water Pressure (PSI)
Integral Air Gap on Supply
Leveling Legs
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
Left Bottom Front
4.9 – 8.5
20 – 120
Yes
4
Right Bottom Front
120V / 60 Hz / 15A
1
1.44
10
72 Lbs.
Dishwashers
FGBD2434P F / W / B 24" Built-In
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Adjustable)
B - Width
C - Depth (Including Door)
D - Depth (To Tub Flange)
Depth with Door Open 90°
33-1/2" – 35"
24"
25"
22-1/2"
49-1/4"
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
Accessories information available
on the web at frigidaire.com
34-1/4"
35"
24"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FGBD2434P 05/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 3
Dishwashers
Front
33
1/2"
Adjustable
to 35"
24"
Power supply location (right bottom front)
49
1/4"
22
1/2"
RightLeft
25"
Water inlet
(left bottom front)
Door in 90°
open position
6"
2
1/2
"2
1/2"
4"
18"
24"
min.
Electrical, water,
and drain
lines
must be confined
to shaded
area
6"
24"
7
3/4"
90° 90°
3
"
34
1
/4"
min.
Hot
water
line
Electrical
wiring
FGBD2434P F / W / B 24" Built-In
Dishwasher Specifications
•
Product Shipping Weight (approx.) – 72 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if
connected with disposer)
•
Connected Load (kW Rating) @ 120 Volts = 1.44 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 10 Amps
•
Always consult local and national electric & plumbing codes.
Meets requirements of ASSE 1006 — integral air gap on supply.
•
Water Pressure – Hot water line to dishwasher must provide
between 20 and 120 pounds per square inch (psi) with at least 120° F
hot water temperature.
•
Make sure location has correct drain, water and electrical outlets
to make connections.
•
Electrical and water supplies should enter cabinet opening on floor,
or through back or side walls, as shown in shaded areas.
•
Keep back free of drain, water & electrical supply.
•
USA
10200 David Taylor Drive
•
CANADA
FGBD2434P 05/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
•
Charlotte, NC 28262
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
Connections preferably located toward left side of dishwasher.
Do not cross drain, water or electrical lines in front of motor, blower
or frame.
•
If connecting drain hose to sink trap, local code may require
installation of Air Gap Kit (not included).
•
Leveling legs supplied to adjust height.
•
When installing adjacent to wall, cabinet or other obstruction that
extends beyond front edge of unit, allow 2" minimum clearance
between opened door and obstruction.
•
Floor should be flat and free of obstructions.
•
When installing at end of cabinet line, sides and back must be
fully enclosed.
•
Do not install unit under a cooktop, damage will occur.
•
Recommended to seal cabinets, enclosing all sides of dishwasher,
including underside of countertop, with oil-based paint or moistureproof polyurethane to prevent possible steam/moisture damage.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Meets
requirements of
ASSE 1006
Specifications
subject to change.
Page 4
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

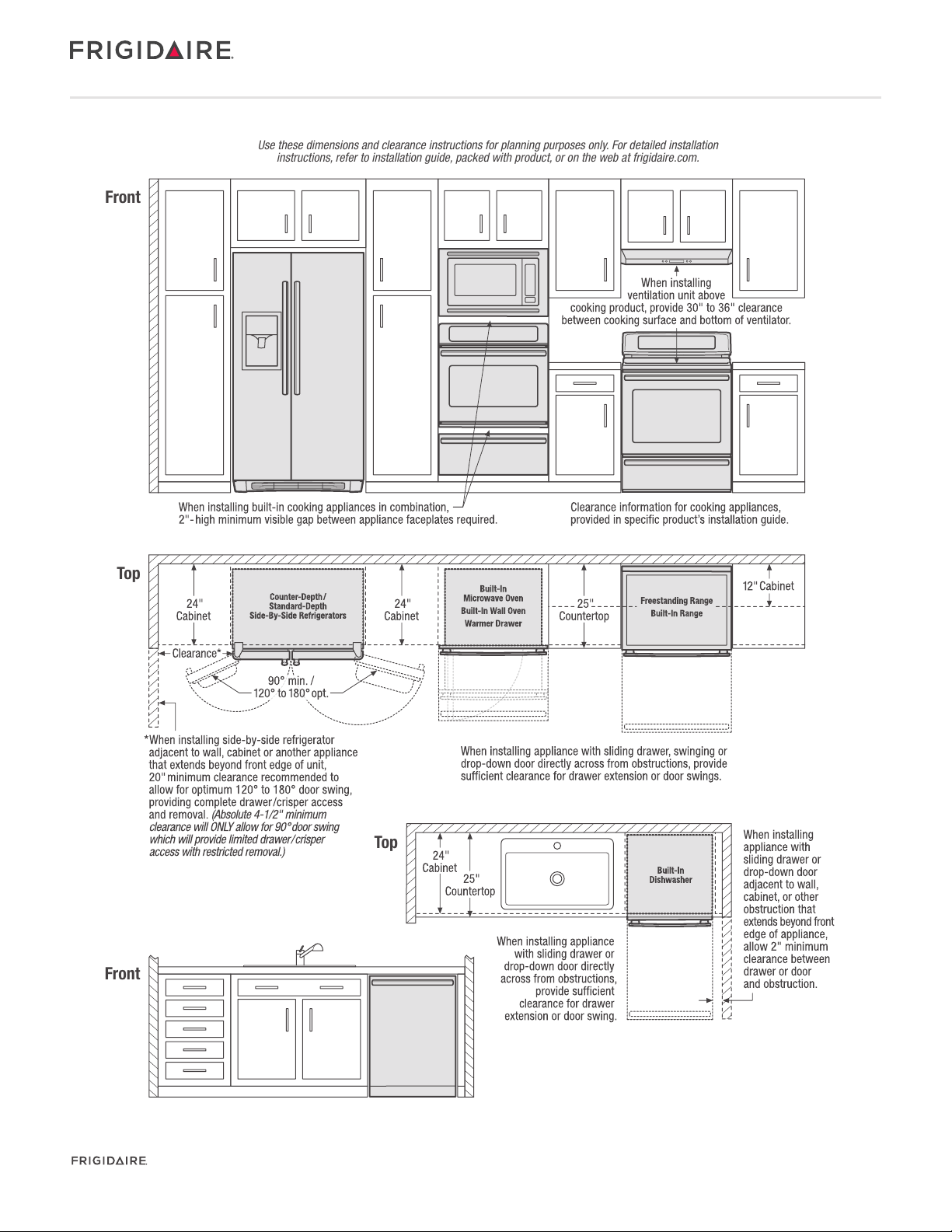

General Installation Guidelines
with Side-by-Side Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_SSR FR 01/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 5
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_TMR FR 01/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 6
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

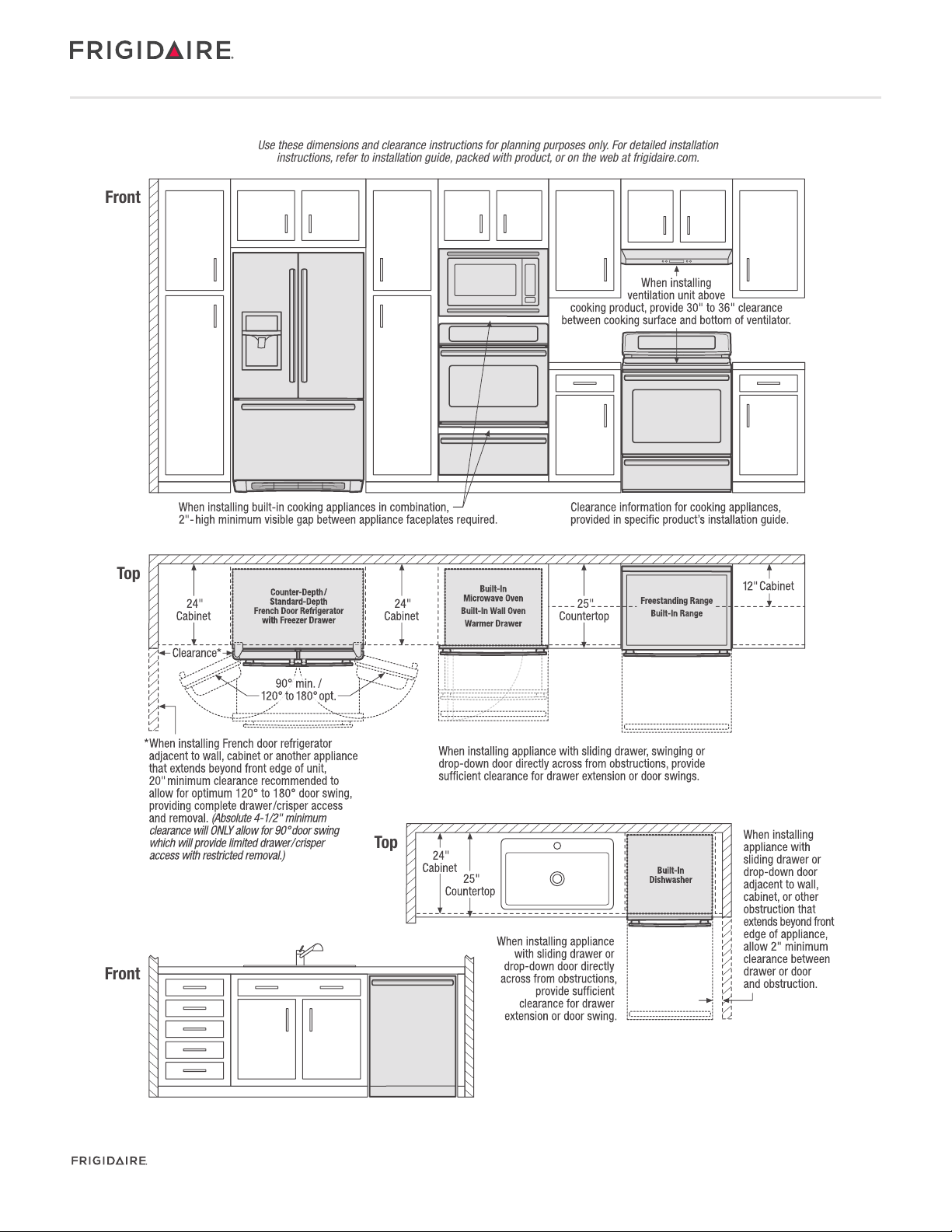

General Installation Guidelines
