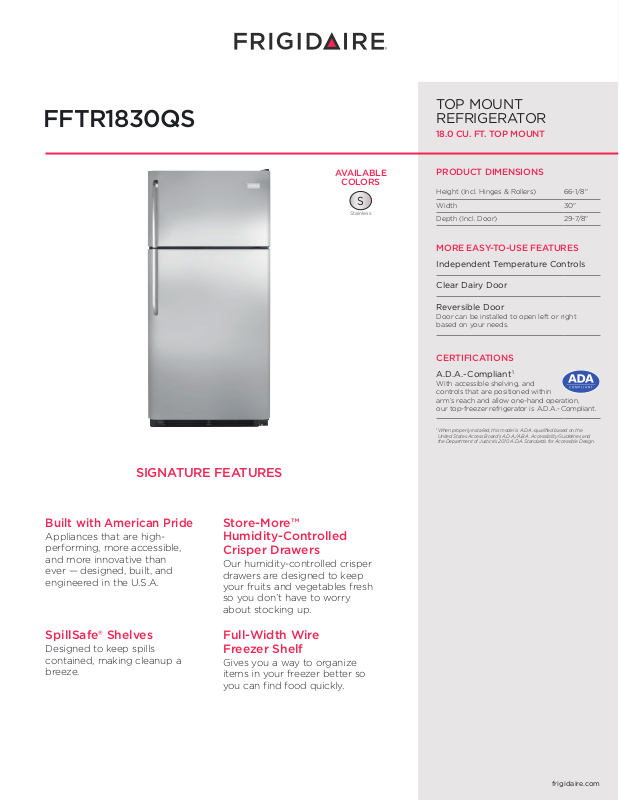

Page 1
FFTR1830QS
S
TOP MOUNT
REFRIGERATOR
18.0 CU. FT. TOP MOUNT
AVAILABLE
COLORS
Stainless
PRODUCT DIMENSIONS
Height (Incl. Hinges & Rollers) 66-1/8"
Width 30"
Depth (Incl. Door) 29-7/8"
MORE EASY-TO-USE FEATURES
Independent Temperature Controls
Clear Dairy Door
Reversible Door
Door can be installed to open left or right
based on your needs.
CERTIFICATIONS
A.D.A.- Compliant
With accessible shelving, and
controls that are positioned within
arm’s reach and allow one-hand operation,
our top-freezer refrigerator is A.D.A.- Compliant.
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
1
SIGNATURE FEATURES
Built with American Pride
Appliances that are highperforming, more accessible,
and more innovative than
ever — designed, built, and
engineered in the U.S.A.
SpillSafe® Shelves
Designed to keep spills
contained, making cleanup a
breeze.
Store-More™
Humidity-Controlled
Crisper Drawers
Our humidity-controlled crisper
drawers are designed to keep
your fruits and vegetables fresh
so you don’t have to worry
about stocking up.
Full-Width Wire
Freezer Shelf
Gives you a way to organize
items in your freezer better so
you can find food quickly.
frigidaire.com
Page 2
B
A
C
Recessed
electrical outlet
FFTR1830QS
TOP MOUNT REFRIGERATOR
18.0 CU. FT.
FEATURES
Door Design UltraSoft™
Door Handle Design Stainless Steel
Cabinet Finish (Textured) Black
Door Stops Yes
Door Hinge Covers Black
Door Reverse Option Yes
Rollers – Front / Rear Fixed / Yes
Toe Grille Black
REFRIGERATOR FEATURES
Interior Lighting Bright
Refrigerator Shelves 2 Full-Width SpillSafe® Glass
Deli Drawer 1 Half-Width
Store-More™ Crisper Drawers 2 Clear
Humidity Controls 2
Dairy Compartment Clear Dairy Door
Door Bins 3 Full-Width White
Gallon Door Storage 1
FREEZER FEATURES
Door Racks 2 Full-Width Clear
Freezer Shelves 1 Full-Width Wire
Factory Ice Maker w/ Large Ice Bin Optional (PN # IM116)
CERTIFICATIONS
A.D.A. Compliant
1
Yes
SPECIFICATIONS
Total Capacity (Cu. Ft.) 18.0
Refrigerator Capacity (Cu. Ft.) 14.1
Freezer Capacity (Cu. Ft.) 3.9
Power Supply Connection Location Right Bottom Rear
Water Inlet Connection Location Bottom Right
Voltage Rating 120V / 60Hz / 15A
Connected Load (kW Rating) @ 120 Volts20.72
Amps @ 120 Volts 6.0
Minimum Circuit Required (Amps) 15
Shipping Weight (Approx.) 205 Lbs.
1
When properly installed, this model is A.D.A.-qualified based on the United States
Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s
2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
PRODUCT DIMENSIONS
A - Height (Incl. Hinges & Rollers) 66-1/8"
B - Width 30"
C - Depth (Incl. Door) 29-7/8"
Depth with Door Open 90° 58-1/2"
•
10200 David Taylor Drive
USA
CANADA
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFTR1830QS 06/18
Page 3
FFTR1830QS
TOP MOUNT REFRIGERATOR
18.0 CU. FT.
Top View
Recessed water line
(ice maker models only)
Recessed
electrical outlet
Allow 1" min. clearance at rear
for proper air circulation and
water / electrical connections
3
/8" min. clearance at sides
Allow
and top for ease of installation
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
* When installing refrigerator adjacent to wall,
cabinet or other appliance that extends beyond front
edge of unit, 20" minimum clearance recommended
to allow for optimum 140° door swing, providing
complete crisper access and removal. (Absolute
3" minimum clearance will ONLY allow for 90° door
swing which will provide limited crisper access
with restricted removal.)
29 7/8"
(with doors 90° open)
Allow 58
1/2" min.
30 "
32
26
1/4"
5/8"
3
65
with
3
/8"
rollers
66
with
rollers
/8"
3
/8"
1
/8"
Water
line inlet
location
(left
bottom
rear)
Power
cord
location
(right
bottom
rear)
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 205 Lbs.
•
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition
of National Electrical Code (NFPA 70) and local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = 0.72 kW
•
Amps @ 120 Volts = 6.0 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
Minimum 3/8" clearance required for sides and top of refrigerator with
1" clearance at rear to allow for ease of installation, proper air circulation,
and plumbing / electrical connections.
•
When installing refrigerator adjacent to wall, cabinet or other appliance that
extends beyond front edge of unit, 20" minimum clearance recommended to
allow for optimum 140° door swing, providing complete crisper access and
removal. (Absolute 3" minimum clearance will ONLY allow for 90° door swing
which will provide limited crisper access with restricted removal.)
•
10200 David Taylor Drive
USA
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
To ensure optimum performance, do not install in areas where temperature
drops below 55° F or rises above 110° F and avoid installing in direct sunlight
or close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Optional Ice Maker Kit (PN # IM116) available for installation in
ice maker-ready models only.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100 pounds
per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
OPTIONAL ACCESSORIES
•
Ice Maker Kit – (PN # IM116).
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFTR1830QS 06/18
