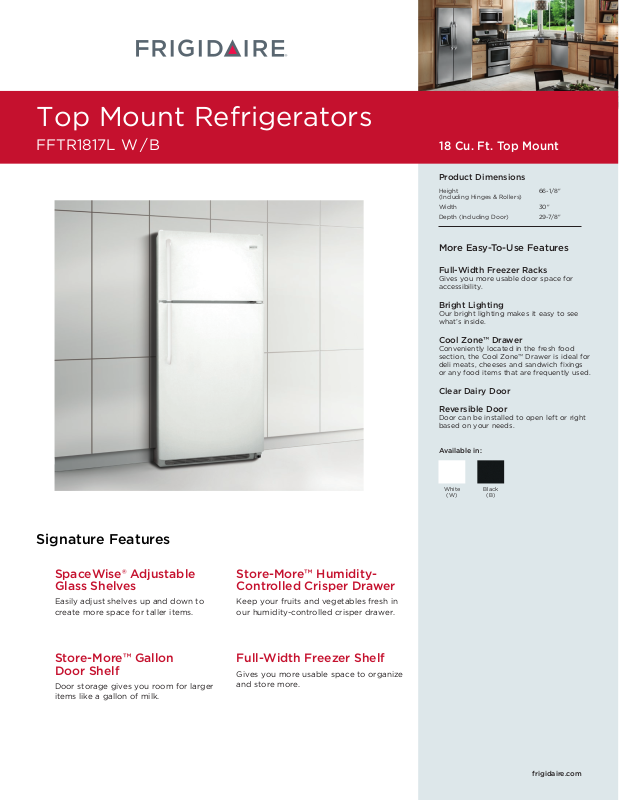

Frigidaire FFTR1817LW, FFTR1817LB Specification Sheet
Top Mount Refrigerators
FFTR1817L W / B
18 Cu. Ft. Top Mount
Product Dimensions
Height 66-1/8"
(Including Hinges & Rollers)
Width 30"
Depth (Including Door) 29-7/8"
More Easy-To-Use Features
Full-Width Freezer Racks
Gives you more usable door space for
accessibility.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Cool Zone™ Drawer
Conveniently located in the fresh food
section, the Cool Zone™ Drawer is ideal for
deli meats, cheeses and sandwich fixings
or any food items that are frequently used.
Clear Dairy Door
Reversible Door
Door can be installed to open left or right
based on your needs.
Signature Features
SpaceWise® Adjustable
Glass Shelves
Easily adjust shelves up and down to
create more space for taller items.
Store-More™ Gallon
Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
Store-More™ HumidityControlled Crisper Drawer
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawer.
Full-Width Freezer Shelf
Gives you more usable space to organize
and store more.
Available in:
White
(W)
Black
(B)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Left-Swing Door
Rollers – Front / Rear
Sound Package
Toe Grille
UltraSoft™
Color-Coordinated
Color-Coordinated
Yes
Color-Coordinated
Yes
Fixed / Yes
Color-Coordinated
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Cool Zone™ Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
2 Sliding SpaceWise®
Adjustable Glass
Clear
2 Clear
2
Clear Dairy Door
3 Full-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Full-Width White
1 Full-Width Wire
Optional (PN # IM115)
Lighting
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
18.2
14.13
4.07
Right Bottom Rear
Bottom Right
120V / 60Hz / 15 or 20A
.54
4.5
15
205 Lbs.
Top Mount Refrigerators
FFTR1817L W / B 18 Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

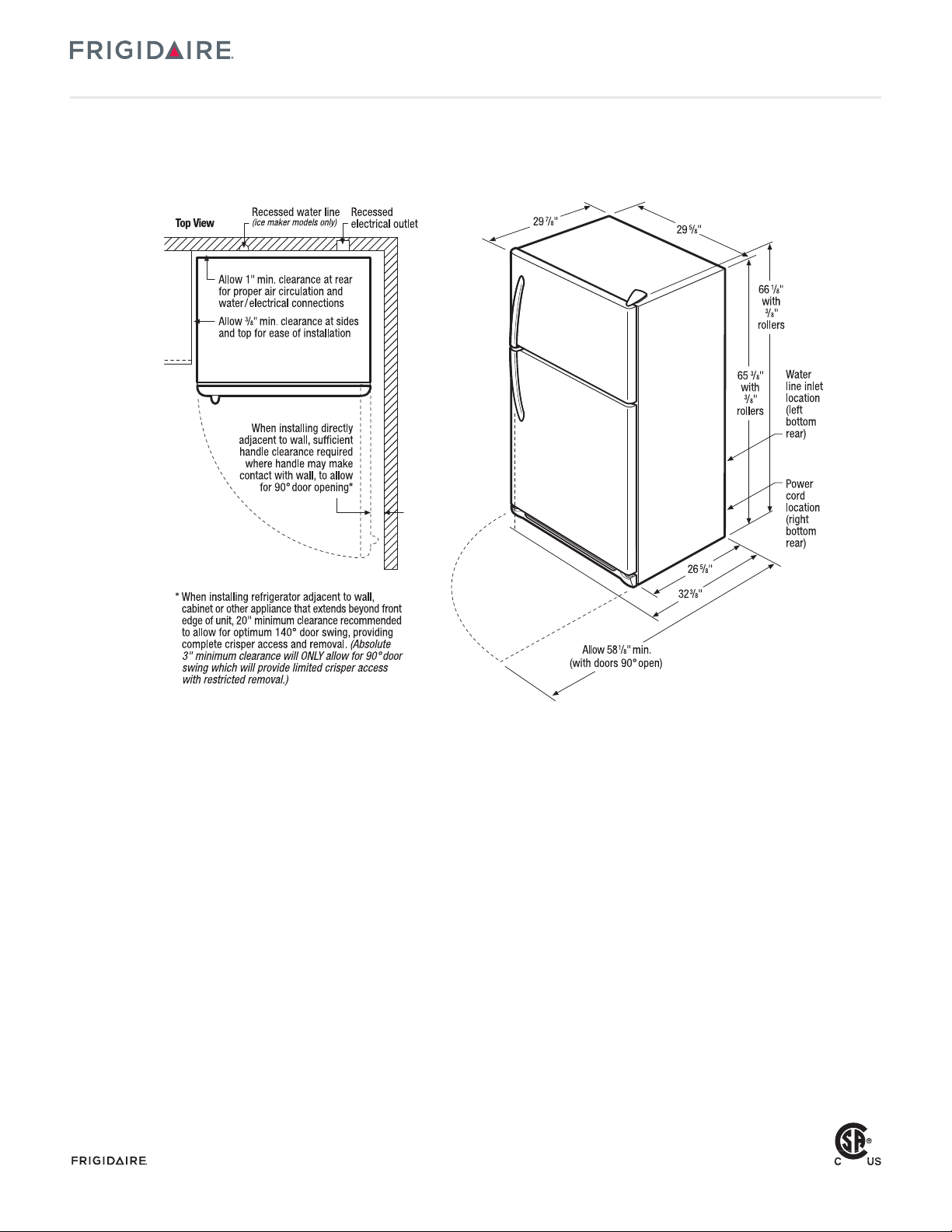

Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFTR1817L 03/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
66-1/8"
30"
29-7/8"
58-1/8"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
