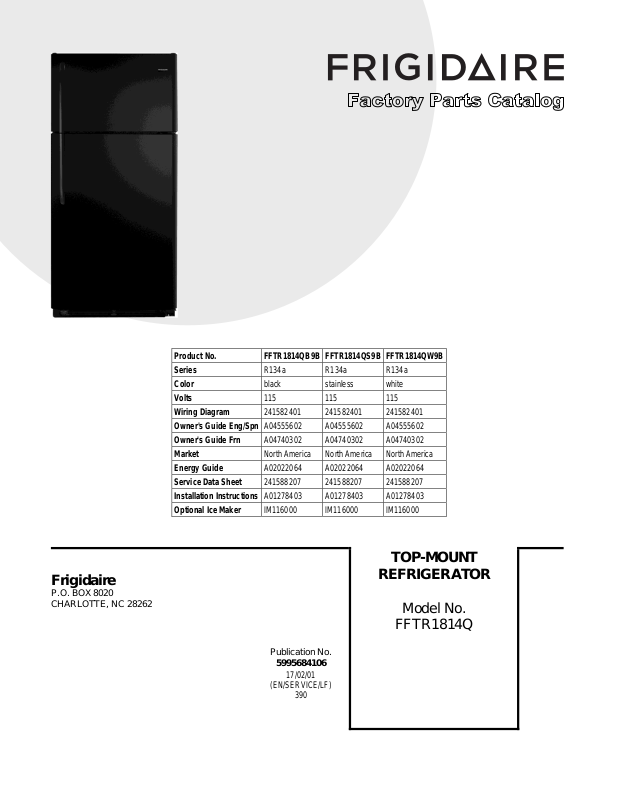

Page 1
Product No. FFTR1814QB9B FFTR1814QS9B FFTR1814QW9B
Series R134a R134a R134a
Color black stainless white
Volts 115 115 115
Wiring Diagram 241582401 241582401 241582401
Owner's Guide Eng/Spn A04555602 A04555602 A04555602
Owner's Guide Frn A04740302 A04740302 A04740302
Market North America North America North America
Energy Guide A02022064 A02022064 A02022064
Service Data Sheet 241588207 241588207 241588207
Installation Instructions A01278403 A01278403 A01278403
Optional Ice Maker IM116000 IM116000 IM116000
FFTR1814LB.jpg N05DQDCKA0.eps CAWWTR1611SW0.wmf
SHFFTR1814QB4A.wmf SYFFTR1828SE0.wmf W241582401.eps S241582801.eps
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995684106
17/02/01
(EN/SERVICE/LF)
390
TOP-MOUNT
REFRIGERATOR
Model No.
FFTR1814Q
Page 2
Publication No: 5995684106 FFTR1814Q
DOOR
22
14
1
12
11
10
22
21A
74
73
18A
22
8
13A
21
21C
8
22
7
14
2
14
22
10
21
22
18
73
74
21A
4
15
4B
22
13
4
02/17 2
21C
22
N05DQDCKA0
Page 3
FFTR1814Q Publication No: 5995684106
DOOR
POS. NO PART NO. DESCRIPTION
1 242193209 A B - Gasket-frzr door, black, magnetic
1 242193203 - - C Gasket-frzr door, white, magnetic
2 242193212 A B - Gasket-refr door, black, magnetic
2 242193206 - - C Gasket-refr door, white, magnetic
4 240534901 A B C Rack-door
4B 240534701 A B C Rack-door, 4B
7 240337712 A B C Door-dairy
8 240534801 A B C Rack-door
10 240381303 A - - Plug-button, black, hinge brg hole
10 240381 30 7 - B - Plug-button, gray, hinge brg hole, (2)
10 240381301 - - C Plug-button, white, hinge brg hole, (2)
11 240410203 A - - Door-frzr, black, complete assy
11 240410206 - B - Door-frzr, stainless, complete assy
11 240410201 - - C Door-frzr, white, complete assy
12 242016301 A B C Nameplate, Frigidaire
13 240312405 A B - Door Stop, black, refr
13 240312403 - - C Door Stop, white, ref
13A 240312415 A B - Door Stop, black, frzr
13A 240312414 - - C Door Stop, white, frzr
14 240494003 A - - Plug-button, black
14 240494007 - B - Plug-button, gray
14 240494001 - - C Plug-button, white, cab liner holes
15 240410305 A - - Door-refr, black, complete assy
15 240410309 - B - Door-refr, stainless, complete assy
15 240410301 - - C Door-refr, white, complete assy
18 242059506 A B - Handle-door, black, refr-RH/frzr-LH
18 242059504 - - C Handle-door, white, refr-RH/frzr-LH
18A 242059503 A B - Handle-door, black, refr-LH/frzr-RH
18A 242059501 - - C Handle-door, white, refr-LH/frzr-RH
21 240383406 A B C Screw, truss hd quad, #10-16 x .500, zinc
21A 240521303 A B C Screw, #10-16 x 1/2
21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 5304507147 A B - Bearing-hinge, black, (8)
22 5304507146 - - C Bearing-hinge, natural, (8)
73 218396 70 1 A B C Block-handle mtg, dovetail
74 215503203 A B C Screw, cr pan hd, 10-16 x 0.500
Model Index: A FFTR1814Q (FFTR1814QB9B)
B FFTR1814Q (FFTR1814QS9B)
C FFTR1814Q (FFTR1814QW9B)
# Functional Parts
3 02/17
* Non-Illustrated Parts
Page 4
Publication No: 5995684106 FFTR1814Q
CABINET
02/17 4
Page 5
FFTR1814Q Publication No: 5995684106
CABINET
POS. NO PART NO. DESCRIPTION
1 242230902 A B C Cover, evaporator fan
2 242229401 A B C Knob, sliding, damper
4 242229501 A B C Damper, fan cover
5 242219302 A B C Fan Blade, evaporator
6 5304497413 A B C Ring, locking, (2)
7 242287501 A B C Grommet, evaporator fan, rear
8 242237301 A B C Grommet, evaporator fan, front
9 242229301 A B C Shroud Bracket, evaporator fan
10 242239305 A B C Cover, coil
10* 240568601 A B C Seal-coil cover
11 5303208309 A B C Plug-hole, factory test
12 242249201 A B C Cover, connection, ice maker
12* 241586701 A B C Plug, round, foam, ice maker, water inlet
13 242219204 A B C Motor-blower
13* 218515401 A B C Clip-grille
13* 241953901 A B C Screw, quad hilo, #8-18 x 0.50, (2)
21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A B - Plug-button, black, upr hinge holes
22 215774901 - - C Plug-button, white, upr hinge holes
30 240314003 A B - Bracket-lower hinge, black
30 240314002 - - C Bracket-lower hinge, white
34 240311303 A B C Washer, hinge, nylon, (2)
35 240313803 A B - Bracket-ctr hinge, black
35 240313802 - - C Bracket-ctr hinge, white
35A 240336803 A B - Spacer-hinge, center, black
35A 240336802 - - C Spacer-hinge, center, white
36 240516402 A B C Pin-center hinge
37 242161202 A B - Trim-cabinet corner, black, (2)
37 242161201 - - C Trim-cabinet corner, white, (2)
38 240313703 A B C Bracket-upper hinge
40 240354404 A B - Cover-upper hinge, black
40 240354401 - - C Cover-upper hinge, white
41 5304500407 A B C Grommet, shelf mtg
42 240578902 A B - Screw, hex head, 1/4-20 x 5/8
42 240578904 - - C Screw, hex head, 1/4-20 x 5/8, white
43 241889002 A B C Roller Assy, front LH, (2)
43* 241889001 A B C Roller Assy, front RH, (2)
56 240516502 A B C Pin-lower hinge
58 240433204 A B C Screw, hex washer head, 8-18 x 5/16
59 240442707 A B - Screw-#10-32 X 3/4, black
59 240442708 - - C Screw-#10-32 X 3/4, white
72 241839407 A B - Grille/Kickplate, black
72 241839405 - - C Grille/Kickplate, white
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, Low Profile
82 240335202 - - - Roller, compressor base, rear
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733911 A B C Cover-access, w/label
89* 241500304 A B C Screw, hex washer head, 8-18AB x 0.625
92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
* 218990901 A B C Clip-wire
* 240494001 A B C Plug-button, white, cab liner holes
Model Index: A FFTR1814Q (FFTR1814QB9B)
B FFTR1814Q (FFTR1814QS9B)
C FFTR1814Q (FFTR1814QW9B)
# Functional Parts
5 02/17
* Non-Illustrated Parts
Page 6
Publication No: 5995684106 FFTR1814Q

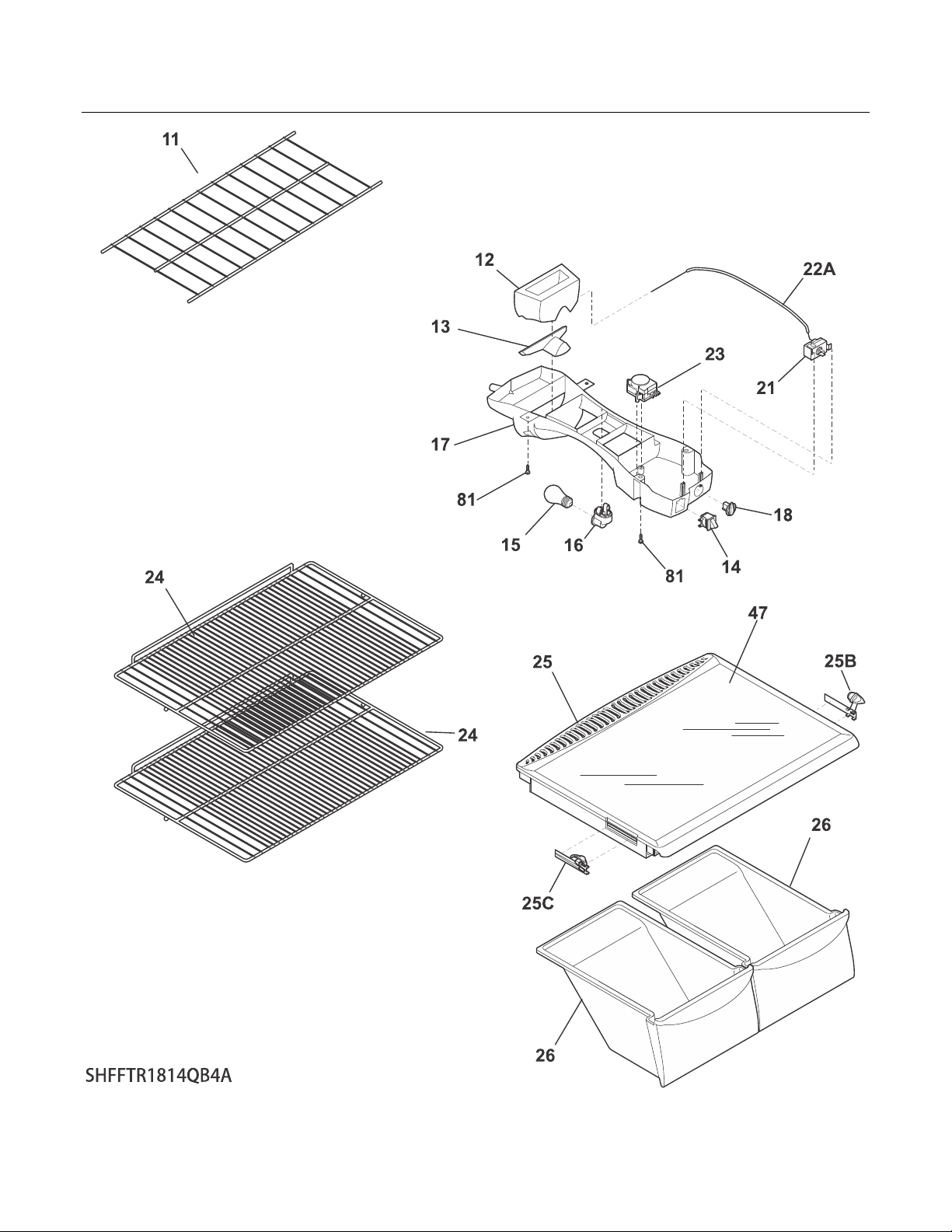

SHELVES
02/17 6
Page 7
FFTR1814Q Publication No: 5995684106
SHELVES
POS. NO PART NO. DESCRIPTION
11 240358008 A B C Shelf, freezer
11* 241705801 A B C Spacer-shelf
12 241542001 A B C Diffuser, air, top
13 240568607 A B C Seal
14 241554901 A B C Switch-light/lamp
15 241555401 A B C Light Bulb
16 241559801 A B C Socket-light
17 5304503170 A B C Control Box
17*# 240388701 A B C Wiring Harness, control box
18 240360801 A B C Knob, temp control
21 241537103 A B C Control-temperature
22A 240468202 A B C Tube, sensor sleeve, 31 inch, plastic, white
23 # 241705102 A B C Timer-defrost
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438
24 240360908 A B C Shelf, sliding, wire
25 240364787 A B C Cover-crisper pan
25B 241613501 A B C Control-humidity, RH
25C 241613502 A B C Control-humidity, LH
26 240337103 A B C Pan-crisper, clear, (2), no graphics
47 240350608 A B C Insert-pan cover, 23.82" x 15.50", glass
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, Low Profile
* 5304508476 A B C LABEL-ENERGY/ENERGUIDE
Model Index: A FFTR1814Q (FFTR1814QB9B)
B FFTR1814Q (FFTR1814QS9B)
C FFTR1814Q (FFTR1814QW9B)
# Functional Parts
7 02/17
* Non-Illustrated Parts
Page 8
Publication No: 5995684106 FFTR1814Q

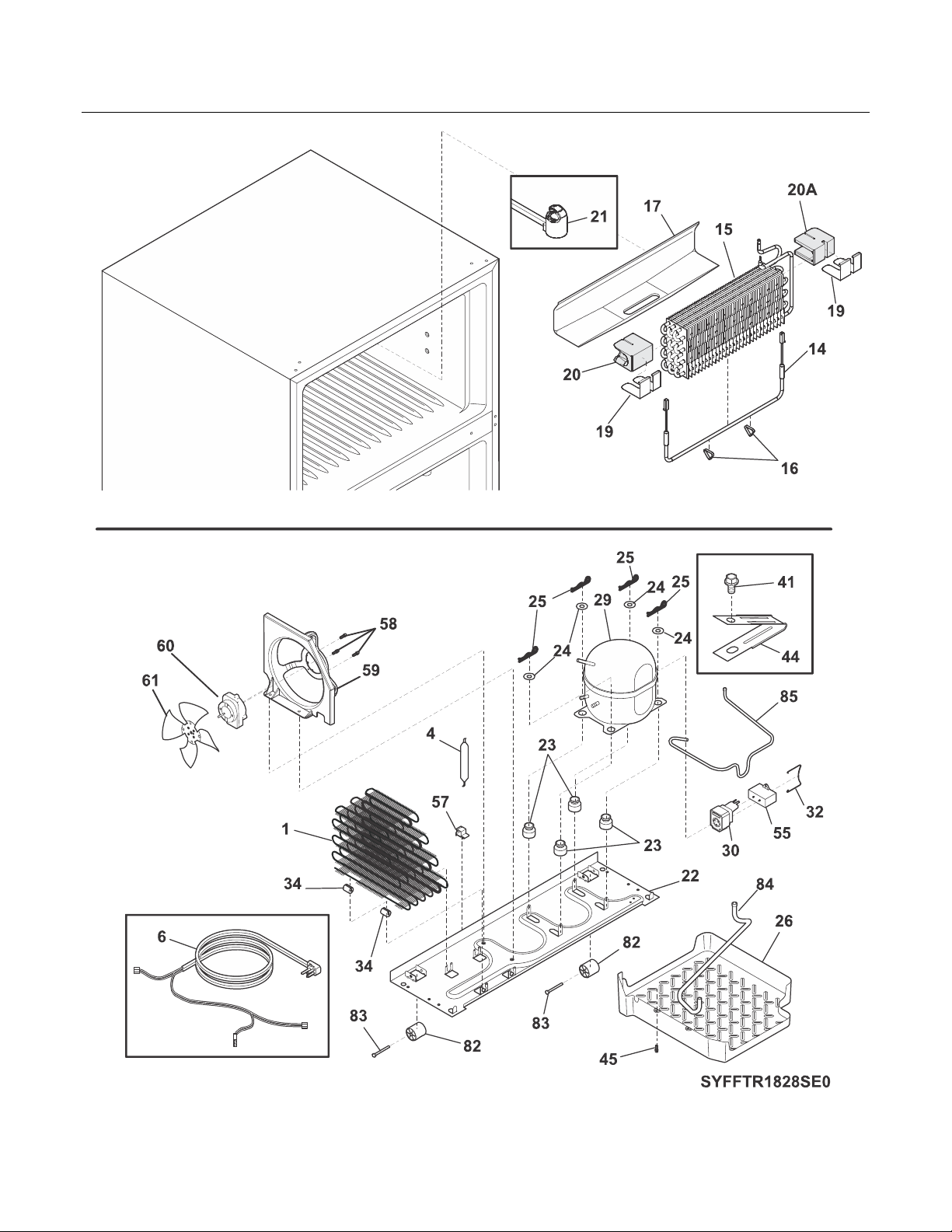

SYSTEM
02/17 8
Page 9
FFTR1814Q Publication No: 5995684106
SYSTEM
POS. NO PART NO. DESCRIPTION
1 # 5304502821 A B C Condenser, high efficiency
4 # 242190205 A B C Dryer-filter, w/process tube
6 # 242019701 A B C Harness-wiring, machine compt
14 # 242044008 A B C Heater-defrost
15 # 5303918274 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
17 241801301 A B C Trough-drain
19 242320 40 1 A B C Shield, heat, evap block
20 242238401 A B C Block, evaporator, RH
20A 242238301 A B C Block, evaporator, LH
21 # 5303918634 A B C Thermostat Kit, defrost, w/connector
22 241665606 A B C Base-compressor, w/rollers
22* 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
24 241812301 A B C Washer-compr mtg
25 242037701 A B C Clip-compressor mtg
26 241920605 A B C Pan-defrost
29 # 5303918659 A B C Compressor, w/o electricals
30 # 297259528 A B C Controller, compressor
32 5304497418 A B C Clip, controller
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240433204 A B C Screw, hex washer head, 8-18 x 5/16
44 5304456288 A B C Clamp-wiring harness, strain relief, galv steel
45 241500304 A B C Screw, hex washer head, 8-18AB x 0.625
55 # 297286803 A B C Capacitor-run
57 240542601 A B C Clip-wiring harness
58 240569202 A B C Screw, 8-18 X .500
59 242050604 A B C Shroud, Condenser Fan
59* 240346701 A B C Tape-foam seal, shroud
59* 240359403 A B C Screw-fan shroud, (2)
60 # 297279502 A B C Motor-condenser fan
61 241639502 A B C Blade-condenser fan
82 240335202 - - - Roller, compressor base, rear
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240500801 A B C Tube-drain, rubber, lower
85 241856910 A B C Tube-connector, suction
* 5303918222 A B C Hot Tube Repair Kit, service
* # 5303918263 A B C Heat Exchanger Kit, suction line
Model Index: A FFTR1814Q (FFTR1814QB9B)
B FFTR1814Q (FFTR1814QS9B)
C FFTR1814Q (FFTR1814QW9B)
# Functional Parts
9 02/17
* Non-Illustrated Parts
Page 10
Publication No: 5995684106 FFTR1814Q

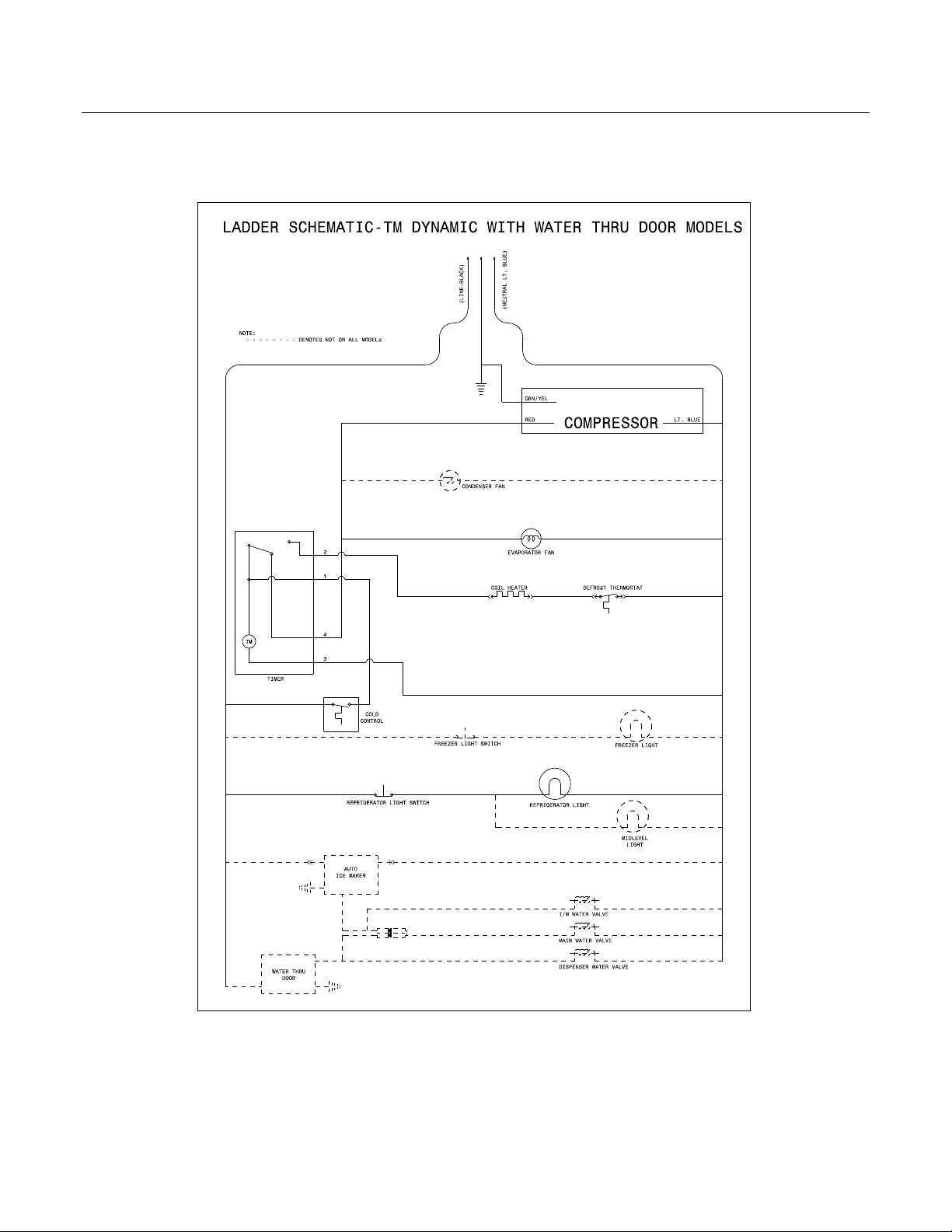

WIRING SCHEMATIC
02/17 10
Page 11
FFTR1814Q Publication No: 5995684106

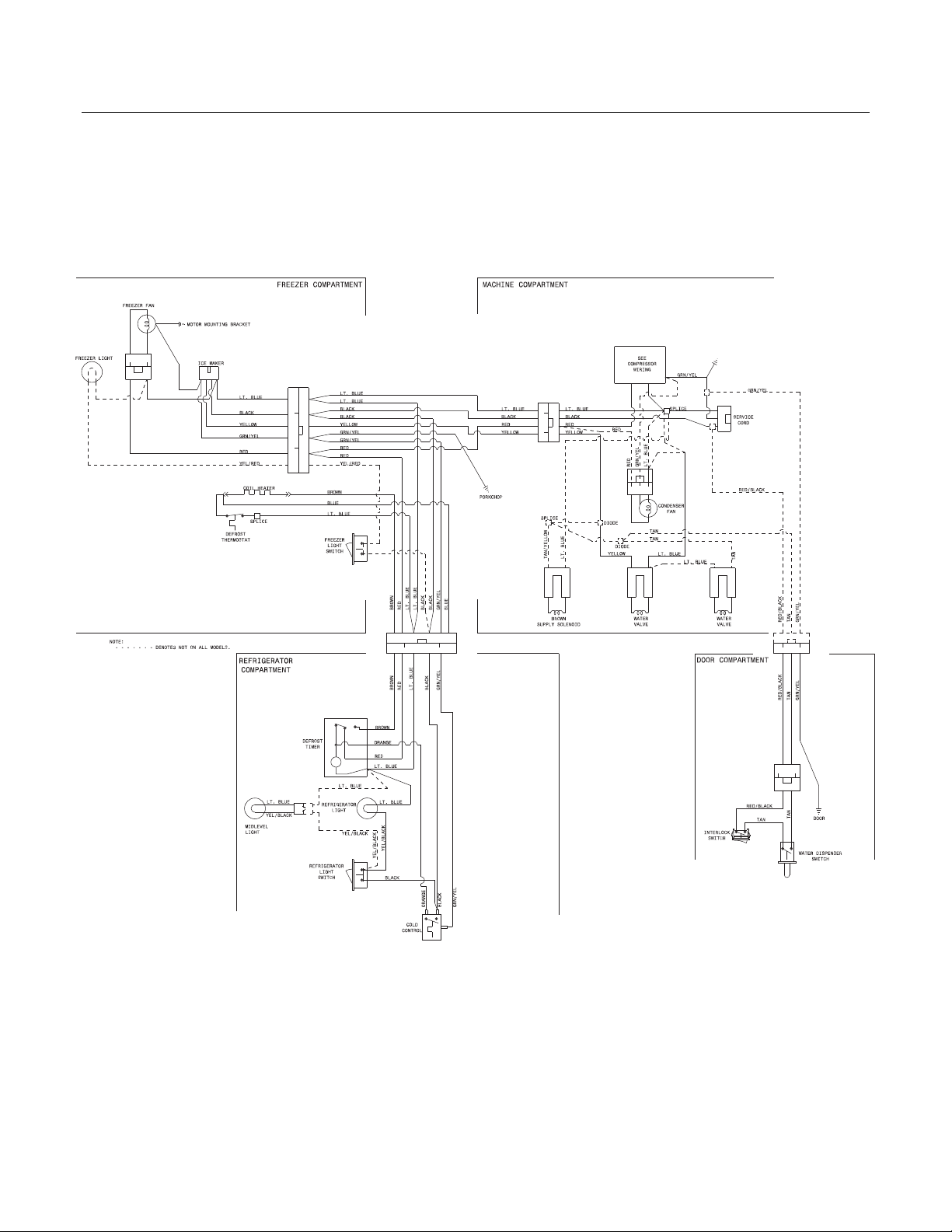

WIRING DIAGRAM
# Functional Parts
11 02/17
* Non-Illustrated Parts
