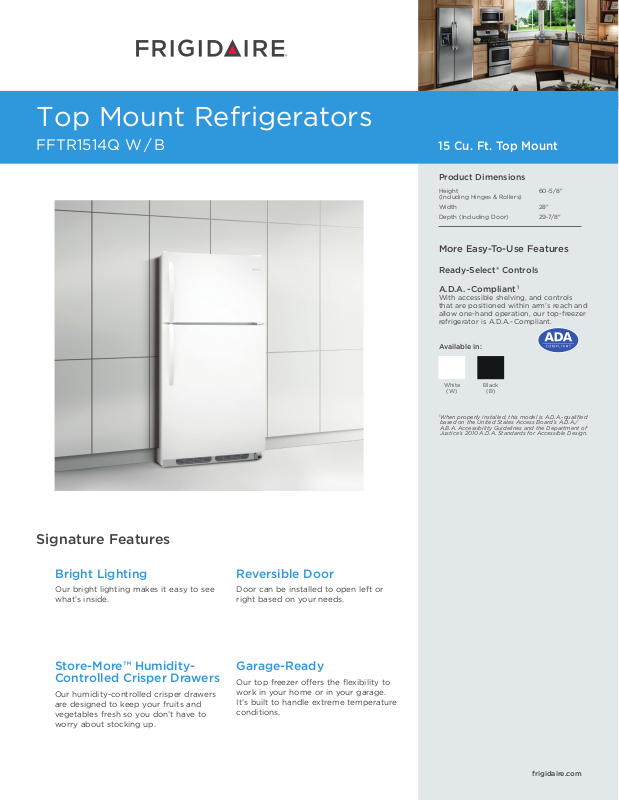

Frigidaire FFTR1514QB User Manual
Top Mount Refrigerators
FFTR1514Q W / B
Place and center
image here.
15 Cu. Ft. Top Mount
Product Dimensions
Height 60-5/8"
(Including Hinges & Rollers)
Width 28"
Depth (Including Door) 29-7/8"
More Easy-To-Use Features
Ready-Select® Controls
A.D.A. - Compliant
With accessible shelving, and controls
that are positioned within arm’s reach and
allow one-hand operation, our top-freezer
refrigerator is A.D.A.- Compliant.
Available in:
White
(W)
1
When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
Black
(B)
1
Signature Features
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Store-More™ HumidityControlled Crisper Drawers
Our humidity-controlled crisper drawers
are designed to keep your fruits and
vegetables fresh so you don’t have to
worry about stocking up.
Reversible Door
Door can be installed to open left or
right based on your needs.
Garage-Ready
Our top freezer offers the flexibility to
work in your home or in your garage.
It’s built to handle extreme temperature
conditions.
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Left-Swing Door
Rollers – Front / Rear
Sound Package
Toe Grille
Garage-Ready
Square
Color-Coordinated
Color-Coordinated
Yes
Color-Coordinated
Yes
Fixed/ Yes
Color-Coordinated
Yes
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Deli Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
2 Full-Width SpaceWise® Wire
2 Clear
2
Clear Dairy Door
2 Full-Width White
1 Half-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
Lighting
2 Full-Width White
1 Half-Width Wire
Optional (PN # IM116)
Certifications
A.D.A. - Compliant
1
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
2
14.6
10.9
3.7
Right Bottom Rear
Bottom Right
120V / 60Hz / 15A
.72
6.0
15
175 Lbs.
Top View
Top Mount Refrigerators
Recessed water line
(ice maker models only)
Allow 1" min. clearance at rear
for proper air circulation and
water / electrical connections
3
/8" min. clearance at sides
Allow
and top for ease of installation
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
C
B
Recessed
electrical outlet
FFTR1514Q W / B 15 Cu. Ft.

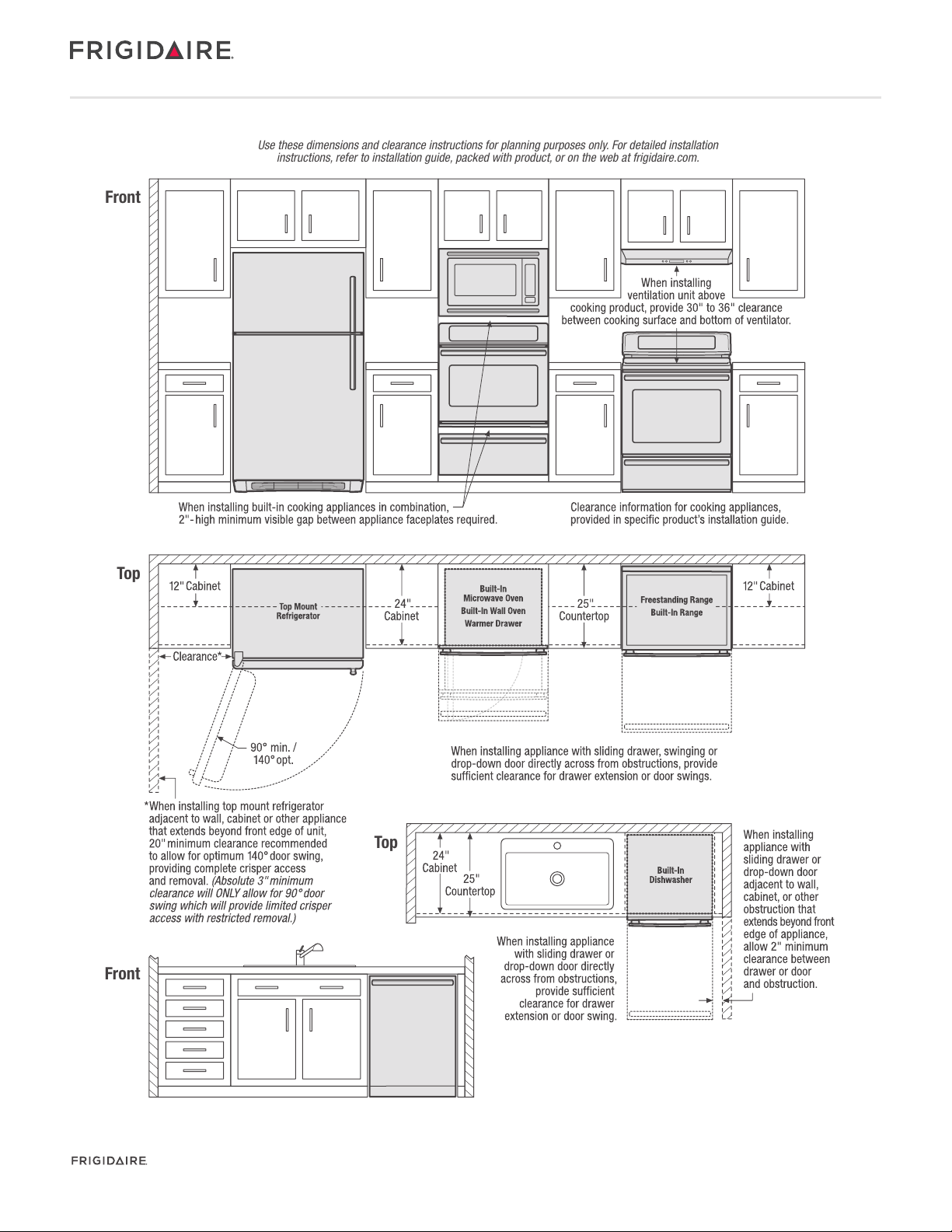

* When installing refrigerator
adjacent to wall, cabinet or other
appliance that extends beyond
front edge of unit, 20" minimum
clearance recommended to allow
for optimum 140° door swing,
providing complete crisper access
and removal. (Absolute 3"
minimum clearance will ONLY
allow for 90°
door swing which
will provide limited crisper access
with restricted removal.)
A
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFTR1514Q 07/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
60-5/8"
28"
29-7/8"
56"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
