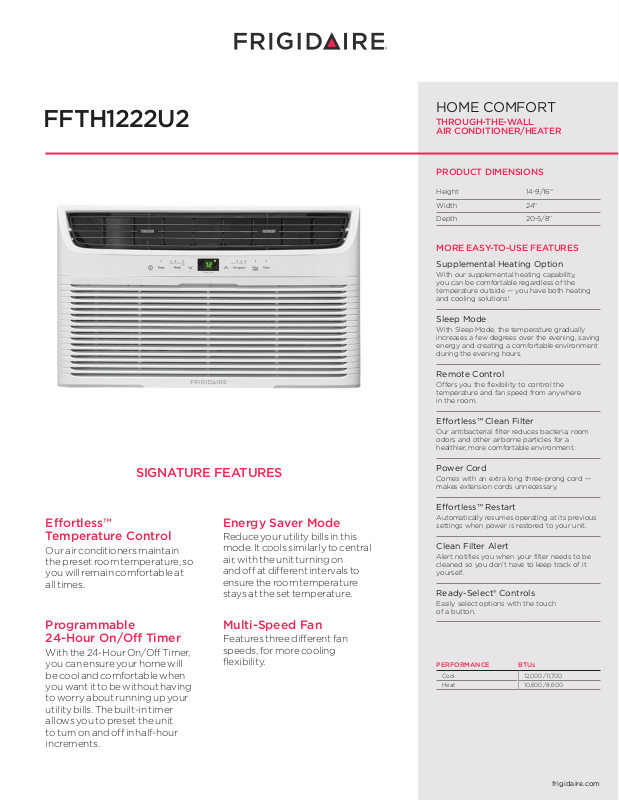

Frigidaire FFTH1222U2 Specsheet
FFTH1222U2
HOME COMFORT
THROUGH-THE-WALL
AIR CONDITIONER/HEATER
PRODUCT DIMENSIONS
Height 14-9/16"
Width 24"
Depth 20-5/8"
MORE EASY-TO-USE FEATURES
Supplemental Heating Option
With our supplemental heating capability,
you can be comfortable regardless of the
temperature outside — you have both heating
and cooling solutions!
Sleep Mode
With Sleep Mode, the temperature gradually
increases a few degrees over the evening, saving
energy and creating a comfortable environment
during the evening hours.
Remote Control
Offers you the flexibility to control the
temperature and fan speed from anywhere
in the room.
SIGNATURE FEATURES
Eortless™
Temperature Control
Our air conditioners maintain
the preset room temperature, so
you will remain comfortable at
all times.
Programmable
24-Hour On/O Timer
With the 24-Hour On/Off Timer,
you can ensure your home will
be cool and comfortable when
you want it to be without having
to worry about running up your
utility bills. The built-in timer
allows you to preset the unit
to turn on and off in half-hour
increments.
Energy Saver Mode
Reduce your utility bills in this
mode. It cools similarly to central
air, with the unit turning on
and off at different intervals to
ensure the room temperature
stays at the set temperature.
Multi-Speed Fan
Features three different fan
speeds, for more cooling
flexibility.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria, room
odors and other airborne particles for a
healthier, more comfortable environment.
Power Cord
Comes with an extra long three-prong cord —
makes extension cords unnecessary.
Eortless™ Restart
Automatically resumes operating at its previous
settings when power is restored to your unit.
Clean Filter Alert
Alert notifies you when your filter needs to be
cleaned so you don’t have to keep track of it
yourself.
Ready-Select® Controls
Easily select options with the touch
of a button.
PERFORMANCE BTUs
Cool 12,000 / 11,700
Heat 10,600 / 8,600
frigidaire.com
D
A
C
B
FFTH1222U2
Plug Type (NEMA)
6-20P
HOME COMFORT
THROUGH-THE-WALL AIR CONDITIONER/HEATER
PERFORMANCE
BTU (Cool) 12,000 / 11,700
BTU (Heat) 10,600 / 8,600
Dehumidification (Pints / Hour) 3.4
Cool Area (Up To Sq. Ft.) 550
Combined Energy Eciency Ratio 9.5
Energy Eciency Ratio 9.5
ELECTRICAL
Volts 230 / 208
Amps (Cool) 5.5 / 5.9
Amps (Heat) 15.8 / 14.5
Watts (Cool) 1,260 / 1,230
Watts (Heat) 3,450 / 2,820
Length of Power Cord (Min. / Max.) 5.5' / 6'
Plug Type (NEMA) LCDI (6-20P)
FEATURES
Electronic Controls Ready-Select® Controls
Fan Speeds (Cool / Fan / Heat) 3 / 3 / 3
Low Voltage Start-Up Yes
Auto Cool Function Yes
Energy Saver Mode Yes
Sleep Mode Yes
Filter Check Yes
24-Hour On / O Timer Yes
Clean Air Ionizer
Remote Control Full-Function with Heat
Air CFM (High / Med / Low) 310 / 282 / 253
Air Direction Control 6-Wa y
Fresh Air / Exhaust Vent / Closed No / No / Yes
Filter Type Antibacterial Mesh
Filter Access Slide-Out
Slide-Out Chassis
1
Warranty
Yes
OPTIONAL ACCESSORIES
Through-The-Wall 18" Sleeve Kit PN # 5304514430
Trim Kit (for larger existing sleeve) Included
Architectural-Style Exterior Louvered Grille PN # 5304515640
CERTIFICATIONS
Performance AHAM
SPECIFICATIONS
Refrigerant R410a
Shipping Weight (Approx.) 99 Lbs.
1
Warranty five (5) years full parts and labor.
PRODUCT DIMENSIONS
A - Height 14-9/16"
B - Width 24"
C - Depth 20-5/8"
D - Max. Wall Thickness 18"
SLEEVE CUTOUT DIMENSIONS
Height 15-5/8"
Width 25-15/16"
•
USA
CANADA
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
