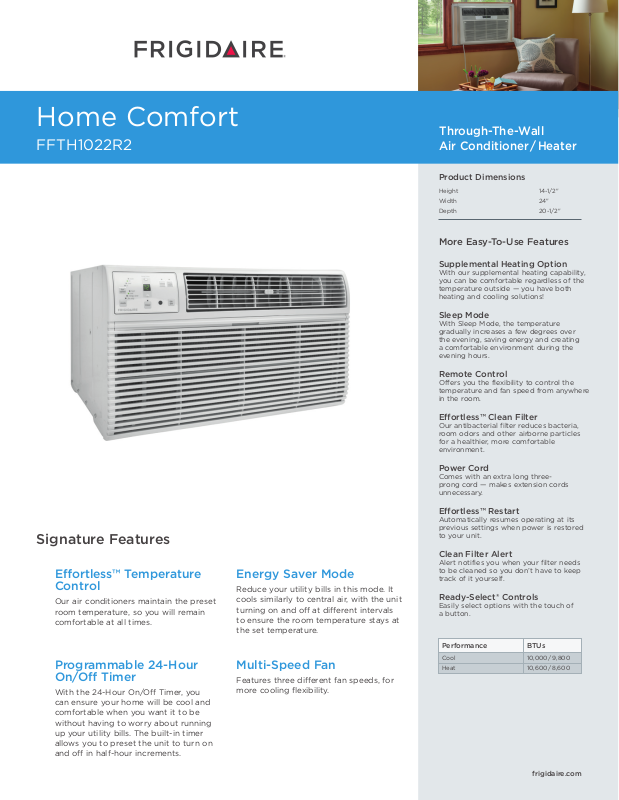

Frigidaire FFTH1022R2 Specification
Home Comfort
FFTH1022R2
Through-The-Wall
Air Conditioner / Heater
Product Dimensions
Height 14-1/2"
Width 24"
Depth 20-1/2"
More Easy-To-Use Features
Supplemental Heating Option
With our supplemental heating capability,
you can be comfortable regardless of the
temperature outside — you have both
heating and cooling solutions!
Sleep Mode
With Sleep Mode, the temperature
gradually increases a few degrees over
the evening, saving energy and creating
a comfortable environment during the
evening hours.
Remote Control
Offers you the flexibility to control the
temperature and fan speed from anywhere
in the room.
Signature Features
Eortless™ Temperature
Control
Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.
Programmable 24-Hour
On/O Timer
With the 24-Hour On/Off Timer, you
can ensure your home will be cool and
comfortable when you want it to be
without having to worry about running
up your utility bills. The built-in timer
allows you to preset the unit to turn on
and off in half-hour increments.
Energy Saver Mode
Reduce your utility bills in this mode. It
cools similarly to central air, with the unit
turning on and off at different intervals
to ensure the room temperature stays at
the set temperature.
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria,
room odors and other airborne particles
for a healthier, more comfortable
environment.
Power Cord
Comes with an extra long threeprong cord — makes extension cords
unnecessary.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Clean Filter Alert
Alert notifies you when your filter needs
to be cleaned so you don’t have to keep
track of it yourself.
Ready-Select® Controls
Easily select options with the touch of
a button.
Performance
Cool
Heat
BTUs
10,000 / 9,800
10,600 / 8,600
frigidaire.com
D
A
C
B
Plug Type (NEMA)
6-20P
Performance
BTU (Cool)
BTU (Heat)
Dehumidification (Pints / Hour)
Cool Area (Up To Sq. Ft.)
Combined Energy Eciency Ratio
Energy Eciency Ratio
10,000 / 9,800
10,600 / 8,600
2.8
450
9.6
9.6
Electrical
Volts
Amps (Cool)
Amps (Heat)
Watts (Cool)
Watts (Heat)
Length of Power Cord (Min. / Max.)
Plug Type (NEMA)
230 / 208
4.6 / 5.0
15.0 / 13.5
1,040 / 1,020
3,450 / 2,800
5.5' / 6'
LCDI (6-20P)
Features
Electronic Controls
Fan Speeds (Cool / Fan / Heat)
Low Voltage Start-Up
Auto Cool Function
Energy Saver Mode
Sleep Mode
Filter Check
24-Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
1
Warranty
Ready-Select® Controls
3 / 3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function with Heat
269 / 234 / 202
4-Wa y
No / No / Yes
Antibacterial Mesh
Slide-Out
Yes
Optional Accessories
Through-The-Wall 18" Sleeve Kit
Trim Kit (for larger existing sleeve)
Architectural-Style
Exterior Louvered Grille
PN # EA108T
PN # EA120T
PN # EA109T
Certifications
Performance
AHAM
Specifications
Refrigerant
Shipping Weight (Approx.)
1
Warranty 5 year sealed system / 1 year full parts and labor.
R410a
81 Lbs.
Home Comfort
FFTH1022R2 Through-The-Wall Air Conditioner / Heater
USA
CANADA
FFTH1022R2 03/15 © 2015 Electrolux Home Products, Inc.
•
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Max. Wall Thickness
•
frigidaire.com
•
frigidaire.ca
14-1/2"
24"
20-1/2"
18"
Sleeve Cutout Dimensions
Height
Width
Accessories information available
on the web at frigidaire.com
15-5/8"
25-15/16"
Specifications
subject to change.
