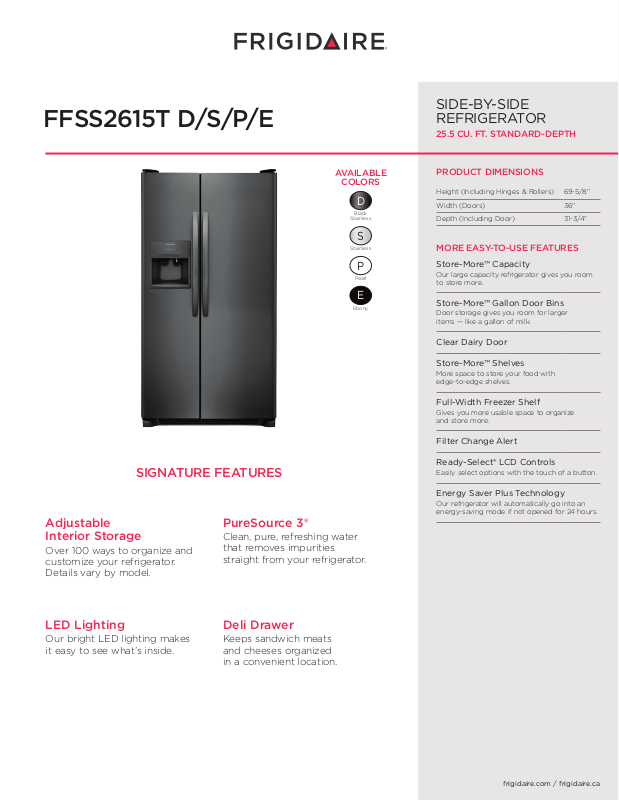

Page 1
FFSS2615T D/S/P/E
D
S
P
E
SIDE-BY-SIDE
REFRIGERATOR
25.5 CU. FT. STANDARD-DEPTH
SIGNATURE FEATURES
AVAILABLE
COLORS
Black
Stainless
Stainless
Pearl
Ebony
PRODUCT DIMENSIONS
Height (Including Hinges & Rollers) 69-5/8"
Width (Doors) 36"
Depth (Including Door) 31-3/4"
MORE EASY-TO-USE FEATURES
Store-More™ Capacity
Our large capacity refrigerator gives you room
to store more.
Store-More™ Gallon Door Bins
Door storage gives you room for larger
items — like a gallon of milk.
Clear Dairy Door
Store-More™ Shelves
More space to store your food with
edge-to-edge shelves.
Full-Width Freezer Shelf
Gives you more usable space to organize
and store more.
Filter Change Alert
Ready-Select® LCD Controls
Easily select options with the touch of a button.
Adjustable
Interior Storage
Over 100 ways to organize and
customize your refrigerator.
Details vary by model.
LED Lighting
Our bright LED lighting makes
it easy to see what’s inside.
Energy Saver Plus Technology
Our refrigerator will automatically go into an
energy-saving mode if not opened for 24 hours.
PureSource 3®
Clean, pure, refreshing water
that removes impurities
straight from your refrigerator.
Deli Drawer
Keeps sandwich meats
and cheeses organized
in a convenient location.
frigidaire.com / frigidaire.ca
Page 2
FFSS2615T D/S/P/E
SIDE-BY-SIDE REFRIGERATOR
25.5 CU. FT. STANDARD-DEPTH
FEATURES
Door Design UltraSoft™
Door Handle Design
Cabinet Finish
Door Stops / Door Closers Yes / Yes
Door Hinge Covers Color-Coordinated
Rollers – Front / Rear Yes / Yes
Energy Saver Plus Technology Yes
Water Filter Location Top Right Rear
Black Stainless (D),
Stainless Steel (S),
C-Coordinated (P/E)
Black (D), Grey (S),
C-Coordinated (P/E)
DISPENSER
Controls Ready-Select®
Dispenser Design Short, 2-Paddle
Number of Dispenser Buttons 4
Crushed Ice / Cube Ice / Water Yes / Yes / Yes
Ice Option / Freeze Option
Display On / O Option
Control Lock / Light No / Yes
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light Yes
Air Filter Change Indicator Light
REFRIGERATOR FEATURES
Interior Lighting LED
Water Filter Type PureSource 3®
Air Filter Type
Fixed Shelves 2 Store-More™ Glass
Deli Drawer Yes
Wine / Can Rack
Upper Crisper / Lower Crisper 1 Clear / 1 Clear
Humidity Controls
Dairy Compartment 1 Clear
Fixed Door Bins 2 Two-Liter Clear
Adjustable Door Bins 2 One-Gallon Clear
Non-Slip Bin Liner / Bottle Retainers
FREEZER FEATURES
Door Bins / Tilt-Out Wire Door Bins 4 White / No
Fixed Shelves 1 Flip-Out / 2 Wire
Full Extension Baskets
Full Freezer Baskets 1 Plastic
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting LED
SPECIFICATIONS
Total Capacity (Cu. Ft.) 25.5
Refrigerator Capacity (Cu. Ft.) 16.5
Freezer Capacity (Cu. Ft.) 9.0
Power Supply Connection Location Right Bottom Rear
Water Inlet Connection Location Left Bottom Rear
Voltage Rating 120V / 60Hz
Connected Load (kW rating) @ 120 Volts
Amps @ 120 Volts 8.5
Minimum Circuit Required (Amps) 15
Shipping Weight (Approx.) 300 Lbs.
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
1
1.02
PRODUCT DIMENSIONS
A - Height (Including Hinges & Rollers) 69-5/8"
B - Cabinet Width / Door Width 35-5/8" / 36"
C - Depth (Including Door) 31-3/4"
Depth with Door Open 90° 49-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2017 Electrolux Home Products, Inc.
FFSS2615T 09/17
Page 3
FFSS2615T D/S/P/E
SIDE-BY-SIDE REFRIGERATOR
25.5 CU. FT. STANDARD-DEPTH
Top View
A
C
B
“Built-In Look”Cutout
Dimensions
(A) 701/4" (B) 36" (C) 28
Recessed
water line
7/8"
Recessed
electrical outlet
31
36"
Doors
3
/4"
5"
Allow 49 1/2" min.
(with doors 90° open)
35
5/8"
Cabinet
28
34
1/2"
5
69
/8"
with
3
/8"
rollers
68 7/8"
with
rollers
3
/4"
Water
line inlet
3
location
/8"
(left
bottom
rear)
Power
cord
location
(right
bottom
rear)
Allow 1" min. clearance at rear
24"
Cabinet
water
7/8" Side Panels, 1/2" min. width
28
25"
Countertop
for proper air circulation and
/
electrical connections
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 300 Lbs.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.)
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance that
extends beyond front edge of unit, 20" minimum clearance recommended
to allow for optimum 120° to 180° door swing, providing complete
drawer / crisper access and removal. (Absolute 4-1/2" minimum clearance will
ONLY allow for 90° door swing which will provide drawer / crisper access with
restricted removal.)
•
To ensure optimum performance, avoid installing in direct sunlight or close
proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100 pounds
per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
“BUILT-IN LOOK” SPECIFICATIONS
•
Minimum opening of 70-1/4" H x 36" W x 28-7/8" D required to allow for ease
of installation, proper air circulation, and plumbing / electrical connections.
•
Remove all wall / floor molding prior to installation.
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com / frigidaire.ca.
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Specifications subject to change. Accessories information available on the web at frigidaire.com / frigidaire.ca
© 2017 Electrolux Home Products, Inc.
FFSS2615T 09/17
