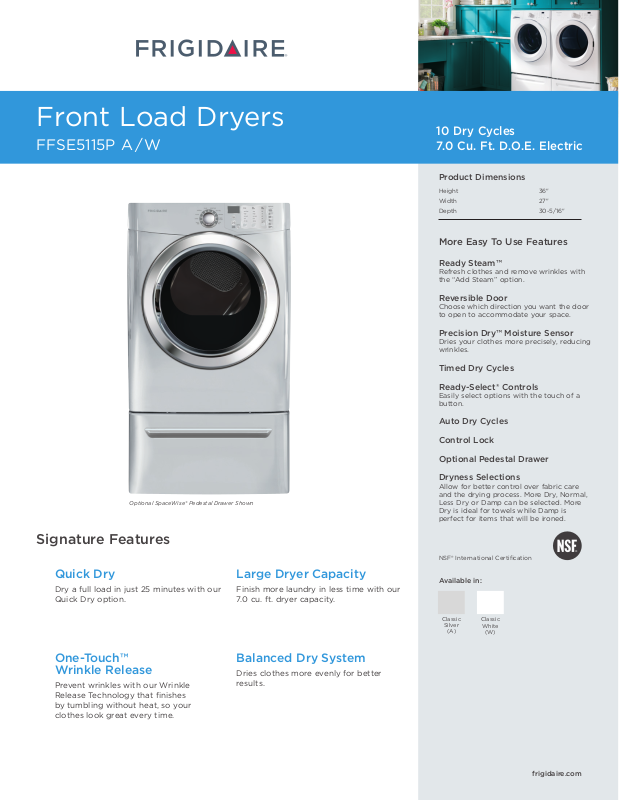

Front Load Dryers
FFSE5115P A / W
10 Dry Cycles
7.0 Cu. Ft. D.O.E. Electric
Product Dimensions
Height 36"
Width 27"
Depth 30-5/16"
More Easy To Use Features
Ready Steam™
Refresh clothes and remove wrinkles with
the “Add Steam” option.
Reversible Door
Choose which direction you want the door
to open to accommodate your space.
Precision Dry™ Moisture Sensor
Dries your clothes more precisely, reducing
wrinkles.
Timed Dry Cycles
Ready-Select® Controls
Easily select options with the touch of a
button.
Optional SpaceWise® Pedestal Drawer Shown
Signature Features
Quick Dry
Dry a full load in just 25 minutes with our
Quick Dry option.
One-Touch™
Wrinkle Release
Prevent wrinkles with our Wrinkle
Release Technology that finishes
by tumbling without heat, so your
clothes look great every time.
Large Dryer Capacity
Finish more laundry in less time with our
7.0 cu. ft. dryer capacity.
Balanced Dry System
Dries clothes more evenly for better
results.
Auto Dry Cycles
Control Lock
Optional Pedestal Drawer
Dryness Selections
Allow for better control over fabric care
and the drying process. More Dry, Normal,
Less Dry or Damp can be selected. More
Dry is ideal for towels while Damp is
perfect for items that will be ironed.
NSF® International Certification
Available in:
Classic
Silver
(A)
Classic
White
(W)
frigidaire.com
Features
B
C
A
C
B
A
Total Capacity D.O.E. (Cu. Ft.)
Controls
Dryer Drum Interior
Interior Light
Door Trim
Ready Steam™
DrySense™ Technology
Wrinkle Release Technology
TimeWise® Technology
Precision Moisture Sensor
Time Remaining Indicator
Cycle Status Lights
Cycle Signal
Cycle Signal “On/O ”
Cycle Signal Volume Control
Control Lock
Start / Pause / Cancel Buttons
Energy Saver Option
Delay Start
Tumble Speed (RPM)
Reversible Door
Lint Screen
Sound Package
Adjustable Leveling Legs
7.0
Ready-Select®
Stainless Steel
Yes
Chrome
Option
Yes
Yes
Yes
Yes
Yes
Yes
Chime
Yes
Yes
Yes
Yes
1 to 12 Hours
50
Yes
Yes
SilentDesign™
Yes
Cycles
Dry Cycles
Specialty Cycles
10
0
Options
Temperature Selections
Dryness Level Selections
Timed Dry
5
5
30, 60, 75, 90
Optional Accessories
Dryer Stacking Kit
15" Frigidaire® Pedestal Drawers
Classic Silver (A)
Classic White (W)
Mobile Home Installation Kit
Drying Rack
PN # STACKIT4X
(A) PN # CFPWD15A
(W) PN # CFPWD15W
PN # 137067200
PN # 137067300
Certifications
NSF® Certified Sanitize
Specifications
Maximum Exhaust Duct Length1 (Ft.)
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 240 Volts
Amps @ 240 Volts
Heating Element @ 240 Volts (Watts)
Shipping Weight (Approx.)
1
Rigid metal duct preferred, semi-rigid optional and allow deductions
for elbows and vents. Refer to Installation Guide on web for additional
information.
Yes
64
Right Bottom Rear
240V / 60Hz / 30A
5.4
24
5,500
140 Lbs.
Front Load Dryers
FFSE5115P A / W 7.0 Cu. Ft. D.O.E. Electric
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Single)
Height (Stacked)
B - Width
C - Depth
Depth with Door Open 90˚
Pedestal Dimensions
A - Height
B - Width
C - Depth
Depth with Drawer Fully Extended
36"
71-1/2"
27"
30-5/16"
51-7/16"
15-1/4"
27"
26-1/2"
42-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FFSE5115P 07/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Front Load Laundry - Electric Steam Dryer
Frigidaire Affinity (All N & P Models)
Front Load Dryers
FFSE5115P A / W 7.0 Cu. Ft. D.O.E. Electric
Front Load Dryer Specifications
• Product Shipping Weight (approx.) – 140 Lbs.
• An electrical supply with grounded three-prong receptacle is required.
• Voltage Rating – 240V / 60 Hz / 30 Amps
• Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides
of line. (Do not use same circuit as washer.)
• Connected Load (kW Rating) @ 240 Volts = 5.4 kW
• Amps @ 240 Volts = 24 Amps
• Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or
4-conductor NEMA 14-30 type SRDT or ST (as required), rated at
240 volt AC minimum, 30 amp power supply cord marked for
use with clothes dryers (not supplied).
• Grounding through neutral link prohibited in specific applications and
certain locales, requiring use of 4-wire system. (For detailed electrical
requirements, refer to Product Installation Guide on web.)
• Always consult local and national electric & plumbing codes.
• Can be installed alone, with or without optional 15" Pedestal Drawer,
or stacked above matching Frigidaire® Washer, which requires
installation of optional Dryer Stacking Kit. (For installation details, refer
to instructions included with optional pedestal or stacking kit or on web.)
• Can be built in with matching Frigidaire® Washer in under-counter,
recessed or closet installation. (Refer to Built-In Installations on this
page for cutout dimensions. For additional installation details, refer to
Product Installation Guide on web.)
• Closet installation requires vented door with 2 unobstructed louvered
openings, minimum 60 sq. in. each, located 3" from top and bottom
of door. Full-length 120 sq. in. opening also acceptable. Allow
additional 1" clearance between fronts of units and closed door.
•
USA
10200 David Taylor Drive
•
CANADA
FFSE5115P 07/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
• Do NOT install in area exposed to dripping water or outdoor weather
conditions; where gasoline or other flammables are kept or stored; or
where dryer comes in contact with curtains, drapes or anything that
will obstruct flow of combustion and ventilation air.
• For garage installation, dryer MUST be located minimum 18" above floor.
• Floor MUST be solid with 1" maximum slope. Do NOT install on
carpeted surface.
• Dryer MUST exhaust to outside of building, NOT into any concealed
space.
• Exhaust installation requires minimum 4"-diameter rigid or semi-rigid
metal duct with approved, unobstructed vent hood having swing-out
damper(s). If installing rigid metal duct (preferred), do not exceed
MAXIMUM venting run length of 64 ft., allow deductions for elbows
and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM
venting run length of 8 ft., always allow deductions for elbows and
vents (Refer to Product Installation Guide on web for additional
information). Do NOT use flexible plastic or metal foil duct and use
shortest run possible.
• Leveling legs supplied to level dryer properly and reduce excessive
noise and vibration.
• Water inlet hose for steam setting connects to cold water supply with
“Y” connector and requires 3/4" clearance between back of unit and
wall.
Note: For planning purposes only. Refer to Product Installation Guide
Optional Accessories
• Dryer Stacking Kit – (PN # STACKIT4X).
• 15" Classic Silver Pedestal Drawer – (PN # CFPWD15A).
• 15" Classic White Pedestal Drawer – (PN # CFPWD15W).
• Mobile Home Installation Kit – (PN # 137067200).
• Drying Rack – (PN # 137067300).
on the web at frigidaire.com for detailed instructions.
Specifications
Specifications
subject to change.
subject to change.
