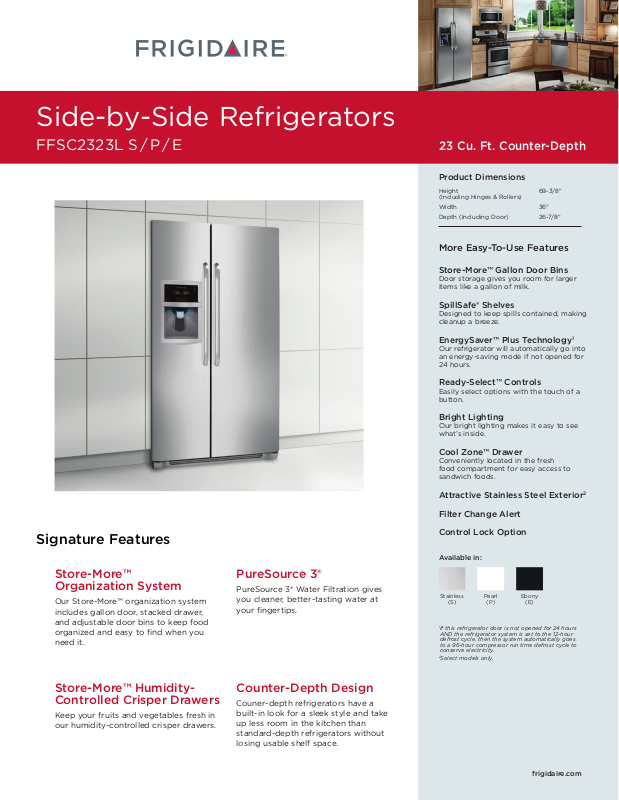

Frigidaire FFSC2323L User Manual

Side-by-Side Refrigerators

FFSC2323L S / P / E

23 Cu. Ft. Counter-Depth

Product Dimensions

Height 69-3/8"
(Including Hinges & Rollers)

Width 36"

Depth (Including Door) 26-7/8"

More Easy-To-Use Features

Store-More™ Gallon Door Bins

Door storage gives you room for larger
items like a gallon of milk.

SpillSafe® Shelves

Designed to keep spills contained, making
cleanup a breeze.

EnergySaver™ Plus Technology

Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.

Ready-Select™ Controls

Easily select options with the touch of a
button.

Bright Lighting

Our bright lighting makes it easy to see
what’s inside.

1

Signature Features

Store-More™
Organization System

Our Store-More™ organization system
includes gallon door, stacked drawer,
and adjustable door bins to keep food
organized and easy to find when you
need it.

Store-More™ Humidity­Controlled Crisper Drawers

Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.

PureSource 3®

PureSource 3® Water Filtration gives
you cleaner, better-tasting water at
your fingertips.

Counter-Depth Design

Couner-depth refrigerators have a
built-in look for a sleek style and take
up less room in the kitchen than
standard-depth refrigerators without
losing usable shelf space.

Cool Zone™ Drawer

Conveniently located in the fresh
food compartment for easy access to
sandwich foods.

Attractive Stainless Steel Exterior

Filter Change Alert

Control Lock Option

Available in:

Stainless

(S)

1

If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.

2

Select models only.

Pearl

(P)

Ebony

(E)

2

frigidaire.com

Features

Door Design

Door Handle Design

Cabinet Finish

Door Stops / Door Closers

Door Hinge Covers

Rollers – Front / Rear

EnergySaver™ Plus Technology

Water Filter Location

Sound Package

UltraSoft™

Stainless Steel (S),
Color-Coordinated (P / E)

Grey (S),
Color-Coordinated (P / E)

Yes / Yes

Stainless Steel (S),
Color-Coordinated (P / E)

Adjustable / Yes

Yes

Top Right Rear

Quiet Pack

Dispenser

Controls

Dispenser Design

Number of Dispenser Buttons

Crushed Ice / Cube Ice / Chilled Water

Ice Option / Freeze Option

Display On / O Option

Control Lock  / Light

Temp / Door Ajar / Power Failure Alerts

Water Filter Change Indicator Light

Air Filter Change Indicator Light

Ready-Select™

Tall, Single Paddle

7

Yes / Yes / Yes

Yes / Yes

Yes

Refrigerator Features

Interior Lighting

Water Filter Type

Air Filter Type

Fixed Shelves

Sliding Shelves

Cool Zone™ Drawer

Wine / Can Rack

Upper Crisper / Lower Crisper

Humidity Controls

Dairy Compartment

Fixed Door Bins

Adjustable Door Bins

Non-Slip Bin Liner  / Bottle Retainers

Condiment Bin

Bright

PureSource 3®

3 SpillSafe®

1 Clear

1 Clear / 1 Clear

1

1 Clear

1 One-Gallon White

2 Two-Liter White

1 White

Freezer Features

Door Bins / Tilt-Out Wire Door Bins

Fixed Shelves

Full Extension Baskets 

Full Freezer Baskets

Half Freezer Baskets

Ice Cream Shelf / Pizza Shelf

SpaceSaver™ Shelf

Lighting

4 White / No

3 Wire

1 Wire

Yes / No

Specifications

Total Capacity (Cu. Ft.)

Refrigerator Capacity (Cu. Ft.)

Freezer Capacity (Cu. Ft.)

Power Supply Connection Location

Water Inlet Connection Location

Voltage Rating

Connected Load (kW Rating)
@ 120 Volts

1

Amps @ 120 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

1

For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.

22.6

14.1

8.5

Right Bottom Rear

Left Bottom Rear

120V / 60Hz / 15 or 20A

1.02

8.5

15

310 Lbs.

Side-by-Side Refrigerators

FFSC2323L S / P /E 23 Cu. Ft. Counter-Depth

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height (Incl. Hinges and Rollers)

B - Width

C - Depth (Incl. Door)

Depth with Door Open 90˚

69-3/8"

36"

26-7/8"

45"

"Built-In Look" Cutout Dimensions

Height (Incl. Hinges and Rollers)

Width

Depth

70-1/4"

36"

25"

Accessories information available

on the web at frigidaire.com

•

USA

10200 David Taylor Drive

•

CANADA

FFSC2323L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

Specifications

subject to change.
