All Refrigerator
FFRU17B2QW
Frost Free
16.6 Cu. Ft.
Product Dimensions
Height (Including Hinges) 67-11/16
Width 34"
Depth (Including Door) 28-1/2"
More Easy-To-Use Features
Adjustable Temperature Control
Select the correct temperature for your
needs.
Color-Coordinated Handle
5 Fixed Door Racks
1 Trivet
Available in:
White
(W)
Signature Features
Frost-Free Operation
Never defrost your refrigerator again
so you can spend time on more
important things.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Ready-Select® Controls
Easily select options with the touch of
a button.
frigidaire.com
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Features
C
A
B
Door Handle Design
Reversible Door
Automatic Door Closer
Leveling Legs
Adjustable Temperature Control
Defrost
Temp Display Mode
Full-Width Shelves
Slide-Out Wire Baskets
Interior Lighting
Door Bins
Door Racks
Fixed Door Shelf Retainers
UltraSoft™
Yes
Yes
Mechanical Dial
Frost Free
1 - 7
3 Adjustable Wire
Bright
5 Full-Width
Certifications
CSA Rating
Household
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.12 / kWH)
Power Supply Connection Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes & ordinances.
16.6
18.2
479
$57
Right Bottom Rear
115V, 60Hz, 15A
1
0.6
5
15
201 Lbs.
All Refrigerator
FFRU17B2QW 16.6 Cu. Ft.
FFRU17B2Q 09/14 © 2014 Electrolux Home Products, Inc.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

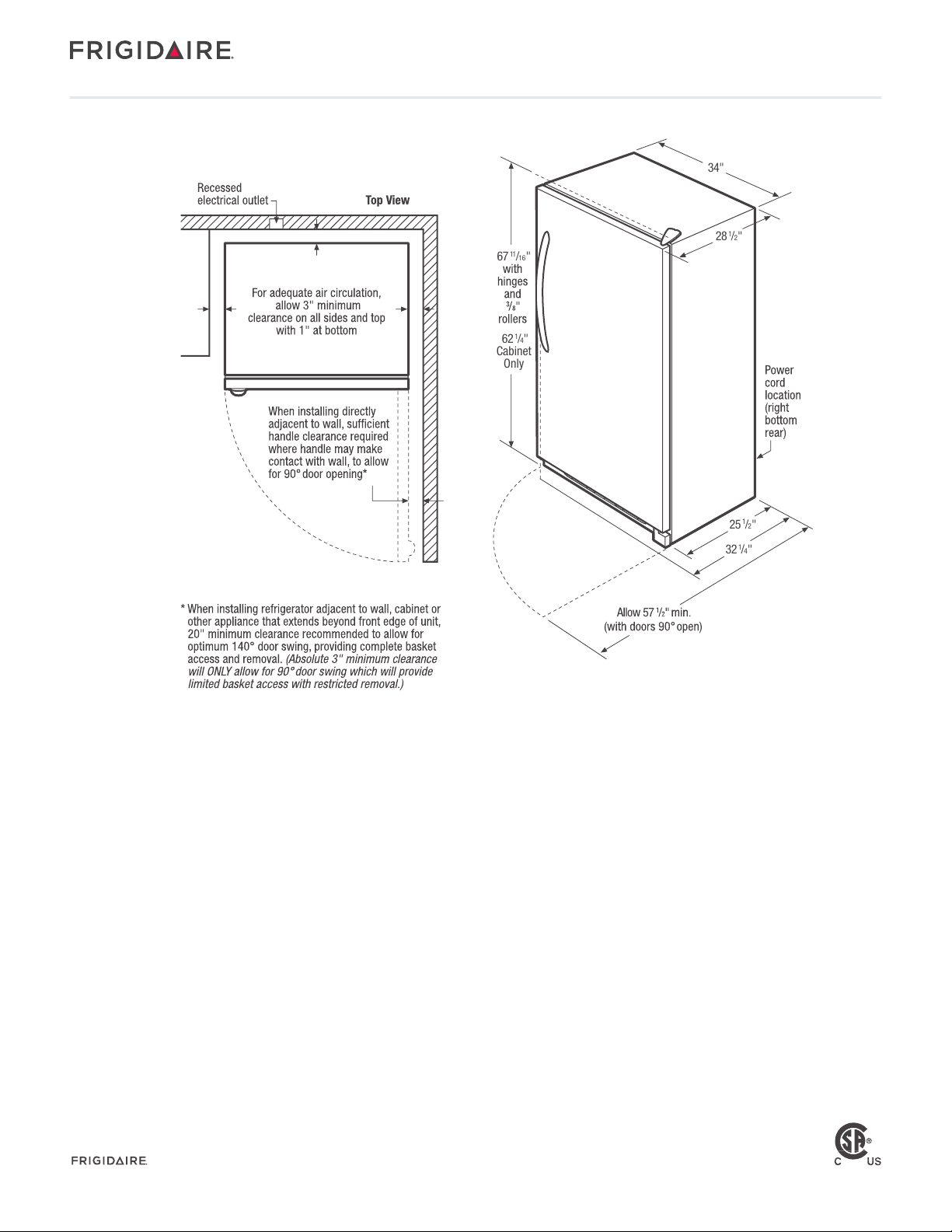

Product Dimensions
A - Height (Including Hinges)
B - Width
C - Depth (Including Door)
D - Depth with Door Open 90˚
67-11/16"
34"
28-1/2"
60-1/4"
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
All Refrigerator
All Refrigerator_17 Cu. Ft. with Short Tail Handle
Baseline
34"
28
1
/2"
25
1
/2"
32 1/4"
67
11
/16"
62
1
/4"
Cabinet
Only
FFRU17B2QW 16.6 Cu. Ft.
All Refrigerator Specifications
•
Product Shipping Weight (approx.) – 201 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 115V
•
Connected Load (kW Rating) @ 115 Volts = 0.6 kW
•
Amps @ 115 Volts = 5 Amps
•
Always consult local and national electric codes.
•
For adequate air circulation, allow 3" minimum clearance on all
sides and top with 1" at bottom.
•
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearanc
providing complete basket access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited basket access with restricted removal.)
•
Locate where surrounding air temperature will not exceed 110° F,
to ensure optimum performance. (Temperatures 32° F and below
will NOT affect operation.)
•
All bottom corners of unit MUST rest firmly on solid level surface
e recommended to allow for optimum 140° door swing,
of hard material, same height as flooring. Surface must be strong
and stable enough to support unit when fully loaded.
•
Equipped with adjustable leveling legs to ensure unit is level,
which is required in order to function properly.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
FFRU17B2Q 09/14 © 2014 Electrolux Home Products, Inc.
Specifications
subject to change.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with All Refrigerator or All Freezer
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_ARAF FR 01/14 © 2014 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
