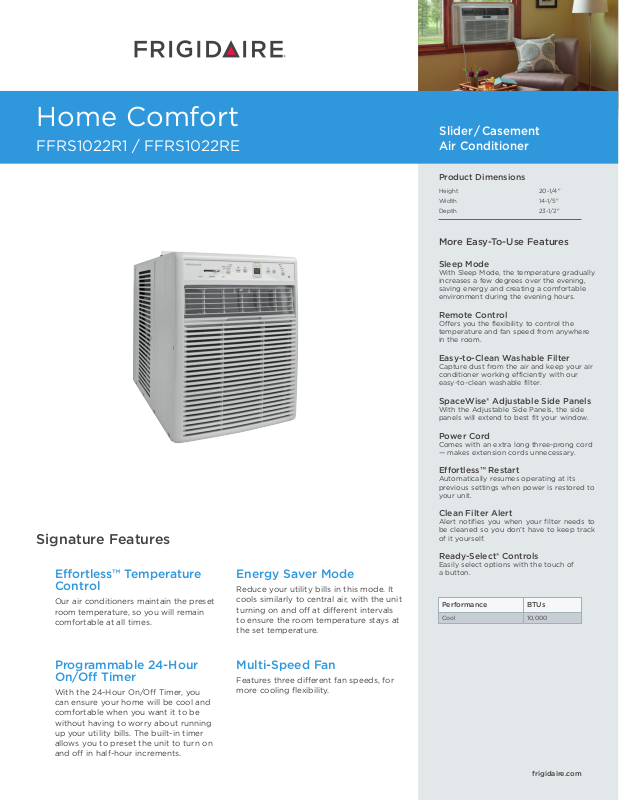

Frigidaire FFRS1022RE Specification Sheet
Home Comfort
FFRS1022R1 / FFRS1022RE
Slider / Casement
Air Conditioner
Product Dimensions
Height 20-1/4"
Width 14-1/5"
Depth 23-1/2"
Signature Features
Eortless™ Temperature
Control
Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.
Energy Saver Mode
Reduce your utility bills in this mode. It
cools similarly to central air, with the unit
turning on and off at different intervals
to ensure the room temperature stays at
the set temperature.
More Easy-
Sleep Mode
With Sleep Mode, the temperature gradually
increases a few degrees over the evening,
saving energy and creating a comfortable
environment during the evening hours.
Remote Control
Oers you the flexibility to control the
temperature and fan speed from anywhere
in the room.
Easy-to-Clean Washable Filter
Capture dust from the air and keep your air
conditioner working efficiently with our
easy-to-clean washable filter.
SpaceWise® Adjustable Side Panels
With the Adjustable Side Panels, the side
panels will extend to best fit your window.
Power Cord
Comes with an extra long three-prong cord
— makes extension cords unnecessary.
Effortless™ Restart
Automatically resumes operating at its
previous settings when power is restored to
your unit.
Clean Filter Alert
Alert notifies you when your filter needs to
be cleaned so you don’t have to keep track
of it yourself.
Ready-Select® Controls
Easily select options with the touch of
a button.
Performance
Cool
To-Use Features
BTUs
10,000
Programmable 24-Hour
On/O Timer
With the 24-Hour On/Off Timer, you
can ensure your home will be cool and
comfortable when you want it to be
without having to worry about running
up your utility bills. The built-in timer
allows you to preset the unit to turn on
and off in half-hour increments.
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
frigidaire.com
F
C
B
A
Filler Panel
D
E
Plug Type (NEMA)
5-15P
Performance
BTU (Cool)
Dehumidification (Pints / Hour)
Cool Area (Up To Sq. Ft.)
Combined Energy Eciency Ratio
Energy Eciency Ratio
10,000
3.4
450
10.4
10.4
Electrical
Volts
Amps (Cool)
Watts (Cool)
Length of Power Cord (Min. / Max.)
Plug Type (NEMA)
115
10.0
961
6' / 6-1/2'
LCDI (5-15P)
Features
Electronic Controls
Fan Speeds (Cool / Fan)
Low Voltage Start-Up
Auto Cool Function
Energy Saver Mode
Sleep Mode
Filter Check
24-Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low)
Air Direction Control
Fresh Air / Exhaust Vent / Closed
Filter Type
Filter Access
Slide-Out Chassis
Window Mounting Kit (Included)
1
Warranty
Ready-Select® Controls
3 / 3
Yes
Yes
Yes
Yes
Yes
Yes
Full-Function
323/ 294 / 264
4-Wa y
No / Yes / Yes
Easy-to-Clean Washable Filter
Slide-Out
Pleated Quick Mount
Yes
Certifications
Performance
Specifications
Refrigerant
Shipping Weight (Approx.)
1
Warranty 5 year sealed system / 1 year full parts and labor.
AHAM
R410a
84 Lbs.
Home Comfort
FFRS1022R1 Slider / Casement Air Conditioner
USA
CANADA
FFRS1022R
•
10200 David Taylor Drive
•
5855 Terry Fox Way
03/20
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
•
frigidaire.com
•
frigidaire.ca
© 2015 Electrolux Home Products, Inc.
20-1/4"
14-1/5"
23-1/2"
Window Dimensions
D - Height (Min.)
E - Width
Wall Cutout Dimensions
F - Max. Wall Thickness
Accessories information available
21-1/2" / 40"
15-1 /2"
8-1/2"
on the web at frigidaire.com
Specifications
subject to change.
