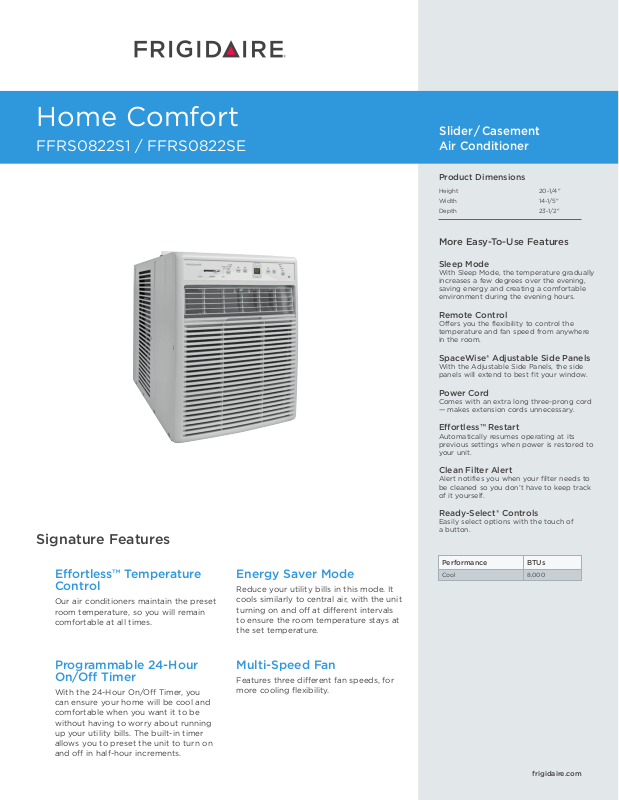

Frigidaire FFRS0822SE Specification Sheet

Home Comfort

FFRS0822S1 / FFRS0822SE

Slider / Casement
Air Conditioner

Product Dimensions

Height 20-1/4"

Width 14-1/5"

Depth 23-1/2"

More Easy-To-Use Features

Sleep Mode

With Sleep Mode, the temperature gradually
increases a few degrees over the evening,
saving energy and creating a comfortable
environment during the evening hours.

Remote Control

Offers you the flexibility to control the
temperature and fan speed from anywhere
in the room.

SpaceWise® Adjustable Side Panels

With the Adjustable Side Panels, the side
panels will extend to best fit your window.

Power Cord

Comes with an extra long three-prong cord
— makes extension cords unnecessary.

Signature Features

Eortless™ Temperature
Control

Our air conditioners maintain the preset
room temperature, so you will remain
comfortable at all times.

Programmable 24-Hour
On/O Timer

With the 24-Hour On/Off Timer, you
can ensure your home will be cool and
comfortable when you want it to be
without having to worry about running
up your utility bills. The built-in timer
allows you to preset the unit to turn on
and off in half-hour increments.

Energy Saver Mode

Reduce your utility bills in this mode. It
cools similarly to central air, with the unit
turning on and off at different intervals
to ensure the room temperature stays at
the set temperature.

Multi-Speed Fan

Features three different fan speeds, for
more cooling flexibility.

Eortless™ Restart

Automatically resumes operating at its
previous settings when power is restored to
your unit.

Clean Filter Alert

Alert notifies you when your filter needs to
be cleaned so you don’t have to keep track
of it yourself.

Ready-Select® Controls

Easily select options with the touch of
a button.

Performance

Cool

BTUs

8,000

frigidaire.com

F

C

B

A

Filler Panel

D

E

Performance

Plug Type (NEMA)

5-15P

BTU (Cool)

Dehumidification (Pints / Hour)

Cool Area (Up To Sq. Ft.)

Energy Eciency Ratio

8,000

3.0

350

10.8

Electrical

Volts

Amps (Cool)

Watts (Cool)

Length of Power Cord (Min. / Max.)

Plug Type (NEMA)

115

6.6

740

6' / 6-1/2'

LCDI (5-15P)

Features

Electronic Controls

Fan Speeds (Cool / Fan)

Low Voltage Start-Up

Auto Cool Function

Energy Saver Mode

Sleep Mode

Filter Check

24-Hour On / O Timer

Clean Air Ionizer

Remote Control

Air CFM (High / Med / Low)

Air Direction Control

Fresh Air / Exhaust Vent / Closed

Filter Type

Filter Access

Slide-Out Chassis

Window Mounting Kit (Included)

1

Warranty

Ready-Select® Controls

3 / 3

Yes

Yes

Yes

Yes

Yes

Yes

Full-Function

263 / 228 / 199

4-Wa y

No / Yes / Yes

Easy-to-Clean Washable Filter

Slide-Out

Pleated Quick Mount

Yes

Certifications

Performance

AHAM

Specifications

Refrigerant

Shipping Weight (Approx.)

1

Warranty 5 year sealed system / 1 year full parts and labor.

R410a

79 Lbs.

Home Comfort

FFRS0822S1 Slider / Casement Air Conditioner

USA
CANADA

FFRS0822S

•

10200 David Taylor Drive

•

5855 Terry Fox Way

03/20

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height

B - Width

C - Depth

•

frigidaire.com

•

frigidaire.ca

© 2016 Electrolux Home Products, Inc.

20-1/4"

14-1/5"

23-1/2"

Window Dimensions

D - Height (Min.)

E - Width

Wall Cutout Dimensions

F - Max. Wall Thickness

Accessories information available

21-1/2" / 40"

15-1 /2"

8-1/2"

on the web at frigidaire.com

Specifications

subject to change.
