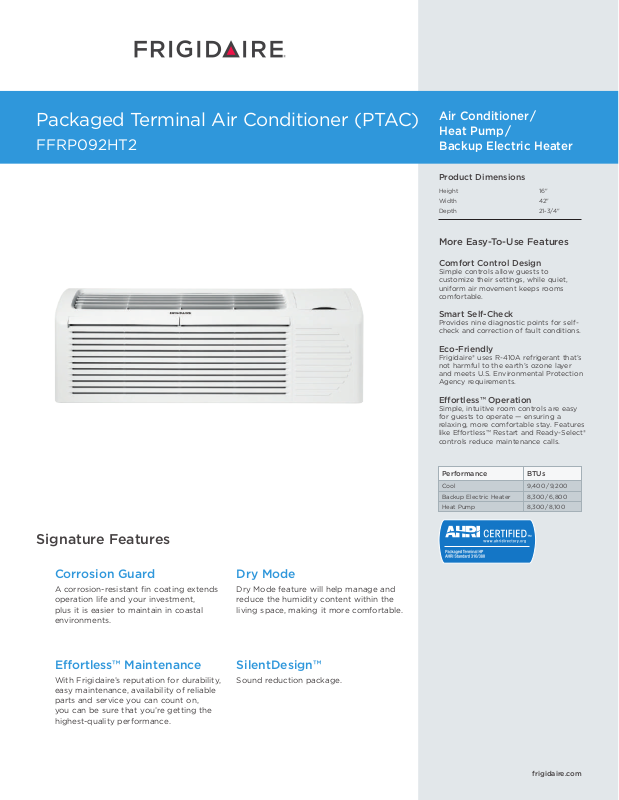

Packaged Terminal Air Conditioner (PTAC)
FFRP092HT2
Air Conditioner /
Heat Pump /
Backup Electric Heater
Product Dimensions
Height 16"
Width 42"
Depth 21-3/4"
More Easy-To-Use Features
Comfort Control Design
Simple controls allow guests to
customize their settings, while quiet,
uniform air movement keeps rooms
comfortable.
Smart Self-Check
Provides nine diagnostic points for selfcheck and correction of fault conditions.
Eco-Friendly
Frigidaire® uses R-410A refrigerant that’s
not harmful to the earth’s ozone layer
and meets U.S. Environmental Protection
Agency requirements.
Eortless™ Operation
Simple, intuitive room controls are easy
for guests to operate — ensuring a
relaxing, more comfortable stay. Features
like Effortless™ Restart and Ready-Select®
controls reduce maintenance calls.
Signature Features
Corrosion Guard
A corrosion-resistant fin coating extends
operation life and your investment,
plus it is easier to maintain in coastal
environments.
Eortless™ Maintenance
With Frigidaire’s reputation for durability,
easy maintenance, availability of reliable
parts and service you can count on,
you can be sure that you’re getting the
highest-quality performance.
Dry Mode
Dry Mode feature will help manage and
reduce the humidity content within the
living space, making it more comfortable.
SilentDesign™
Sound reduction package.
Performance
Cool
Backup Electric Heater
Heat Pump
BTUs
9,400 / 9,200
8,300 / 6,800
8,300 / 8,100
frigidaire.com
B
A
D
C
Performance
Plug Type (NEMA)
6-15P
BTU (Cool)
BTU (Backup Electric Heater)
BTU (Heat Pump)
Dehumidification (Pints / Hour)
Cool Area (Sq. Ft.)
Energy Eciency Ratio
9,400 / 9,200
8,300 / 6,800
8,300 / 8,100
2.1
450
12.1
Electrical
Volts
Amps (Cool)
Amps (Backup Electric Heater)
Amps (Heat Pump)
Watts (Cool)
Watts (Backup Electric Heater)
Watts (Heat Pump)
Cable Included
Length of Power Cord
Circuit Breaker
Plug Type (NEMA)
230 / 208
3.7 / 3.9
10.7 / 9.7
3.2 / 3.4
775 / 760
2,450 / 2,000
695 / 675
Yes
5.5'
15A
LCDI (6-15P)
Features
Fin Coating
Dry Mode
Electronic Controls
Front Desk Control Ready
Fan Speeds (Dry / Cool / Fan / Heat)
Noise Level Indoors (High / Low)
Quiet Start-Up
Low Voltage Start-Up
Random Restart Protection
Eortless™ Auto Freeze Protection
Energy Save
24-Hour On / O Timer
Air CFM (High / Low)
Air Direction Control
Air Intake
Filter Type
Filter Access
Slide-Out Chassis
Commercial Grade Warranty
1
Corrosion Guard
Yes
Ready-Select® Controls
Yes
1 / 2 / 2 / 2
52 / 50
Yes
Yes
Yes
Yes
Yes
Yes
330 / 294
Auxiliary 2-Way
Fresh or Recycled
Nylon Mesh
Slide-Out
Yes
Yes
Certifications
Safety Certification
Performance
UL, CUL & CSA
AHRI & CEC
Specifications
Refrigerant
Charge
Shipping Weight (Approx.)
1
Warranty 5 year sealed system / 2 year full parts and labor.
R410a
33.9 oz.
141 Lbs.
Packaged Terminal Air Conditioner (PTAC)
FFRP092HT2 Air Conditioner / Heat Pump / Backup Electric Heater
PTAC Nomenclature
FF RP 07 2 L T 3
PTAC
BTU OUTPUT
07 = 7,200 / 7,000
09 = 9,400 / 9,200
12 = 11,800 / 11,600
15 = 14,500 / 14,200
CORROSION
GUARD
L = Electric
H = Heat Pump
HEAT
DESIGN YEAR
T = 2017
230/208V 265V
2 = 15A 5 = 15A
3 = 20A 6 = 20A
4 = 30A 7 = 30A
USA
CANADA
FFRP092HT2 01/17 © 2017 Electrolux Home Products, Inc.
•
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
NOTE: For planning purposes only. Always consult
local and national electric codes. Refer to Product
Installation Guide for detailed installation instructions
on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth (Overall Unit)
D - Depth (Inside Sleeve)
Max. Wall Thickness
2
Unless the PTAC unit is installed with a wall sleeve.
•
frigidaire.com
•
frigidaire.ca
16"
42"
21-3/4"
13-3/4"
13-1/2"
Wall Cutout Dimensions
Height
Width
2
Accessories information available
on the web at frigidaire.com
16-1/4"
42-1/4"
Specifications
subject to change.

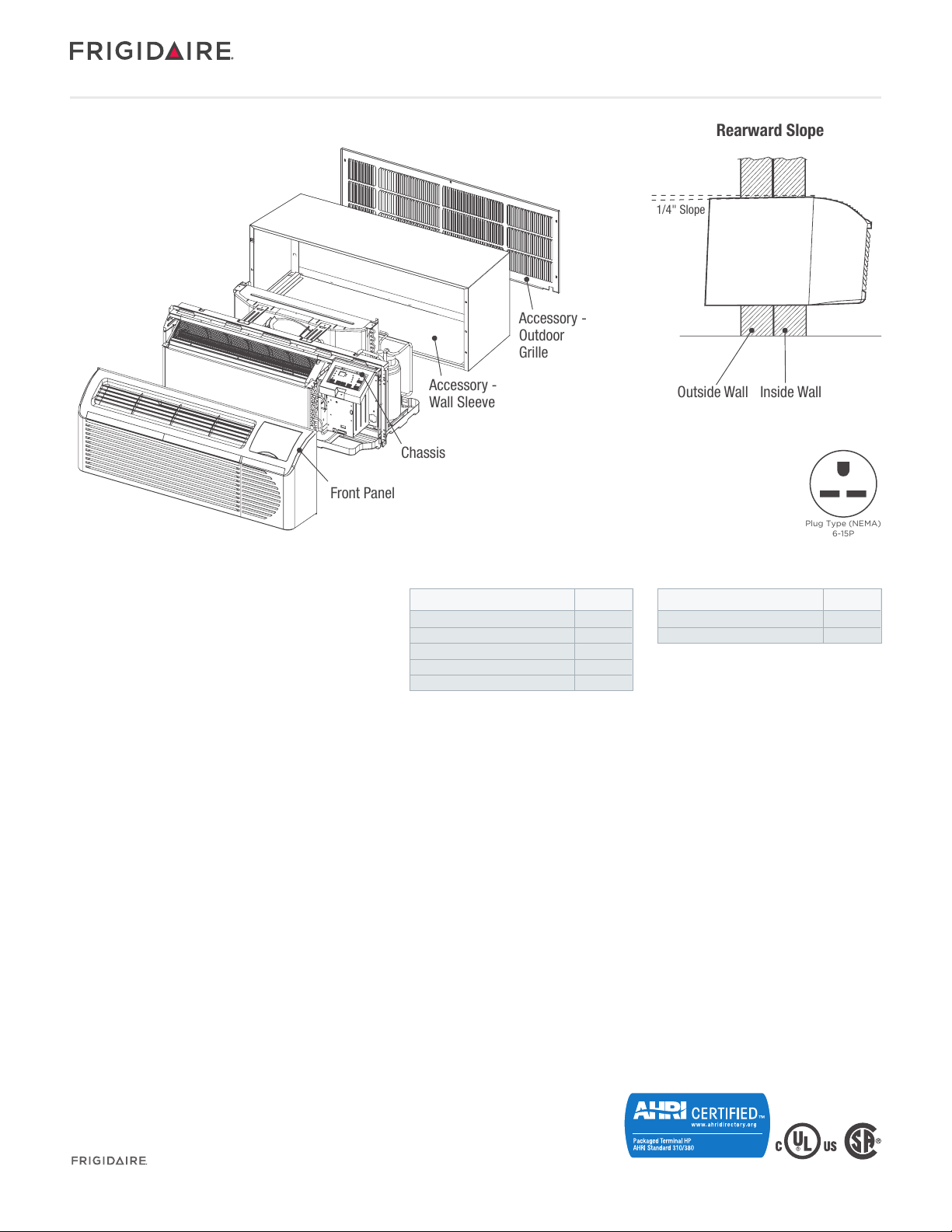

Rearward Slope
Outside Wall
1/4" Slope
Inside Wall
Rearward Slope
Chassis
Front Panel
Accessory -
Wall Sleeve
Accessory -
Outdoor
Grille
Plug Type (NEMA)
6-15P
Packaged Terminal Air Conditioner (PTAC)
FFRP092HT2 Air Conditioner / Heat Pump / Backup Electric Heater
Product Dimensions
Height
Width
Depth (Overall Unit)
Depth (Inside Sleeve)
Max. Wall Thickness
PTAC Specifications
•
Product Shipping Weight (approx.) – 141 Lbs.
•
An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (ANSI/NFPA 70)
and local codes & ordinances.
•
Voltage Rating – 230V / 208V / 60 Hz
•
Amps @ 230/208V Volts = (Cool) 3.7 / 3.9 Amps /
(Backup Electric Heater) 10.7 / 9.7 Amps / (Heat Pump) 3.2 / 3.4 Amps
•
Always consult local and national electric codes.
•
Recommended Circuit Breaker – 15 Amps
•
Unit equipped with 230/208V 3-wire power supply cord, NEMA plug
type 6-15P, approximately 66" long.
•
In order for condensate water to drain properly inside the unit, the
sleeve must be installed properly: Level from right to left with a slight
1/4" rearward pitch from the indoor side to the outdoor side as shown in
the illustration above. Refer to the Installation Instructions on the web.
•
The drain kit listed on the Frigidaire® PTAC Accessories page can
be used for an internal or external drain. This applies to new and
replacement installation.
New Installation
•
For new installation, Frigidaire® PTAC Sleeves are available and
recommended for proper installation. See accessories pages for
sleeve options.*
•
Standard PTAC installation requires 13-1/2" maximum wall thickness,
unless a wall sleeve is used.
•
If the PTAC unit protrudes more than 4", then it is suggested that it be
installed with a subbase. See accessories pages for subbase options.
Wall Cutout Dimensions
16"
42"
21-3/4"
13-3/4"
13-1/2"
Height
Width
16-1/4"
42-1/4"
Replacement Installation
•
When replacing existing PTAC with new unit, refer to Product
Installation Guide on web to identify existing wall-sleeve manufacturer
and size compatibility. If proper installation and slope are suspect,
then correct installation of Frigidaire® PTAC Sleeve options
recommended.
•
For any sleeve retrofit application, be sure that the foam seals
(factory-installed on the tube sheets) provide a good seal between
the grille and the outdoor coil tube sheets. These foam seals provide
a barrier that stops air from the inside mixing with air on the outside
(known as air recirculation).
•
Using Frigidaire® wall sleeve with Non-Frigidaire grille requires
installation of an Accessory Baffle Kit, which ensures a good seal
between the unit and exterior grille to prevent air recirculation. Air
recirculation is a large contributor to performance loss and premature
damage to major components.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
*See Frigidaire® PTAC accessories pages attached for optional accessories.
•
USA
10200 David Taylor Drive
•
CANADA
FFRP092HT2 01/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Packaged Terminal
Air Conditioner (PTAC)
ACCESSORIES
Metal
Wall Sleeve
Polymer
Wall Sleeve

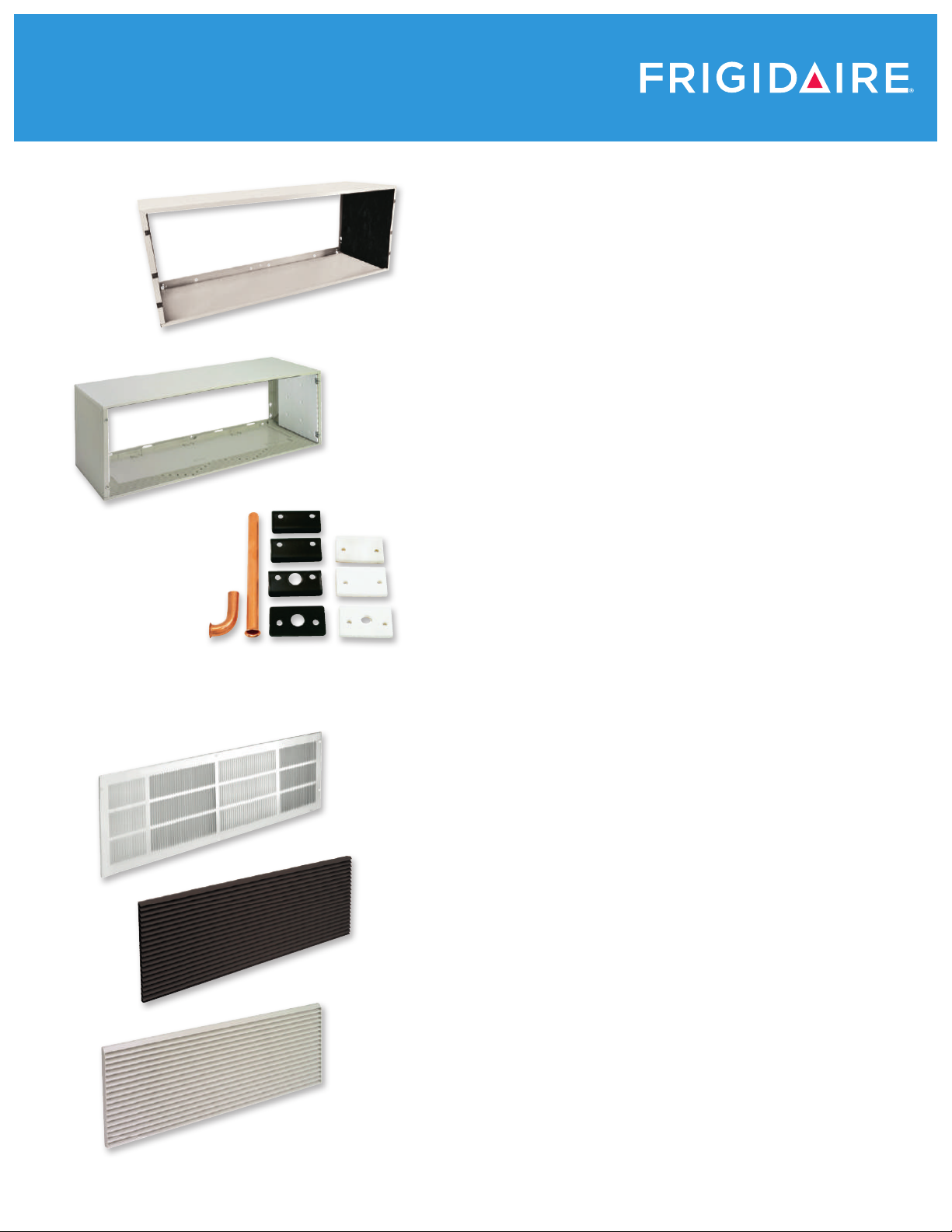

Wall Sleeves and Drain Kit
Metal Wall Sleeve & Accessories
5304482701 Steel Sleeve – Insulated
5304483759 16" Extended Sleeve – Insulated
5308815304 18" Extended Sleeve – Insulated
5308815305 24" Extended Sleeve – Insulated
5304483760 3" Sleeve Adapter
These fully insulated sleeves are made of electro-galvanized
steel that resists corrosion, and welded areas are sealed with
a rust preventive. White powder coating matches PTAC units.
Sliding keyhole grille attachments enable easy, one-person
installation from the inside.
Polymer Wall Sleeve
5308815302 Insulated
Utilizes fiberglass-reinforced polyester compound to produce
a durable, noncorrosive wall case that provides superior sound
absorption, reduces heat loss and prevents sleeve sweating.
(Requires use of a Polymer Architectural Grille.)
Architectural
Aluminum
Grille
Condensation Universal Drain Kit
Stamped
Aluminum
Grille
Condensation Universal Drain Kit
5304480570 1-Pack
Controls condensate from the PTAC unit and can be used for
exterior or interior drain systems. Includes 1/2" O.D. copper drain
tubes with a short right angle tube and a 6" straight tube to suit
the application. (Recommended for all new sleeve installations.)
Outdoor Grilles
Stamped Aluminum Outdoor Grille
5304480557 Clear Anodized Aluminum Finish
Cost-effective, one-piece stamped grille is made from durable
anodized aluminum. The grille is lightweight, has a clear finish
and is easy to install from inside the room.
Architectural Aluminum Outdoor Grilles
5304480558 Clear Anodized Aluminum Finish
5308815313 Dark Brown
530448055X Customized Color
Enhances the appearance of any building. Made of a durable,
anodized aluminum that offers weather resistance. Sliding
keyhole attachment enables easy installation onto Frigidaire®
metal wall sleeve.
FR_PTAC_ACC 01/17
Polymer
Architectural
Grille
Polymer Architectural Outdoor Grilles
5308815310 Brown
5308815312 Alpine Beige
Blends with most building exteriors. Its durable design offers
protection, has an enhanced appearance and provides superior
weather resistance. (Requires use of a Polymer Wall Sleeve.)
Packaged Terminal
Air Conditioner (PTAC)
ACCESSORIES

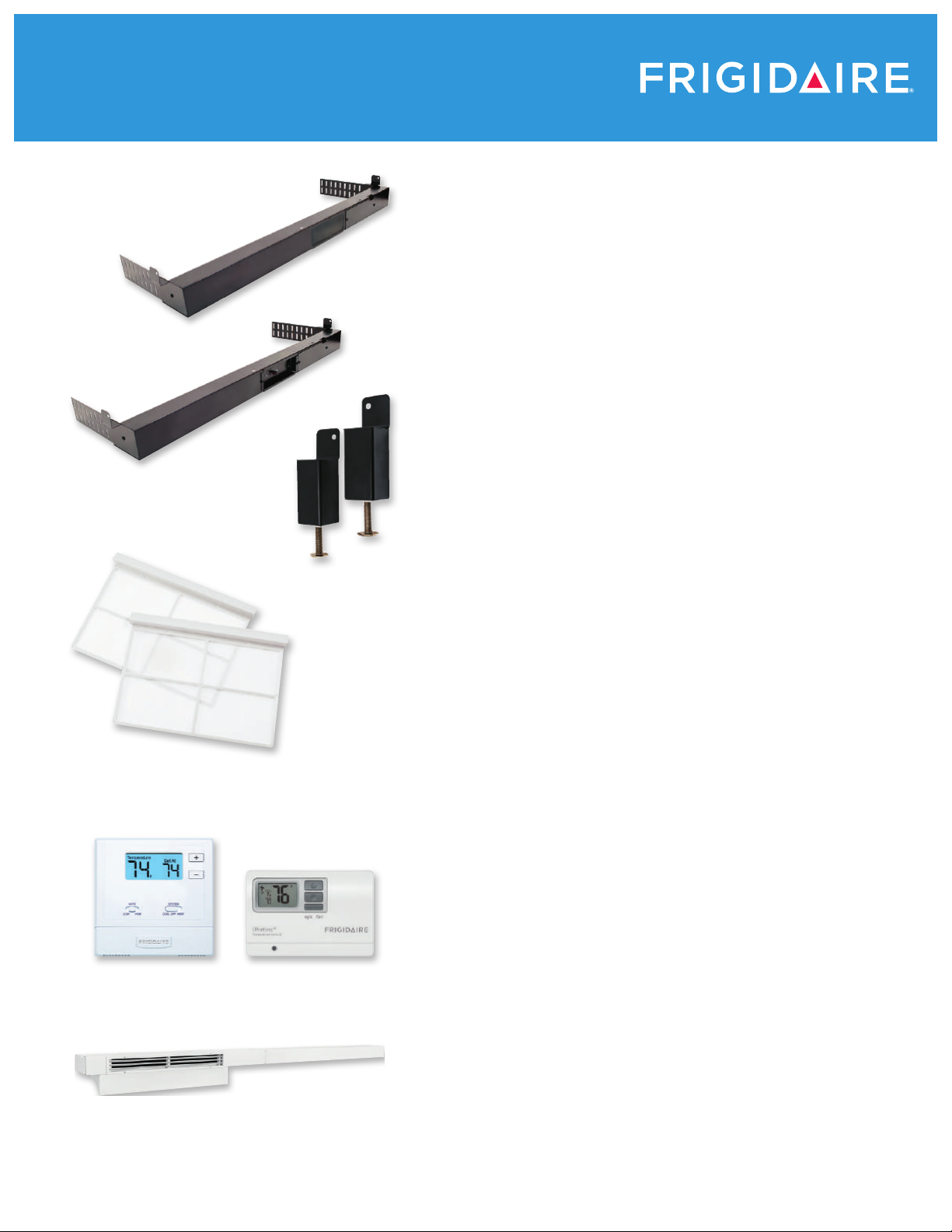

Subbases and Leveling Legs
Decorative
Electrical
Subbase
Subbase
Leveling Legs
Air Filters
Decorative Subbase
5308815315 Black
Made of heavy-gauge steel to provide support for the wall sleeve,
the subbase mounts directly to the wall sleeve and has adjustable
leveling legs.
Black Electrical Subbases
5304482886 230V/15A
5304482891 265V / 30A
5304482888 230V / 30A
5304482890 265V / 20A
5304482887 230V / 20A
Offers the same features as the decorative subbase, plus a
factory-installed electrical junction box containing a receptacle
for corded PTAC units.
5304482698
265V Subbase Disconnect Switch
5304490211
Hardwire Kit, Conduit and Plate
(For 230V and 265V)
Leveling Legs
5304480575
Attach easily to the wall sleeve and offer accurate leveling and
support for units without a subbase. Adjustable from 3-1/4" to 5-1/2".
Air Filters
Air Filters
5304482892 10-Pack
Changing filters periodically ensures a healthy room environment,
proper airflow, temperature control and energy efficiency.
FR_PTAC_ACC 01/17
Wall Thermostats
FFTSTATWL 5304483050
Lateral Duct Kit
Wall Thermostats
Wireless Digital Wall Thermostat
FFTSTATWL Non-Programmable (Includes Wireless Receiver)
Allows control without having to worry about wiring. Easy to install
and use. Large intuitive LCD screen improves user interaction.
Wired Digital Wall Thermostats
5304482700 Programmable
5304483050 Non-Programmable
Offers auto-changeover, 2-stage heating and cooling, as well as
emergency heating mode for heat pump.
Laminated Insert
FPTAC0511
Informs guests that unit is controlled by wall thermostat.
Miscellaneous
Lateral Duct Kit
5304490206
Allows one PTAC unit to heat or cool two rooms. Kit mounts to
wall sleeve and can be installed for either right- or left-side duct
applications.
Bae Kit
5304484585
Baffle Kit for use on non-standard grilles.
Loading...
