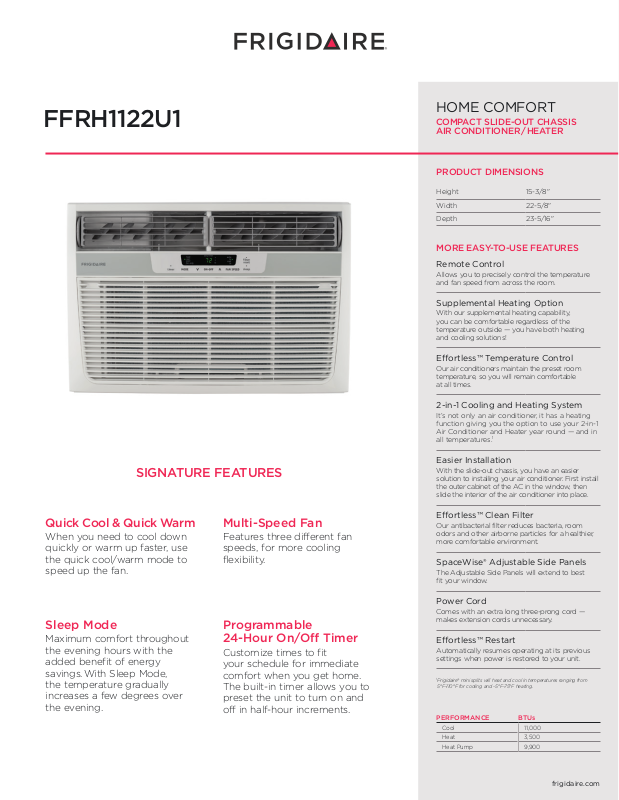

Frigidaire FFRH1122U1 Specifications
FFRH1122U1
HOME COMFORT
COMPACT SLIDE-OUT CHASSIS
AIR CONDITIONER / HEATER
PRODUCT DIMENSIONS
Height 15-3/8"
Width 22-5/8"
Depth 23-5/16"
MORE EASY-TO-USE FEATURES
Remote Control
Allows you to precisely control the temperature
and fan speed from across the room.
Supplemental Heating Option
With our supplemental heating capability,
you can be comfortable regardless of the
temperature outside — you have both heating
and cooling solutions!
Eortless™ Temperature Control
Our air conditioners maintain the preset room
temperature, so you will remain comfortable
at all times.
SIGNATURE FEATURES
Quick Cool & Quick Warm
When you need to cool down
quickly or warm up faster, use
the quick cool/warm mode to
speed up the fan.
Sleep Mode
Maximum comfort throughout
the evening hours with the
added benefit of energy
savings. With Sleep Mode,
the temperature gradually
increases a few degrees over
the evening.
Multi-Speed Fan
Features three different fan
speeds, for more cooling
flexibility.
Programmable
24-Hour On/O Timer
Customize times to fit
your schedule for immediate
comfort when you get home.
The built-in timer allows you to
preset the unit to turn on and
off in half-hour increments.
2-in-1 Cooling and Heating System
It’s not only an air conditioner, it has a heating
function giving you the option to use your 2-in-1
Air Conditioner and Heater year round — and in
all temperatures.
Easier Installation
With the slide-out chassis, you have an easier
solution to installing your air conditioner. First install
the outer cabinet of the AC in the window, then
slide the interior of the air conditioner into place.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria, room
odors and other airborne particles for a healthier,
more comfortable environment.
SpaceWise® Adjustable Side Panels
The Adjustable Side Panels will extend to best
fit your window.
Power Cord
Comes with an extra long three-prong cord —
makes extension cords unnecessary.
Eortless™ Restart
Automatically resumes operating at its previous
settings when power is restored to your unit.
1
Frigidaire® mini splits will heat and cool in temperatures ranging from
5° F-110° F for cooling and -5° F-75° F heating.
PERFORMANCE BTUs
Cool 11,000
Heat 3,500
Heat Pump 9,900
1
frigidaire.com
FFRH1122U1
Plug Type (NEMA)
6-20P
HOME COMFORT
COMPACT SLIDE-OUT CHASSIS AIR CONDITIONER / HEATER
PERFORMANCE
BTU (Cool) 11,000
BTU (Heat) 3,500
BTU (Heat Pump) 9,900
Dehumidification (Pints / Hour) 3.4
Cool Area (Up To Sq. Ft.) 550
Combined Energy Eciency Ratio 9.8
Energy Eciency Ratio 9.8
ELECTRICAL
Volts 230/208
Amps (Cool) 9.0
Amps (Heat) 9.0
Amps (Heat Pump) 11.3
Watts (Cool) 1,120
Watts (Heat) 1,290
Watts (Heat Pump) 1,035
Length of Power Cord (Min. / Max.) 5.5' / 6'
Plug Type (NEMA) LCDI (6-20P)
FEATURES
Electronic Controls Ready-Select® Controls
Fan Speeds (Cool / Fan/Heat) 3 / 3 /3
Low Voltage Start-Up Ye s
Auto Cool Function Yes
Energy Saver Mode Yes
Sleep Mode Yes
Filter Check Yes
24-Hour On / O Timer Yes
Clean Air Ionizer
Remote Control Full-Function with Heat
Air CFM (High / Med / Low) 294 / 267 / 232
Air Direction Control 8-Wa y
Fresh Air / Exhaust Vent / Closed No / No / Yes
Filter Type Antibacterial Mesh
Filter Access Tilt-Out
Slide-Out Chassis Yes
Window Mounting Kit (Included) Pleated Quick Mount
1
Warranty
Yes
CERTIFICATIONS
Performance AHAM
SPECIFICATIONS
Refrigerant R410a
Shipping Weight (Approx.) 102 Lbs.
1
Warranty 5 year sealed system / 1 year full parts and labor.
PRODUCT DIMENSIONS
A - Height 15-3/8"
B - Width 22-5/8"
C - Depth 23-5/16"
WINDOW DIMENSIONS
D -Height (Min.) 16-1/2"
E -Width (Min. / Max.) 26-7/8"/36"
WALL CUTOUT DIMENSIONS
Height 16-5/32”
Width 23-1/4"
Max. Wall Thickness 6-1/8”
E
D
C
A
B
•
USA
CANADA
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFRH1122U1 01/18
