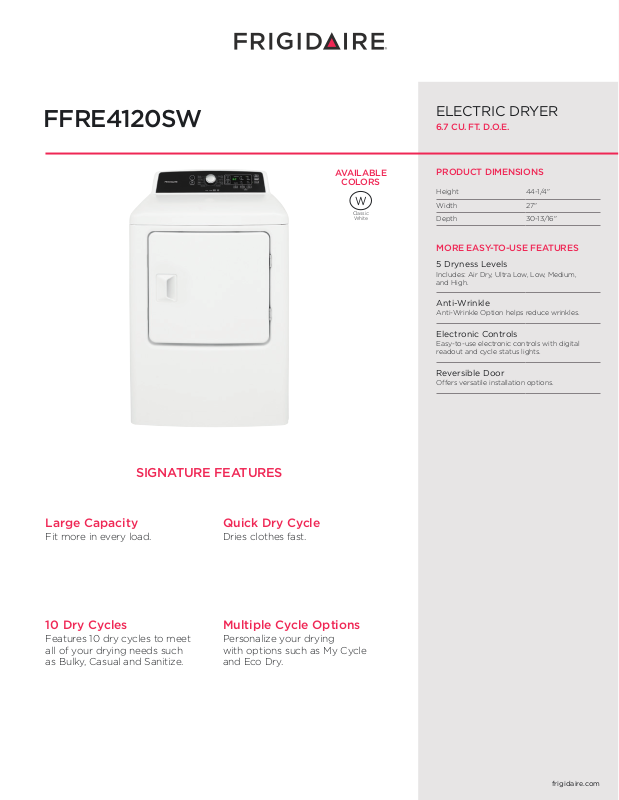

Page 1
FFRE4120SW
W
ELECTRIC DRYER
6.7 CU. FT. D.O.E.
AVAILABLE
COLORS
Classic
White
PRODUCT DIMENSIONS
Height 44-1/4"
Width 27"
Depth 30-13/16"
MORE EASY-TO-USE FEATURES
5 Dryness Levels
Includes: Air Dry, Ultra Low, Low, Medium,
and High.
Anti-Wrinkle
Anti-Wrinkle Option helps reduce wrinkles.
Electronic Controls
Easy-to-use electronic controls with digital
readout and cycle status lights.
Reversible Door
Offers versatile installation options.
SIGNATURE FEATURES
Large Capacity
Fit more in every load.
10 Dry Cycles
Features 10 dry cycles to meet
all of your drying needs such
as Bulky, Casual and Sanitize.
Quick Dry Cycle
Dries clothes fast.
Multiple Cycle Options
Personalize your drying
with options such as My Cycle
and Eco Dry.
frigidaire.com
Page 2
FFRE4120SW
C
CB
ELECTRIC DRYER
6.7 CU. FT. D.O.E.
FEATURES
Total Capacity D.O.E. (Cu. Ft.) 6.7
Controls Digital
Dryer Drum Interior Stainless Steel
DrySense™ Technology Yes
Wrinkle Release Technology Yes
Moisture Sensor Yes
Estimated Time Remaining Yes
Cycle Status Lights Yes
Cycle Signal Chime
Cycle Signal “On/O ” Yes
Start / Pause / Cancel Knobs Yes
Delay Start Yes
Tumble Speed (RPM) 50
Reversible Door Ye s
Lint Screen Yes
Adjustable Leveling Legs 4
CYCLES
Dry Cycles 10
OPTIONS
Temperature Selections 4
Dryness Level Selections 5
Timed Dry Yes
SPECIFICATIONS
Maximum Exhaust Duct Length1 (Ft.) 64
Power Supply Connection Location Rear
Voltage Rating 120V / 240V / 60Hz
Connected Load (kW Rating) @ 240 Volts 5.4
Amps @ 240 Volts 24
Heating Element @ 240 Volts (Watts) 4,800
Shipping Weight (Approx.) 143 Lbs.
1
Rigid metal duct preferred, semi-rigid optional and allow deductions for
elbows and vents. Refer to Installation Guide on web for additional information.
PRODUCT DIMENSIONS
A - Height 44-1/4"
B - Width 27"
C - Depth 30-13/16"
Depth with Door Open 90° 48-5/8"
A
B
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFRE4120S 06/18
Page 3
Top Load Laundry - Electric Dryer
Frigidaire Baseline (S Models)
FFRE4120SW
ELECTRIC DRYER
6.7 CU. FT. D.O.E.
Front
3
3/4"
Rear vent
Power
240V
supply (rear)
5
48
/8"
1/4"
44
Side
1
38
/2"
7
/8"
Front
1" min. 1" min.
27"
24"
min.
1
12
/8"14
6" min. 2" min.
Side
Vented door
3"
60"
sq. in.
min.
60"
sq. in.
min.
3"
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 143 Lbs.
•
Designed for HOME USE only, not recommended for commercial application.
•
An electrical supply with grounded three-prong receptacle is required.
•
Voltage Rating – 120V / 240V / 60Hz
•
Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical
supply with ground required on separate circuit fused on both sides of line.
(Do not use same circuit as washer.)
•
Connected Load (kW Rating) @ 240 Volts = 5.4 kW
•
Amps @ 240 Volts = 24 Amps
•
Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor
NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum,
30 amp power supply cord marked for use with clothes dryers (not supplied).
•
Grounding through neutral link prohibited in specific applications and certain
locales, requiring use of 4-wire system. (For detailed electrical requirements,
refer to Product Installation Guide on web.)
•
Always consult local and national electric codes.
•
Dryer installation requires 1" minimum installation clearance on each side
of unit and 6" minimum at back. To achieve 6" minimum rear clearance, dryer
MUST use 90° quick-turn vent elbow. Closet installation requires 2" minimum
clearance between front of unit and vented door. Door MUST be vented
with 120 sq. in. minimum louvered opening, equally divided, located 3" from
•
•
•
•
•
•
Reversible
Door Swing
30
13/16"
Recess or Closet Installation
Dryer installation requires 1" minimum installation
clearance on each side of unit and 6" minimum at
back. To achieve 6" minimum rear clearance, dryer
MUST use 90° quick-turn vent elbow. Closet
installation requires 2" minimum clearance between
front of unit and vented door. Door MUST be vented
with 120 sq.
divided, located 3" from top and bottom of door.
A louvered door with equivalent air openings for
full-length of door is acceptable. Air openings
MUST remain unobstructed with door installed.
For additional installation details, refer to
Product Installation Guide on web.
top and bottom of door. A louvered door with equivalent air openings for
full-length of door is acceptable. Air openings MUST remain unobstructed with
door installed. (For additional installation details, refer to Product Installation
Guide on web.)
Do NOT install in area exposed to dripping water or outdoor weather
conditions; where gasoline or other flammables are kept or stored; or where
dryer comes in contact with curtains, drapes or anything that will obstruct
flow of combustion and ventilation air.
For garage installation, dryer MUST be located minimum 18" above floor.
Floor MUST be solid with 1" maximum slope. Do NOT install on carpeted surface.
Dryer MUST exhaust to outside of building, NOT into any concealed space.
Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal
duct with approved, unobstructed vent hood having swing-out damper(s).
If installing rigid metal duct (preferred), do not exceed MAXIMUM venting
run length of 64 ft., allow deductions for elbows and vents. If installing
semi-rigid metal duct, do not exceed MAXIMUM venting run length of 8 ft.,
always allow deductions for elbows and vents (Refer to Product Installation
Guide on web for additional information). Do NOT use flexible plastic or
metal foil duct and use shortest run possible.
Leveling legs supplied to level dryer properly and reduce excessive noise
and vibration.
in. minimum louvered opening, equally
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2018 Electrolux Home Products, Inc.
FFRE4120S 06/18
