Frigidaire FFRE153WAE0, FFRE153WA10, FFRE123WAE0, FFRE123WA10, FFRA122WAE0 Owner’s Manual

All about the

Use & Care

of your

Room Air Conditioner

TAB LE OF C ON TEN TS

Important Safety Instructions ............................... 2-4

Product Registration

Normal Sounds .................................................... 5

.............................................

...........................................................55 gnigakcaP

Care and Cleaning

Energy Saving Ideas ........................................... 13

Before You Call................................................... 14

6 serutaeF renoitidnoC riA .......................................

Major Appliance Limited Warranty........................ 15

.............................................. 13

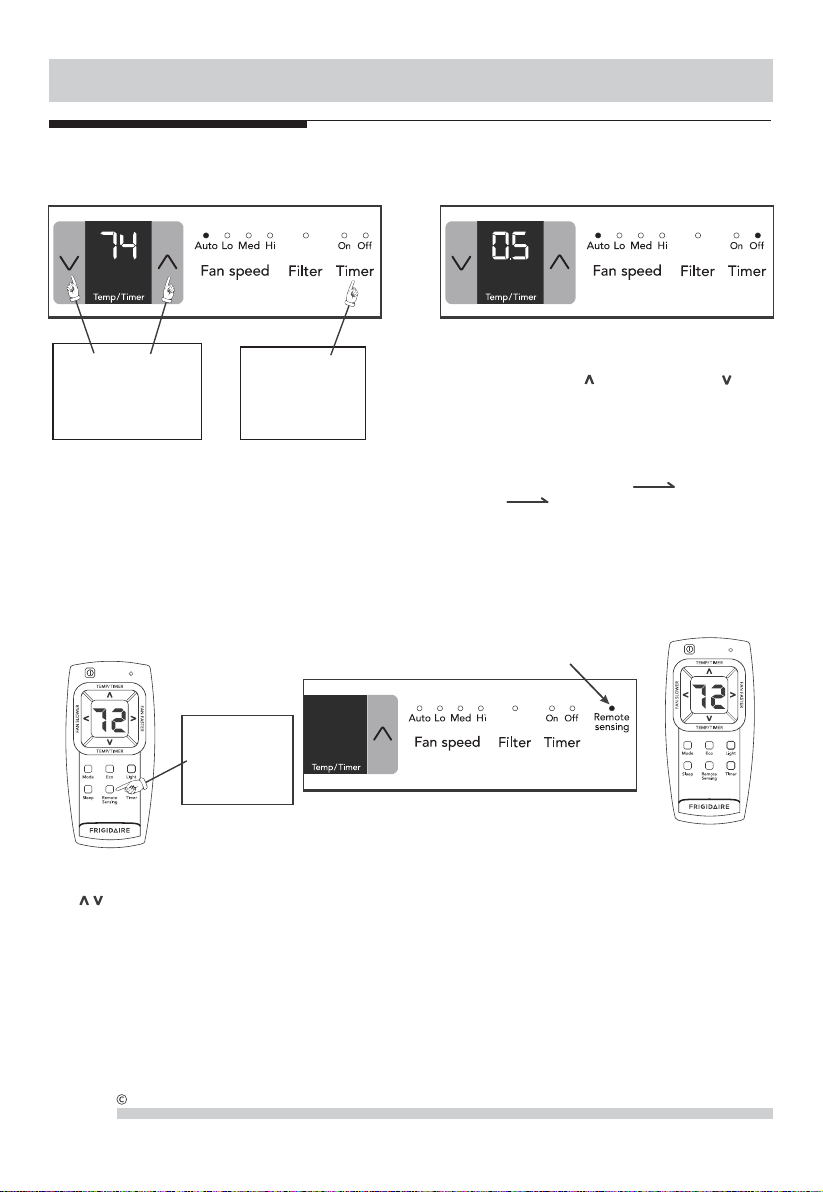

21-6snoitcurtsnI gnitarepO .........................................

www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

16120300A18814

(June 2009)

Important Safety Instructions

NOTE:

This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air conditioner only as
instructed in this USE & CARE MANUAL. These instructions are not meant to cover every possible condition and situation that
may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

NOTE:

The power supply cord with
this air conditioner contains a current

detection device designed to reduce the risk
of fire.
Please refer to the section ‘Operation of
Current Device’ for details.
In the event that the power supply cord is
damaged, it cannot be repaired. It must be
replaced with a cord from the product
manufacturer.

WARNING

Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug. Do
not remove any prong from the power cord.

Grounding type wall
receptacle

Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong.

Power supply cord
with 3-prong grounding
plug and current
detection device

SAFETY PRECAUTIONS

WARNING

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. Read product labels for flammability and other warnings.

For Your Safety

WARNING

To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner,
follow basic precautions, including the following:

Be sure the electrical service is adequate for the model you have chosen. This information
can be found on the serial plate, which is located on the side of the cabinet and behind the
grille.

If the air conditioner is to be installed in a window, you will probably want to clean both
sides of the glass first. If the window is a triple-track type with a screen panel included,
remove the screen completely before installation.

Be sure the air conditioner has been securely and correctly installed according to the
separate installation instructions provided with this manual. Save this manual and the
installation instructions for possible future use in removing or reinstalling this unit.

When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front
and rear coils.

Prevent Accidents

WARNING

The complete electrical rating of your new room air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical requirements.

Be sure the air conditioner is properly grounded. To minimize shock and fire hazards,
proper grounding is important. The power cord is equipped with a three-prong grounding
plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately grounded or protected by a time delay fuse
or circuit breaker, have a qualified electrician install the proper receptacle.

Do not run air conditioner without outside protective cover in place. This could result in
mechanical damage within the air conditioner.

Do not use an extension cord or an adapter plug.

Electrical Information

DANGER! Avoid Serious Injury or Death

This air conditioner contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.
Do not insert or place fingers or objects into the air discharge area in the front of the unit.
Do not start or stop the air conditioner by unplugging the power cord or turning off the power at the electrical box.
Do not cut or damage the power cord.
If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer.
In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized
Electrolux servicer.
Do not operate the air conditioner with wet hands.
Do not pull on the power cord.
Do not drink any water that is drained from the air conditioner.

2009 Electrolux Home Products, Inc. All rights reserved.

2

Important Safety Instructions

SAFETY PRECAUTIONS

CAUTION! Avoid Injury or damage to the unit or other property

Provide ventilation per installation instructions.
Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make units run excessively.
Do not climb on or place objects on outdoor part of the unit.
Do not hang objects off the unit.
Do not place containers with liquids on the unit.
Turn off the air conditioner at the power source when it will not be used for an extended period of time.
Periodically check the condition of the unit’s installation accessories for any damage.
Do not apply heavy pressure to the radiator fins of the unit.
Operate the unit with air filter in place.
Do not block or cover the intake grille, discharge area and outlet ports.
Ensure that any electrical/electronic equipment is one yard away from the unit.
Do not use or store flammable gases near the unit.
Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.
Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.
When cleaning the unit, first make sure that the power and circuit breaker are turned off.

READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.

Unit must be upright for one hour prior to operating.

The power supply cord contains a current device that senses damage to the power cord. To test
your power supply cord do the following:

Plug in the Air Conditioner.
The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will

Plug in &
press RESET

notice a click as the RESET button pops out.
Press the RESET button. Again you will notice a click as the button engages.

The power supply cord is now supplying electricity to the unit. (This is also indicated by a light
on the plug head).

NOTE:

Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply cord must be replaced if it fails to reset when either the TEST button is pushed,

or it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it CANNOT be repaired. It MUST be replaced by one obtained

from the product manufacturer.

Explanation of symbols displayed on the unit

WARNING

CAUTION

CAUTION

CAUTION

This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked
and exposed to an external ignition source, there is a risk of fire.

This symbol shows that the operation manual should be read carefully.

This symbol shows that a service personnel should be handling this equipment with reference
to the installation manual.

This symbol shows that information is available such as the operating manual or installation
manual.

.devreser sthgir llA.cnI ,stcudorP emoH xulortcelE 9002

3

Important Safety Instructions

WARNING FOR FLAMMABLE REFRIGERANT

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating
gas appliance) and ignition sourcesor (for example:an operating electric heater) close to the appliance. The appliance shall be
stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an
operating electric heater).

• Do not pierce or burn.

• Be aware that the refrigerants may not contain an odour.

• Compliance with national gas regulations shall be observed.

• Keep ventilation openings clear of obstruction.

• The appliance shall be stored so as to prevent mechanical damage from occurring.

• A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as
specified for operation.

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an
industry recognised assessment specification.

• Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable
refrigerants.

• DO NOT modify the length of the power cord or use an extension cord to power the unit.

• DO NOT share a single outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.

• Please follow the instruction carefully to handle, install, clear, service the air conditioner to avoid any damage or hazard.
Flammable Refrigerant R32 is used within air conditioner. When maintaining or disposing the air conditioner, the refrigerant
(R32 or R290) shall be recovered properly, shall not discharge to air directly.

• No any open fire or device like switch which may generate spark/arcing shall be around air conditioner to avoid causing ignition of
the flammable refrigerant used. Please follow the instruction carefully to store or maintain the air conditioner to prevent
mechanical damage from occurring.

• Flammable refrigerant - R32 is used in air conditioner. Please follow the instruction carefully to avoid any hazard.

CAUTION

• This appliance is not intended for use by persons (including children) with reduced physical ,sensory or mental capabilities or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.

• The appliance shall be installed in accordance with national wiring regulations.

4

2009 Electrolux Home Products, I .devresersthgirllA.cn

Product Registration, Packaging & Normal Sounds

Product Registration

Packaging

Normal Sounds

Sound of Rushing Air

At the front of the unit, you may
hear the sound of rushing air
being moved by the fan.

Record Your Model and Serial Numbers

Record in the space provided below the model and serial numbers. On all models, the
serial plate is located on the outside of the cabinet.

Model No.
Serial No.

Register Your Product

The self-addressed PRODUCT REGISTRATION CARD should be filled in completely,
signed and returned to the Frigidaire Company.

Remove all packaging from inside the carton, along with any
inserts placed into the side louvers.

PACKAGING INSERTS

High pitched Chatter

Today’s high efficiency compressors
may have a high pitched chatter
during the cooling cycle.

Vibration

Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.

Gurgle/Hiss

“Gurgling or hissing” noise may be
heard due to refrigerant passing
through evaporator during normal
operation.

Pinging or Swishing

Droplets of water hitting condenser
during normal operation may cause
“pinging or swishing” sounds.

Note: Don’t try to drill any holes
on the base pan to eliminate the
normal sounds, otherwise it will
void the warranty.

.devreser sthgir llA.cnI ,stcudorP emoH xulortcelE 9002

5
