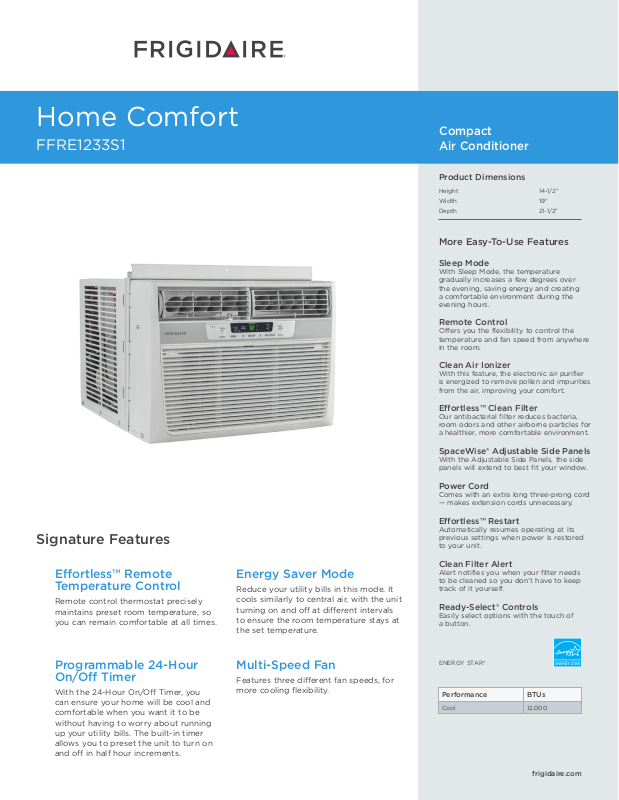

Frigidaire FFRE1233S1 Specifications

Home Comfort

FFRE1233S1

Compact Air Conditioner

Product Dimensions

Height 14-1/2"

Width 19"

Depth 21-1/2"

More Easy-To-Use Features

Sleep Mode

With Sleep Mode, the temperature gradually increases a few degrees over the evening, saving energy and creating a comfortable environment during the evening hours.

Remote Control

Offers you the flexibility to control the temperature and fan speed from anywhere in the room.

Clean Air Ionizer

With this feature, the electronic air purifier is energized to remove pollen and impurities from the air, improving your comfort.

Eortless™ Clean Filter

Our antibacterial filter reduces bacteria, room odors and other airborne particles for a healthier, more comfortable environment.

Signature Features

Eortless™ Remote Temperature Control

Remote control thermostat precisely maintains preset room temperature, so you can remain comfortable at all times.

Programmable 24-Hour On/O Timer

With the 24-Hour On/Off Timer, you can ensure your home will be cool and comfortable when you want it to be without having to worry about running up your utility bills. The built-in timer allows you to preset the unit to turn on and off in half hour increments.

Energy Saver Mode

Reduce your utility bills in this mode. It cools similarly to central air, with the unit turning on and off at different intervals to ensure the room temperature stays at the set temperature.

Multi-Speed Fan

Features three different fan speeds, for more cooling flexibility.

SpaceWise® Adjustable Side Panels

With the Adjustable Side Panels, the side panels will extend to best fit your window.

Power Cord

Comes with an extra long three-prong cord — makes extension cords unnecessary.

Eortless™ Restart

Automatically resumes operating at its previous settings when power is restored to your unit.

Clean Filter Alert

Alert notifies you when your filter needs to be cleaned so you don’t have to keep track of it yourself.

Ready-Select® Controls

Easily select options with the touch of abutton.

ENERGY STAR®

Performance

Cool

BTUs

12,000

frigidaire.com

Performance

Plug Type (NEMA)

5-15P

BTU (Cool)

Dehumidiﬁcation (Pints / Hour)

Cool Area (Up To Sq. Ft.)

Energy Eciency Ratio

12,000

3.8

550

12.0

Electrical

Volts

Amps (Cool)

Watts (Cool)

Length of Power Cord (Min. / Max.)

Plug Type (NEMA)

115

8.7

1,000

6' / 6.5'

LCDI (5-15P)

Features

Electronic Controls

Fan Speeds (Cool / Fan)

Low Voltage Start-Up

Auto Cool Function

Energy Saver Mode

Sleep Mode

Filter Check

24-Hour On / O Timer

Clean Air Ionizer

Remote Control

Air CFM (High / Med / Low)

Air Direction Control

Fresh Air / Exhaust Vent / Closed

Filter Type

Filter Access

Slide-Out Chassis

Window Mounting Kit (Included)

Warranty

Ready-Select® Controls

3 / 3

Yes

Full-Function Remote T’Stat

285 / 256 / 233

8-Wa y

Yes / Yes / Yes

Antibacterial Mesh

Tilt-Out

Pleated Quick Mount

Yes

Certiﬁcations

ENERGY STAR®

Performance

Yes

AHAM

Speciﬁcations

Refrigerant

Shipping Weight (Approx.)

Warranty 5 year sealed system / 1 year full parts and labor.

R410a

80 Lbs.

Home Comfort

FFRE1233S1 Compact Air Conditioner

USA CANADA

•

10200 David Taylor Drive

•

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

NOTE: For planning purposes only. Always consult local and national electric codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height

B - Width

C - Depth

•

frigidaire.com

•

frigidaire.ca

14-1/2"

19"

21-1/2"

Window Dimensions

D -Height (Min.)

E -Width (Min. / Max.)

Accessories information available

on the web at frigidaire.com

15-1/2"

23" / 36"

Specifications

subject to change.
