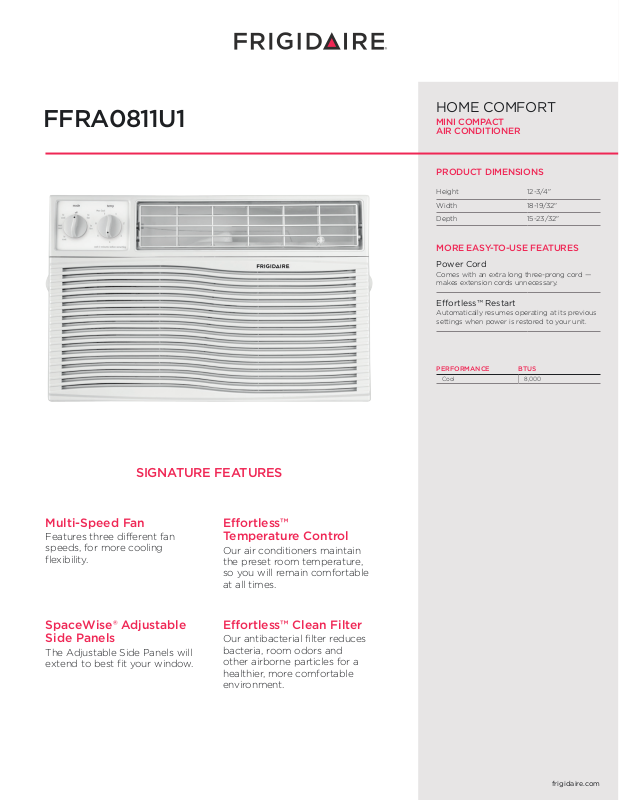

Frigidaire FFRA0811U1 Specification Sheet
FFRA0811U1
HOME COMFORT
MINI COMPACT
AIR CONDITIONER
PRODUCT DIMENSIONS
Height 12-3/4"
Width 18-19/32"
Depth 15-23/32"
MORE EASY-TO-USE FEATURES
Power Cord
Comes with an extra long three-prong cord —
makes extension cords unnecessary.
Eortless™ Restart
Automatically resumes operating at its previous
settings when power is restored to your unit.
PERFORMANCE BTUS
Cool 8,000
SIGNATURE FEATURES
Multi-Speed Fan
Features three different fan
speeds, for more cooling
flexibility.
SpaceWise® Adjustable
Side Panels
The Adjustable Side Panels will
extend to best fit your window.
Eortless™
Temperature Control
Our air conditioners maintain
the preset room temperature,
so you will remain comfortable
at all times.
Eortless™ Clean Filter
Our antibacterial filter reduces
bacteria, room odors and
other airborne particles for a
healthier, more comfortable
environment.
frigidaire.com
Plug Type (NEMA)
5-15P
FFRA0811U1
HOME COMFORT
MINI COMPACT AIR CONDITIONER
PERFORMANCE
BTU (Cool) 8,000
Dehumidification (Pints / Hour) 2.3
Cool Area (Up To Sq. Ft.) 350
Combined Energy Eciency Ratio 10.9
Energy Eciency Ratio 11.0
ELECTRICAL
Volts 115
Amps (Cool) 6.5
Watts (Cool) 720
Length of Power Cord (Min. / Max.) 6' / 6.5'
Plug Type (NEMA) LCDI (5-15P)
FEATURES
Electronic Controls Mechanical
Fan Speeds (Cool / Fan) 3 / 2
Low Voltage Start-Up Yes
Auto Cool Function
Energy Saver Mode
Sleep Mode
Filter Check
24-Hour On / O Timer
Clean Air Ionizer
Remote Control
Air CFM (High / Med / Low) 200 / 190 / 180
Air Direction Control 4-Wa y
Fresh Air / Exhaust Vent / Closed No / No / Yes
Filter Type Antibacterial Mesh
Filter Access Tilt-Out
Slide-Out Chassis
Window Mounting Kit (Included) Pleated Quick Mount
Warranty
1
Yes
CERTIFICATIONS
Performance AHAM
SPECIFICATIONS
Refrigerant R410a
Shipping Weight (Approx.) 55 Lbs.
1
Warranty 5 year sealed system / 1 year full parts and labor.
PRODUCT DIMENSIONS
A - Height 12-3/4"
B - Width 18-19/32"
C - Depth 15-23/32"
WINDOW DIMENSIONS
D - Height (Min.) 13-1/4"
E - Width (Min. / Max.) 22" / 36"
E
D
A
•
USA
CANADA
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
C
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
B
© 2018 Electrolux Home Products, Inc.
FFRA0811U1 01/18
