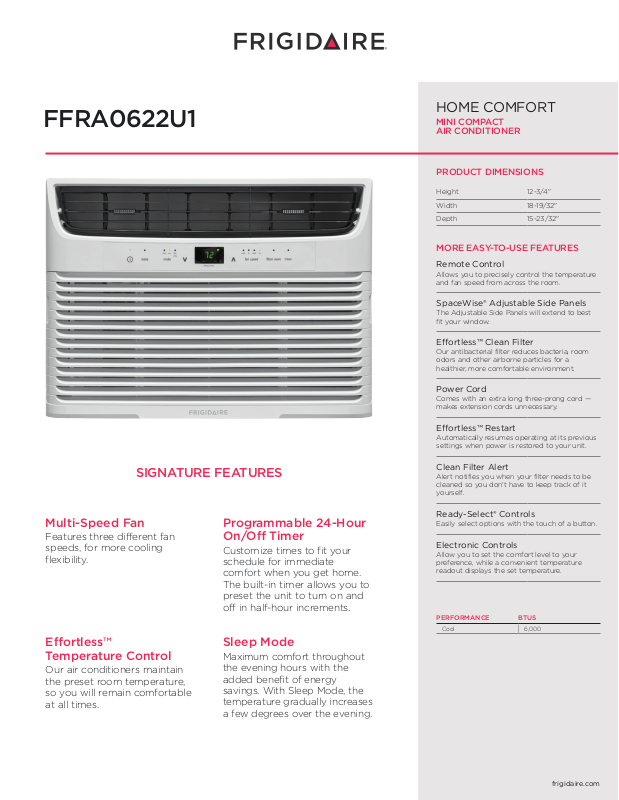

Frigidaire FFRA0622U1 Specification Sheet
FFRA0622U1
HOME COMFORT
MINI COMPACT
AIR CONDITIONER
PRODUCT DIMENSIONS
Height 12-3/4"
Width 18-19/32"
Depth 15-23/32"
MORE EASY-TO-USE FEATURES
Remote Control
Allows you to precisely control the temperature
and fan speed from across the room.
SpaceWise® Adjustable Side Panels
The Adjustable Side Panels will extend to best
fit your window.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria, room
odors and other airborne particles for a
healthier, more comfortable environment.
Power Cord
Comes with an extra long three-prong cord —
makes extension cords unnecessary.
SIGNATURE FEATURES
Multi-Speed Fan
Features three different fan
speeds, for more cooling
flexibility.
Eortless™
Temperature Control
Our air conditioners maintain
the preset room temperature,
so you will remain comfortable
at all times.
Programmable 24-Hour
On/O Timer
Customize times to fit your
schedule for immediate
comfort when you get home.
The built-in timer allows you to
preset the unit to turn on and
off in half-hour increments.
Sleep Mode
Maximum comfort throughout
the evening hours with the
added benefit of energy
savings. With Sleep Mode, the
temperature gradually increases
a few degrees over the evening.
Eortless™ Restart
Automatically resumes operating at its previous
settings when power is restored to your unit.
Clean Filter Alert
Alert notifies you when your filter needs to be
cleaned so you don't have to keep track of it
yourself.
Ready-Select® Controls
Easily select options with the touch of a button.
Electronic Controls
Allow you to set the comfort level to your
preference, while a convenient temperature
readout displays the set temperature.
PERFORMANCE BTUS
Cool 6,000
frigidaire.com
Plug Type (NEMA)
5-15P
FFRA0622U1
HOME COMFORT
MINI COMPACT AIR CONDITIONER
PERFORMANCE
BTU (Cool) 6,000
Dehumidification (Pints / Hour) 1.5
Cool Area (Up To Sq. Ft.) 250
Combined Energy Eciency Ratio 11.0
Energy Eciency Ratio 11.2
ELECTRICAL
Volts 115
Amps (Cool) 4.9
Watts (Cool) 540
Length of Power Cord (Min. / Max.) 6' / 6.5'
Plug Type (NEMA) LCDI (5-15P)
FEATURES
Electronic Controls Ready-Select® Controls
Fan Speeds (Cool / Fan) 3 / 3
Low Voltage Start-Up Yes
Auto Cool Function Yes
Energy Saver Mode Yes
Sleep Mode Yes
Filter Check Yes
24-Hour On / O Timer Yes
Clean Air Ionizer
Remote Control Full-Function
Air CFM (High / Med / Low) 177 / 165 / 153
Air Direction Control 6-Wa y
Fresh Air / Exhaust Vent / Closed No / No / Yes
Filter Type Antibacterial Mesh
Filter Access Tilt-Out
Slide-Out Chassis
Window Mounting Kit (Included) Pleated Quick Mount
Warranty
1
Yes
CERTIFICATIONS
Performance AHAM
SPECIFICATIONS
Refrigerant R410a
Shipping Weight (Approx.) 52 Lbs.
1
Warranty 5 year sealed system / 1 year full parts and labor.
PRODUCT DIMENSIONS
A - Height 12-3/4"
B - Width 18-19/92"
C - Depth 15-23/32"
WINDOW DIMENSIONS
D - Height (Min.) 13-1/4"
E - Width (Min. / Max.) 22" / 36"
E
D
A
•
USA
CANADA
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
C
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
B
© 2018 Electrolux Home Products, Inc.
FFRA0622U1 03/18
