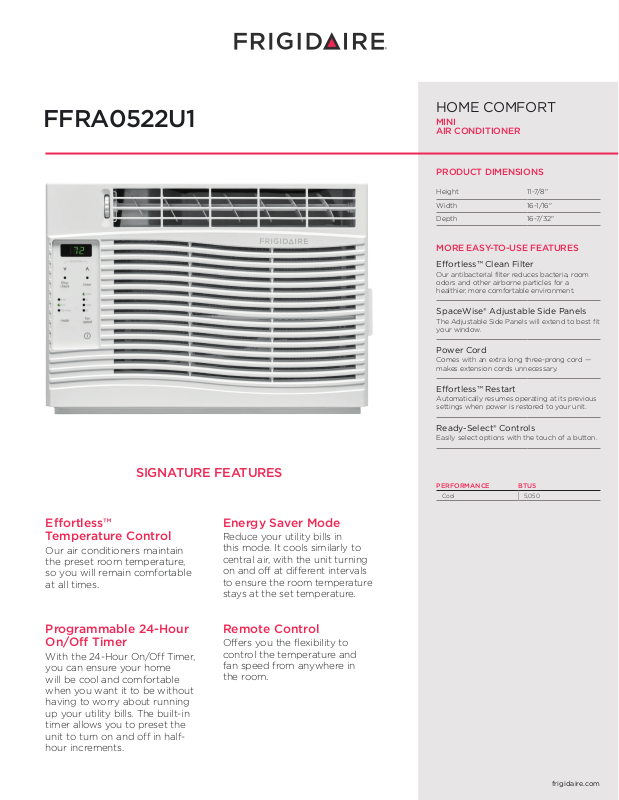

Frigidaire FFRA0522U1 Specification Sheet

FFRA0522U1

HOME COMFORT

MINI
AIR CONDITIONER

PRODUCT DIMENSIONS

Height 11-7/8"

Width 16-1/16"

Depth 16-7/32"

MORE EASY-TO-USE FEATURES

Eortless™ Clean Filter

Our antibacterial filter reduces bacteria, room
odors and other airborne particles for a
healthier, more comfortable environment.

SpaceWise® Adjustable Side Panels

The Adjustable Side Panels will extend to best fit
your window.

Power Cord

Comes with an extra long three-prong cord —
makes extension cords unnecessary.

Eortless™ Restart

Automatically resumes operating at its previous
settings when power is restored to your unit.

SIGNATURE FEATURES

Eortless™
Temperature Control

Our air conditioners maintain
the preset room temperature,
so you will remain comfortable
at all times.

Programmable 24-Hour
On/O Timer

With the 24-Hour On/Off Timer,
you can ensure your home
will be cool and comfortable
when you want it to be without
having to worry about running
up your utility bills. The built-in
timer allows you to preset the
unit to turn on and off in half­hour increments.

Ready-Select® Controls

Easily select options with the touch of a button.

PERFORMANCE BTUS

Cool 5,050

Energy Saver Mode

Reduce your utility bills in
this mode. It cools similarly to
central air, with the unit turning
on and off at different intervals
to ensure the room temperature
stays at the set temperature.

Remote Control

Offers you the flexibility to
control the temperature and
fan speed from anywhere in
the room.

frigidaire.com

FFRA0522U1

Plug Type (NEMA)

5-15P

HOME COMFORT

MINI AIR CONDITIONER

PERFORMANCE

BTU (Cool) 5,050
Dehumidification (Pints / Hour) 1.6
Cool Area (Up To Sq. Ft.) 150
Combined Energy Eciency Ratio 11.0
Energy Eciency Ratio 11.2

ELECTRICAL

Volts 115
Amps (Cool) 4.0
Watts (Cool) 450
Length of Power Cord (Min. / Max.) 6' / 6.5'
Plug Type (NEMA) LCDI (5-15P)

FEATURES

Electronic Controls Ready-Select® Controls
Fan Speeds (Cool / Fan) 2 / 2
Low Voltage Start-Up Yes
Auto Cool Function Yes
Energy Saver Mode Yes
Sleep Mode Yes
Filter Check Yes
24-Hour On / O Timer Yes
Clean Air Ionizer
Remote Control Full-Function
Air CFM (High / Low) 147 / 124
Air Direction Control 4-Wa y
Fresh Air / Exhaust Vent / Closed No / No / Yes
Filter Type Antibacterial Mesh
Filter Access Slide-Out
Slide-Out Chassis
Window Mounting Kit (Included) Pleated Quick Mount
Warranty

1

Yes

CERTIFICATIONS

Performance AHAM

SPECIFICATIONS

Refrigerant R410a
Shipping Weight (Approx.) 47 Lbs.

1

Warranty 5 year sealed system / 1 year full parts and labor.

PRODUCT DIMENSIONS

A - Height 11-7/8"
B - Width 16-1/16"
C - Depth 16-7/32"

WINDOW DIMENSIONS

D - Height (Min.) 14-1/2"
E - Width (Min. / Max.) 23" / 36"

E

D

A

•

USA
CANADA

10200 David Taylor Drive

•

5855 Terry Fox Way

•

Charlotte, NC 28262

•

Mississauga, ON L5V 3E4

•

1-800-FRIGIDAIRE

•

1-800-265-8352

•

frigidaire.com

•

frigidaire.ca

C

Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Specifications subject to change. Accessories information available on the web at frigidaire.com

B

© 2018 Electrolux Home Products, Inc.

FFRA0522U1 01/18
