Page 1
All about the
Installation
of your
Split Type Room Air Conditioner
Refer to Page 2 for table of contents.
www.frigidaire.com USA 1-866-942-1567
16122000A16518 (June 2009)
www.frigidaire.ca Canada 1-866-942-1567
Page 2
Welcome to the world of
simple handling and no worries
Thank you for choosing Frigidaire. This manual contains all of the information
required to guarantee your safety and the appropriate use of your air
conditioner.
Please read all of the instructions before using the air conditioner and keep
this manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing
our product.
We hope you will consider us for future purchases.
Environmental advices
The packaging material used is recyclable. We
recommend that you separate plastic, paper and
cardboard and give them to recycling companies.
If you need to dispose of this appliance in the
future, do not throw it away with the rest of your
domestic garbage.
01
Attention!!
The air conditioner that you have bought may be slightly different from
the one illustrated in this manual. Please refer to the information related
to the model you have.
This air conditioner is for domestic use only. It is not recommended for
heavy commercial or industrial use.
Welcome
Page 3
Contents
01. Welcome..........................................................................................01
02. Environmental advices........................................................................01
03. Contents...........................................................................................02
04. Safety precautions.............................................................................
05. Installation:
5.1 Choosing the installation site.................................................04
5.2 Parts list..............................................................................06
5.3 Indoor unit installation.......................................................... 08
5.4 Outdoor unit installation....................................................... 11
5.5 Refrigerant piping connection................................................12
5.6 Electrical work.....................................................................14
5.7 Purging the system............................................................... 18
5.8 Electrical safety....................................................................21
5.9 Gas leak check....................................................................21
5.10 Initial operation test..............................................................22
03
Contents
02
Page 4
Safety precautions
This appliance must be installed by a qualified licensed HVAC
technician in accordance with all applicable codes. All electrical
connections should be performed by a licensed electrician.
Manufacturer's warranty will be voided with failure to comply.
Incorrect Handling cound result in Serious Injury or Death!
1. Do not attempt to install the split air
conditioner by yourself.
2. This air conditioner contains no
user-serviceable parts. Always call
an authorized Frigidaire servicer
for repairs.
3. When moving the air conditioner,
always call an authorized Frigidaire
servicer for disconnection and reinstallation.
4. Do not insert fingers or place
objects into the discharge area in
the front of the indoor unit.
5. Do not insert fingers or place
objects into the discharge area in
the front of the outdoor unit.
6. Do not start or stop the air
conditioner by turning off the power
at the electrical box.
7. In the event of a malfunction (sparks,
burning smell, etc.) immediately
power off unit and call an
authorized Frigidaire servicer.
8. Do not operate the air conditioner
with wet hands.
9. Do not drink any water or
condensation that is drained from
the air conditioner.
10
.Provide occasional ventilation
during use. Do not direct airflow
at fire places or other heat related
sources as this could cause flare
ups or make units run excessively.
11. Do not climb on or place objects
on the outdoor unit.
12. Do not hang objects off the indoor
unit.
13. Do not place objects containing
water on the indoor and/or
outdoor units.
14. Turn off the air conditioner at the
power source when it will not be
used for an extended period of
time.
15. Periodically check the condition of
the outdoor unit’s installation base
for any damage.
16. Do not apply heavy pressure to
the coil fins of the indoor and/or
outdoor units.
17. Operate the indoor unit with air
filters in place.
18. Do not block or cover the intake
grille, discharge area and outlet
ports.
19. Ensure that any electrical/
electronic equipment is 36” away
from the indoor unit and outdoor
unit.
20. Do not use or store flammable
gases near the indoor and/or
outdoor units.
03
Satety precautions
Page 5
Choosing the installation site
Installation Warnings
1. Carefully read the installation manual before beginning.
2. Follow each step as shown.
3. Observe all local, state and national electric codes. This appliance must
be installed by a qualified licensed HVAC technician in accordance with
all applicable codes. All electrical connections should be performed
by a licensed electrician. Failure to comply will result in a void of the
manufacturer's warranty.
4. Pay attention to all safety notices.
Precautions for Installation
Installation at the following sites may cause problems. If you must inevitably
install the unit at one of these sites, please consult your local distributor
beforehand:
1. Sites with machine oil.
2. Sites with a high concentration of salinity, such as coastal areas.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.
Choosing the installation site
04
Page 6
Indoor Unit
1. Install unit where air flow will not
be obstructed.
2. The installation location must
support the weight of the indoor
unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The installation location must allow
for the necessary space around the
indoor unit, as shown in the figure
1.1.
5. There should be at least 3 feet (1
meter) between the unit and radio
or television devices. It is ideal that
the unit be installed at the center of
the wall.
6. The indoor unit must be kept away
from fire, smoke and flammable
gases.
Outdoor Unit
1. The outdoor unit must be installed
at a convenient site that is not
exposed to strong winds. The site
should be dry and well ventilated.
2. The site must support the weight
of the outdoor unit and allow for
vertical installation.
3. The site must be kept away from
flammable gases.
4. The site must provide enough space
around the unit, as shown in figure
1.2.
5. Children must not be able to access
the installation site.
7. We recommend the indoor unit to
be installed as high up as possible
on the inside wall (minimum of 7
feet high), always leaving a space
of at least 6" between the top of the
indoor unit and the ceiling.
8. The installation location must
allow for the easy removal of the
connector pipe and drain hose.
9. The unit must be installed at a
location protected from direct
sunlight.
More
than 6"
More
than 6"
More
than 12"
Figure 1.1
More than
19-13/16"
More
than 6"
More
than 12"
06
More than
79-1/5"
More
than 2"
Figure 1.2
More than
19-13/16"
05
Choosing the installation site
Page 7
Part list
Wall Mounting Bracket
Drain Joint (Heat Pump only)
Self-tapping screws
(For Wall mounting Bracket)
capacity = 9000 Btu's
capacity = 12000 Btu's
Remote Control
Connecting pipe
(capacity = 9000 Btu's)
assembly
(capacity = 12000 Btu's)
6
7
Remote Control Holder 1
Self-tapping screws
(For Remote Control Holder)
72
72
1
1
5
5
1
1
2
6
Part list
06
Page 8
4
7
Indoor unit
More than 6"
72
72
6
1
More than 6"
3
6
More than 6"
Air filter
5
More than
19-13/16"
More than 12"
A
More than
19-13/16"
07
B
More than
79-1/5"
2
Attention!!
1. This illustration is for explanation purposes only.
2. Copper tubes must be insulated independently.
Part list
C
Outdoor
unit
Page 9
Indoor unit installation
Wall mounting brackets and dimensions
150mm/5.9in or more to ceiling
100/3.9
95/3.7
Indoor unit outline
120mm/4.7in
or more to wall
Left rear side
refrigerant pipe
hole Ф65/2.6in
800/31.5
120mm/4.7in
or more to wall
45/1.8
275/10.8
Right rear side
refrigerant pipe
hole Ф65/2.6in
Installing the Wall Mounting Bracket
1. Install the wall mounting bracket
horizontally over the structural
parts on the wall using the spaces
the wall with 5 self-tapping screws.
4. At all times securing to the wall
studs is recommended.
indicated on the bracket, as shown
in figure 1.3.
2. In the case of tiled, concrete or
Wall mounting bracket
similar walls, create 13/64"
diameter holes. Place anchor
supports for the appropriate
assembly screws.
3. Install the wall mounting bracket to
Figure 1.3
Attention!!!
Fit the wall mounting bracket and drill holes in the wall according to the
wall structure and corresponding mounting points on the wall mounting
bracket (Dimensions are in “inches” unless otherwise stated).
Drilling the Hole
1. Determine the position of the
hole for the pipes using the wall
mounting bracket and drill the
pipe hole so that it is tilted slightly
downward.
2. Always use a pipe cover with an
opening when drilling.
Wall
Indoor unit
Outdoor unit
0.2"-0.3"
Indoor unit installation
08
Page 10
Connective pipe and drainage installation
Connective pipe
1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel. The pipe cover can
be kept as it may be used when
relocating the air conditioner to any
other place.
2. For the rear-right-hand and rearleft-hand piping, install the piping
as shown in figure 1.4. Bend the
connective pipe to be laid at a
height of 1-11/16" or less from the
wall. Fix the end of the connective
pipe.
Drainage
1. Run the drain hose sloping
downward. Do not install the drain
hose as illustrated in figure 1.5.
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
Pipe cover
(right)
Right piping
Indoor unit
outline
Pipe
holder
Rear right
piping
Figure 1.4
Connective
pipe
Do not block
water flow
by a rise.
Do not put the end
of drain hose into water.
Pipe cover
(left)
Left piping
Rear left
piping
"
1-11/16
Do not block
water flow
by a rise.
Fastening the Indoor Unit
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of
the indoor unit on the upper hook
of the wall mounting bracket, move
the indoor unit from side to side to
see that it is securely hooked.
09
Indoor unit installation
Figure 1.5
Upper hook
Lower hook
Page 11
3. Piping can easily be made by lifting
the indoor unit with a cushioning
material between the indoor unit
and the wall.
4. Push the lower part of the indoor
unit up on the wall, Then move the
indoor unit from side to side, up
and down to check if it is hooked
securely.
Piping and wrapping
Cushioning
material
1. Bundle the tubing, connecting
cable, and drain hose with tape
Indoor unit
securely and evenly as shown in the
sideward figure.
2. Because the condensed water from
Cable
connection
rear of the indoor unit is gathered
in ponding box and is piped out of
room, do not put anything else in
Drain hose
the box.
Attention!!
1. Connect the indoor unit first, then the outdoor unit.
2. Be careful not to let the drain hose slack.
3. Both of the auxiliary piping should be heat insulated.
4. Be sure that the drain hose is located at the lowest side of the
bundle. Locating at the upper side may cause drain pan to overflow
inside the unit.
5. Never intercross nor intertwist the power wire with any other wiring.
6. Run the drain hose sloped downward to drain out the condensed
water smoothly.
Ponding
box
Pipe room
Connective
pipe
Wrapping
belt
Indoor unit installation
10
Page 12
Outdoor unit installation
1. Install the outdoor part of the unit
on a flat surface to avoid excess
noise and vibration. A condenser
pad is recommended.
2. Direct the air vent toward an area
without obstacles.
3. Install the unit at the site where
it is exposed to as little wind as
possible, especially in areas where
it is frequently windy.
4. If the installation site is exposed to
heavy winds, such as in coastal
areas, place the unit along the
widest part of the wall or use
protective plates.
5. Be sure there is no obstacle which
blocks exhausting air, including
schrubs or bushes.
Strong wind
Settlement of outdoor unit. Anchor the
outdoor unit tightly and horizontally
on a concrete or flat mount with a
bolt and nut 2/5" or 5/16" diameter
(Purchased separately).
Capacity (BTU/h)
Outdoor unit dimension inch(WxHxD)
12000
11
Outdoor unit installation
30.7x21.3x9.8
31.8x21.9x12.2
Air
inlet
A (inch) B (inch)
21.69000
21.6
Air inlet
Air outlet
10.9
12.8
Page 13
Refrigerant piping connection
Unit comes with 24.6' tubing bundle. It is not recommended to cut. If too long,
loop for excess.
Note:
Keep original bend so not kinking of the tube occurs.
Flaring work
Main cause for refrigerant leakage is
due to defect in the flaring work.
Carry out correct flaring work using
the following procedure:
1. Cut the pipes and the cable.
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between
the indoor and the outdoor unit.
C) Cut the pipes a little longer than
the measured distance.
D) Cut the cable 5ft longer than the
pipe length.
2. Burr removal
A) Completely remove all burrs from
the cut cross section of pipe/
tube.
B) Put the end of the copper tube/
pipe in a downward direction
as you remove burrs in order to
avoid dropping burrs into the
tubing.
3. Put nut on.
Remove flare nuts attached to
indoor and outdoor unit, then
put them on pipe/tube having
completed burr removal. (It is not
possible to put them on after flaring
work)
Pipe
Correct
Point
down
Cooper tube
Wrong
Oblique Roughness Burr
Pipe
Reamer
Flare nut
Refrigerant piping connection
12
Page 14
4. Flaring work.
Firmly hold copper pipe in a die in
the dimension shown in the table
below.
Bar
Copper
pipe
Max.
0.05
0.06
0.07
0.09
A (inch)
Min.
0.03
0.04
0.04
0.08
OUTER
DIAMETER (inch)
1/4
3/8
1/2
5/8
Connection Adjustment
1. Align the pipes to be connected.
2. Screw the flare nut with your
fingers, and then tighten it with a
spanner and torque wrench, as
shown in figure 1.6.
Caution:
Excessive twisting may break
the nut, depending on the installation
conditions.
Handle
Clamp
handle
Indoor unit
tubing
Figure 1.6
Yoke
Red arrow mark
Pipings
Flare
nut
OUTER TIGHTENING ADDITIONAL TIGHTENING
DIAMETER (inch)
1/4
3/8
1/2
5/8
13
Refrigerant piping connection
TORQUETORQUE (lbf.in)
132.8 131.6
221.3 230.0
309.7 318.6
398.2 415.9
(lbf.in)
Page 15
Electrical work
Electric safety regulations for the initial installation
1. If there is serious safety problem
about the power supply, the
technicians should refuse to install
the air conditioner and explain
to the client until the problem is
solved.
2. Power voltage should meet the
requirements in table 2.1.
3. Over current protection and
4. Ensure the air conditioner is
grounded well.
5. All wiring must comply with local
and national electrical codes and
be installed by qualified and skilled
electricians.
6. An individual branch circuit used
only for this air conditioner must be
available. See table 2.1.
circuit disconnect should meet
the requirements in table 2.1 and
the applicable local and national
electrical codes.
Electrical Data Table 2.1
System
Capacity
(BTU/h)
Volts-Ph.-
9000 115-1-60 103.5/126.5
12000 115-1-60 10.5 / 0.16
Voltage
Freq
Operating
Voltage
(Min/Max)
103.5/126.5
RLA LRA FLA
9.8 / 0.16
Outdoor FanCompressor Indoor Fan
Output
Volts FLA
Watts
115V-AC
35
115V-AC
40
0.19 20 15 20
0.19 20 15 25
Output
Watts
MIN. Circuit
Ampacity
(MCA)
Max. Fuse/Circuit
Breaker
Amps(MOP)
Connecting (Power and Control Cable)
• The main power is supplied to the outdoor unit. The field supplied connecting
cable from the outdoor unit to indoor unit consists of four wires and provides
the power for the indoor unit as well as the communication signal and ground
between the outdoor and indoor unit. Two wires are high voltage AC power,
one is low voltage DC signal and one is a ground wire.
• Consult local building codes, NEC (National Electrical Code) or CEC
(Canadian Electrical Code) for special requirements.
Electrical work
14
Page 16
Connect the cable to the indoor unit
1. The inside and outside connecting
cable can be connected without
removing the front grille.
2. Connecting cable between indoor
unit and outdoor unit shall be
approved polychloroprene sheathed
flexible type cord.
3. Lift the indoor unit panel up,
remove the electrical box cover by
loosening the screw.
4. Ensure the wire color of the outdoor
terminal and indoor terminal
correspond respectively.
5. Wrap the cable not connected to
the terminal block with insulation
tape so that they will not come
in contact with any electrical
components. Secure the cable onto
the control board with the cord
clamp.
Cable
Code wire
Electrical box
cover
Terminal block of indoor unit
0.39"
15
Electrical work
1.57"
To Outdoor Unit
Page 17

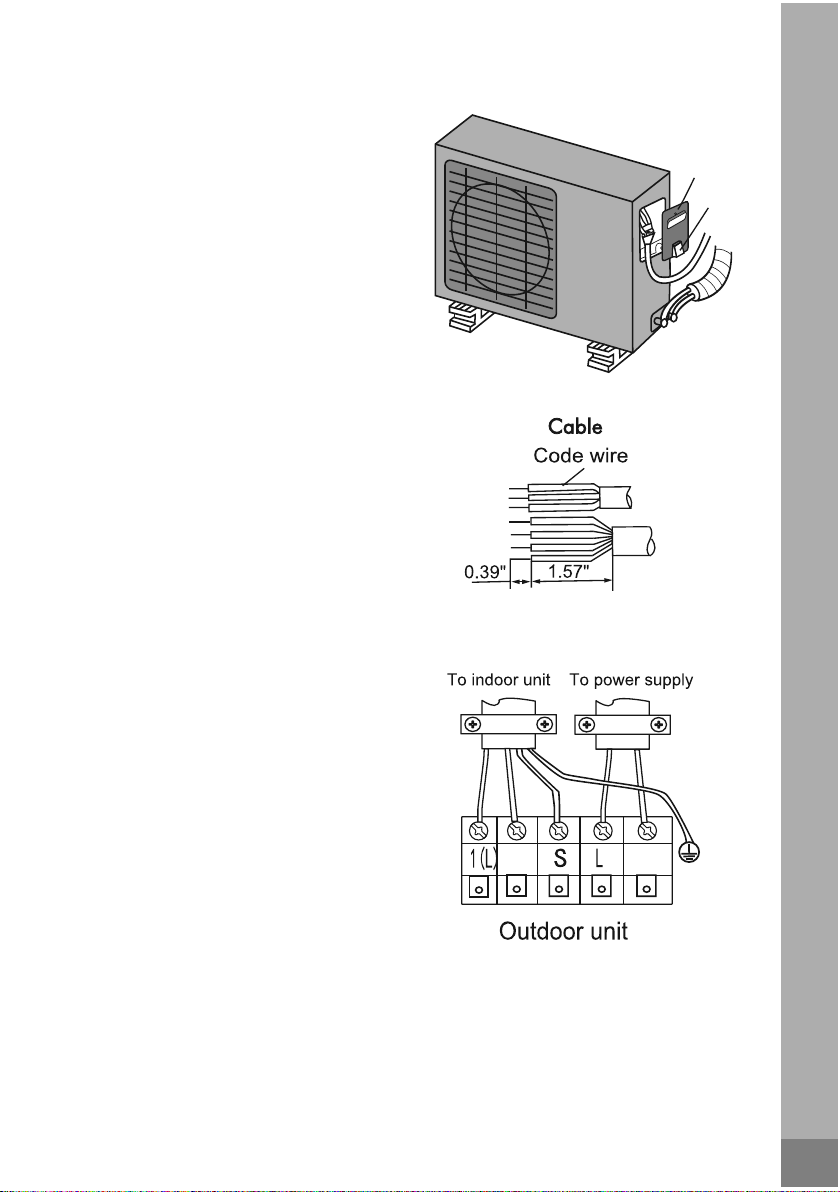

Connect the cable to the outdoor unit
1. Remove the electrical control board
cover from the outdoor unit by
loosening the screw.
2. Connect the connective cables to
the terminals as identified with their
respective matched numbers on
the terminal block of indoor and
outdoor units. The connective cable
to power supply shall be approved
polychloroprene sheathed flexible
cord.
3. Secure the cable onto the control
board with the cord clamp.
4. To prevent the ingress of water,
form a loop of the connective cable
as illustrated in the installation
diagram of indoor and outdoor
units.
5. Insulate unused cords (conductors)
with PVC-tape. Process them so they
could not touch any electrical or
metal parts.
Cover
Screw
2(N)
N
Electrical work
16
Page 18
Caution
After the confirmation of the above conditions, prepare the wiring as follows:
1. Never fail to have an individual power circuit specifically for the air
conditioner. As for the method of wiring, be guided by the circuit diagram
posted on the inside of control cover.
2. The screws which fasten the wiring in the casing of electrical fittings are liable
to come loose from vibrations to which the unit is subjected during the course
of transportation. Check them and make sure that they are all tightly fastened.
(If they are loose, it could cause burn-out of the wires.)
3. Specification of power source.
4. Confirm that electrical capacity is sufficient.
5. See to that the starting voltage is maintained at more than 90 percent of the
rated voltage marked on the name plate.
6. Confirm that the cable thickness is as specified in the power source
specification.
7. Always install an earth leakage circuit breaker in a wet or moist area.
8. The following would be caused by voltage drop: vibration of a magnetic
switch, which will damage the contact point, fuse breaking, disturbance of the
normal function of the overload protector.
9. The means for disconnection from a power supply shall be incorporated in the
fixed wiring and have an air gap contact separation of at least 1/8" in each
active (phase) conductors.
Purging the system
Air and moisture in the refrigeration system have undesirable effects as indicated
below:
1. Pressure in the system rises.
2. Operating current rises.
3. Cooling or heating (only for models with heating function) efficiency drops.
4. Moisture in the refrigerant circuit may freeze and block capillary tubing.
5. Water may lead to corrosion of parts in the refrigeration system.
Therefore, the indoor unit and tubing between the indoor and outdoor unit must
apply leakage test and be evacuated to remove any noncondensables and
moisture from the system.
17
Electrical work
Page 19
Purging the system with a vacuum pump
1. Check that each tube (both liquid and gas side tubes) between the indoor and
outdoor units have been properly connected and all wiring for the test run
has been completed. Remove the service valve caps from both the gas and
the liquid side on the outdoor unit. Note that both the liquid and the gas side
service valves on the outdoor unit are kept closed at this stage.
2. When relocating the unit to another place, perform evacuation using vacuum
pump.
3. Oil trap should be installed every 16'-25' (no oil trap needed when outdoor
unit installed at a lower place than indoor unit).
4. Pipe length and refrigerant amount for single split type air conditioner.
(see tabel 2.2)
Indoor unit
Outdoor unit
(A)
(B)
Indoor unit
Outdoor unit
Oil trap
(A)
Piping length under 16' Piping length 16' or more
Table 2.2
Cooling capacity
(BTU/h)
9000 Cooling Only
12000
System
Cooling Only
Connective pipe
length (A)
25'~49' 16'
25'~66'
Max height
difference (B)
33'
Air purging
Use vacuum pump.
Use vacuum pump.
Additional amount of
refrigerant to be charged
R410a: 0.16ozs/ft (Pipe length-25')
R410a: 0.16ozs/ft (Pipe length-25')
(B)
Purging the system
18
Page 20
Caution in handling the packed valve integrated in the
outlets of outdoor unit.
1. Operation of opening packed valve: Open the valve stem until it hits against
the stopper. Do not try to open it further.
2. Operation of closing packed valve: Securely tighten the valve stem with a
special tool. Then securely tighten the valve stem cap with a spanner or the
like. Refer to the table on page 13 for valve cap tightening torque.
Note:
There is a charging port integrated in the low side outlet, but not in the
high side outlet. The low side outlet is shown in the sketch map below.
A
B
Packed valve
Refrigerant
Indoor unitOutdoor unit
Gas
C
D
Half union
Flare nut
Valve body
Cap
Charge port
Valve stem
Stopper
19
Purging the system
Page 21
When using the vacuum pump
For method of using a manifold valve, refer to its operation manual.
1. Completely tighten the flare nuts at
connection point A, B, C and D.
Connect valve core removal tool
to the charging port, then connect
vacuum hose to valve core tool.
Open the schrader valve.
Note: The schrader valve is inside the
charging port.
2. Connect the other charge hose
of manifold valve to the vacuum
pump.
3. Fully open the Low Side handle of
the manifold valve.
4. Operate the vacuum pump to
evacuate. After starting evacuation,
slightly loose the flare nut of the
Low Side valve on the gas pipe
side and check if the air is entering
(Operation noise of the vacuum
pump changes and a compound
meter indicates 0 instead of
minus), then tighten the flare nut.
The procedure verifies if there are
blocks inside the tubes.
5. Make evacuation for 15 minutes or
more and check that the compound
meter indicates -7-3/5 x 10
Microns Hg (-1x10 Pa). After the
evacuation is completed, fully close
the Low Side handle of the manifold
valve and stop the operation of the
vacuum pump.
6. Turn the stem of the packed valve
B about 45
o
counterclockwise
for 6~7 seconds after the gas
comes out, then tighten the flare
nut again. Make sure the pressure
display in the pressure indicator is
Indoor unit
Outdoor unit
Manifold Valve
-76cm/Hg
Low Side
Charge Hose
Vacuum pump
Charge
Hose
High Side
a little higher than the atmospheric
pressure. This procedure verifies
if the refrigerant goes through the
tubes correctly.
7. Close the schrader valve, then
remove the valve core tool. Replace
the charging port cap.
8. Fully open the packed valve stems B
and A.
9. Securely tighten the cap of the
packed valve.
Purging the system
20
Page 22
Electrical safety
Perform the electric safety check after completing installation:
1. Insulated resistance: The insulated resistance must be more than 2MΩ.
2. Grounding work: After finishing grounding work, measure the grounding
resistance by visual detection and grounding resistance tester. Make sure the
grounding resistance is less than 4Ω.
3. Electrical leakage check (performing during test running): During test
operation after finishing installation, the serviceman can use the electric
probe and multimeter to perform the electrical leakage check. Turn off the unit
immediately if electrical leakage happens. Check and find out the solution
ways till the unit operates properly.
Gas leak check
Soap water method
Apply a soap water or a liquid
neutral detergent on the indoor unit
connection or outdoor unit connections
by a soft brush to check for leakage
of the connecting points of the piping.
If bubbles come out, the pipes have
leakage point.
Leak detector
Use the leak detector to check for
leakage.
Caution
A: Low side valve, B: High side valve
valve C and D are ends of indoor unit
connection.
indoor unit
check point
Cover
Outdoor unit
check point
21
Electrical safety & Gas leak check
Page 23
Initial operation test
Perform test operation after completing gas leak check at the flare nut
connections and electrical safety check.
1. Connect the power, press the ON/OFF button on the remote controller to turn
the unit on.
2. Use the MODE button to select COOL, HEAT (Only for models with heating
function), AUTO and FAN to check if all the functions work well.
3. When the ambient temperature is too low(lower than 63
be controlled by the remote controller to run in cooling mode, manual
operation can be taken. Manual operation is used only when the remote
controller is disable or maintenance necessary.
o
F), the unit cannot
Auto/OFF
Manual control button
Initial operation test
22
Page 24
Loading...
