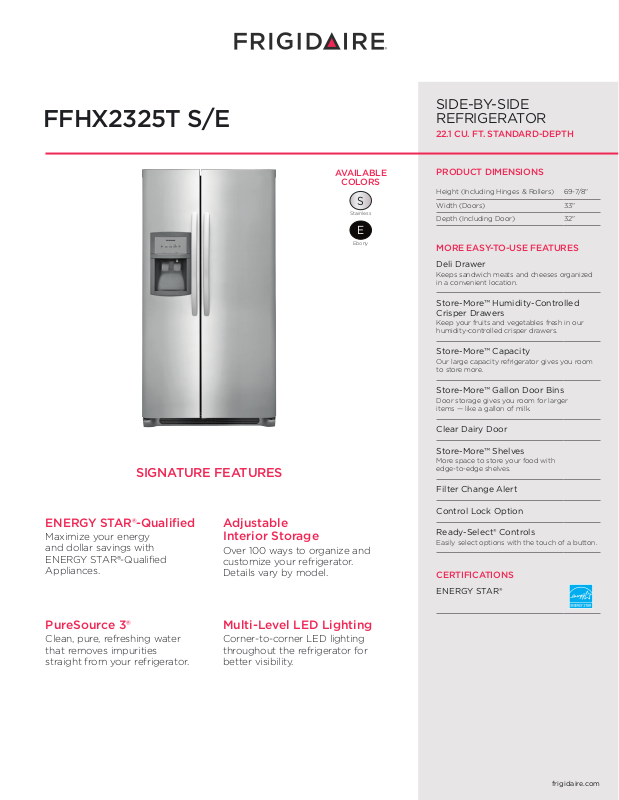

Page 1
FFHX2325T S/E
S
SIDE-BY-SIDE
REFRIGERATOR
22.1 CU. FT. STANDARD-DEPTH
SIGNATURE FEATURES
AVAILABLE
COLORS
Stainless
E
Ebony
PRODUCT DIMENSIONS
Height (Including Hinges & Rollers) 69-7/8"
Width (Doors) 33"
Depth (Including Door) 32"
MORE EASY-TO-USE FEATURES
Deli Drawer
Keeps sandwich meats and cheeses organized
in a convenient location.
Store-More™ Humidity-Controlled
Crisper Drawers
Keep your fruits and vegetables fresh in our
humidity-controlled crisper drawers.
Store-More™ Capacity
Our large capacity refrigerator gives you room
to store more.
Store-More™ Gallon Door Bins
Door storage gives you room for larger
items — like a gallon of milk.
Clear Dairy Door
Store-More™ Shelves
More space to store your food with
edge-to-edge shelves.
Filter Change Alert
Control Lock Option
ENERGY STAR®-Qualified
Maximize your energy
and dollar savings with
ENERG
Y STAR®-Qualified
Appliances.
PureSource 3®
Clean, pure, refreshing water
that removes impurities
straight from your refrigerator.
Adjustable
Interior Storage
Over 100 ways to organize and
customize your refrigerator.
Details vary by model.
Multi-Level LED Lighting
Corner-to-corner LED lighting
throughout the refrigerator for
better visibility.
Ready-Select® Controls
Easily select options with the touch of a button.
CERTIFICATIONS
ENERGY STAR®
frigidaire.com
Page 2
FFHX2325T S/E
SIDE-BY
22.1 CU. FT. STANDARD-DEPTH
-SIDE REFRIGERATOR
FEATURES
Door Design Tall UltraSoft™
Door Handle Design
Cabinet Finish
Door Stops / Door Closers Yes / Yes
Door Hinge Covers Hidden
Rollers – Front / Rear Adjustable / Yes
Energy Saver Plus Technology Yes
Water Filter Location Top Right Rear
Stainless Steel (S),
C-Coordinated (E)
Grey (S),
C-Coordinated ( E)
DISPENSER
Controls Ready-Select®
Dispenser Design Tall, 2 Paddle
Number of Dispenser Buttons 5
Crushed Ice / Cube Ice / Water Yes / Yes / Yes
Ice Option / Freeze Option
Control Lock / Light Yes / Yes
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light Yes
Air Filter Change Indicator Light
REFRIGERATOR FEATURES
Interior Lighting LED
Water Filter Type PureSource 3®
Air Filter Type
Fixed Shelves 2 Flat Glass
Deli Drawer Yes
Wine / Can Rack
Upper Crisper / Lower Crisper 1 Clear / 1 Clear
Humidity Controls 1
Dairy Compartment 1 Clear
Fixed Door Bins 2 Two-Liter Clear
Adjustable Door Bins 2 One-Gallon Clear
Non-Slip Bin Liner / Bottle Retainers
FREEZER FEATURES
Door Bins / Tilt-Out Wire Door Bins 4 White / No
Fixed Shelves 1 Flip / 2 Wire
Full Extension Baskets
Full Freezer Baskets 1 Plastic
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting LED
CERTIFICATIONS
ENERGY STAR® Yes
SPECIFICATIONS
Total Capacity (Cu. Ft.) 22.1
Refrigerator Capacity (Cu. Ft.) 14.2
Freezer Capacity (Cu. Ft.) 7.9
Power Supply Connection Location Right Bottom Rear
Water Inlet Connection Location Left Bottom Rear
Voltage Rating 120V / 60Hz
Connected Load (kW Rating) @ 120 Volts
Amps @ 120 Volts 8.5 Amps
Minimum Circuit Required (Amps) 15
Shipping Weight (Approx.) 285 Lbs.
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
1
1.02
PRODUCT DIMENSIONS
A - Height (Including Hinges & Rollers) 69-7/8"
B - Cabinet Width / Door Width 32-7/8" / 33"
C - Depth (Including Door) 32"
Depth with Door Open 90° 48"
•
USA
10200 David Taylor Drive
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FFHX2325T 08/17
Page 3
FFHX2325T S/E
SIDE-BY
22.1 CU. FT. STANDARD-DEPTH
-SIDE REFRIGERATOR
“Built-In Look”
Cutout Dimensions
(A) 701/4" (B) 33" (C) 28
Top View
24"
Cabinet
A
C
B
7/8"
Recessed
water line
Recessed
electrical outlet
Allow 1" min. clearance at rear
for proper air circulation and
/
electrical connections
water
Standard
Refrigerator Depth
vs. Counter Depth
Counter Depth
7
23
/8"
28
3/4"
Standard Depth
25"
Countertop
33"
Doors
32"
5"
min.
Allow 48"
(with doors 90° open)
7/8"
32
Cabinet
28
34
69
7/8"
with
3
/8"
rollers
68 5/8"
with
rollers
3
/4"
1
/2"
Water
line inlet
3
location
/8"
(left
bottom
rear)
Power
cord
location
(right
bottom
rear)
7/8" Side Panels, 1/2" min. width
28
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 285 Lbs.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 1.02 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separ
•
Amps @ 120 Volts = 8.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
When installing refrigerator adjacent to wall, cabinet or other appliance that
extends beyond front edge of unit, 20" minimum clearance recommended
to allow for optimum 120° to 180° door swing, providing complete
drawer / crisper access and removal. (Absolute 4-1/2" minimum clearance
will ONLY allow for 90° door swing which will provide drawer / crisper access
with r
•
To ensure optimum performance, avoid installing in direct sunlight or close
proximity to range, dishwasher or other heat source.
•
USA
CANADA
ate ground wire. Appliance must be grounded for safe operation.)
estricted removal.)
10200 David Taylor Drive
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
•
Adjustable front rollers to assist with door alignment.
“BUILT-IN LOOK” SPECIFICATIONS
•
Minimum opening of 70-1/4" H x 33" W x 28-7/8" D required to allow for ease
of installation, proper air circulation, and plumbing / electrical connections.
•
Remove all wall / floor molding prior to installation.
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FFHX2325T 08/17
