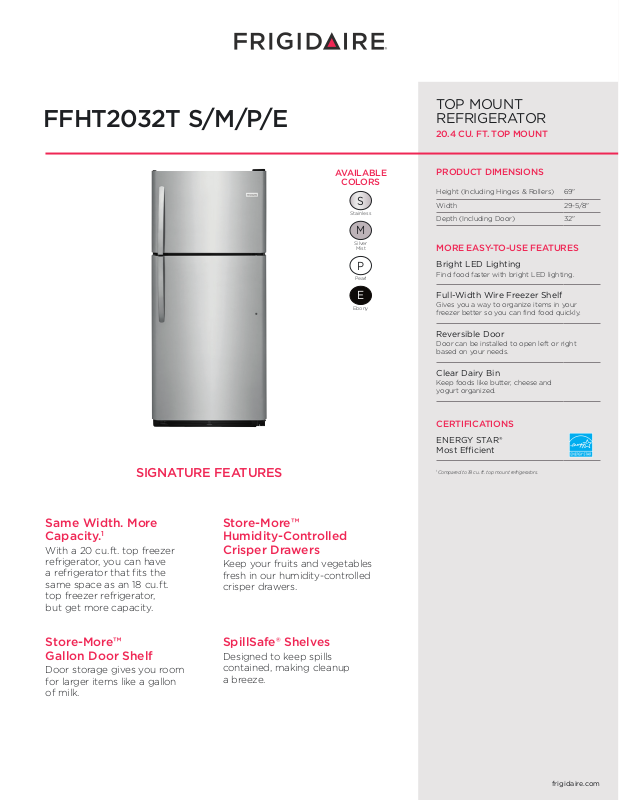

FFHT2032T S/M/P/E
S
M
P
E
TOP MOUNT
REFRIGERATOR
20.4 CU. FT. TOP MOUNT
AVAILABLE
COLORS
Stainless
Silver
Mist
Pearl
Ebony
PRODUCT DIMENSIONS
Height (Including Hinges & Rollers) 69"
Width 29-5/8"
Depth (Including Door) 32"
MORE EASY-TO-USE FEATURES
Bright LED Lighting
Find food faster with bright LED lighting.
Full-Width Wire Freezer Shelf
Gives you a way to organize items in your
freezer better so you can find food quickly.
Reversible Door
Door can be installed to open left or right
based on your needs.
Clear Dairy Bin
Keep foods like butter, cheese and
yogurt organized.
CERTIFICATIONS
ENERGY STAR®
Most Ecient
SIGNATURE FEATURES
Same Width. More
Capacity.
With a 20 cu. ft. top freezer
refrigerator, you can have
a refrigerator that fits the
same space as an 18 cu. ft.
top freezer refrigerator,
but get more capacity.
Store-More™
Gallon Door Shelf
Door storage gives you room
for larger items like a gallon
of milk.
1
1
Compared to 18 cu. ft. top mount refrigerators.
Store-More™
Humidity-Controlled
Crisper Drawers
Keep your fruits and vegetables
fresh in our humidity-controlled
crisper drawers.
SpillSafe® Shelves
Designed to keep spills
contained, making cleanup
a breeze.
frigidaire.com
B
A
C
Recessed
electrical outlet
FFHT2032T S/M/P/E
TOP MOUNT REFRIGERATOR
20.4 CU. FT.
FEATURES
Door Design UltraSoft™
Door Handle Design
Cabinet Finish (Textured)
Door Stops Yes
Door Hinge Covers
Door Reverse Option Yes
Rollers – Front / Rear Adjustable / Yes
Sound Package
Toe Grille
Stainless Steel (S),
Color-Coordinated (M/P/E)
Black (S),
Color-Coordinated (M/P/E)
Black (S),
Color-Coordinated (M/P/E)
Black (S),
Color-Coordinated (M/P/E)
REFRIGERATOR FEATURES
Interior Lighting LED
Refrigerator Shelves 2 Full-Width SpillSafe®
Deli Drawer 1 Half-Width
Wine / Can Rack
Store-More™ Crisper Drawers 2 Clear
Humidity Controls 2
Dairy Compartment Clear Dairy Door
Door Bins 3 Full-Width White
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage 1
FREEZER FEATURES
Door Bins 2 Full-Width Clear
Door Racks
Freezer Shelves 1 Full-Width Wire
Factory Ice Maker w/ Large Ice Bin Optional (PN # IM115)
Lighting
CERTIFICATIONS
ENERGY STAR® Most Ecient Yes
SPECIFICATIONS
Total Capacity (Cu. Ft.) 20.4
Refrigerator Capacity (Cu. Ft.) 15.3
Freezer Capacity (Cu. Ft.) 5.1
Power Supply Connection Location Right Bottom Rear
Water Inlet Connection Location Bottom Right
Voltage Rating 120V / 60Hz
Connected Load (kW Rating) @ 120 Volts10.72
Amps @ 120 Volts 6.0
Minimum Circuit Required (Amps) 15
Shipping Weight (Approx.) 220 Lbs.
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with
a separate ground wire. Appliance must be grounded for safe operation.
PRODUCT DIMENSIONS
A - Height (Including Hinges & Rollers) 69"
B - Width 29-5/8"
C - Depth (Including Door) 32"
Depth with Door Open 90° 60"
•
10200 David Taylor Drive
USA
CANADA
•
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FFHT2032T 10/17
Top Mount Refrigerator - 20 Cu. Ft.
Baseline
FFHT2032T S/M/P/E
TOP MOUNT REFRIGERATOR
20.4 CU. FT.
Top View
Recessed water line
(ice maker models only)
Recessed
electrical outlet
Allow 1" min. clearance at rear
for proper air circulation and
water / electrical connections
3
/8" min. clearance at sides
Allow
and top for ease of installation
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
* When installing refrigerator adjacent to wall,
cabinet or other appliance that extends beyond front
edge of unit, 20" minimum clearance recommended
to allow for optimum 140° door swing, providing
complete crisper access and removal.
3" minimum clearance will ONLY allow for 90°
swing which will provide limited crisper access
with restricted removal.)
(Absolute
door
32"
Allow 60" min.
(with doors 90° open)
5/8"
29
69"
with
3
/8"
rollers
Water
1/4"
line inlet
3
location
/8"
(left
bottom
rear)
Power
cord
location
(right
bottom
rear)
34
28
1
68
with
rollers
1
/2"
/2"
INSTALLATION SPECIFICATIONS
•
Product Shipping Weight (approx.) – 220 Lbs.
•
An electrical supply with grounded three-prong receptacle is required. The
power supply circuit must be installed in accordance with current edition of
National Electrical Code (NFPA 70) and local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz
•
Connected Load (kW Rating) @ 120 Volts = 0.72 kW
•
Amps @ 120 Volts = 6.0 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting fully
loaded refrigerator.
•
Minimum 3/8" clearance required for sides and top of refrigerator with
1" clearance at rear to allow for ease of installation, proper air circulation,
and plumbing / electrical connections.
•
When installing refrigerator adjacent to wall, cabinet or other appliance that
extends beyond front edge of unit, 20" minimum clearance recommended to
allow for optimum 140° door swing, providing complete crisper access and
removal. (Absolute 3" minimum clearance will ONLY allow for 90° door swing
which will provide limited crisper access with restricted removal.)
•
10200 David Taylor Drive
USA
•
CANADA
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
•
To ensure optimum performance, do not install in areas where temperature
drops below 55° F or rises above 110° F and avoid installing in direct sunlight
or close proximity to range, dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Optional Ice Maker Kit (PN # IM115) available for installation in
ice maker-ready models only.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100 pounds
per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line with
length equal to distance from rear of unit to household water supply line
plus 7 additional feet. Optional Water Supply Installation Kits available.
•
Adjustable front rollers to assist with door alignment.
OPTIONAL ACCESSORIES
•
Ice Maker Kit – (PN # IM115).
Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Specifications subject to change. Accessories information available on the web at frigidaire.com
© 2017 Electrolux Home Products, Inc.
FFHT2032T 10/17
