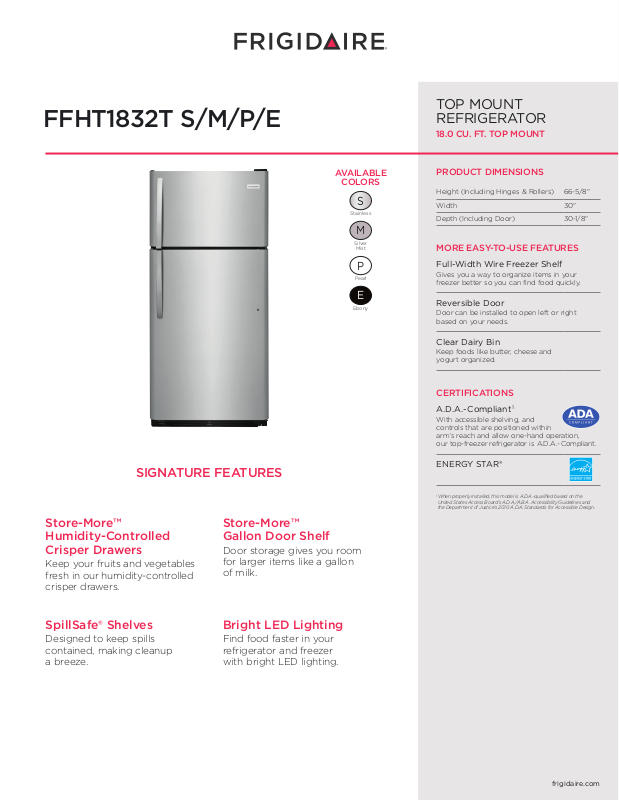

Frigidaire FFHT1832TM, FFHT1832TP Specification Sheet

FFHT1832T S/M/P/E	TOP MOUNT
	REFRIGERATOR
	18.0 CU. FT. TOP MOUNT

AVAILABLE

COLORS

S

Stainless

M

Silver

Mist

P

Pearl

E

Ebony

SIGNATURE FEATURES

Store-More™ Humidity-Controlled Crisper Drawers

Keep your fruits and vegetables fresh in our humidity-controlled crisper drawers.

Store-More™ Gallon Door Shelf

Door storage gives you room for larger items like a gallon of milk.

SpillSafe® Shelves	Bright LED Lighting
Designed to keep spills	Find food faster in your
contained, making cleanup	refrigerator and freezer
a breeze.	with bright LED lighting.

PRODUCT DIMENSIONS

Height (Including Hinges & Rollers)	66-5/8"
Width	30"
Depth (Including Door)	30-1/8"

MORE EASY-TO-USE FEATURES

Full-Width Wire Freezer Shelf

Gives you a way to organize items in your freezer better so you can find food quickly.

Reversible Door

Door can be installed to open left or right based on your needs.

Clear Dairy Bin

Keep foods like butter, cheese and yogurt organized.

CERTIFICATIONS

A.D.A.- Compliant1

With accessible shelving, and controls that are positioned within

arm’s reach and allow one-hand operation,

our top-freezer refrigerator is A.D.A.- Compliant.

ENERGY STAR®

1  When properly installed, this model is A.D.A.-qualified based on the United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.

frigidaire.com

FFHT1832T S/M/P/E

TOP MOUNT REFRIGERATOR

18.0 CU. FT.

FEATURES

	Door Design	UltraSoft™
	Door Handle Design	Stainless Steel (S),
		Color-Coordinated (M/P/E)
	Cabinet Finish (Textured)	Black (S),
		Color-Coordinated (M/P/E)
	Door Stops	Yes
	Door Hinge Covers	Black (S),
		Color-Coordinated (M/P/E)
	Door Reverse Option	Yes
	Rollers – Front / Rear	Fixed / Yes
	Sound Package
	Toe Grille	Black (S),
		Color-Coordinated (M/P/E)
	REFRIGERATOR FEATURES
	Interior Lighting	LED
	Refrigerator Shelves	2 Full-Width SpillSafe®
	Deli Drawer	1 Half-Width
	Wine / Can Rack
	Store-More™ Crisper Drawers	2 Clear
	Humidity Controls	2
	Dairy Compartment	Clear Dairy Door
	Door Bins	3 Full-Width White
	Door Racks
	Non-Slip Bin Liner
	Tall Bottle Retainers
	Gallon Door Storage	1
	FREEZER FEATURES
	Door Bins	2 Full-Width Clear
	Door Racks
	Freezer Shelves	1 Full-Width Wire
	Factory Ice Maker w/ Large Ice Bin	Optional (PN # IM116)
	Lighting
	CERTIFICATIONS
	A.D.A. Compliant1	Yes
	ENERGY STAR®	Yes
	SPECIFICATIONS
	Total Capacity (Cu. Ft.)	18.0
	Refrigerator Capacity (Cu. Ft.)	14.1
	Freezer Capacity (Cu. Ft.)	3.9
	Power Supply Connection Location	Right Bottom Rear
	Water Inlet Connection Location	Bottom Right
	Voltage Rating	120V / 60Hz
	Connected Load (kW Rating) @ 120 Volts2	0.72
	Amps @ 120 Volts	6.0
	Minimum Circuit Required (Amps)	15
	Shipping Weight (Approx.)	205 Lbs.

1When properly installed, this model is A.D.A.-qualified based on the United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.

2For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.

PRODUCT DIMENSIONS

A - Height (Including Hinges & Rollers)	66-5/8"
B - Width	30"
C - Depth (Including Door)	30-1/8"
Depth with Door Open 90°	58-1/2"

C

A

	B
r line	Recessed
only)	electrical outlet

Note: For planning purposes only. Always consult local and national electric, gas and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Specifications subject to change. Accessories information available on the web at frigidaire.com

USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com	FFHT1832T 10/17
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca	© 2017 Electrolux Home Products, Inc.
