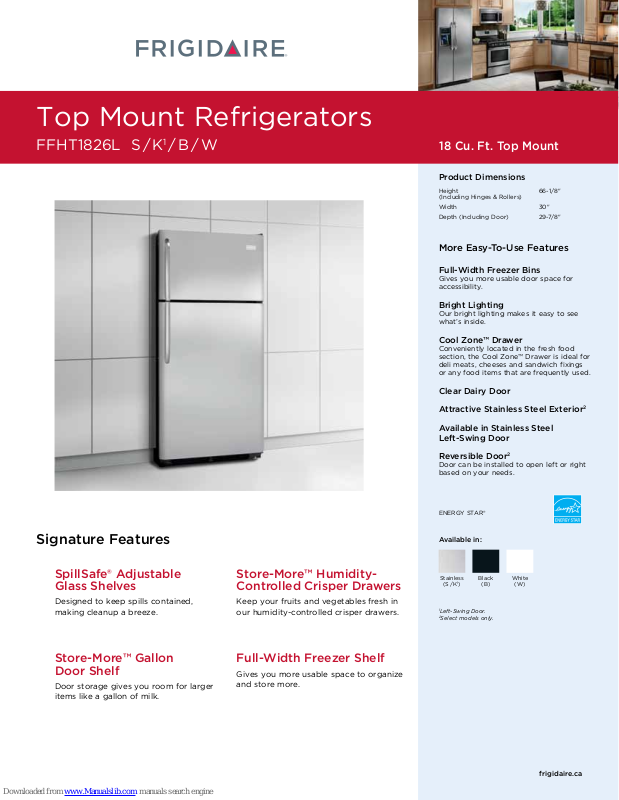

Top Mount Refrigerators
FFHT1826L S / K1 / B / W
18 Cu. Ft. Top Mount
Product Dimensions
Height 66-1/8"
(Including Hinges & Rollers)
Width 30"
Depth (Including Door) 29-7/8"
More Easy-To-Use Features
Full-Width Freezer Bins
Gives you more usable door space for
accessibility.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Cool Zone™ Drawer
Conveniently located in the fresh food
section, the Cool Zone™ Drawer is ideal for
deli meats, cheeses and sandwich fixings
or any food items that are frequently used.
Clear Dairy Door
Attractive Stainless Steel Exterior
Available in Stainless Steel
Left-Swing Door
Reversible Door
Door can be installed to open left or right
based on your needs.
2
2
Signature Features
SpillSafe® Adjustable
Glass Shelves
Designed to keep spills contained,
making cleanup a breeze.
Store-More™ Gallon
Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
Store-More™ HumidityControlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Full-Width Freezer Shelf
Gives you more usable space to organize
and store more.
ENERGY STAR®
Available in:
Stainless
(S / K
1
Left-Swing Door.
2
Select models only.
Black
1
)
(B)
White
(W)
frigidaire.ca
Page 2
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Left-Swing Door
Rollers – Front / Rear
Sound Package
Toe Grille
UltraSoft™
Stainless Steel (S / K),
Colour-Coordinated (B /W)
Black (S / K),
Colour-Coordinated (B /W)
Yes
Colour-Coordinated
No (S / K),
Yes (B /W)
Yes (K Model Only)
Fixed / Yes
Black (S / K),
Colour-Coordinated (B /W)
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Cool Zone™ Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
2 SpillSafe®
Adjustable Glass
Clear
2 Clear
2
Clear Dairy Door
3 Full-Width White
2
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
Lighting
2 Full-Width White
1 Full-Width
Optional (PN # IM115)
Certifications
ENERGY STAR®
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
1
18.2
14.13
4.07
Right Bottom Rear
Bottom Right
120V / 60Hz / 15 or 20A
.54
4.5
15
205 Lbs.
Top Mount Refrigerators
FFHT1826L S / K/ B / W 18 Cu. Ft.
•
CANADA
FFHT1826L 06/11 © 2011 Electrolux Major Appliances, NA Printed in Canada
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.ca.
Product Dimensions
A - Height (Incl. Hinges and Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
66-1/8"
30"
29-7/8"
58-1/8"
Accessories information available
on the web at frigidaire.ca
Specifications subject to change.
Page 3

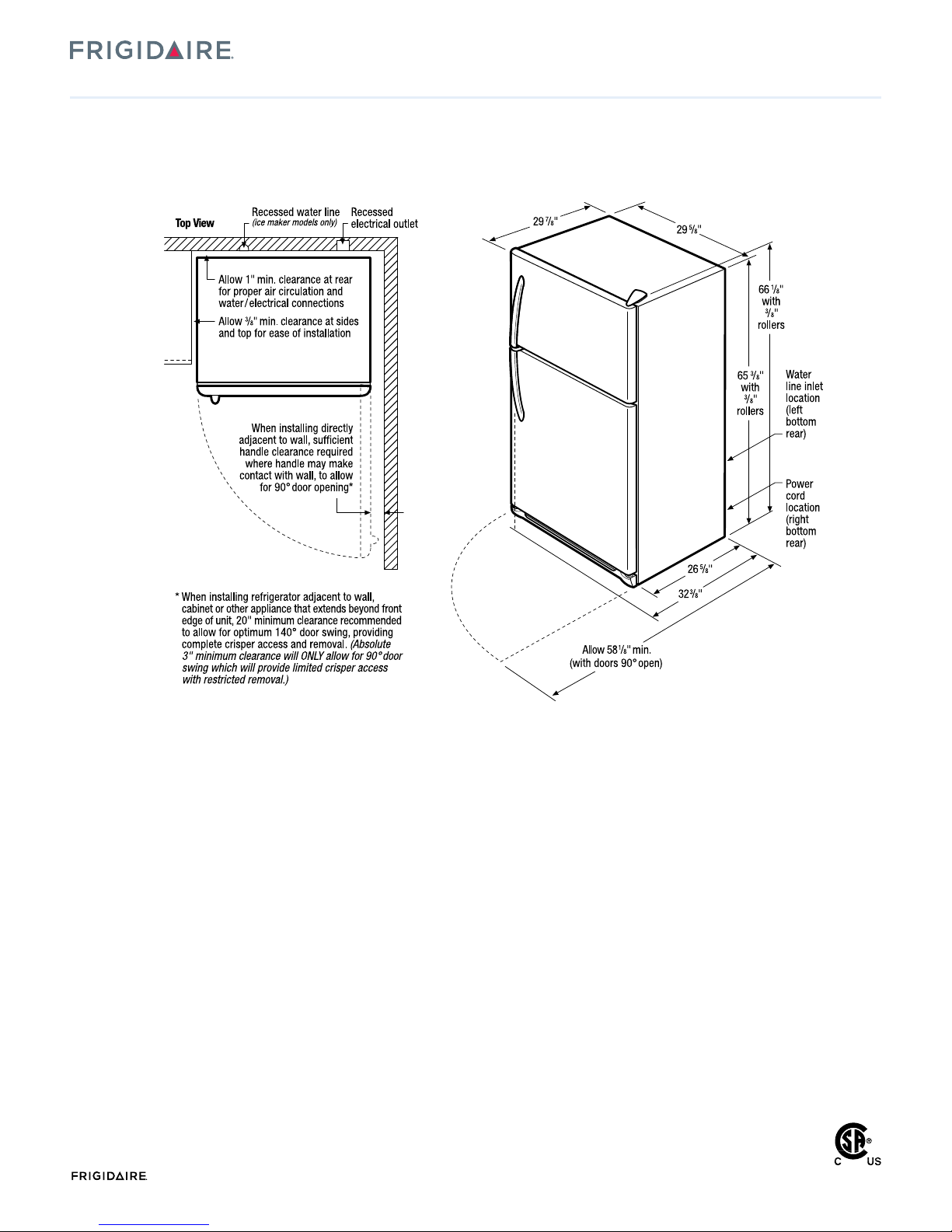

Top Mount Refrigerator - 18 Cu. Ft.
Baseline
Top Mount Refrigerators
FFHT1826L S / K/B / W 18 Cu. Ft.
Top Mount Refrigerator Specifications
•
Product Shipping Weight (approx.) – 205 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
•
Connected Load (kW Rating) @ 120 Volts = .54 kW
•
Amps @ 120 Volts = 4.5 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
•
When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
•
CANADA
FFHT1826L 06/11 © 2011 Electrolux Major Appliances, NA Printed in Canada
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
•
To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
•
For proper ventilation, front grille MUST remain unobstructed.
•
Recess electrical outlet when possible.
•
Optional Ice Maker Kit (PN # IM115) available for installation in
ice maker-ready models only.
•
Water recess on rear wall recommended to prevent water line damage.
•
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
•
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
•
Adjustable front rollers to assist with door alignment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.ca for detailed instructions.
Optional Accessories
•
Ice Maker Kit – (PN # IM115)
Specifications subject to change.
