Frigidaire FFHT1814TW Specification Sheet
Top Mount Refrigerators
FFHT1814T W / B
Place and center
image here.
18.0 Cu. Ft. Top Mount
Product Dimensions
Height 66-5/8"
(Including Hinges & Rollers)
Width 30"
Depth (Including Door) 30-1/8"
More Easy-To-Use Features
Clear Dairy Bin
Keep foods like butter, cheese and
yogurt organized.
A.D.A. - Compliant
With accessible shelving, and controls
that are positioned within arm’s reach and
allow one-hand operation, our top-freezer
refrigerator is A.D.A.- Compliant.
ENERGY STAR®
Available in:
1
Signature Features
Store-More™ HumidityControlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Full-Width Wire
Freezer Shelf
Gives you a way to organize items in your
freezer better so you can find food quickly.
Store-More™
Gallon Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
Reversible Door
Door can be installed to open left or
right based on your needs.
White
(W)
1
When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
Black
(B)
frigidaire.com
B
A
C
Recessed
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Rollers – Front / Rear
Sound Package
Toe Grille
UltraSoft™
Color-Coordinated
Color-Coordinated
Yes
Color-Coordinated
Yes
Fixed / Yes
Color-Coordinated
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Deli Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Standard
2 Full-Width Wire
2 Clear
1
Clear Dairy Door
3 Full-Width
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Full-Width White
1 Full-Width Wire
Optional (PN # IM116)
Lighting
Certifications
A.D.A.- Compliant
ENERGY STAR®
1
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
2
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
18.0
14.0
4.0
Right Bottom Rear
Bottom Right
120V / 60Hz
0.72
6.0
15
205 Lbs.
Top Mount Refrigerators
FFHT1814T W / B 18.0 Cu. Ft.
•
USA
10200 David Taylor Drive
•
CANADA
FFHT1814T 06/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.

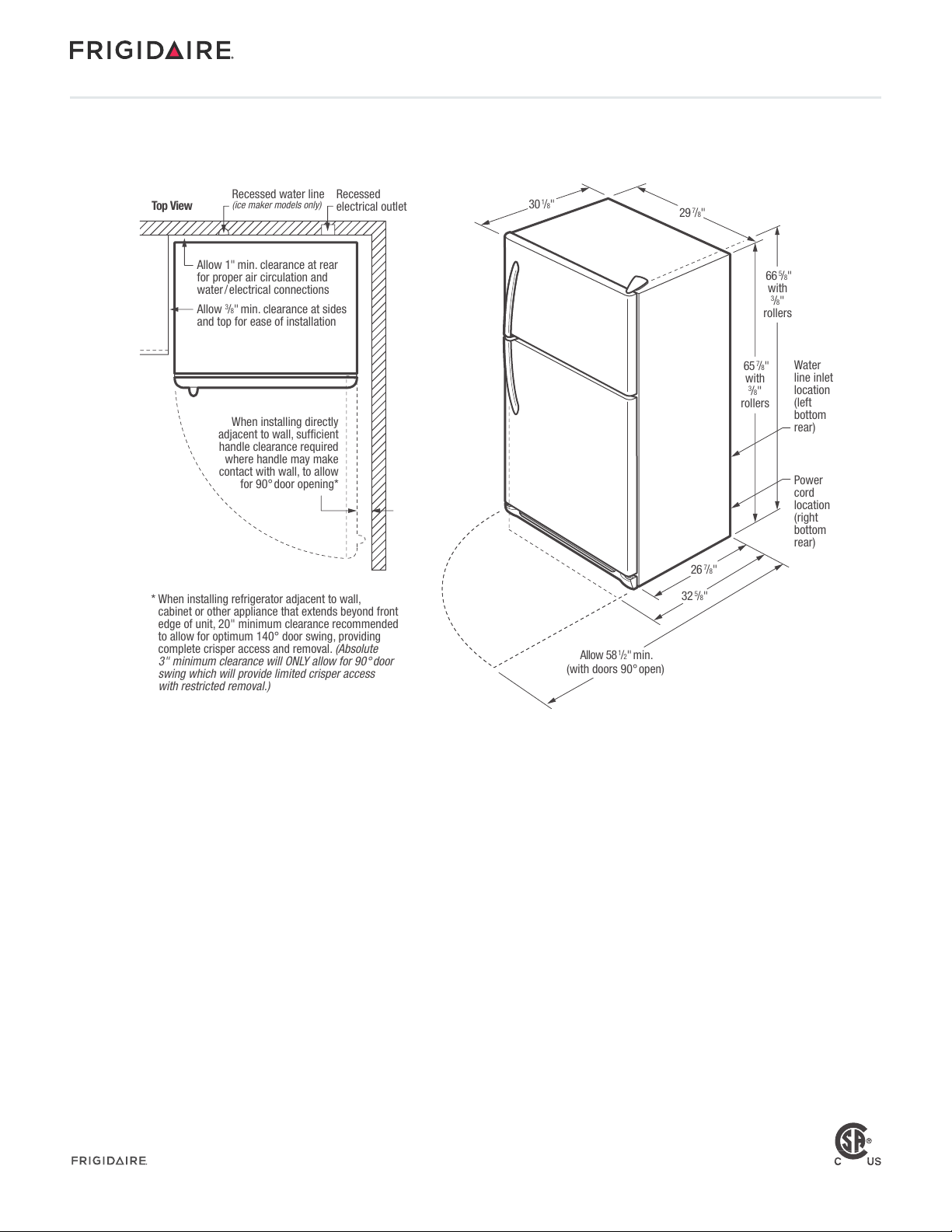

Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90°
66-5/8"
30"
30-1/8"
58-1/2"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
