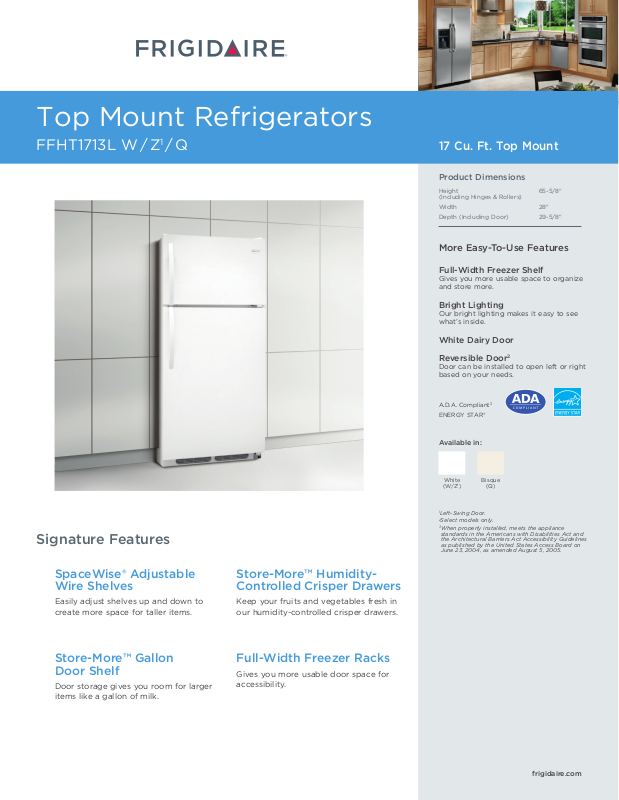

Top Mount Refrigerators
FFHT1713L W / Z1 / Q
17 Cu. Ft. Top Mount
Product Dimensions
Height 65-5/8"
(Including Hinges & Rollers)
Width 28"
Depth (Including Door) 29-5/8"
More Easy-To-Use Features
Full-Width Freezer Shelf
Gives you more usable space to organize
and store more.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
White Dairy Door
Reversible Door
Door can be installed to open left or right
based on your needs.
A.D.A. Compliant
ENERGY STAR®
2
3
Signature Features
SpaceWise® Adjustable
Wire Shelves
Easily adjust shelves up and down to
create more space for taller items.
Store-More™ Gallon
Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
Store-More™ HumidityControlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Full-Width Freezer Racks
Gives you more usable door space for
accessibility.
Available in:
White
(W/ Z
1
Left-Swing Door.
2
Select models only.
3
When properly installed, meets the appliance
standards in the Americans with Disabilities Act and
the Architectural Barriers Act Accessibility Guidelines
as published by the United States Access Board on
June 23, 2004, as amended August 5, 2005.
Bisque
1
(Q)
)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Left-Swing Door
Rollers – Front / Rear
Sound Package
Toe Grille
Square
Color-Coordinated
Color-Coordinated
Yes
Color-Coordinated
Yes (W / Q), No (Z)
Yes (Z model only)
Fixed/ Yes
Color-Coordinated
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Cool Zone™ Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
2 Sliding SpaceWise®
Adjustable Wire
2 White
2
White Dairy Door
3 Full-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Full-Width White
1 Full-Width Wire
Optional (PN # IM115)
Lighting
Certifications
A.D.A. Compliant
ENERGY STAR®
1
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
2
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
When properly installed, meets the appliance standards in the Americans
with Disabilities Act and the Architectural Barriers Act Accessibility
Guidelines as published by the United States Access Board on June 23,
2004, as amended August 5, 2005.
2
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
16.5
12.76
3. 74
Right Bottom Rear
Bottom Right
120V / 60Hz / 15 or 20A
.54
4.5
15
190 Lbs.
Top Mount Refrigerators
FFHT1713L W / Z / Q 17 Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
•
USA
10200 David Taylor Drive
•
CANADA
FFHT1713L 04/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
65-5/8"
28"
29-5/8"
56"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Top Mount Refrigerator - 17 Cu. Ft.
Baseline
Top View
Allow 1" min. clearance at rear
for proper air circulation and
water/electrical connections
Allow
3
/8" min. clearance at sides
and top for ease of installation
Recessed water line
(ice maker models only)
Recessed
electrical outlet
* When installing refrigerator adjacent to wall,
cabinet or other appliance that extends beyond front
edge of unit, 20" minimum clearance recommended
to allow for optimum 140ϒ door swing, providing
complete crisper access and removal. (Absolute
3" minimum clearance will ONLY allow for 90ϒdoor
swing which will provide limited crisper access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90ϒ door opening*
295/8"
28"
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
Allow 56"min.
(with doors 90ϒopen)
267/8"
32
1
/8"
65
5
/8"
with
3
/8"
rollers
64
7
/8"
with
3
/8"
rollers
Top Mount Refrigerators
FFHT1713L W / Z /Q 17 Cu. Ft.
Top Mount Refrigerator Specifications
• Product Shipping Weight (approx.) – 190 Lbs.
• An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
• Voltage Rating – 120V / 60 Hz / 15 or 20 Amps
• Connected Load (kW Rating) @ 120 Volts = .54 kW
• Amps @ 120 Volts = 4.5 Amps
• Always consult local and national electric & plumbing codes.
• Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
• Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
• When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
• To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
• For proper ventilation, front grille MUST remain unobstructed.
• Recess electrical outlet when possible.
• Optional Ice Maker Kit (PN # IM115) available for installation in
ice maker-ready models only.
• Water recess on rear wall recommended to prevent water line damage.
• Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
• Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Ice Maker Kit – (PN # IM115)
•
USA
10200 David Taylor Drive
•
CANADA
FFHT1713L 04/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_TMR FR 04/13 © 2013 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
