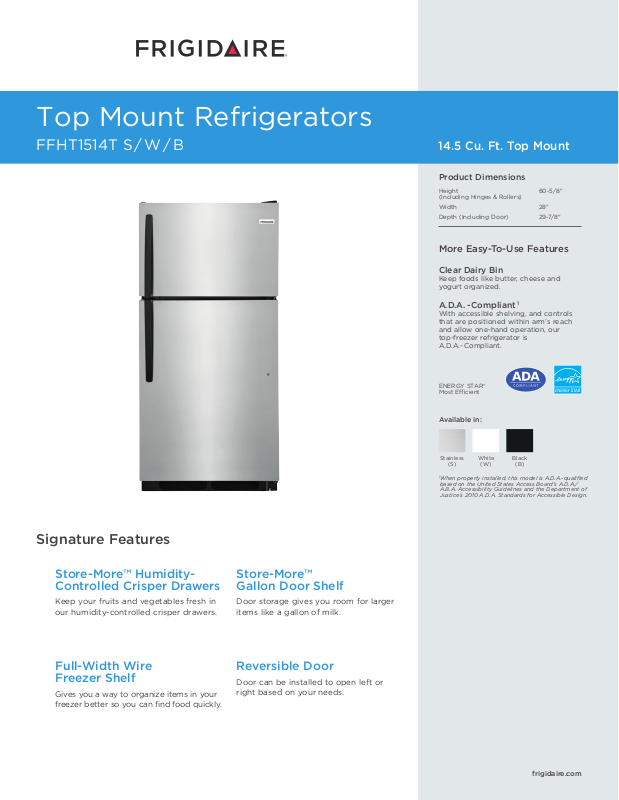

Frigidaire FFHT1514TW, FFHT1514TS Specification Sheet
Top Mount Refrigerators
FFHT1514T S / W / B
Place and center
image here.
14.5 Cu. Ft. Top Mount
Product Dimensions
Height 60-5/8"
(Including Hinges & Rollers)
Width 28"
Depth (Including Door) 29-7/8"
More Easy-To-Use Features
Clear Dairy Bin
Keep foods like butter, cheese and
yogurt organized.
A.D.A. - Compliant
With accessible shelving, and controls
that are positioned within arm’s reach
and allow one-hand operation, our
top-freezer refrigerator is
A.D.A.- Compliant.
ENERGY STAR®
Most Ecient
Available in:
1
Signature Features
Store-More™ HumidityControlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Full-Width Wire
Freezer Shelf
Gives you a way to organize items in your
freezer better so you can find food quickly.
Store-More™
Gallon Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
Reversible Door
Door can be installed to open left or
right based on your needs.
Stainless
1
When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
(S)
White
(W)
Black
(B)
frigidaire.com
B
A
C
Recessed
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Rollers – Front / Rear
Sound Package
Toe Grille
Square
Black (S),
Color-Coordinated (W / B)
Black (S),
Color-Coordinated (W / B)
Yes
Black (S),
Color-Coordinated (W / B)
Yes
Fixed/ Yes
Black (S),
Color-Coordinated (W / B)
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Deli Drawer
Wine / Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Standard
2 Full-Width Wire
2 Clear
2
Clear Dairy Door
2 Full-Width White
1 Half-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Full-Width White
1 Full-Width Wire
Optional (PN # IM116)
Lighting
Certifications
A.D.A. - Compliant
ENERGY STAR® Most Ecient
1
Yes
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
Amps @ 120 Volts
2
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
14.5
10.9
3.6
Right Bottom Rear
Bottom Right
120V / 60Hz
0.72
6.0
15
175 Lbs.
Top Mount Refrigerators
FFHT1514T S / W / B 14.5 Cu. Ft.
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
•
USA
10200 David Taylor Drive
•
CANADA
FFHT1514T 05/17 © 2017 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca

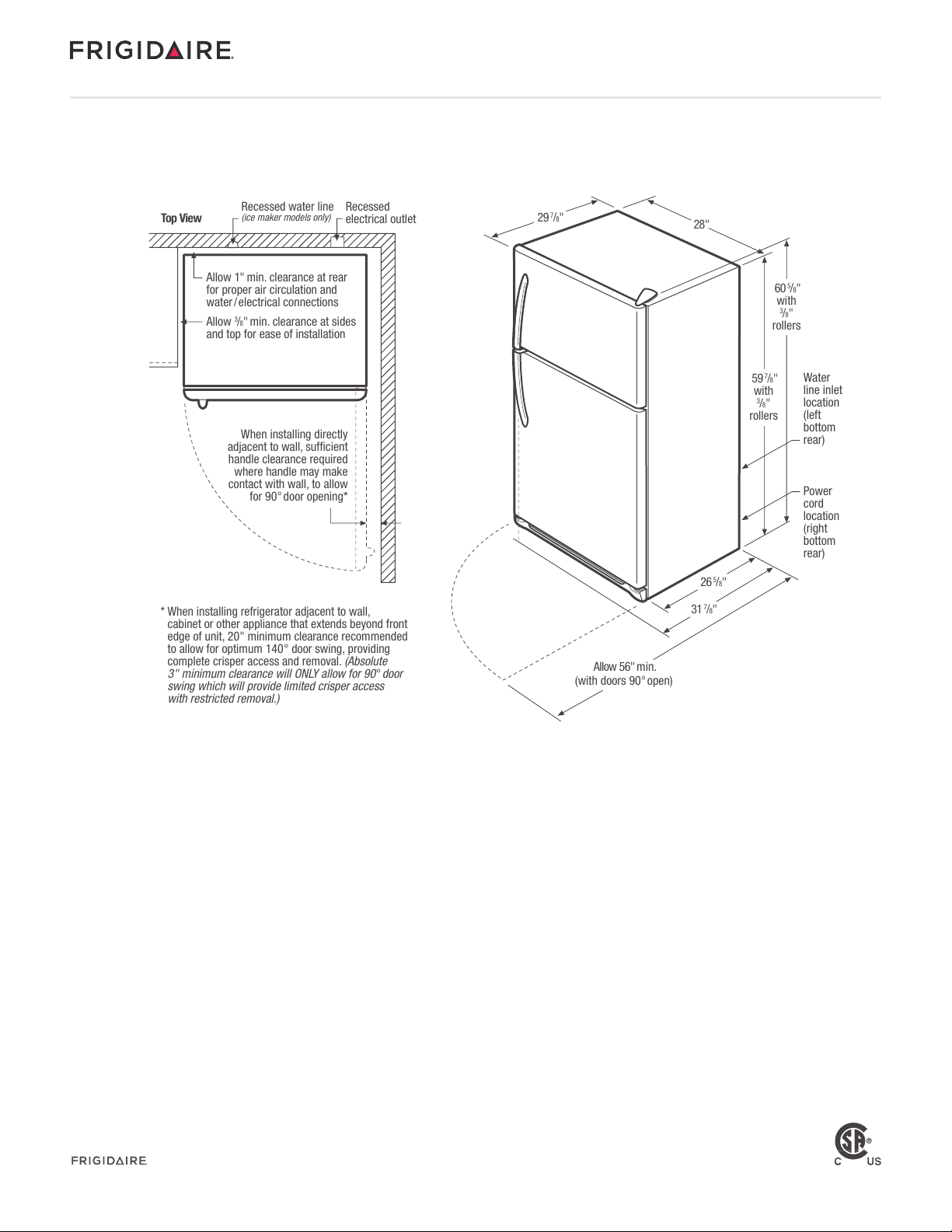

Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90°
60-5/8"
28"
29-7/8"
56"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
