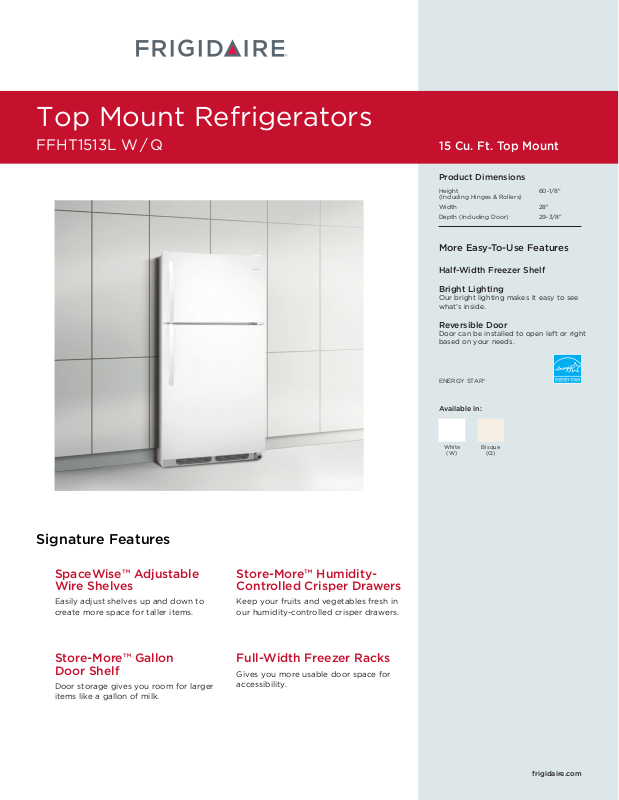

Frigidaire FFHT1513L W, FFHT1513L Q DATASHEET
Top Mount Refrigerators
FFHT1513L W/Q
15 Cu. Ft. Top Mount
Product Dimensions
Height 60-1/8"
(Including Hinges & Rollers)
Width 28"
Depth (Including Door) 29-3/8"
More Easy-To-Use Features
Half-Width Freezer Shelf
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Reversible Door
Door can be installed to open left or right
based on your needs.
ENERGY STAR®
Available in:
Signature Features
SpaceWise™ Adjustable
Wire Shelves
Easily adjust shelves up and down to
create more space for taller items.
Store-More™ Gallon
Door Shelf
Door storage gives you room for larger
items like a gallon of milk.
Store-More™ HumidityControlled Crisper Drawers
Keep your fruits and vegetables fresh in
our humidity-controlled crisper drawers.
Full-Width Freezer Racks
Gives you more usable door space for
accessibility.
White
(W)
Bisque
(Q)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Left-Swing Door
Rollers – Front/Rear
Sound Package
Toe Grille
Square
Color-Coordinated
Color-Coordinated
Yes
Color-Coordinated
Yes
Fixed/Yes
Color-Coordinated
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Cool Zone™ Drawer
Wine/Can Rack
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Door Bins
Door Racks
Non-Slip Bin Liner
Tall Bottle Retainers
Gallon Door Storage
Bright
2 SpaceWise™
Adjustable Wire
2 White
2
2 Full-Width White
1 Half-Width White
1
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Full-Width White
1 Half-Width Wire
Optional
Lighting
Certifications
ENERGY STAR®
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
14.8
11.01
3.74
Right Bottom Rear
Bottom Right
120V/60Hz/15or20A
.54
4.5 Amps
15
175 Lbs.
Top Mount Refrigerators
FFHT1513L W/Q 15 Cu. Ft.
NOTE: Always consult local and national electric and plumbing
codes. Refer to Product Installation Guide for detailed installation
instructions on the web at frigidaire.com.
Product Dimensions
A-Height (Incl. Hinges and Rollers)
B-Width
C-Depth (Incl. Door)
Depth with Door Open 90˚
•
USA
250 Bobby Jones Expressway
•
CANADA
FFHT1513L 01/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Martinez, GA 30907
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
60-1/8"
28"
29-3/8"
56"
Specifications
subject to change.
