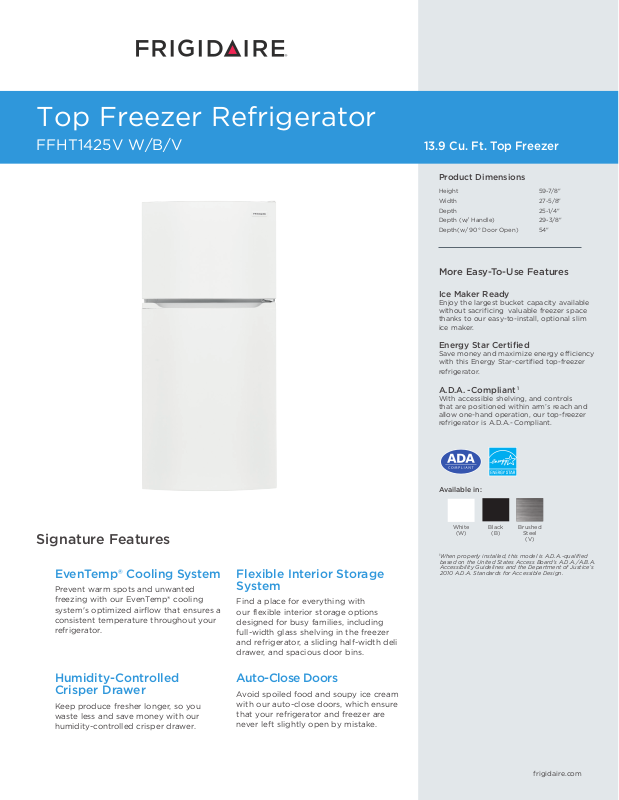

Top Freezer Refrigerator
FFHT1425V W/B/V
Place and center
image here.
13.9 Cu. Ft. Top Freezer
Product Dimensions
Height 59-7/8"
Width 27-5/8"
Depth 25-1/4"
Depth (w/ Handle) 29-3/8"
Depth(w/ 90° Door Open) 54"
More Easy-To-Use Features
Ice Maker Ready
Enjoy the largest bucket capacity available
without sacrificing valuable freezer space
thanks to our easy-to-install, optional slim
ice maker.
Energy Star Certified
Save money and maximize energy efficiency
with this Energy Star-certified top-freezer
refrigerator.
A.D.A. - Compliant
With accessible shelving, and controls
that are positioned within arm’s reach and
allow one-hand operation, our top-freezer
refrigerator is A.D.A.- Compliant.
1
Signature Features
EvenTemp® Cooling System
Prevent warm spots and unwanted
freezing with our EvenTemp® cooling
system's optimized airflow that ensures a
consistent temperature throughout your
refrigerator.
Humidity-Controlled
Crisper Drawer
Keep produce fresher longer, so you
waste less and save money with our
humidity-controlled crisper drawer.
Flexible Interior Storage
System
Find a place for everything with
our flexible interior storage options
designed for busy families, including
full-width glass shelving in the freezer
and refrigerator, a sliding half-width deli
drawer, and spacious door bins.
Auto-Close Doors
Avoid spoiled food and soupy ice cream
with our auto-close doors, which ensure
that your refrigerator and freezer are
never left slightly open by mistake.
Available in:
Black
White
(W)
1
Whenproperlyinstalled,thismodelisA.D.A.-qualied
based on the United States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the Department of Justice’s
2010 A.D.A. Standards for Accessible Design.
(B)
Brushed
Steel
(V)
frigidaire.com
Features
B
A
C
Recessed
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Rollers – Front / Rear
Arc
Integrated
Color-Coordinated
Yes
Color-Coordinated
Yes
Fixed
Refrigerator Features
Interior Lighting
Refrigerator Shelves
Deli Drawer
Crisper Drawers
Humidity Controls
Door Bins
LED
2 Adjustable Glass
Half-Width Sliding Deli Drawer
1 Clear
1
2 White Gallon Door Bins,
1 White Half Gallon Door Bin
Freezer Features
Door Bins
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
2 Fixed White
1 Full-Width Glass
Optional (PN #IM117)
Certifications
A.D.A. - Compliant
1
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
Whenproperlyinstalled,thismodelisA.D.A.-qualiedbasedonthe
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe operation.
13.9
10.0
3.9
Right Bottom Rear
Left bottom Rear
120V / 60Hz
15
135 Lbs.
Top Freezer Refrigerators
FFHT1425V W/B/V 13.9 Cu. Ft.
•
USA
10200 David Taylor Drive
•
CANADA
FFHT1425V 02/19 © 2019 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90°
60 1/2"
27 5/8"
29 3/8"
54"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Top Freezer Refrigerators
Top Mount Refrigerator - 18 Cu. Ft.
Baseline Q 2014
Top View
Allow 1-1/4"" min. clearance at
back for proper air circulation
and water
/
electrical connections
Allow 1-5/8" min. clearance at
sides and 4" at top for ease of
installation and proper air
circulation
Recessed water line
(ice maker models only)
Recessed
electrical outlet
* When installing refrigerator adjacent to wall,
cabinet or other appliance that extends beyond front
edge of unit, 24" minimum clearance recommended
to allow for optimum 120
° door swing, providing
complete crisper access and removal.
(Absolute
3" minimum clearance will ONLY allow for 90
°
door
swing which will provide limited crisper access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90° door opening*
27
5/8"
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
Allow 54" min.
(with doors 90°
open)
29 3/8"
25
1/4"
59
7/8"
with
rollers
60
1
/2"
with
rollers
FFHT1425V W/B/V 13.9 Cu. Ft.
Top Mount Refrigerator Specifications
•
Product Shipping Weight (approx.) – 135 Lbs.
•
An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Max Connected Load (kW Rating) @ 120 Volts = .36kW
•
Max Amps @ 120 Volts = 3.0 Amps
•
Always consult local and national electric & plumbing codes.
•
Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
•
To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
•
•
•
•
•
•
Note: For planning purposes only. Refer to Product Installation Guide
Optional Accessories
•
For proper ventilation, front grille MUST remain unobstructed.
Recess electrical outlet when possible.
Optional Ice Maker Kit (PN # IM117) available for installation in
ice maker-ready models only.
Water recess on rear wall recommended to prevent water line damage.
Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
on the web at frigidaire.com for detailed instructions.
Ice Maker Kit – (PN # IM117).
•
USA
10200 David Taylor Drive
•
CANADA
FFHT1425V 02/19 © 2019 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
