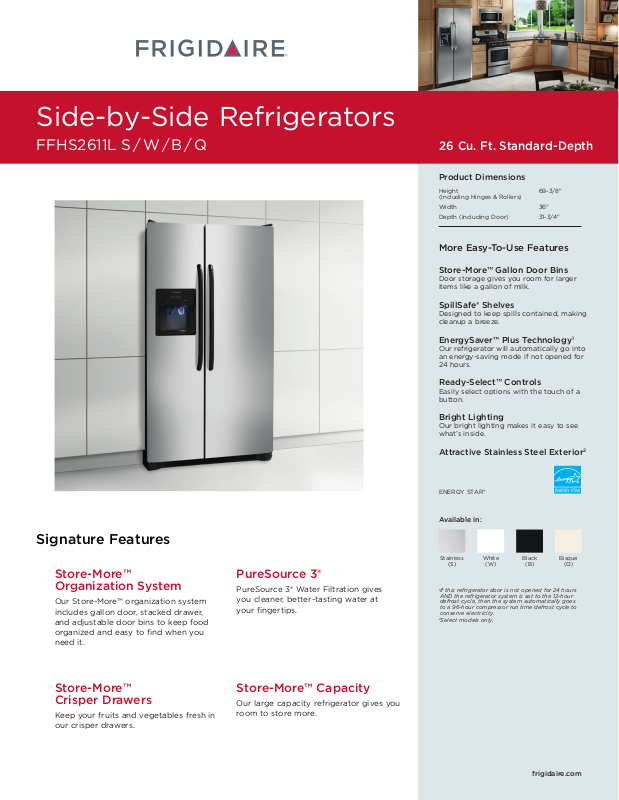

Frigidaire FFHS2611L DATASHEET
Side-by-Side Refrigerators
FFHS2611L S / W / B / Q
26 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width 36"
Depth (Including Door) 31-3/4"
More Easy-To-Use Features
Store-More™ Gallon Door Bins
Door storage gives you room for larger
items like a gallon of milk.
SpillSafe® Shelves
Designed to keep spills contained, making
cleanup a breeze.
EnergySaver™ Plus Technology
Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.
Ready-Select™ Controls
Easily select options with the touch of a
button.
Bright Lighting
Our bright lighting makes it easy to see
what’s inside.
Attractive Stainless Steel Exterior
1
2
Signature Features
Store-More™
Organization System
Our Store-More™ organization system
includes gallon door, stacked drawer,
and adjustable door bins to keep food
organized and easy to find when you
need it.
Store-More™
Crisper Drawers
Keep your fruits and vegetables fresh in
our crisper drawers.
PureSource 3®
PureSource 3® Water Filtration gives
you cleaner, better-tasting water at
your fingertips.
Store-More™ Capacity
Our large capacity refrigerator gives you
room to store more.
ENERGY STAR®
Available in:
Stainless
(S)
1
If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.
2
Select models only.
White
(W)
Black
(B)
Bisque
(Q)
frigidaire.com
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
EnergySaver™ Plus Technology
Water Filter Location
Sound Package
UltraSoft™
Black (S), ColorCoordinated (W / B / Q)
Black (S), ColorCoordinated (W / B / Q)
Yes / Yes
Black (S), ColorCoordinated (W / B / Q)
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option / Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
ReadySelect™
Short, 2-Paddle
4
Yes / Yes / Yes
No / Yes
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Bright
PureSource 3®
3 SpillSafe®
1 Clear / 1 Clear
1 Clear
2 Two-Liter White
2 One-Gallon White
Yes
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
4 White / No
1 Flip-Out / 2 Wire
1 Plastic
Bright
Certifications
ENERGY STAR®
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
26
16.5
9.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
300 Lbs.
Side-by-Side Refrigerators
FFHS2611L S / W / B / Q 26 Cu. Ft. Standard-Depth
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height (Incl. Hinges and Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
36"
31-3/4"
49-3/4"
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive
•
CANADA
FFHS2611L 08/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
