Please read all instructions before using this refrigerator,

For your Safety

• DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or

any other appliance. Read product labels

for warnings regarding flammability and

other hazards.

• DO NOT operate the refrigerator in the

presence of explosive fumes.

• Avoid contact with any moving parts of

automatic ice maker.

• Remove all staples from the carton. Staples

can cause severe cuts, and also destroy

finishes if they come in contact with other

appliances or furniture.

Definitions

_This isthe safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in

or moderate inJuw:.........................................

IMPORTANT indicates installation, operation

or maintenance information which is

important but not hazard-related.

Doors

[] Handles are secure and tight [] Door seals completely to cabinet on all

sides

[] Freezer door is level across the top

Leveling

[] Refrigerator is level, side-to-side and

tilted 1/4"(6mm) front-to-back

[] Toe grille is properly attached to

refrigerator

[] Cabinet is setting solid on all corners

Electrical Power

[] House power turned on [] Refrigerator plugged in

[ce Maker

[] House water supply connected to

refrigerator

[] No water leaks present at all connections

- recheck in 24 hours

[] Ice maker is turned ON [] Ice & water dispenser operates correctly

[] Front filter must be flush with filter

housing (select models)

Final Checks

[] Shipping material removed [] Fresh food and freezer temperatures set

[] Crisper humidity controls set [] Registration card sent in

Child Safety

Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the refrigerator is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight

chambers, and can quickly cause suffocation.

Proper Disposal of your Refrigerator or Freezer

Risk of child entrapment

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators or freezers are still dangerous

- even if they will sit for "just a few days'; If you are getting rid of your old refrigerator or

freezer,pleasefollowtheinstructionsbelowto helppreventaccidents.

Proper Disposal of Refrigerators/Freezers We strongly encourage responsible appliance

recycling/disposal methods. Check with your utility company or visit www.energystar.gov/recyde for more information on recycling your old refrigerator.

Before you throw away your old

refrigerator/freezer:

• Remove doors.

• Leave shelves in

place so children may not easily

climb inside.

• Have refrigerant

removed by a qualified

service

technician.

Avoid connecting refrigerator to a Ground

FaultInterrupter (GFI) cimuit. Do not use an

e_nsion cord or adapter plug,

• If the power cord is damaged, it should be replaced by an authorized service

technician to prevent any risk.

• Never unplug the refrigerator by pulling on

the power cord. Always grip the plug firmly, and pull straight out from the receptacle to

prevent damaging the power cord.

• Unplug the refrigerator before cleaning

and before replacing a light bulb to avoid electrical shock.

• Performance may be affected ifthe voltage

varies by 10% or more. Operating the

refrigerator with insufficient power can

damage the compressor. Such damage is

not covered under your warranty.

• Do not plug the unit into an electrical outlet

controlled by a wall switch or pull cord to

prevent the refrigerator from being turned

off accidentally.

CFC/HCFC Disposal three seconds, located on the temperature Your old refrigerator may have a cooling system control panel (Electronic controls), or

that used CFCs or HCFCs(chlorofluorocarbons :: ::turning the Freezer and Fresh Food controls or hydrochlorofluorocarbons). CFCsand HCFCs :: ::to "0" (Mechanical controls) will disable your

are believed to harm stratospheric ozone if

released to the atmosphere. Other refrigerants may also cause harm to the environment if released to the atmosphere.

If you are throwing away your old refrigerator,

make sure the refrigerant is removed for proper disposal by a qualified technician. If

you intentionally release refrigerant, you may

be subject to fines and imprisonment under provisions of environmental legislation.

These guidelines must be followed to ensure that safety mechanisms in this refrigerator will operate properly.

Electrical information

• The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz,, 15 Amp,

AC only electrical outlet. The power cord

of the appliance is equipped with a three- prong grounding plug for your protection against electrical shock hazards. It must be plugged directly into a properly grounded

three prong receptacle. The receptacle must

be installed in accordance with local codes and ordinances. Consult a qualified electrician.

Pressing and holding the On/Off button for

:: ::refrigerator's cooling system, but does not :: ::disconnect the power to the light bulb and

.... other electrical components. To turn off

power to your refrigerator you must unplug the power cord from the electrical outlet.

Gr0unding type wall receptacle

/'Do not, under

any circumstances, cut, remove,

or bypass the

_r0undin g prong: j

Powercord With

3:prong gounded P!Ug

To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or

Features may vary according to model

Fixed

Door Bin -

Ice

Container -

Shelf -

Tilt Out

Door Bin-

Small Basket-

Large

Glide Out-

Basket

Tilt Out _

Door Bin

Large

Basket

Door Bin-

Ice Cream Shelf_

Ice Maker_ \

i ii

i i ii

SpilIProof TM

--Aspect Shelf /

r_r_ _ _ I

Toe Grille

CAUTION: Do Not Remove

Magnet Behind Dairy Compartment

_ Dairy

Compartment

- Door Bin

_ SpilIProof TM

Sliding Shelf

- Door Bin

-Wine Rack

- Tall Bottle Retainer

- Door Bin Special Item

Rack

_ Meat Keeper

and Cover

- Can Rack

Crisper Pan and Cover

_ Fixed

Door Bin

Features not included with your refrigerator can be purchased at

ThisUse&CareGuideprovidesgeneral operatinginstructionsforyourmodel.Use therefrigeratoronlyasinstructedinthis Use&CareGuide.Beforestartingthe

refrigerator, follow these important first steps.

Location

• Choose a place that is near a grounded electrical outlet. Do Not use an extension

cord or an adapter plug.

• If possible, place the refrigerator out of direct sunlight and away from the range,

dishwasher or other heat sources.

• The refrigerator must be installed on a floor

that is level and strong enough to support

a fully loaded refrigerator.

• Consider water supply availability for models equipped with an automatic ice maker. If you do not hook up water to

the refrigerator, remember to turn the ice

maker off.

DoNot install the refrigerator where the

temperature will drop below 55°F (13°C) or

rise above 110°F (43°C). The compressor will not be able to maintain proper temperatures inside the refrigerator.

Do Not block the toe grille on the lower front of your refrigerator. Sufficient air circulation

is essential for the proper operation of your

refrigerator.

Installation

Installation clearances

• Allow the following clearances for ease

of installation, proper air circulation, and plumbing and electrical connections:

Sides & Top 3/8 inch Back 1 inch

Toe Grille Installation and

Removal

To install toe grille

1 Open both doors. Slide left and right

sides of toe grille over lower hinges of

refrigerator.

2 While pushing toe grille firmly against

cabinet, fasten bottom clips of toe grille to cabinet.

3 Fasten top clips to cabinet. 4 Close the doors. Fasten right and left side

clips into groove of bottom hinge.

Toe Grille

To remove toe grille

1 With both doors closed, unfasten right

and left side clips of toe grille from bottom

hinge groove.

Open both doors. Press firmly on top of toe grille until top of toe grille pops off.

Pull toe grille outward toward your body

and off of lower hinges.

Removing Toe Grille

:If your refrigerator is placed with the door

hinge side against a wall, you may have to allow additional space so the door can be opened wider.

Door Opening To level the doors using the adjustable

lower hinge:

The refrigerator doors are designed to shut

by themselveswith!n a 20 degree opening. Your refrigerator should be positioned to

allow easy access to a counter or table when removing food. For best use of drawers and freezer baskets, the refrigerator should be in a position where both the refrigerator and freezer doors can be fully opened.

Guidelines for final positioning of your refrigerator:

= All four corners of the cabinet must rest

firmly on the floor.

• The cabinet should be level at the front and rear.

• The sides should tilt 1/4inch (6 mm) from

front to back (to ensure that doors close

and seal properly).

• Doorsshould align with each other and be level.

All of these conditions can be met by raising or lowering the

adjustable front rollers,

To level the cabinet using the front rollers:

1 Open both doors and remove the toe

grille (see "Toe Grille Installation and Removal" in the "Installation" section).

2 Close the doors and use a flat-blade

screwdriver or 3/s inch socket wrench to raise or lower the front rollers.

3 Ensure both doors are bind-free with their

seals touching the cabinet on all four sides.

Some models will not have a set screw. For those models follow steps 2 through 4.

1 Before leveling either door, remove set

screw that locks door height into position.

(The door cannot be adjusted without set

screw removed). If the refrigerator door is lower than the

freezer door, raise the refrigerator door by turning the adjustment screw clockwise

using a 7/i6 inch wrench. (See illustration.)

If the freezer door is lower than the

refrigerator door, raise the freezer door by

turning the adjustment screw clockwise

using a 7/16inch wrench. (See illustration.)

Raise

Door

After leveling, verify door stop contacts

lower hinge and top of door does not

contact upper hinge through full movement of door (from fully closed to fully open).

5 Reinstall set screw, locking the door height.

Door Stop Flange _ =_-, ,_.__.

_'f['L_ i--ltnge

Open Door

/f_ _P_, Irx Flange

|_'\\ \\ _ "Set Screw

(some models)

_-- Hinge

7/16" Wrench and 3/32" Hex Key (some models)

6 Replace the toe grille by fitting it into

place (see "Toe Grille Installation and Removal" in the "Installation" section).

Tools Necessary:

Socket

Wrench Set

Phillips TM

Head

Adjustable Wrench

grille (as explained in the Installation Instructions that came with your appliance).

Remove any food from the door shelves.

Close the doors.

To remove the refrigerator top

hinge cover:

1 Remove the three screws from each cover

over the top door hinges.

2 Lift hinge cover straight up and off.

Rear cover Front Cover Screw

I le

:over

-linge

;crews

Top Hinge Cover Front

Screw

Top Hinge

¢-_Cover Rear

Hinge Screw

Bottom _

Screw

To prepare for removing the doors:

1 Make sure the electrical power cord is

unplugged from the wall outlet.

2 Open both doors and remove the toe

To remove the refrigerator door:

Trace lightly around the door's top hinge with a pencil. This makes reinstallation

easier.

Remove the two screws from the top hinge. Lift the door off of the bottom hinge and set it aside.

Removethetwobottomhingescrewsand hingeifnecessary.

Hinge

3 Detachthewatertubefromtheconnector

locatedbelowthefreezerdoor.The

connectorreleaseswhenyoupressits

outersleeveinward.

4 Removethescrewsfromthetophinge

andpullthemulti-wirecablethroughit.

Liftthedooroffofthebottomhinge.

5 Removethetwobottomhingescrewsand

hingeifnecessary,

ToDisconnect

1.Pressouterringagainstfaceof fitting

Adjustable Hinge

To reinstall the refrigerator door, reverse the above steps.

To remove the freezer top hinge

cover:

1 Remove the two screws from each cover

over the top door hinges.

2 Lift hinge cover straight up and off,

Front Rear

Cover Screws Cover

Top Hinge Cover

Hi_

Multi-Wire Cable - //

Screw

To remove the freezer door:

1 Detach the multi-wire cable connector

located above the top hinge, Grasp both sides of the connector firmly and pull apart.

remove tube

To Connect

Insert tube and push until mark

touches face of fitting

; Door

"_,_.H_nge/ Assembtv Screws

Adjustable Hinge (some models)

Door

, Line

! Tubing

H nge

Assembly Screws

Non-Adjusting Hinge (some models)

6 Lay the door on its side to avoid damage

to the water tube extending from the bottom hinge.

To reinstall the freezer door, reverse the above

steps,

2 Trace lightly around the hinge with a

pencil. This makes reinstallation easier.

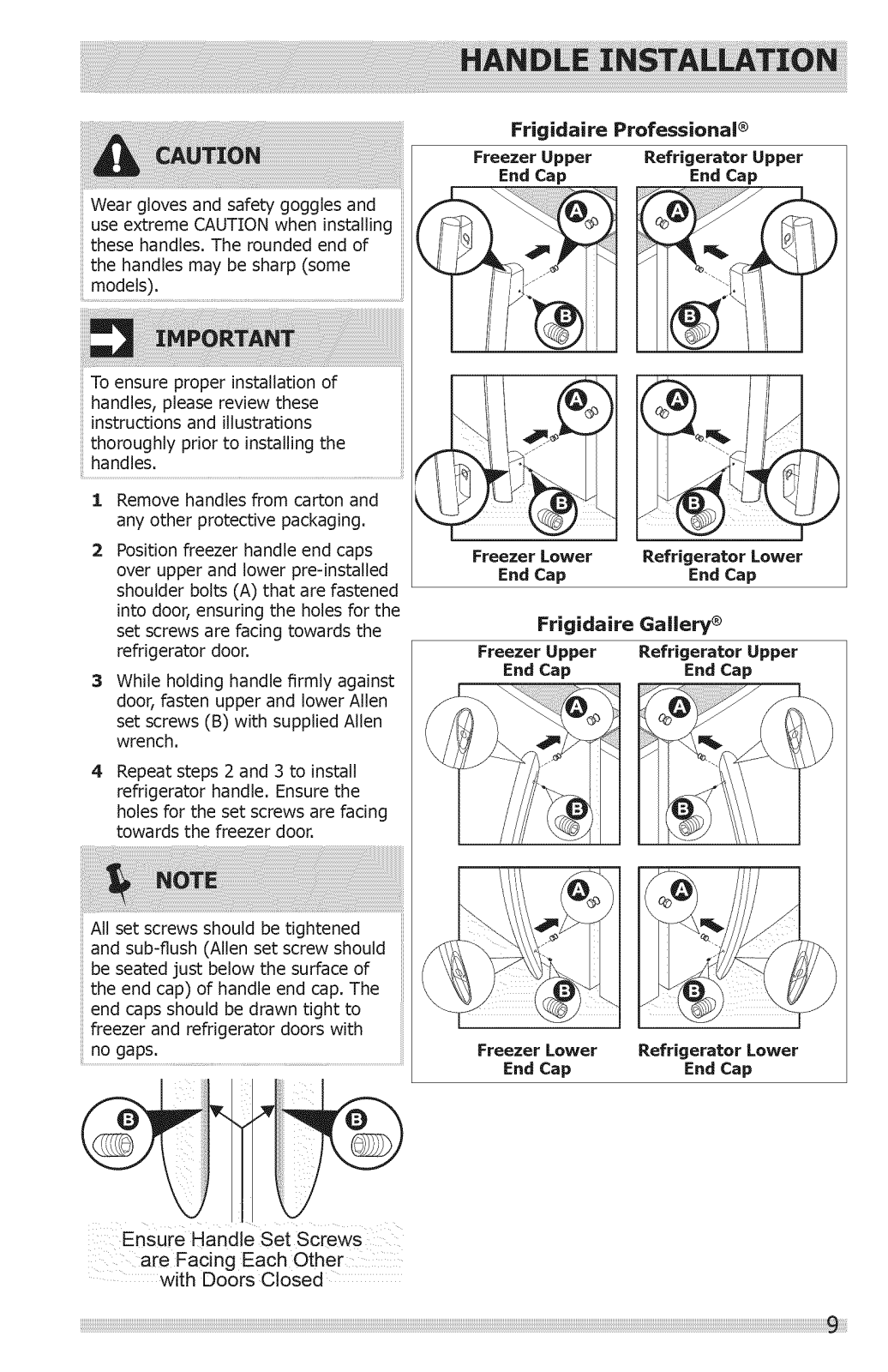

Besure doors are set aside in a secure position where they cannot fall and cause personal injury.

Wearglovesandsafetygogglesand

useextremeCAUTIONwheninstalling

thesehandles.Theroundedendof thehandlesmaybesharp(some

models).

Toensureproperinstallationof

handles,pleasereviewthese

instructionsandillustrations

thoroughlypriortoinstallingthe

handles. 1 Removehandlesfromcartonand

anyotherprotectivepackaging. Positionfreezerhandleendcaps

overupperandlowerpre-installed shoulderbolts(A)thatarefastened intodoor,ensuringtheholesforthe setscrewsarefacingtowardsthe refrigeratordoor.

Whileholdinghandlefirmlyagainst door,fastenupperandlowerAllen setscrews(B)withsuppliedAllen

wrench. Repeatsteps2and3toinstall

refrigeratorhandle.Ensurethe holesforthesetscrewsarefacing

towardsthefreezerdoor.

Frigidaire Professional ®

Freezer Upper Refrigerator Upper

End Cap End Cap

Freezer Lower

End Cap

Frigidaire Gallery ®

Freezer Upper Refrigerator Upper

End Cap End Cap

Refrigerator Lower

End Cap

Allsetscrewsshouldbetightened andsub-flush(Allensetscrewshould

beseatedjustbelowthesurfaceof theendcap)ofhandleendcap.The endcapsshouldbedrawntightto freezerandrefrigeratordoorswith

nogaps.

Ensure Handle Set Screws

are Facing Each Other

with Doors Closed

Freezer Lower Refrigerator Lower

End Cap End Cap

To avoid electric shock, which can cause death or severe personal injury, disconnect the refrigerator from electrical power before

connecting a water supply line to the

A shutoff valve to connect the water supply

line to your household water system. DO NOT use a self-piercing type shutoff valve.

Do not re-usecompressionfitting or use

thread sealtape.

A compression nut and ferrule (sleeve) for connecting a copper water supply line to

the ice maker inlet valve.

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing is recommended for the water supply line. Water supply tubing made of 1/4 inch plastic is not recommended to be used. Plastic tubing greatly increases the potential for water leaks, and the manufacturer will not be responsible for any damage if plastic tubing is used for the supply line.

DO NOT install water supply tubing in areas where temperatures fall below freezing.

Chemicals from a malfunctioning softener can damage the ice maker. If the ice

maker is connected to soft water, ensure that the softener is maintained and

working properly.

Ensure that your water supply line

connections comply with all local plumbing

codes

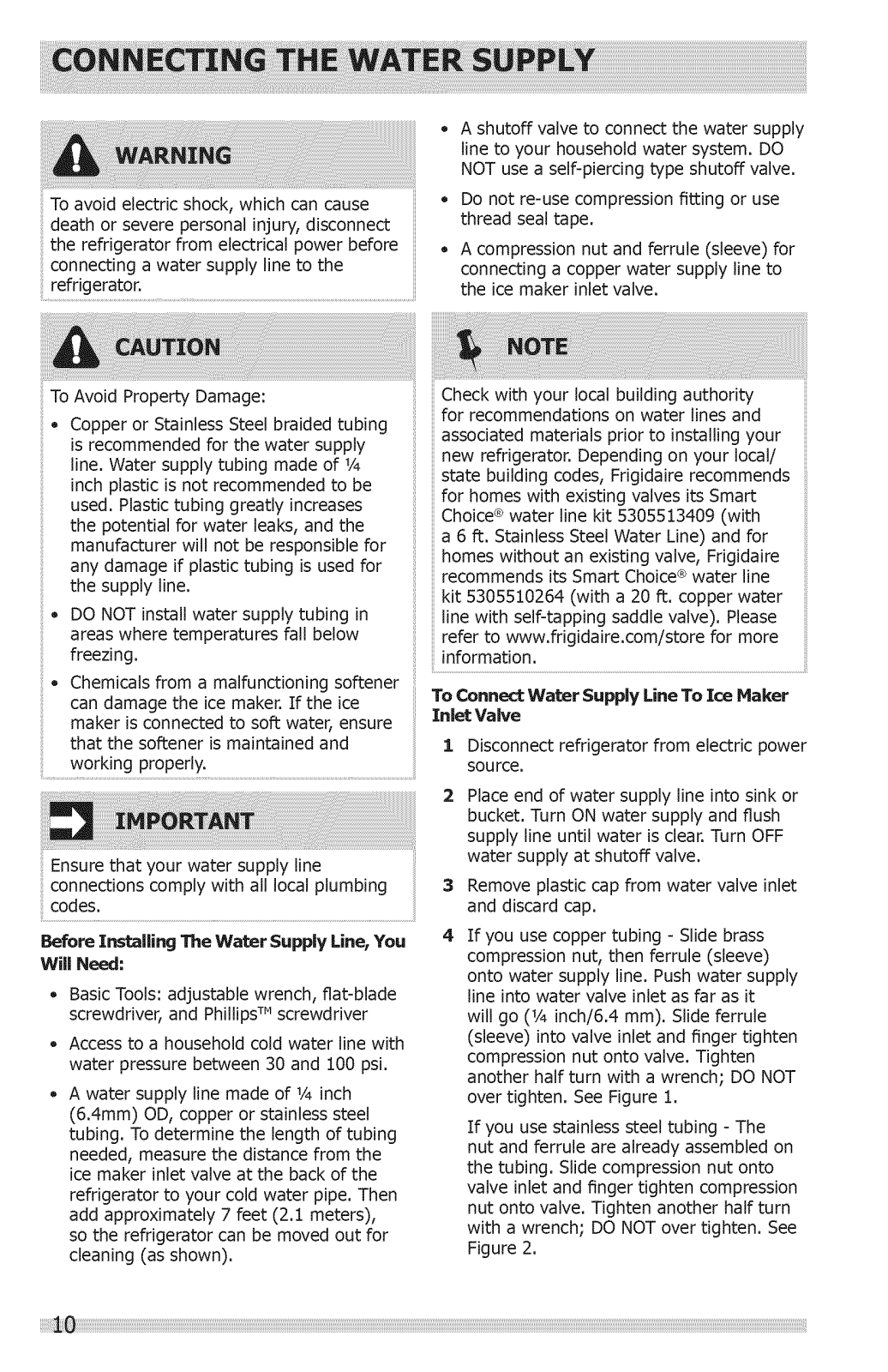

Before Instelling The Water Supply Line, You Will Need:

• Basic Tools: adjustable wrench, fiat-blade screwdriver, and PhillipsTM screwdriver

• Access to a household cold water line with water pressure between 30 and 100 psi.

• A water supply line made of 1/4inch (6.4mm) OD, copper or stainless steel

tubing. To determine the length of tubing

needed, measure the distance from the ice maker inlet valve at the back of the

refrigerator to your cold water pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).

Check with your local building authority

for recommendations on water lines and associated materials prior to installing your

new refrigerator. Depending on your local/ state building codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line kit 5305513409 (with a 6 ft. Stainless Steel Water Line) and for homes without an existing valve, Frigidaire

recommends its Smart Choice® water line kit 5305510264 (with a 20 ft. copper water

line with self-tapping saddle valve). Please refer to www.fdgidaire.com/store for more

information.

To Connect Water Supply Line To Ice Maker Inlet Valve

1 Disconnect refrigerator from electric power

source.

Place end of water supply line into sink or

bucket. Turn ON water supply and flush supply line until water is clear. Turn OFF water supply at shutoff valve.

Remove plastic cap from water valve inlet and discard cap.

If you use copper tubing - Slide brass compression nut, then ferrule (sleeve) onto water supply line. Push water supply

line into water valve inlet as far as it will go (1/4inch/6.4 mm). Slide ferrule

(sleeve) into valve inlet and finger tighten compression nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten. See Figure 1.

If you use stainless steel tubing - The

nut and ferrule are already assembled on the tubing. Slide compression nut onto valve inlet and finger tighten compression

nut onto valve. Tighten another half turn with a wrench; DO NOT over tighten. See

Figure 2.

With steel clamp and screw, secure water supply line (copper tubing only) to rear panel of refrigerator as shown.

Coil excess water supply line (copper tubing only), about 21/2turns, behind refrigerator as shown and arrange coils so they do not vibrate or wear against any

other surface.

Turn ON water supply at shutoff valve and tighten any connections that leak.

Reconnect refrigerator to electrical power source.

To turn ice maker on, lower wire signal arm (side mounted) or set the ice maker's On/Off power switch to the 'T' position (rear mounted).

Plastic Water

Maker Fill Tube

Steel Clamp

Brass Compression

Nut

1- Ferrule

(Sleeve)

_l--Copper

water line

- Water Valve Bracket

X-Valve Inlet

-Water Valve

from household

water supply

lclude enough tubing in loop

to allow moving refrigerator out

for cleaning.)

Plastic Water Tub

Clamp

Steel

water line

Water Valve

Bracket

_L_Water Valve

ainless Steel water line from

household water supply

Figure 2

After connecting the water supply, refer to "How to Prime the Water Supply System" for important information about priming an empty water supply system

Your refrigerator's water supply system includes several tubing lines, a water filter, a water valve, and a water tank. To ensure that your water dispenser works properly, this system must be completely filled with water when your refrigerator is first connected to the household water supply

line.

_el

Figure 1

Allowing Cooling Time Before Use

To ensure safe food storage, allow your refrigerator to operate with the doors closed for at least 8 to 12 hours before placing food inside. During this cooling period, you do not need to adjust the controls, which are preset at the factory.

Setting Cooling Temperatures

When changing control settings, wait 24 hours for the temperature to stabilize before making additional changes.

Your refrigerator comes with a state-of-the-art electronic digital control system. The system's control panel is located at the top of the fresh food compartment.

The two digital displays on the left half of the control panel indicate the current settings or temperatures of your freezer and fresh food compartments. The models with a two-digit temperature display are for reference only, and do not display the current accurate compartment temperature. Should you desire to see what the current accurate temperature is, place a separate thermometer inside the freezer or fresh food compartment in the desired location.

iiiiiii iiiiiii iiiiiii iiiiiii

iiiiiii iiiiiii iiiiiii

Freezer

!!!!!!!

/Fridge

iiiiiii

TEMPERATURE ADJUSTMENT

To adjust the temperature to a higher or lower setting, press the Up (Cold) or Down (Colder) button closest to the display. The first time you press the button, the display shows current

setting you entered. Each press of the button after that changes the setting by one. The display shows your new setting momentarily, then changes back to the current temperature.

(Single Digit Display = Features may vary.)

ALARMS

Power Fail

In the event of a power failure, the 'power fail' alarm will sound three times. The 'power fail' alarm is an audible alarm only and does not display in the control panel,

High Temperature

When a warm refrigerator is first powered on, the 'power fail' alarm will sound and the current set points will be displayed for a few seconds. After 20 minutes the 'high temp' alarm will sound if the freezer temperature is above 26°F or if the fresh food temperature is above 55°F (or both are above).

If the unit is above the temperatures mentioned in the paragraph above, the affected compartment temperature display (fresh food, freezer or both) on the control panel will display

'HI' and an alarm will sound. To disable the alarm press any key on the control panel. After

which the control panel will then show the display temperature. The unit will continue to monitor the product temperatures for 'high temp' condition every 20 minutes. If the 'high temp'

condition persists, the alarm will sound again and can be reset again. Contact a customer service representative if the high temp alarm continues.

The audible portion of the alarm will silence itself once the product temperature is below 26°F for the freezer temperature and 55°F for the flesh food temperature. The control panel will still show 'HI' until it is acknowledged by the user by pressing any key on the control panel. After which the control panel will then show the display temperature.

Door Ajar

If the door has been left open for an extended period of time an alarm will sound. (Some models will have a 'door ajar' indicator on the control panel). The alarm will continue to sound

until the door is closed.

Alarm Hute

Alarms can be muted (except 'power fail') by pressing a key combination on the control panel. Press and hold the 'freezer temperature up' key while at the same time pressing the 'fresh food temperature down' key three times. This sequence must be completed within 5 seconds for the alarms to be muted. Once the alarms have been muted, they will stay muted even if the refrigerator is powered down. To turn the alarm sounds back on, use the same key combination

that was used to mute alarms.

IF TEMPERATURE DISPLAYS FLASH...

If ever you see "OP" or "SH" flashing, it may indicate that the control system has detected a performance problem. Call your service representative, who can interpret the flashing message.

To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For good circulation, do not block cold air vents with food items.

FreezerTemp FreshFoodTemp

/Fridge

Freezer Fresh Food

Factory Se_ing

Temperature Control Range

Warmer

Colder

Freezer

Fahrenheit

Fresh Food

Centigrade Fahrenheit Centigrade

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii !i ! i! i!! !i idliii! i !iiii!iil

Temperature Adjustment

If Fresh Food compartment Adjust Fresh Food control one degree warmer by pressing the Up is too cold (Cold) button.

If Freezer compartment is Adjust Freezer control one degree warmer by pressing the Up too cold (Cold) button.

/Friclge

The advanced electronic control system in your refrigerator includes additional display modes that service professionals can use to rapidly diagnose performance issues,

Turning the Cooling system on and off

You can disable the cooling system in your refrigerator by pressing the On/Off button located on the left side of the temperature control panel. To ensure that you do not accidentally turn off the cooling system, the button does not work unless you press and hold it for three seconds. Once you disable the cooling system, all refrigeration to the freezer and fresh food compartments stops. To turn the cooling system back on, you must again press and hold the On/Off button for three more seconds. Controls will display OF°F/OF °_when turned off.

Pressing the On/Off button on the control panel disables your refrigerator's cooling system but does not disconnect power to lights and other electrical components. To turn off power to

your refrigerator you must unplug the power cord from the wall outlet.

Each time you make settings on the control panel, a single audible tone acknowledges your

Fresh Drawers with Humidity

Control (some models)

Toavoidpersonalinjuryorpropertydamage, handletemperedglassshelvescarefully.

Shelvesmaybreaksuddenlyifnicked, scratched,orexposedtosuddentemperature

change.Allowtheglassshelvestostabilize

to room temperature before cleaning. Do not extend the life of fresh vegetables that keep best wash in dishwasher, in high humidity. Wash items in clear water and

.............. remove excess water before placing them in the

The fresh drawers, located under the bottom

refrigerator shelf, are designed for storing fruits, vegetables, and other fresh produce. The fresh drawers feature humidity control which allows you to adjust the humidity within the drawer. This can

Cantilever Shelf Adjustment crispers. Items with strong odors or high moisture

Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food. Cantilever shelves are supported at the back of the refrigerator.

To adjust cantilever shelves;

Lift front edge up. Pull shelf out.

Replace the shelf by inserting the hooks at rear of the shelf into the wall bracket. Lower the shelf

into the desired slots and lock into position. SpJllSafeT" glass shelves (some models) catch

and hold accidental spills. In some models, the SpillSafeTMshelves slide out for easy access to food and for fast cleaning. The shelves slide out independently of their mounting brackets. Just pull the front of the shelf forward. Shelves can be extended as far as the stopper will allow but are not removable from their mounting brackets.

content should be wrapped before storing.

Crisper Humidity Control

Leafy vegetables keep best when stored with the humidity control set on Higher Humidity, or in a drawer without a Humidity Control. This keeps incoming air to a minimum and

maintains maximum moisture content.

Crispers

Crispers allow you the flexibility to store any

manner of items including fruits, vegetables,

nuts, etc. Crispers do not feature humidity controls.

Cantilever Glass Shelf

Cantilever Sliding

Glass Shelf

Door storage

Door bins and shelves are provided for convenient storage of jars, bottles, and cans. Frequently used items can be quickly selected.

Some models have door bins that can accommodate gallon-sized plastic drink containers

and economy-sized jars and containers. Some bins are adjustable for maximum storage capacity.

The dairy compartment, which is warmer than the general food storage section, is intended for short term storage of cheese, spreads, or butter.

iiil i_

ii_ ii

Crisper Drawer

Cool Drawer (some models)

Some models are equipped with a Cool Drawer for storage of luncheon meats, spreads, cheeses, and other dell items. This drawer does not have a separate temperature control.

Chill Drawer (some models)

Some models are equipped with a Chill Drawer. Chill Drawer temperatures can be adjusted by sliding the Chill Drawer Temperature Control in either direction. Use this pan for short term storage of bulk meat items. :if meats are to be kept longer than one or two days, they should be frozen. The Chill Drawer is fixed and cannot be moved up or down. :iffruits or vegetables are to be stored in the Chill Drawer, set the Chill Drawer Temperature Control to a warmer setting to prevent freezing.

Chill Drawer

with Temperature Control

_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!_!_i:i!1i!7i_:!!!iii

contro[

Lock

p,ess_ho[_

Your refrigerator may have some or all of the features listed below. Become familiar with these features and their use and care.

EXTREME To freeze food at a faster rate to preserve freshness, push the Touch Pad FREEZE for 3-5 seconds to activate this feature. A green light will appear above the

Touch Pad. Push the Touch Pad again for 3-5 seconds to deactivate.

EXTRA ICE To increase ice production for special occasions, such as parties, push

the Touch Pad for 3-5 seconds to activate this feature. A green light will

appear above the Touch Pad. Push the Touch Pad again for 3-5 seconds to deactivate. EXTRA ICE should produce 25 percent to 50 percent more ice every 24 hours.

CUBE Press the CUBE Touch Pad to get cubed ice. A green light will appear

above the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice.

CRUSH Press the CRUSH Touch Pad to get crushed ice. A green light will appear

above the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice.

LIGHT Press the LIGHT Touch Pad to turn on dispenser light. Press again to turn

the light off. The light also turns on automatically when ice and/or water is

dispensed. Replace light bulb with an appliance bulb of the same wattage.

FILTER The FILTER STATUS indicator light above the Touch Pad will light up

STATUS each time the dispenser is used. The following filter light indications are:

Green The filter is still operating within its specified life cycle.

Amber The filter has reached approximately 80 percent of its useful life.

This is the recommended time to purchase a replacement filter.

Red The filter is 100 percent used up. Change the filter as soon as

possible.

After the filter cartridge has been changed, press and hold the FILTER

RESET Touch Pad for 10-15 seconds. NOTE: The Green, Amber and Red lights will flash when reset is

complete&

LOCK The Ice & Water Dispenser can be locked out to prevent unwanted use.

To Lock Out Press the LOCK Touch Pad for 3-5 seconds. A red light

will appear above the Touch Pad.

To Unlock Press the LOCK Touch Pad for 3-5 seconds until the

red light above the Touch Pad goes out.

WATER To operate the water dispenser, press a glass against the WATER

dispensing paddle. To stop dispensing water, pull the glass away from

the dispensing paddle. Dispensed water is not cold. For colder water, add

crushed ice or cubes before dispensing water. A drip tray located at the base of the dispenser catches small spills and allows them to evaporate.

This drip tray is removable and dishwasher safe. Do not pour water and

excess ice in this area because there is no drain.

@ @ @ @

_Ice Light•

Cube c_ush o_ off

FRIGIDAIRE

cube_crush_ light_ light_

ice

water

Your refrigerator may have some or all of the features listed below. Become familiar with these features and their use and care,

Crushed Press the Crushed Touch Pad to get crushed ice. A red indicator will appear above

the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice.

Cubed Press the Cubed Touch Pad to get cubed ice. A red indicator will appear above the

Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch all ice.

Light On Press the Light On Touch Pad to turn on dispenser light. A red indicator will appear

above the Touch Pad.

Light Press the Light Off Touch Pad to turn off dispenser light. A red indicator will appear

Off above the Touch Pad. Water I To operate the water dispenser, press a glass against the WATER dispensing

paddle. To stop dispensing water, pull the glass away from the dispensing paddle. Dispensed water is not cold. For colder water, add crushed ice or cubes before dispensing water. A drip tray located at the base of the dispenser catches small spills and allows them to evaporate. This drip tray is removable and dishwasher safe. Do not pour water and excess ice in this area because there is no drain.

Priming the Water Supply System

Your refrigerator's water supply system includes several tubing lines, an advanced water filter, a distribution valve bank, and a reserve tank to ensure ample supply to the ice and water dispenser at all times. This system needs to be completely filled with water when first connected to an external supply line.

Ice Maker Operation & Care

The ice maker, ice bin, and dispenser feeding

mechanism are located in the top of the freezer compartment. After the refrigerator is installed

properly and has cooled for several hours, the

ice maker can produce ice within 24 hours. ]:t can completely fill an ice bin in about two days.

Ice Production: What to Expect

How Huch Ice Will a Side Hountad Ice

Haker Produce in 24 Hours?

For proper dispenser operation, recommended

water supply pressure should fall between 30 A side mounted ice maker will produce 4 to 4.5

psi and 100 psi. Excessive pressure may cause pounds of ice every 24 hours, depending on

filtertomalfunction.

water

To prime the water supply system:

1 Begin filling the tank by pressing and

holding a drinking glass against the water dispenser paddle.

2 Keep the glass in this position until water

comes out of the dispenser. :It may take about :[1/z minutes.

3 Continue dispensing water for about four

minutes to flush the system and plumbing connections of any impurities (stopping to empty the glass as necessary).

The water dispenser has a built-in device that shuts off the water flow after three minutes of continuous use. To reset this shutoff

device, simply release the dispenser paddle, with the wire signal arm in the ON position

usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes.

How Much :Ice Will a Rear Mounted :Ice

Haker Produce in 24 Hours?

A rear mounted ice maker will produce 3 to 4

pounds of ice every 24 hours, depending on

usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes.

Using the Ice Maker after

Installation

Before making ice for the first time, be sure to prime the water supply system. Air in new

plumbing lines can result in two or three empty

ice maker cycles. Furthermore, if the system

is not flushed, the first ice cubes may be discolored or have an odd flavor.

Your ice maker is shipped from the factory

(side mounted) or with the switch turned ON (rear mounted). To ensure proper function of your ice maker, hook up water supply

immediately or turn ice maker OFF by lifting the wire signal arm until it clicks and locks in the UPposition (side mounted) or turn the

On/Off switch to the Off (0) position (rear mounted). If the ice maker is not turned off

and the water supply is not connected, the water valve will make a loud chattering noise.

_!!!i_!_!120i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;i;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_;_

Turning the SIDE MOUNTED Ice Maker On and Off

To begin ice production, lower the wire signal arm to the DOWN or ON position. The ice maker turns off automatically when the ice container becomes full. To stop the ice maker, raise the wire signal arm until it clicks and locks in the UP or OFF position.

Turning the REAR MOUNTED Ice Maker On and Off

Ice production is controlled by the ice maker's ON/OFF power switch. To gain access to the ice maker, pull the ice cream shelf out. Press the switch to the "0" position to turn it Off and press it to the 'T' position to turn it On. The ice maker also has a built-in wire signal arm, which automatically stops ice production when the ice bin is full. DO NOT use this signal arm to manually stop the ice maker,

Signal Arm

halArm

Small ice cubes or ice chips jamming in the ice maker may be a sign that your water filter needs changing. If you have a side mounted ice maker you may also experience hollow cubes partially frozen cubes with water inside. When these cubes are harvested, they break open and spill water over the other ice cubes in the ice container, forming a solid mass of

ice. As the water filter nears the end of its useful life and becomes clogged with particles,

less water is delivered to the ice maker during each cycle. The ice maker can't fill every cube in the ice maker mold, leading to small cubes or chips that can get caught between the ice ejector blades and the stripper. Remember, if your ice maker isjamming with small ice cubes or it's been six months or longer since you last changed your water filter replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently.

Ice Maker/Dispenser Tips

• Ice cubes stored too long may develop an odd flavor. Empty the icecontainer as

explained below.

, Occasionally shake the ice container to keep

iceseparated.

, If your refrigerator is not connected to a

water supply or the water supply is turned off, turn Off the ice maker.

, If you need a large quantity of ice at one

time, it is best to get cubes directly from the

ice container.

• The following sounds are normal when the

icemaker is operating:

Motor running

Ice dropping into ice container Water valve opening or closing

Ice loosening from tray

Running water

, When dispensing ice, you will hear a

snapping or clicking sound when the ice chute opens and closes.

, Turn Off the icemaker when cleaning the

freezer and during vacations.

If you turn Off the ice maker for a

long period of time, you should also

turn off the water supply valve.

Chemicals from a malfunctioning water softener can damage the ice maker. ]:f the water supply to your refrigerator is softened,

be sure the softener is maintained to work

properly.

Cleaning the Ice Maker

Clean the ice maker and ice bin at regular intervals, particularly before you take a

vacation or move.

To dean the ice maker:

1 Turn Off the ice maker. 2 Remove the ice bin by lifting up and out. 3 Empty and carefully clean the ice bin with

mild detergent. Rinse with clear water. Do not use harsh or abrasive cleaners.

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Remove ice chips and clean the ice bin

shelf and the freezer door chute.

6 Replace the ice bin. Turn On the ice maker

to resume ice production.

Remove and empty the ice storage bin if:

= An extended power failure (one hour or

longer) causes ice cubes in the ice storage bin to melt and freeze together, jamming

the dispenser mechanism.

You do not use the ice dispenser frequently.

Ice cubes will freeze together in the bin,

jamming the dispenser mechanism.

Remove the ice storage bin and shake to loosen the cubes or clean as explained above.

When removing or replacing the ice bin, DO NOT rotate the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 90 degree turns (see below) until the ice bin fits into place with the drive mechanism. If

the auger is not properly aligned when replacing the ice bin, the refrigerator will

only dispense Crushed Ice. The freezer door may also not close properly causing warm

tO!eak!ptothefreezer...........................

NEVER use an ice pick or similar sharp instrument to break up the ice. This could

damage the ice storage bin and dispenser

mechanism.

i!!!!i!i_i!i_2;i¸21iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii........

Locating the Filter

Your refrigerator isequipped with a water filtering system. The water flter system filters all dispensed

drinking water, as well as the water used to

)roduce ice.

Water Filter

The water filter Jslocated at the top right side of the fresh food compartment.

Replacing the Water Filter

In general,you should changethe water filter everysix monthsto ensurethe highest possiblewater quality. Water Filter Statlis on the userinterface prompts youto replacethe filter after a standardamount of water (200 gallons/757litersfor Pure_)urce Ull_aTM andi_reSeurce 3TM) hasflowed through the system.

If your refrigerator has not been used for a pedod of time (during moving for example), change the filter

before reinstalling the refngerator.

If your refrigerator isequipped with a I_re_urce 3TM water filter, it can be replacedw_ a

PureSource Ult_raTM water filter.Replaang your

PureSeurce 3TM water filter with a Pure,Source UltraTM water filter removesmore potential

contaminants astested by NSEThe contaminants or other substancesremoved or reduced bythis water filter are not necessarily in allusers' water.

Ordering Replacement Filters

To order your replacement filters, please visit our online store at www.frigJdaire.com/store, by calling toll-free at 877-808-4195, or by visiting the dealer where you purchased your refrigerator. Frigidaire recommends that you order extra filters when you first install your refrigerator, and that you replace your filters at least once every six months.

Here are the product numbers to request when ordering:

PureSeurce Ultra TM Water Filter Part# ULTRAWF

PureSource 3TM Water Filter

Part #WF3CB

If your refrigerator isequipped with a PureSource

Ul'eraTM water filter, it must bereplaced with PureSeurce UllTaTM water filter ULTRAWF.

lore about your Advanced Water Biter

water filter system istested and

_S_/ hePureSource UltraTM iceand

_-_ [ The PureSource 3TM iceand water /_ t[_P_ I filter system is tested and certified to

N_ _1NSF/ANSIStandards 42 and 53for

Do not usewith water that is microbiologically

unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

certified to NSF/ANS[Standards42 and

_ 53 for the reduction of claimsspecified

..... on the performance data sheet.

'g_/Ithe redu_on of claims specified on

--_[ the performance data sheet.

Test & certification results:

• Rated Capacity - 200 gallons/757 liters for PureSource Ultra TM and PureSource 3TM

ice and water filter

• Rated service flow - .50 gallons per minute

• Operating Temp.: Min. 33°F, Max. 100°F

• Maximum Rated Pressure - 100 pounds per

square inch

• Recommended Minimum Operating Pressure:

30 pounds per square inch

To replace your PureSource 3TM water filter:

It is not necessary to turn the water supply off to change the filter. Be ready to wipe up any

small amounts of water released during the filter

replacement.

1 Turn Off the ice maker. 2 Remove the filter by pushing on the end/face

of the filter.

3 Slide the old water filter cartridge straight out

of the housing and discard it.

4 Unpackage the new filter cartridge. Using

the alignment guide, slide it gently intothe filter housing until it stops against the snap-in connector at the back of the housing.

5 Push firmly until the cartridge snaps

into place (you should hear a click as the cartridge engages the snap-in cannector).

6 Press a drinking glass against the water

dispenser while checking for any leaks at the filter housing. Any spurts and sputters that

occur as the system purges air out of the dispenser system are normal.

7 After filling one glass of water, continue

flushing the system for about four minutes.

8 Turn On the ice maker. 9 Pressand hold the Water Filter button on

the Ice & Water Dispensercontrol panel for three seconds.When the display changes from "Red" to "Green;' the status has been reset.

Understanding the Sounds you may Hear

Your new, high-efficiency refrigerator may introduce unfamiliar sounds. These sounds

normally indicate your refrigerator is operating correctly. Some surfaces on floors, walls, and kitchen cabinets may make these sounds more

noticeable. Following is a list of major components in your

refrigerator and the sounds they can cause:

A Evaporator Refrigerant through the

evaporator may create a boiling or gurgling sound.

B Evaporator fan You may hear air being

forced through the refrigerator by the evaporator fan.

Defrost heater During defrost cycles,

water dripping onto the defrost heater may cause a hissing or sizzling sound.

After defrosting, a popping sound may

OCCUr.

D Automatic ice maker When ice has

been produced, you will hear ice cubes falling into the ice bin.

Electronic control & automatic defrost control These parts can produce

a snapping or clicking sound when turning the cooling system on and off.

F Condenser fan You may hear air being

forced through the condenser.

G Compressor Modern, high-efficiency

compressors run much faster than in the past. The compressor may have a high- pitched hum or pulsating sound.

H Water valve Makes a buzzing sound each

time it opens to fill the ice maker.

:1 Drain pan (not removable) You may hear

water dripping into the drain pan during the defrost cycle.

J Condenser May create minimal sounds

from forced air.

K Motorized damper May produce a light

humming during operation.

L Ice chute When dispensing ice, you will

hear a snapping or clicking sound when the solenoid opens and closes the ice

chute.

Energy efficient foam in your refrigerator is

During automatic defrost cycle, a red glow in the back wall vents of your freezer compartment is normal.

Protecting your investment

Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any spills immediately and clean the freezer and fresh food compartments at least twice a year. When cleaning, take the following precautions:

Never use CHLORIDE or cleaners with bleach to clean stainless steel. Do not wash any removable parts in a dishwasher.

Always unplug the electrical power cord from the wall outlet before cleaning.

Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the appliance surface.

Do not remove the serial plate.

Do not use abrasive cleaners such as window sprays, scouring cleansers, brushes, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum

)roducts on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels,

metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.

]If you set your temperature controls to turn off cooling, power to lights and other electrical components will continue until you unplug the power cord from the wall outlet.

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

• Sudden temperature changes can cause glass breakage.

]:f you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply system. Failure to do so could result in water leaks when the refrigerator is

put back into service. Contact a service representative to perform this operation.

Care & Cleaning Tips

• What To Use . Tips and Precautions

Interior & Door • Soap and water Use two tablespoons of baking soda in

Liners • Baking soda and water one quart of warm water. Be sure to

Door Gaskets' Soap and water wipe gaskets with a clean soft cloth: Drawers & Bins • Soap and water Use a soft cloth to clean drawer run-

Glass Shelves • Soap and water Allow glass to warm to room tempera'

i m

• Glass cleaner ture before immersing in warm water. , Mild liquid sprays '

Toe Grille

• Soap and water

• Mild liquid sprays

• Vacuum attachment

Exterior& I' Soap and water Handles i® NonAbrasive Glass Cleaner cleaners containing ammonial bleach

: soft cloth to clean smooth handles.

• DO NOT use a dry cloth to dean

- smooth doors,

Exterior & * Soap and water Never use CHLORIDE or cleaners Handles • Stainless Steel Cleaners with bleach to clean stainless stael.

(Stainless Steel Clean stainless steel front and handles Hodels Only) with non-abrasive soapy water and a

Replacing Light ; Unplug iefrigerator CAUTION: Wear gloves when Bulbs , Wear gloves replacing light bu!bs to avoid get-

, Remove light cover ® Replace old bulb Use same wattage when replacing

" * Replace light cover bulb.

Plug in the refrigerator -

wring excess water out of sponge

or cloth before cleaning around controls, light bulb or any electri- cal part.

ners and tracks.

Vacuum dust from front of toe grille. Remove toe grille (see Installation Instructions). Vacuum backside, wipe with sudsy cloth or sponge. Rinse and dry.

D0n0t Use commercial hoUsehold

Or alcohol to clean handles. Use a

dishcloth. Rinse with clean water and a soft cloth. Use a non-abrasive stainless steel cleaner. These cleaners can be

purchased at most home improvement or major department stores. Always

follow manufacturer's instructions. Do not use household cleaners containing

ammonia or bleach. NOTE: Always clean, wipe and dry

with the grain to prevent scratch- ing, Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well, and wipe dry with a clean

soft cloth.

1=800=944=9044 (United States) Visit our web site at

1=800=265=8352 (Canada) www.frigidaire,com

CONCERN CAUSE SOLUTION

AUTOMATIC ICE MAKER

Ice maker is

not making any

ice,

not making . less ice than you expect 4 to 4.5 pounds (approximately 4 quarts)

enough ice. i of ice every 24 hours. A rear mounted

Ice maker will • Ice maker wire signal arm • Move item and release wire signal arm.

net stop mak- is being held down by Remove any ice cubes that are frozen

ing ice. some item in the freezer, toqether oveEthe wire siignal arm. :lice cubes are • Ice cubes are not being , Remove iceo_ntainer and discard icefrom freezing to: used frequently enough, container. Ice maker wi!l produce fresh Supply.

gether. I, Ice cubesare hollow '_-I-he iceand water filter cartridge may be

DISPENSER (Ice & Water) Dispenser will . • Dispenser lock out iS

not dispense I engaged.

ice, I _ There is no ice in the bin

Ice dispenser is jammed.

• Ice maker wiresignal arm is intoe"up" or OFFposition.

• Ice maker power switch

isOff.

• Ice maker has small cube

caught in mechanism.

• Saddle valve on cold water pipe is clogged

or restricted by foreign material.

-Ice maker iS producing :

I ice maker shou!d produce 3 to 4 pounds

I I hours. Quick Ice Option should produce Up

• Check to see if water • !f it is, replace the ice and water filter dispense[ is dispensing cartridge.

. slower than normal:

Freezer control is set too , Set freezer control to colder setting to ira-

- warm. - prove performance of the ice maker. Allow

I (partially frozen cubes clogged. Replace filter cartr dge.

with water inside). I

, Freezer control is set too , Set freezer control to colder setting. Allow

" warm. ' 24 hours for temperature to stabilize.

' to be dispensed.

. _ The refrigerator doors are I not completely dosed.

, Dispenser paddle has , The motor overload protector wi!l reset in

been pressed too long about three minutes and then ice can be

I and the dispenser motor - dispensed. " has overheated.

* Ice has melted and

frozen around auger

due to infrequent use,

temperature fluctuations,

and/or power outages.

. Ice cubes are jammed

between ice maker and back of ice container.

• Move wire signal arm to the "down" or ON position (side mounted).

• Turn power switch to On ('T') position (rear mounted).

• Remove small cube from ice maker. The ice and water filter cartridge may be

clogged. Replace filter cartridge.

• Turn off household water line valve. Remove valve. Ensure that valve is not

a self-piercing saddle valve. Clean valve. Replace valve if necessary.

Side mounted ice maker should produce

(approximately 31/2quarts) 0f ice every 24 to 50% more ice every 24 h0urs.

24 hours for temperature to stabilize.

Press and hold control lock for three seconds;

See the _Ice maker is not making any ice'! section above.

® Be sure the refrigerator doors are corn:

pletely closed.

Remove ice container, thaw, and empty the contents. Clean container, wipe dry, and replace in proper position. When new ice is made, dispenser should operate.

Remove ice cubes that are jamming the dispenser.

CONCERN CAUSE SOLUTION

DISPENSER (Ice 8= Water) (COntinued) Dispenser will *

not dispense

Water, =

Dispenser lock out is engaged.

Water filter not seated properly.

Water filter is clogged.

Household water line

valve is not open.

Water has an I ' WaLerhasnot beendis. I _ Drawand discard::[0-12glassesOf Water

dd taste I pensed for an extended I t0 freshen the Supp!y_

0r odor, peri0d 0f time.

Unit not properlycon. . Connectunit to coldwater line that sup-

| nectedto coldWaterline. plies water to the kitchenfaucet.

Water pressure

is extremely low,

Water"or cold

enough, I through the filter and I Pensing wate r.

OPENING/CLOSING OF DOORS/DRAWERS

Door(s) will not . ' D00r was closedtoo I _ Closeboth doors gently.

: It rocks on the floor equately support the refrigerator. Contact

Drawers are • Food istouching shelf on • Remove top layer of items in drawer.

difficult to top of drawer.

move, • Track that drawers slide • Ensure drawer is properly installed on

• Cut-off and cut-on pres- sures are too low (well systems only).

• Reverse osmosis system is in regenerative phase.

_ _ warmer tap water g0es' _Add ice _ CUPor container before dis-

I enters the water tank the I

I chilled water ispushed I

I through to the dispenser. I

Once the chilled water is

used up it will take several

hours to bdng the freshly replaced water _ a cooler

temperature.

I hard, causing other d00r

tO open slightly,

Refrigerator is not level: o Ensure floor is level and solid, and can ad-

when moved slightly, a carpenter to correct a sagging or sloping _ Refrigerator is touch!ng a floor. : wall or cabinet, , Ensure floor is leve! and solid, and can ad:

I I equately support the refrigerator. Contact

on is dirty, track.

• Press and hold control lock for three seconds. Remove and reinstall the water filter. Be

sure to push the filter firmly so that you hear it lock solidly into position. Replace filter cartridge. Be sure to remove protective caps and push the filter firmly so that you hear it lock solidly into position. Open household water line valve. See CON-

CERN column AUTOMATIC ICE HAKER,

Have someone turn up the cut-off and cut-on pressure on the water pump sys- tem (well systems only). It is normal for a reverse osmosis system to be below 20 psi during the regenerative phase.

a carpenter to correct a sagging or sloping floor.

• Clean drawer, rollers, and track. See Care & Cleaning.

CONCERN CAUSE SOLUTION

RUNNING OF REFRIGERATOR

Compressor does not run.

Refrigerator , Room or outside I " It's normal for the refrigerator to work

runs too much weather is hot. longer under these conditions.

or too long. o Doors are opened too - Warm air entering the refrigerator causes

Compressor • Thermostat keeps the goes off and on refrigerator at a con- frequently, stunt temperature.

DIGITAL TEMPERATURE DISPLAY

Digital temper- • Electronic control system • Call your Frigidaire service representative, ature displays has detected a perfor- who can interpret any messages or num- are flashing, mance problem, ber codes flashing on the digital displays.

WATER/MOISTURE/FROST INSIDE REFRIGERATOR

Moisture col- • Weather is hot and

leers on inside humid. of refrigerator • Door is slightly open.

walls. Water col!cots. Vegetables Contain and

on bottom :give 0ff mo!sture, side of drawer

cover.

Water collects * Washed vegetables and

in bottom of fruit drain while in the drawer, drawer.

WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR

Moisture col- • Weather is humid. • This is normal in humid weather. When hu-

leers on outside midity is lower, the moisture should disappear. of refrigerator * Door is slightly open, * See PROBLEM column OPEN[NG/CLOS]:NG or between causing cold air from in- OF DOORS/DRAWERS. doors, side refrigerator to meet

• Freezer control is set to "OF" or "0"

• Refrigerator is in defrost

cycle.

• Plug at electrical outlet

is disconnected.

• House fuse blown or tripped circuit breaker.

, Power outage.

, frequently or too long. it to run more. Open doors less often.

• Fresh Food/freezer door , - Ensurerefrigerator is level. Keepfood and con-

may be slightly open. rains from blocking door.SeePROBLEMcolumn

I I OPENING/CLOSINGOFDOORS/DRAWERS,

- Fresh Food/freezer

gasket is dirty, worn,

, cracked, or poorly fitted.

* Condenser is dirty.

warm air from outside.

• Setfreezercontrol.

* This is normal for a fully automatic defrost

refrigerator. The defrost cycle occurs peri- odically, lasting about 30 minutes. Ensure plug is tightly pushed into outlet.

• Check/replace fuse with a 15 amp time- delay fuse. Reset circuit breaker.

, Check house lights. Calllocal electric company.

• Set Fresh Food control to warmer setting until refrigerator temperature is satisfactory.

Allow 24 hours for temperature to stabilize.

- Clean or change gasket. Leaks in door seal will cause refrigerator to run longer in

order to maintain desired temperatures.

• Clean condenser. See Care & Cleaning.

• This is normal. Refrigerator goes on and off to keep temperature constant.

* The rate of frost buildup and internal

sweating increases. See PROBLEM column OPENING/CLOSING

OF DOORS/DRAWERS.

is not unusual to have moisture on the

bottom side of the cover, Move humidity control (some models) to

lower setting. Dry items before putting them in the

drawer. Water collecting in bottom of drawer is normal.

Yourapplianceiscoveredbyaoneyearlimitedwarranty.Foroneyearfromyouroriginaldateof purchase,Electroluxwillpayallcostsforrepairingorreplacinganypartsofthisappliancethatprove tobedefectiveinmaterialsorworkmanshipwhensuchapplianceisinstalled,usedandmaintained inaccordancewiththeprovidedinstructions.

Exclusions

This warranty does not cover the following:

1. Productswith originalserialnumbersthat havebeen removed, alteredor cannotbe readilydetermined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Servicecallswhich do not involve malfunction or defects in materialsor workmanship,or for appliances not in ordinaryhousehold useor used other than in accordancewith the provided instructions.

8. Servicecallsto correctthe installation of your applianceor to instruct you howto use your appliance.

9. Expensesfor making the appliance accessiblefor servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it isshipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.

11. Surchargesincluding, but not limited to, anyafter hour,weekend, or holiday servicecalls, tolls, ferry trip charges,or mileage expense for servicecallsto remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.

13. Damagescausedby: servicesperformed by unauthorized servicecompanies; use of parts other than genuine Electrolux parts or parts obtained from personsother than authorized service companies; or

external causessuch asabuse, misuse, inadequate power supply,accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE

LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE

YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS

WRI-I-rEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO

NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR

EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRI-13EN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty

period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the

addresses or phone numbers below. This warranty only applies in the USA and Canada. In the USA, your appliance is warranted

by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA Canada 1,800.944,9044 1.800,265.8352

Frigidaire Etectrolux Canada Corp. 10200 David Taylor Drive 5855 Terry FoxWay Charlotte, NC 28262 Mississauga, Ontario, Canada

LSV 3E4

Frigidaire FFHS2322MSGA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
