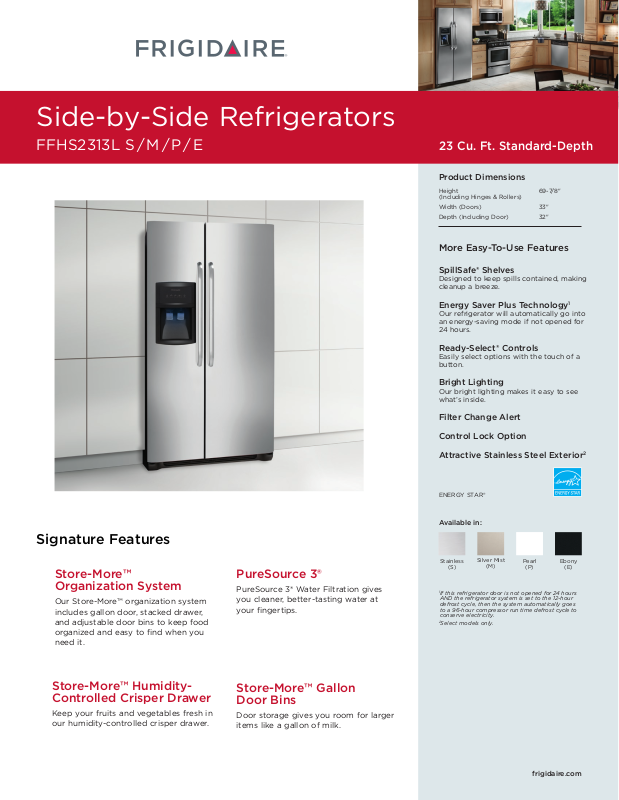

Frigidaire FFHS2313LE, FFHS2313LM, FFHS2313LP, FFHS2313LS Specifications

Side-by-Side Refrigerators
FFHS2313L S / M / P / E
23 Cu. Ft. Standard-Depth
Product Dimensions
Height 69-7/8" (Including Hinges & Rollers)
Width (Doors) 33"
Depth (Including Door) 32"
More Easy-To-Use Features
SpillSafe® Shelves
Designed to keep spills contained, making cleanup a breeze.
Energy Saver Plus Technology
Our refrigerator will automatically go into an energy-saving mode if not opened for 24 hours.
Ready-Select® Controls
Easily select options with the touch of a button.
Bright Lighting
Our bright lighting makes it easy to see what’s inside.
Filter Change Alert
Control Lock Option
Attractive Stainless Steel Exterior
1
2
Signature Features
Store-More™ Organization System
Our Store-More™ organization system includes gallon door, stacked drawer, and adjustable door bins to keep food organized and easy to find when you need it.
Store-More™ Humidity­Controlled Crisper Drawer
Keep your fruits and vegetables fresh in our humidity-controlled crisper drawer.
PureSource 3®
PureSource 3® Water Filtration gives you cleaner, better-tasting water at your fingertips.
Store-More™ Gallon Door Bins
Door storage gives you room for larger items like a gallon of milk.
ENERGY STAR®
Available in:
(S)
Silver Mist
(M)
Stainless
1
If this refrigerator door is not opened for 24 hours AND the refrigerator system is set to the 12-hour defrost cycle, then the system automatically goes to a 96-hour compressor run time defrost cycle to conserve electricity.
2
Select models only.
Pearl
(P)
frigidaire.com
Ebony
(E)
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
UltraSoft™
Stainless (S), Black (M), Color-Coordinated (P / E)
Black (S / M), Color-Coordinated (P / E)
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option / Freeze Option
Display On / O Option
Control Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light 
Air Filter Change Indicator Light
Ready-Select®
Tall, 2-Paddle
5
Yes / Yes / Yes
Yes / Yes
Yes 
Refrigerator Features
Interior Lighting
Water Filter Type 
Air Filter Type
Fixed Shelves
Sliding Shelves
Deli Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Bright
PureSource 3®
3 SpillSafe®
1 Clear / 1 Clear
1
1 Clear
2 Two-Liter White
2 One-Gallon White
Yes
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
4 White / No
1 Flip-Out / 2 Wire
1 Plastic 
Bright
Certifications
ENERGY STAR®
Yes
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW rating) @ 120 Volts
1
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.
22.6
14.22
8.34
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
285 Lbs.
Side-by-Side Refrigerators
FFHS2313L S / M /P / E 23 Cu. Ft. Standard-Depth

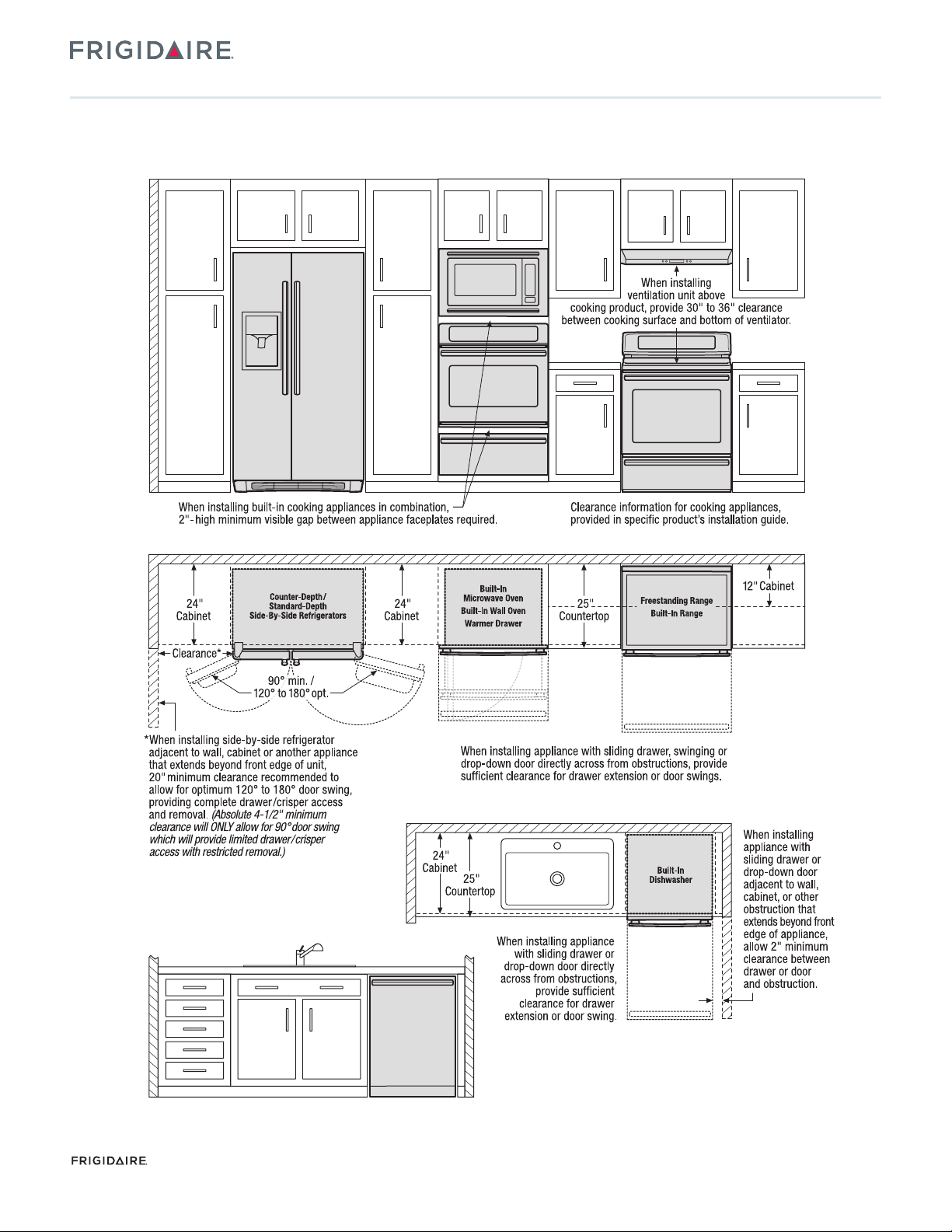

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

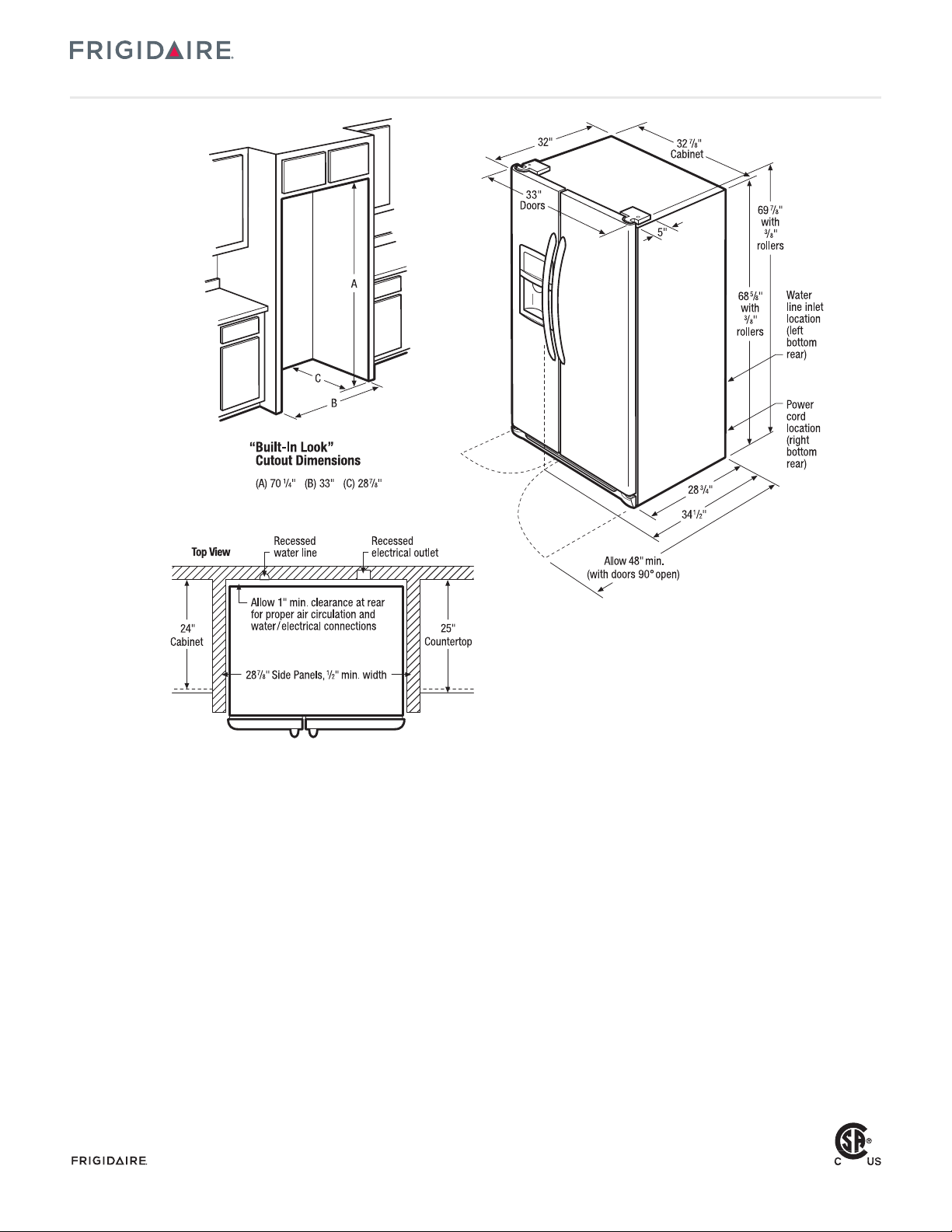

Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-7/8"
32-7/8" / 33"
32"
48"
Accessories information available
on the web at frigidaire.com
USA
10200 David Taylor Drive
CANADA
FFHS2313L 07/12 © 2012 Electrolux Home Products, Inc.
5855 Terry Fox Way
Charlotte, NC 28262
Mississauga, ON L5V 3E4
1-800-FRIGIDAIRE
1-800-265-8352
frigidaire.com
frigidaire.ca
Specifications
subject to change.
