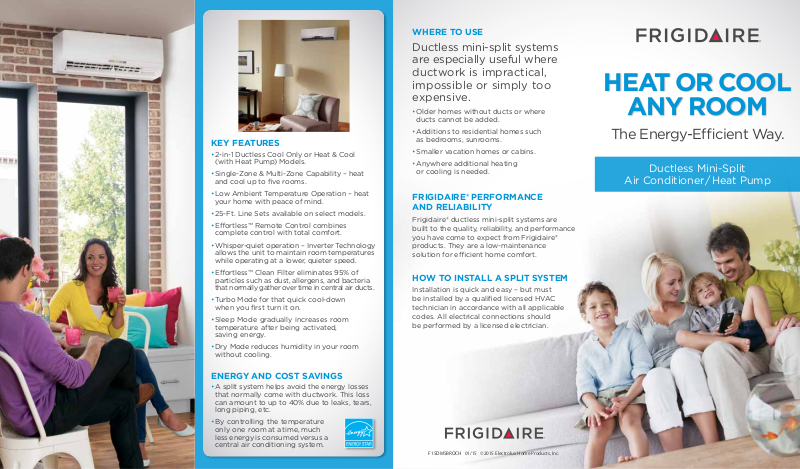

Frigidaire FFHP362CS2 Frigidaire Mini-Split Quick manual
Where to use
Ductless mini-split systems
are especially useful where
ductwork is impractical,
impossible or simply too
expensive.
heat or Cool
Key Features
• 2-in-1 Ductless Cool Only or Heat & Cool
(with Heat Pump) Models.
• Single-Zone & Multi-Zone Capability – heat
and cool up to five rooms.
• Low Ambient Temperature Operation – heat
your home with peace of mind.
• 25-Ft. Line Sets available on select models.
• Eortless™ Remote Control combines
complete control with total comfort.
• Whisper-quiet operation – Inverter Technology
allows the unit to maintain room temperatures
while operating at a lower, quieter speed.
• Eortless™ Clean Filter eliminates 95% of
particles such as dust, allergens, and bacteria
that normally gather over time in central air ducts.
• Turbo Mode for that quick cool-down
when you first turn it on.
• Sleep Mode gradually increases room
temperature after being activated,
saving energy.
• Dry Mode reduces humidity in your room
without cooling.
• Older homes without ducts or where
ducts cannot be added.
• Additions to residential homes such
as bedrooms, sunrooms.
• Smaller vacation homes or cabins.
• Anywhere additional heating
or cooling is needed.
Frigidaire® PerFormanCe
and reliability
Frigidaire® ductless mini-split systems are
built to the quality, reliability, and performance
you have come to expect from Frigidaire®
products. They are a low-maintenance
solution for ecient home comfort.
hoW to install a sPlit system
Installation is quick and easy – but must
be installed by a qualified licensed HVAC
technician in accordance with all applicable
codes. All electrical connections should
be performed by a licensed electrician.
any room
The Energy-Ecient Way.
Ductless Mini-Split
Air Conditioner / Heat Pump
energy and Cost savings
• A split system helps avoid the energy losses
that normally come with ductwork. This loss
can amount to up to 40% due to leaks, tears,
long piping, etc.
• By controlling the temperature
only one room at a time, much
less energy is consumed versus a
central air conditioning system.
F15DMSBROCH 01/15 ©2015 Electrolux Home Products, Inc.
Mini-split systems allow
you to heat and/or cool
without ductwork or
windows. An ecient
solution when only certain
rooms need heating
and cooling.
Quiet, Clean ComFort inside,
energy eFFiCient outside
Frigidaire® ductless mini-split air conditioning
systems can be easily installed anywhere
ductwork is impractical, impossible or simply
too expensive. Mini-split systems do not
require windows or large openings in exterior
walls to operate; the indoor unit sits high on
a wall and the condenser is on the outside,
so no window space is blocked and sound
emission is very low. Without large vents
and openings, mini-split systems are much
more energy ecient than either central
air conditioning systems or window air
conditioning units.
duCtless mini-sPlit air Conditioner / heat PumP sPeCiFiCations
FRIGIDAIRE® MODEL
Indoor Unit Part #
Outdoor Unit Part #
PERFORMANCE
BTU (Cool)
BTU (Heat Pump)
Approx. Cooling Area Sq. Ft.
SEER
EER
HSPF
ENERGY STAR® Qualified
ELECTRICAL
Volts/Hertz
Minimum Circuit Ampacity (A)
Max. Fuse or Circuit Breaker (A)
FEATURES
Controls
Fan Speeds (Cool/Fan/Heat)
dB (Indoor) (High/Med/Low)
Turbo Fan
Sleep Mode
Dry Mode
Low Ambient Operation
Line Set
SINGLE-ZONE
COOL ONLY
FRS093LW1 FRS123LW1 FFMS091WQ11FFMS121WQ11FFMS181WQ2 FFMS221WQ2 FFHP092WQ2 FFHP122WQ2 FFHP182WQ2 FFHP222WQ2 FFHP302WQ2 FFHP362WQ2 9K3, 12K3, 18K39K3, 12K3, 18K
FRS093LC1 FRS123LC1 FFMS091CQ11FFMS121CQ11FFMS181CQ2 FFMS221CQ2 FFHP092CQ2 FFHP122CQ2 FFHP182CQ2 FFHP222CQ2 FFHP302CQ2 FFHP362CQ2 FFHP242ZQ2 FFHP362ZQ2
9,000 12,000 9,000 12,000 18,000 21,400 9,000 12,000 18,000 21,400 28,000 33,600 26,000 34,400
425 640 400 550 1,000 1,300 400 550 1,000 1,300 1,850 2,225 1,700 2,225
13 13 21 20 18 18 22 20 18 18 16 16 18 19
12 12 13 13 12.2 12.2 14.2 12 12 12 10.3 9.2 9.5 11
115V2/60Hz 115V2/60Hz 115V/60Hz 115V/60Hz
13.6A 17.2A 15A
15A 20A 20A 25A 20A 25A 15A 15A 20A 25A 30A 40A 35A 35A
Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic
4/3/- 4/3/- 4/3/- 4/3/- 4/3/- 4/3/- 4/3/4 4/3/4 4/3/4 4/3/4 3/3/3 3/3/3
42/36/29 47/43/4 0 41/37/31 41/37/31 44/40/35 45/41/37 38/35/32 39/36/33 44/40/35 45/41/37 57/54/48 59/56/53
• • • • • • • • • • • •
• • • • • • • • • • • • • •
• • • • • • • • • • • • • •
16 ft. 16 ft. 25 ft. 25 ft. 25 ft. 25 ft. 25 ft. 25 ft. 25 ft. 25 ft. 25 ft. 25 ft.
SINGLE-ZONE COOL ONLY
W/INVERTER
• • • • • • • •
230V/208V/
60Hz
15A 13A 16A 10A 10A
• • • • • • • • • • • •
230V/208V/
60Hz
9,800 13,000 19,800 23,000 28,400 34,600 29,000 42,500
9.2 9.2 10 10 8.2 8.2 9 9
230V/208V/
60Hz
230V/208V/
60Hz
SINGLE-ZONE COOL/HEAT PUMP
WITH INVERTER
230V/208V/
60Hz
13A 16A 20A 24A 21A 21A
230V/208V/
60Hz
230V/208V/
60Hz
230V/208V/
60Hz
MULTI-ZONE
COOL/HEAT PUMP
WITH INVERTER
230V/208V/
60Hz
230V/208V/
60Hz
3
4
1 3
Professional HVAC
Installation Required
duCtless mini-sPlit systems
Consist oF 4 main ComPonents:
1. Indoor Evaporator
2. Outdoor Condenser
3. Connecting Tubing
for Refrigerant
4. Wireless Remote Control
No Ductwork
Required!
Two small lines
carry refrigerant
from outdoor
condenser unit
to individual
room air handler.
POSSIBLE MULTI-ZONE COMBINATIONS
FFHP242ZQ2 Outdoor Combinations FFHP362ZQ2 Outdoor Combinations
Two Units Three Units Two Units Three Units Four Units Five Units
9 + 9 9 + 9 + 9 9 + 9 9 + 9 + 9 9 + 9 + 9 + 9 9 + 9 + 9 + 9 + 9
9 + 12 9 + 9 + 12 9 + 12 9 + 9 + 12 9 + 9 + 9 + 12 –
9 + 18 9 + 12 + 12 9 + 18 9 + 9 + 18 9 + 9 + 9 + 18 –
12 + 12 – 12 + 12 9 + 12 + 12 9 + 9 + 12 + 12 –
2
Select models include a 25 ft. insulated line set. Five-year parts only limited warranty. All units are tested to accepted Unitary Air Conditioner test standards. This appliance must be installed by a qualified licensed HVAC technician in accordance with all applicable codes. All electrical connections should be performed
by a licensed electrician. Each line set is equipped with flare nuts on both ends. Each system requires one line set for each indoor unit installed. Frigidaire® reserves the right to change design, specifications, technical and performance data without notice.
1
Available Q3 2015. 2Indoor unit runs on DC35V. 3Single-Zone Indoor Units (FFHP092WQ2, FFHP122WQ2, FFHP182WQ2) are compatible with Multi-Zone Outdoor Condensing Units FFHP242ZQ2 & FFHP362ZQ2.
12 + 18 – 12 + 18 9 + 12 + 18 9 + 12 + 12 + 12 –
18 + 18 9 + 18 + 18 – –
– 12 + 12 + 12 – –
– 12 + 12 + 18 – –
3
R410a
eco-friendly
Super Efficient
Refrigerant
