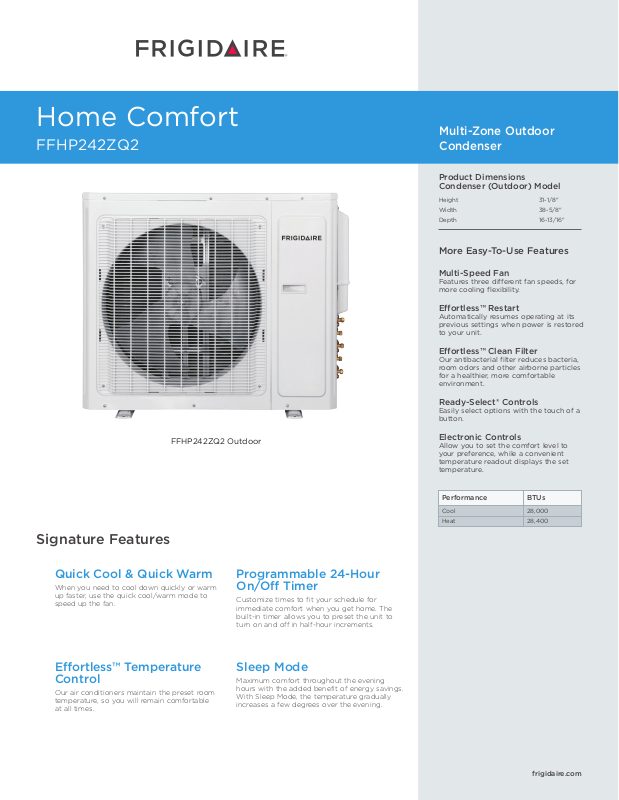

Page 1
Home Comfort
FFHP242ZQ2
Multi-Zone Outdoor
Condenser
Product Dimensions
Condenser (Outdoor) Model
Height 31-1/8"
Width 38-5/8"
Depth 16-13/16"
More Easy-To-Use Features
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria,
room odors and other airborne particles
for a healthier, more comfortable
environment.
Ready-Select® Controls
Easily select options with the touch of a
button.
FFHP242ZQ2 Outdoor
Signature Features
Quick Cool & Quick Warm
When you need to cool down quickly or warm
up faster, use the quick cool/warm mode to
speed up the fan.
Eortless™ Temperature
Control
Our air conditioners maintain the preset room
temperature, so you will remain comfortable
at all times.
Programmable 24-Hour
On/O Timer
Customize times to fit your schedule for
immediate comfort when you get home. The
built-in timer allows you to preset the unit to
turn on and off in half-hour increments.
Sleep Mode
Maximum comfort throughout the evening
hours with the added benefit of energy savings.
With Sleep Mode, the temperature gradually
increases a few degrees over the evening.
Electronic Controls
Allow you to set the comfort level to
your preference, while a convenient
temperature readout displays the set
temperature.
Performance
Cool
Heat
BTUs
28,000
28,400
frigidaire.com
Page 2
Model Numbers
A
B
C
Set Model Number
Outdoor Unit Part Number
Performance
BTU (Cool)
BTU (Heat Pump)
Cooling Area (Sq. Ft.)
SEER (Air Conditioner)
HSPF (Heat Pump)
Inverter Technology
COP
Electrical
Volts
Min Circuit Ampacity
Maximum Circuit Breaker
Rated Amps (Cool)
Rated Watts (Cool)
Rated Amps (Heat)
Rated Watts (Heat)
Features
Controls
Fan Speeds (Cool/Fan/Heat)
Low Voltage Start-Up
Turbo Fan
Auto Fan
Energy Saver
Sleep Mode
24-Hour On/O Timer
Remote Control
Air CFM (High/Med/Low) Indoor
Air Direction Control (Vert. / Horz.)
Air Discharge (Full-Width)
Filter Type
Filter Access
dB Indoor (High/Med/Low)
dB Outdoor
1
Warranty
Included Accessories
Drain Kit (Outdoor Unit)
1
1 yr Full /5 yr sealed system
FFHP242ZQ2
FFHP242ZQ2
28,000
28,400
1,850
16.0
8.2
Yes
2.9
230V/208V
20 A
30 A
12.1
2,715
12.7
2,870
Ready-Select® Controls
3/3/3
Yes
Yes
Yes
Yes
Full-Function
(588/471/412) 353
Swing/Manual
Bottom
Antimicrobial Mesh
Slide-Out
(57/54/48)
62
Yes
Yes
Home Comfort
FFHP242ZQ2 Multi-Zone Outdoor Condenser
FFHP242ZQ2 Outdoor
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
All refrigeration and electrical work must be performed by a certified and licensed
refrigeration technician for full parts and labor warranty validation. Insulated line
sets and control wires are required and available for Frigidaire split systems in 25 ft.
length. Each line set is equipped with flare nuts on both ends. Each system requires
one line set for each indoor unit installed.
31-1/8"
38-5/8"
16-13/16"
•
USA
10200 David Taylor Drive
•
CANADA
FFHP242ZQ2 07/18 © 2018 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3
Multi-Zone Outdoor Condenser
A
B
C
Submittal Sheet
FFHP242ZQ2
Job:______________________________________ Reference:________________________________ Construction:_________________________________
Location:__________________________________ Approval:_________________________________ Unit Number:________________________________
Engineer:__________________________________ Date:_____________________________________ Drawing Number:_____________________________
Submitted to:_______________________________ Submitted by:_____________________________
Power
Min Circuit Ampacity
Maximum Circuit Breaker
Capacities
Cooling
Cooling Watts
Min/Max Cooling
Heatpump Capacity (BTU)
HSPF
Outdoor Sound Rating
SEER
EER
Low Ambient Cooling
Low Ambient Heating
Voltage/Frequency/Phase
Dehumidification
FFHP242ZQ2 Outdoor
20 A
30 A
28,000 BTU
2,715 W
9,500 BTU/30,000 BTU
28,400 BTU
10.0
58 dB (A)
16.0
10.3
-5° - 110°F
5¢ 75
230/208/60Hz
6.3 PT/H
Outdoor Unit
Dimensions (H x W x D)
Sound Rating
Net Weight
Shipping Weight
Fan Motor Load
Drive Type
CFM (high)
Fan Type
Fan Diameter/Number of Speeds
Number of Poles and RPM
Coil Type
Fin Type
Pipe Type
Fin Rows (FPI)
Tube Size
Features
Controls
Remote Control
Temperature Control
Timer
Air Louvers
Horizontal
Vertical
Low Voltage Restart
Self-Diagnosis
Air Filter
Refrigerant System
Refrigerant
Ounces
Lineset
Maximum Height
Maximum Line Length
Discharge Vapor Line (od)
Suction (od)
Operating Range
Indoor Air Cooling Intake Temp Range
Indoor Air Heating Intake Temp Range
Outdoor Air Cooling Intake Temp Range
Outdoor Air Heating Intake Temp Range
FFHP242ZQ2
31-1/8" x 38-5/8" x 16-13/16"
62 dB (A)
42 lb
58 lb
.45 A
inverter
4,000
Axial-flow
21-3/4"/1
DC/830
aluminum fin & copper tube
coated fin
copper internal thread
2
¢ 7.94 mm (5/16")
microprocessor
lcd wireless
61-86°F (16-30°C)
24 hr
2 pieces
manual
swing
built-in
yes
washable, anti-mold
R410A
84.66
25 ft
66 ft
98 ft
6 mm (1/4")
9 mm (5/8")
>= 61°F
<= 86°F
-5¢ 110°F
-5¢ 75°F
•
USA
10200 David Taylor Drive
•
CANADA
FFHP242ZQ2 07/18 © 2018 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
