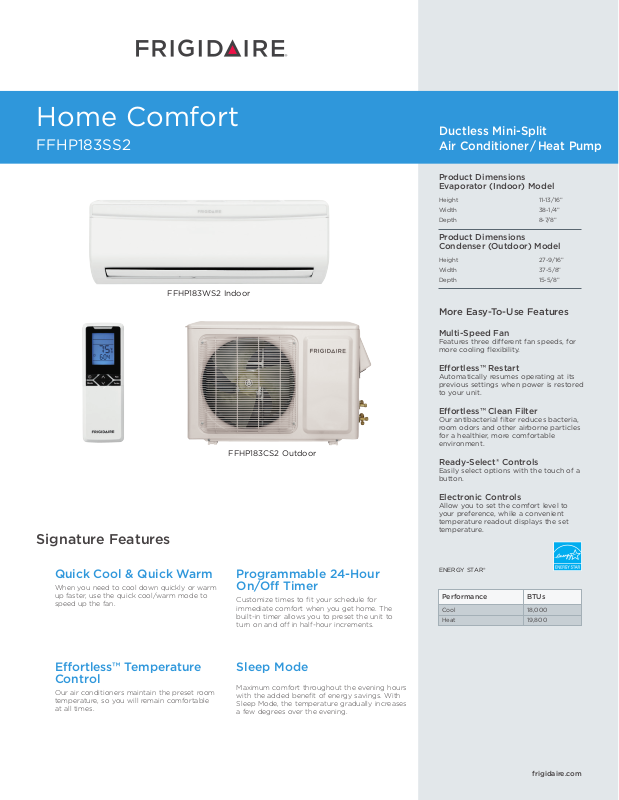

Frigidaire FFHP183WS2 Specsheet
Home Comfort
FFHP183SS2
FFHP183WS2 Indoor
FFHP183CS2 Outdoor
Ductless Mini-Split
Air Conditioner / Heat Pump
Product Dimensions
Evaporator (Indoor) Model
Height 11-13/16”
Width 38-1/4”
Depth 8-7/8”
Product Dimensions
Condenser (Outdoor) Model
Height 27-9/16”
Width 37-5/8”
Depth 15-5/8”
More Easy-To-Use Features
Multi-Speed Fan
Features three different fan speeds, for
more cooling flexibility.
Eortless™ Restart
Automatically resumes operating at its
previous settings when power is restored
to your unit.
Eortless™ Clean Filter
Our antibacterial filter reduces bacteria,
room odors and other airborne particles
for a healthier, more comfortable
environment.
Ready-Select® Controls
Easily select options with the touch of a
button.
Signature Features
Quick Cool & Quick Warm
When you need to cool down quickly or warm
up faster, use the quick cool/warm mode to
speed up the fan.
Eortless™ Temperature
Control
Our air conditioners maintain the preset room
temperature, so you will remain comfortable
at all times.
Programmable 24-Hour
On/O Timer
Customize times to fit your schedule for
immediate comfort when you get home. The
built-in timer allows you to preset the unit to
turn on and off in half-hour increments.
Sleep Mode
Maximum comfort throughout the evening hours
with the added benefit of energy savings. With
Sleep Mode, the temperature gradually increases
a few degrees over the evening.
Electronic Controls
Allow you to set the comfort level to
your preference, while a convenient
temperature readout displays the set
temperature.
ENERGY STAR®
Performance
Cool
Heat
BTUs
18,000
19,800
frigidaire.com
Model Numbers
A
B
C
A
B
C
A
B
C
Set Model Number
Indoor Unit Part Number
Outdoor Unit Part Number
Performance
BTU (Cool)
BTU (Heat Pump)
Cooling Area (Sq. Ft.)
SEER (Air Conditioner)
HSPF (Heat Pump)
Inverter Technology
COP
Electrical
Volts
Min Circuit Ampacity
Maximum Circuit Breaker
Rated Watts (Cool)
Rated Watts (Heat)
Features
Controls
Fan Speeds (Cool/Fan/Heat)
Low Voltage Start-Up
Turbo Fan
Auto Fan
Energy Saver
Sleep Mode
24-Hour On/O Timer
Remote Control
Air CFM (High/Med/Low) Indoor
Air Direction Control (Vert. / Horz.)
Air Discharge (Full-Width)
Filter Type
Filter Access
dB Indoor (Turbo)(High/Med/Low)
dB Outdoor
2
Warranty
Included Accessories
Drain Kit (Outdoor Unit)
Installation Plate (Indoor Unit)
Line Set Kit (Indoor Unit)
Remote Holder (Indoor Unit)
1
Includes 25 ft. line set
2
5 year parts only
Home Comfort
FFHP183SS2 Ductless Mini-Split Air Conditioner / Heat Pump
FFHP183SS2
1
FFHP183WS2
FFHP183CS2
18,000
19,800
1,000
20.0
10.0
Yes
3.30
230V/208V
16 A
25 A
1,440
1,360
Ready-Select® Controls
4/3/4
Yes
Yes
Yes
Yes
Yes
Full-Function
559/488/412/335
Swing/Manual
Bottom
Antimicrobial Mesh
Slide-Out
(47)43/39/35
55
Yes
Yes
Yes
Yes
Yes
FFHP183WS2
1
Indoor
FFHP183CS21 Outdoor
NOTE: For planning purposes only. Always consult local and
national electric codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
Product Dimensions
Indoor –
A - Height
B - Width
C - Depth
Outdoor –
A - Height
B - Width
C - Depth
1
Illustration may not represent actual model.
All refrigeration and electrical work must be performed by a certified and licensed
refrigeration technician for parts warranty validation. Insulated line sets and control
wires are required and available for Frigidaire split systems in 25 ft. length. Each line
set is equipped with flare nuts on both ends. Each system requires one line set for
each indoor unit installed.
•
USA
10200 David Taylor Drive
•
CANADA
FFHP183SS2 03/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
11-13/16"
38-1/4"
8-7/8"
27-9/16"
37-5/8"
15-5/8"
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
