Welcome to the world of simple handling and no worries

Thank you for choosing Frigidaire. This manual contains all of the information required to guarantee your safety and the appropriate use of your air conditioner. Please read all of the instructions before using the air conditioner and keep this manual for future reference. We know you will enjoy your new air conditioner and thank you for choosing our product. We hope you will consider us for future purchases.

Environmental advices

The packaging material used is recyclable. We recommend that you separate plastic, paper and cardboard and give them to recycling companies. do NOT throw it away with the rest of your domestic If you need to dispose of this appliance in the future, garbage.

Attention!!

The air conditioner that you have bought may be slightly different from the one illustrated in this manual. Please refer to the information related to the model you have. This air conditioner is for domestic use only. It is not recommended for heavy commercial or industrial use.

Welcome

Contents

01. Welcome..........................................................................................01

02. Environmental advices........................................................................01

03. Contents...........................................................................................02

04. Safety precautions............................................................................. 03

05. Operation:

5.1 Preparing the device for operation.........................................06

5.2 Product description.............................................................. 08

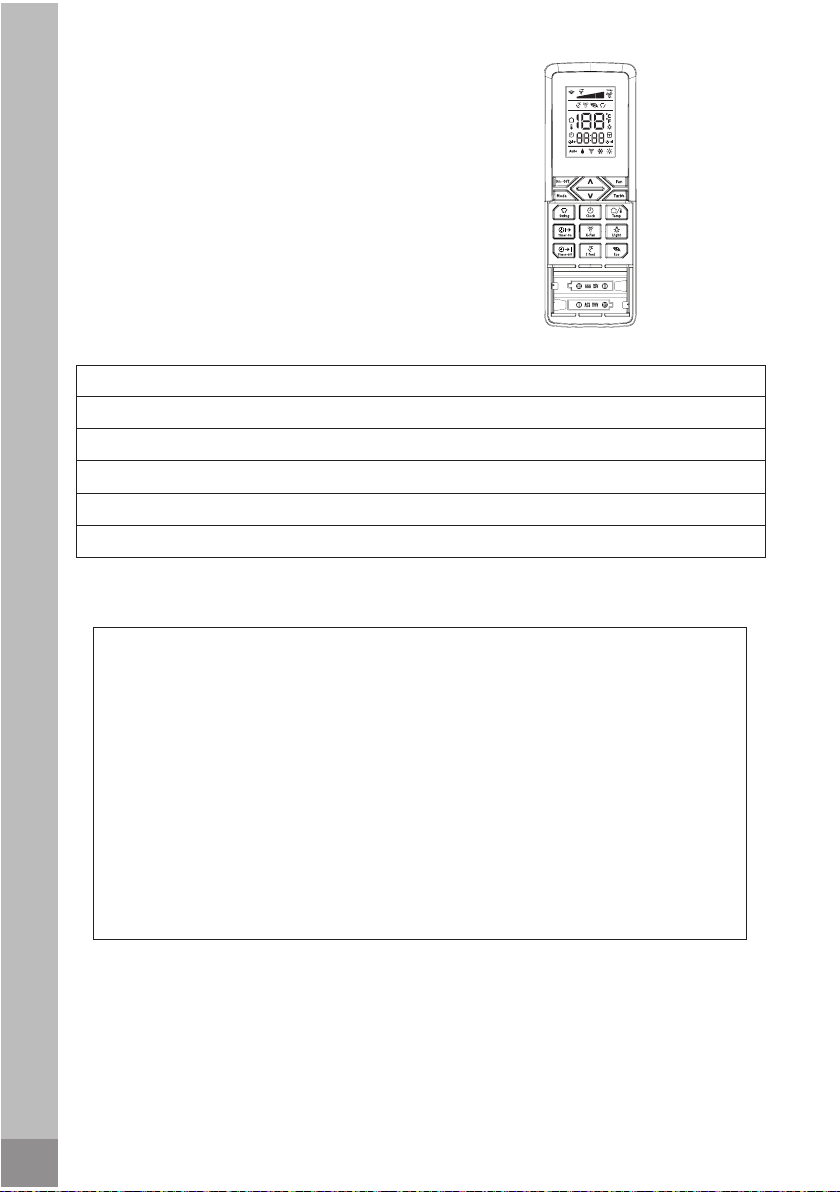

5.3 Remote control.................................................................... 09

- Remote control operation

- Remote control specifications

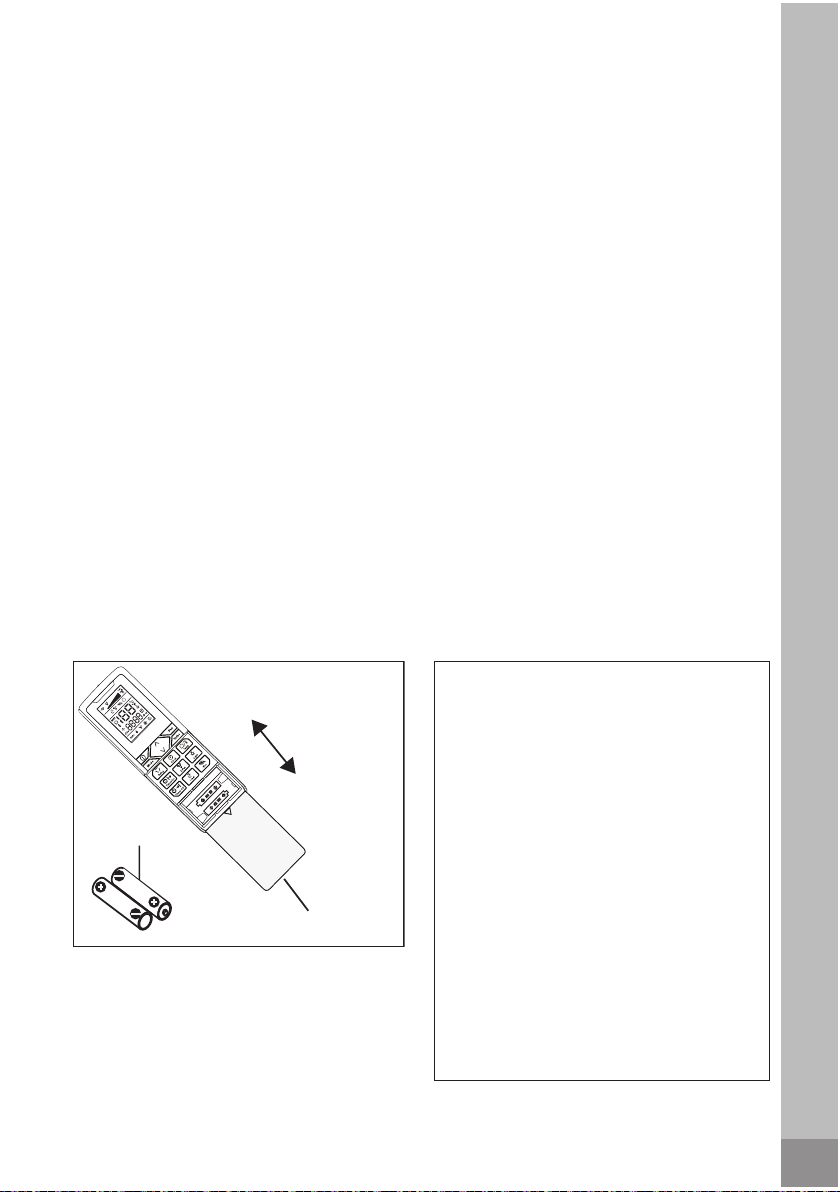

- Remote control battery

- When should the batteries be replaced

- To replace batteries

- Remote control instructions

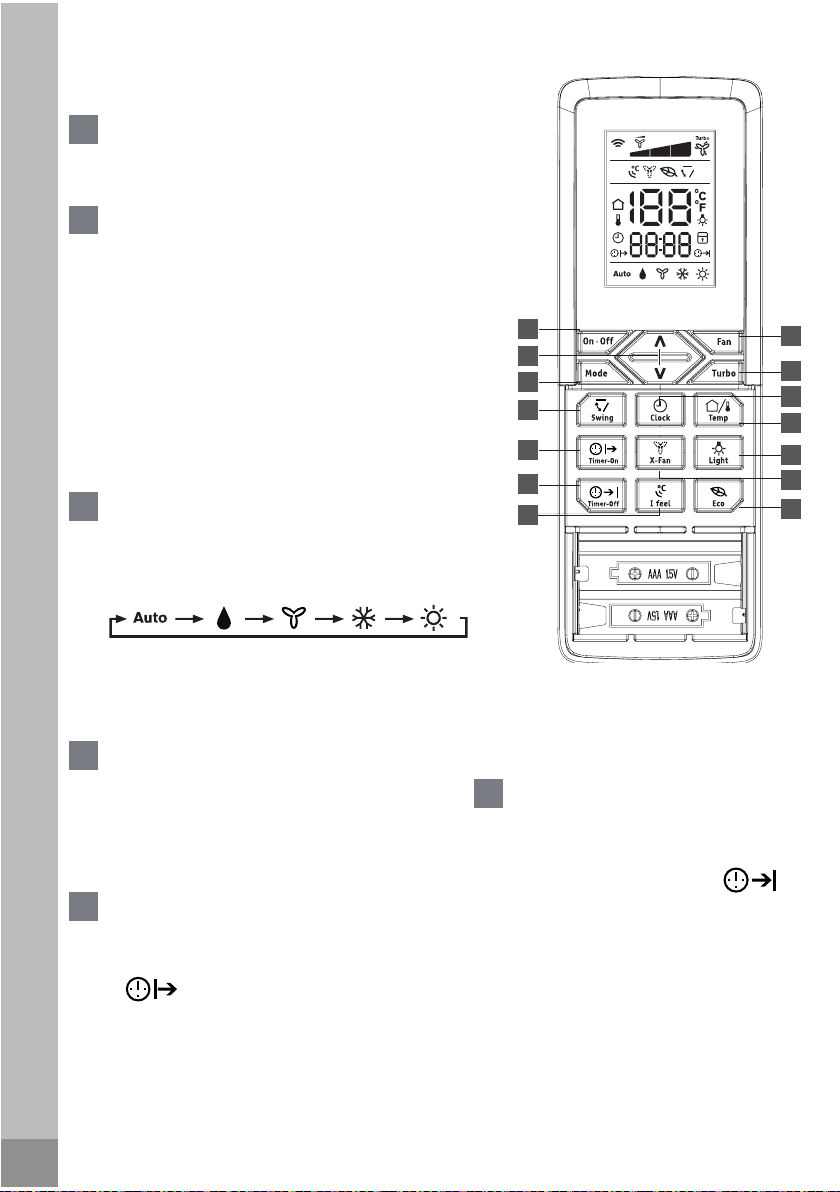

5.4 Remote control description.................................................... 11

5.5 Special functions..................................................................12

5.6 How the air conditioner works...............................................13

- Automatic operation

- Cool/heat and fan only operation

- Dry operation

- Airflow direction adjustment

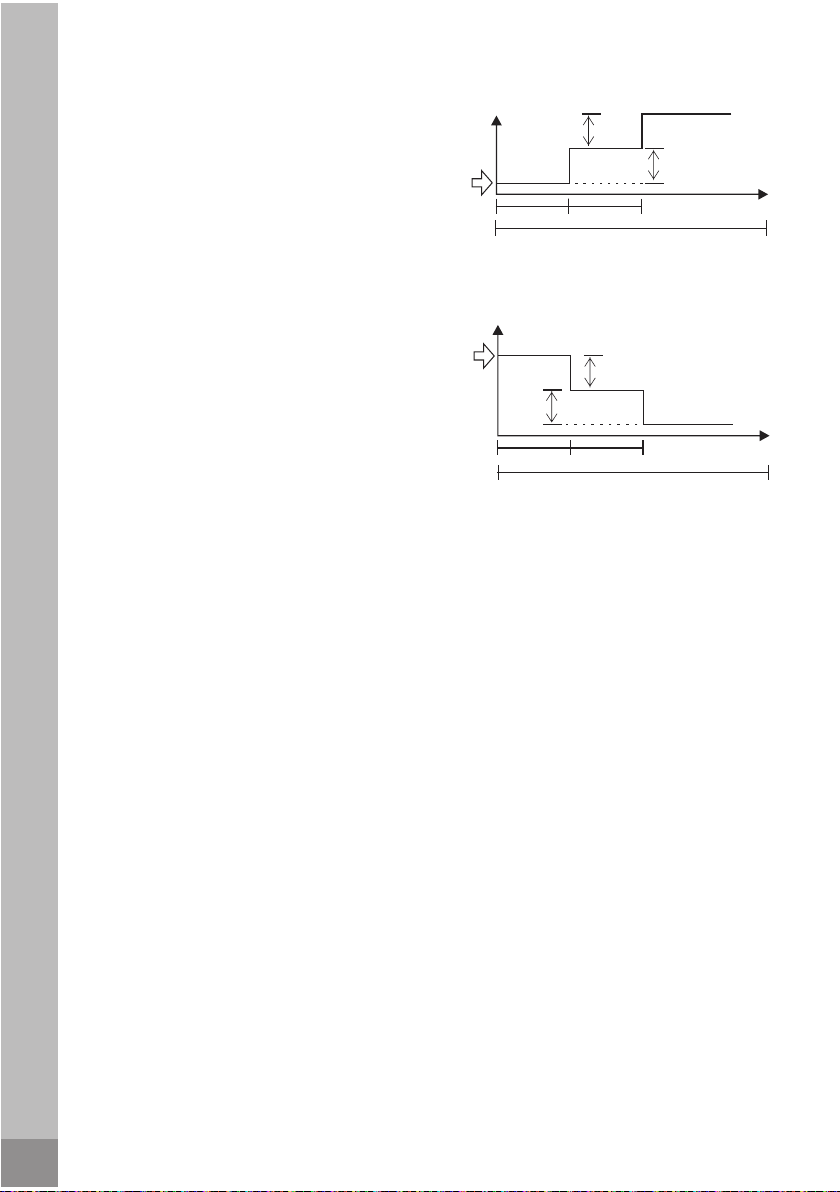

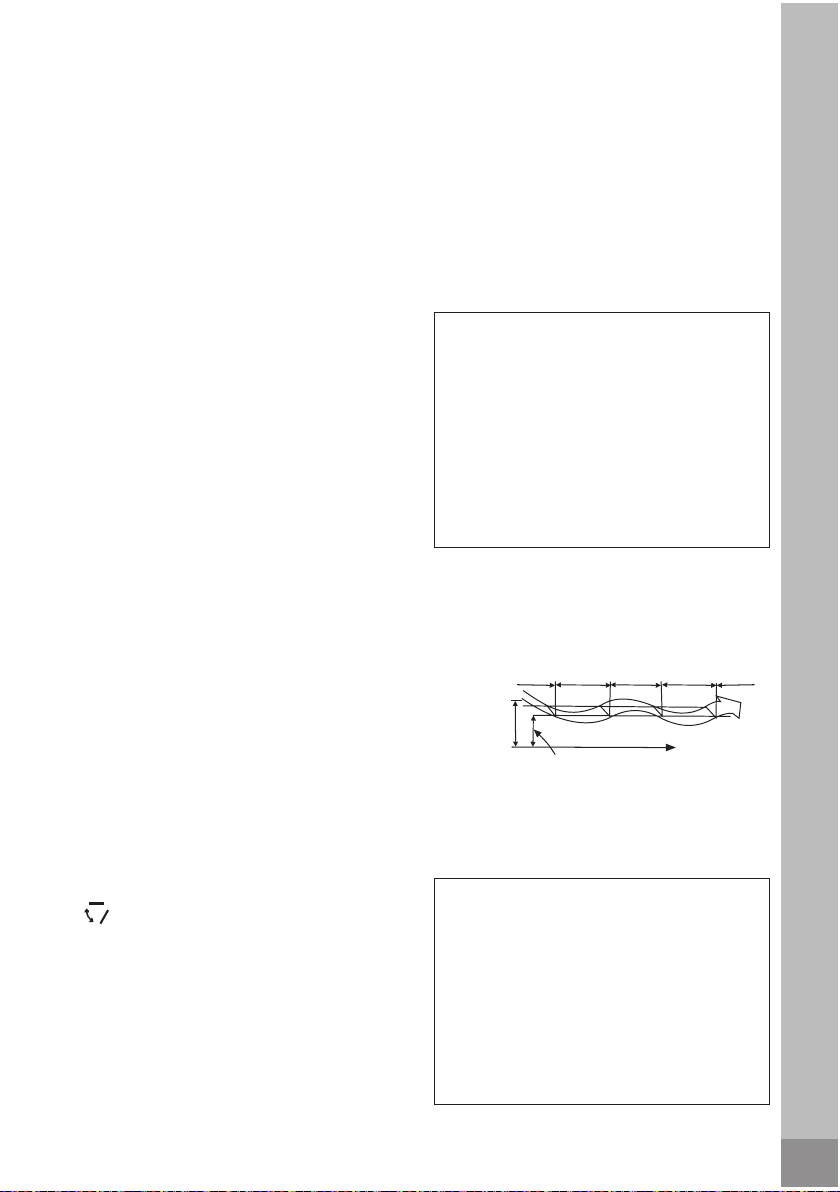

- Eco/Sleep mode

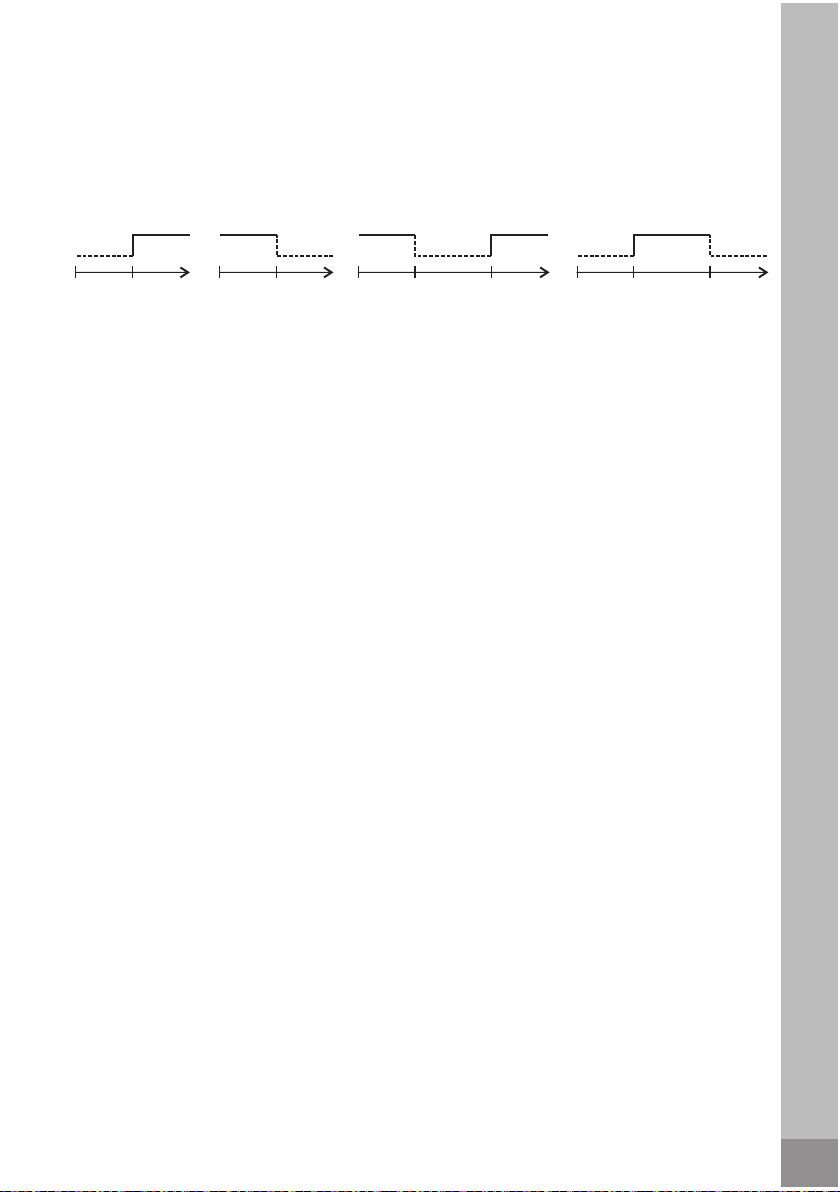

- Timer operation

- Optimal operation

5.7 How to use the indoor unit....................................................17

- Adjusting air flow direction

- Adjusting the vertical air flow direction (up/down)

- To set the horizontal air flow direction (left/right)

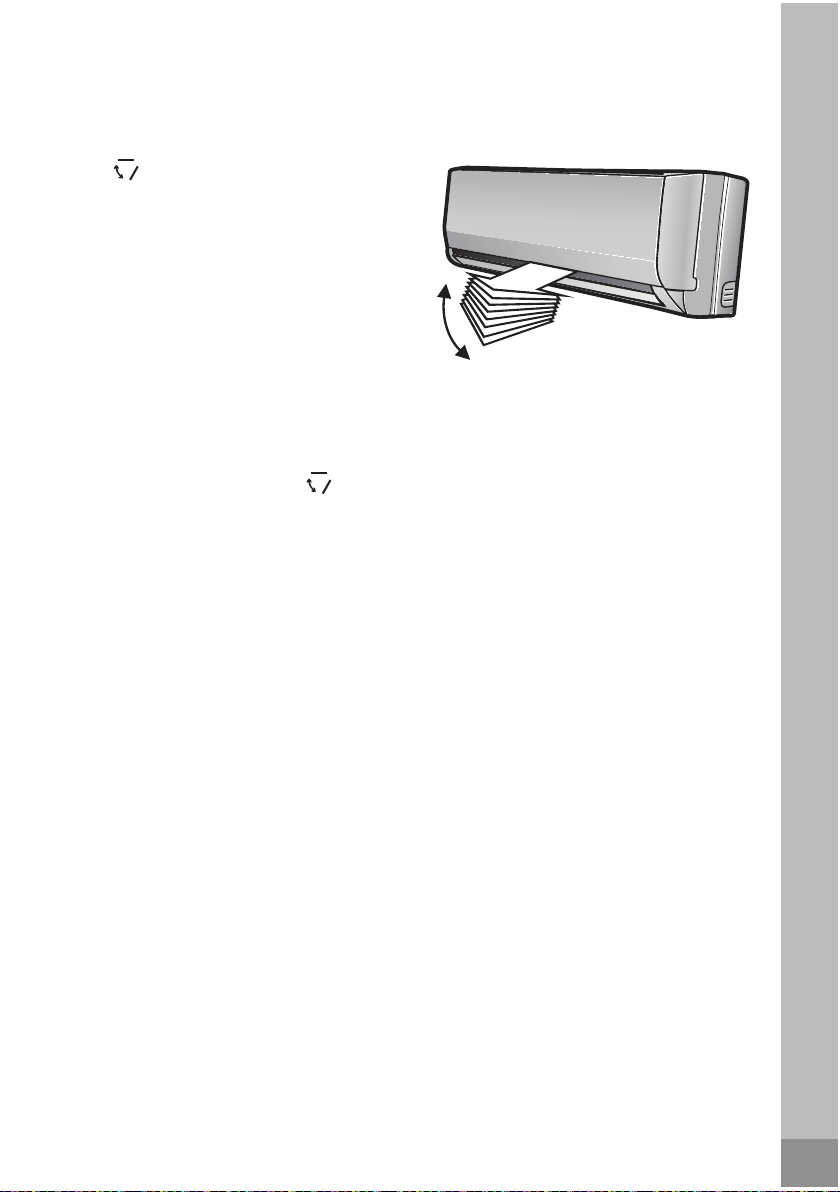

- To automatically swing the air flow direction (up/down)

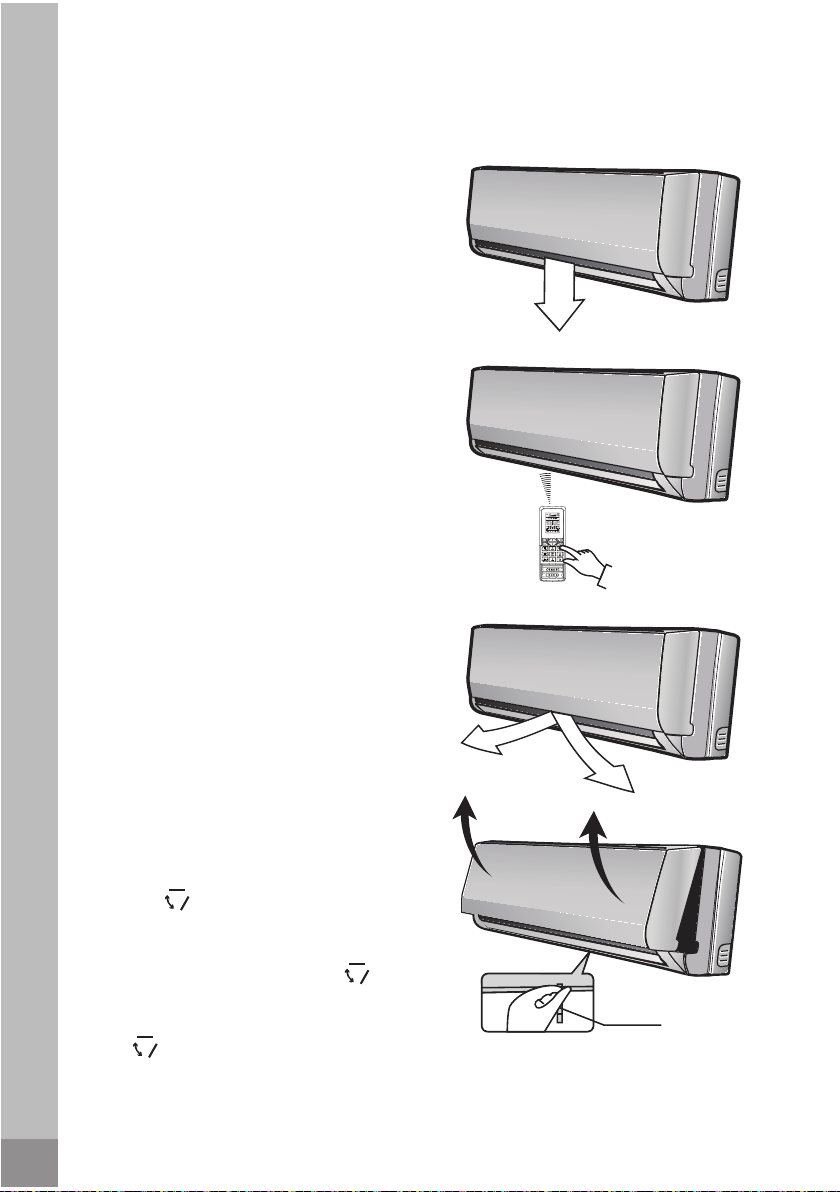

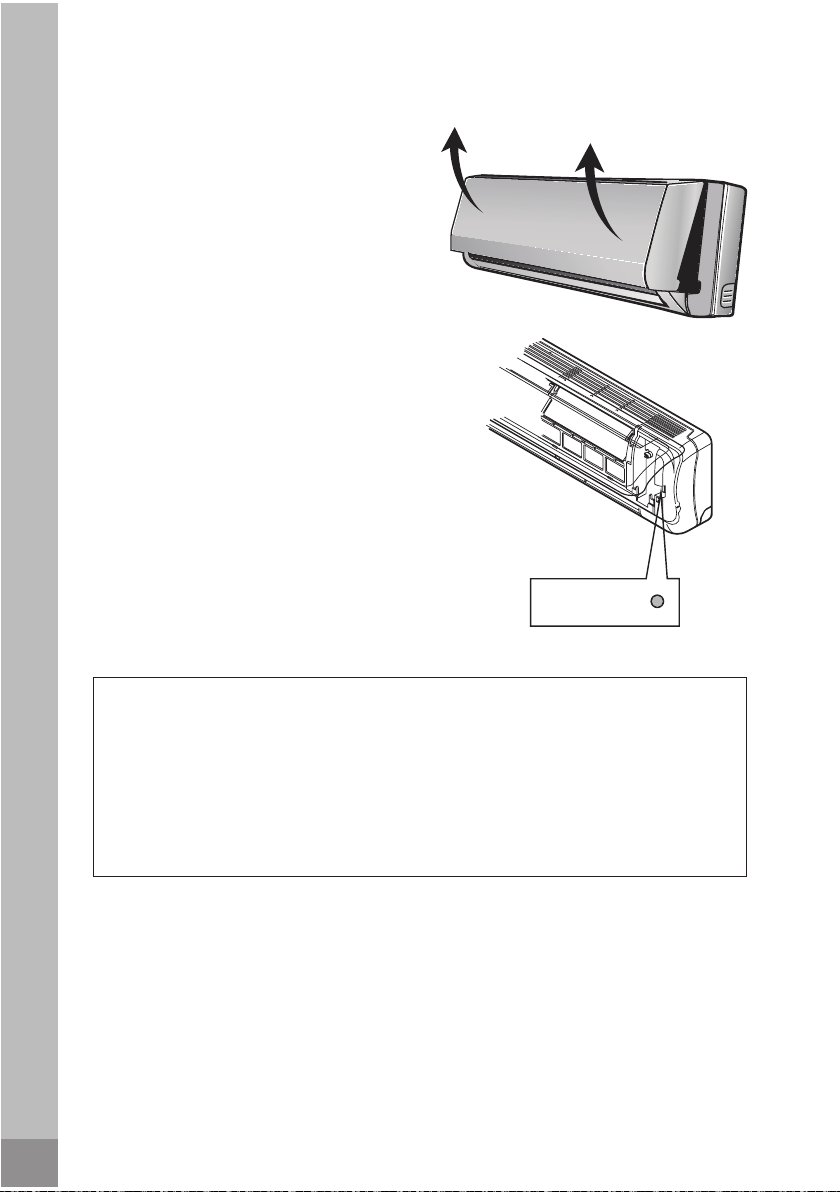

5.8 Manual operation................................................................ 19

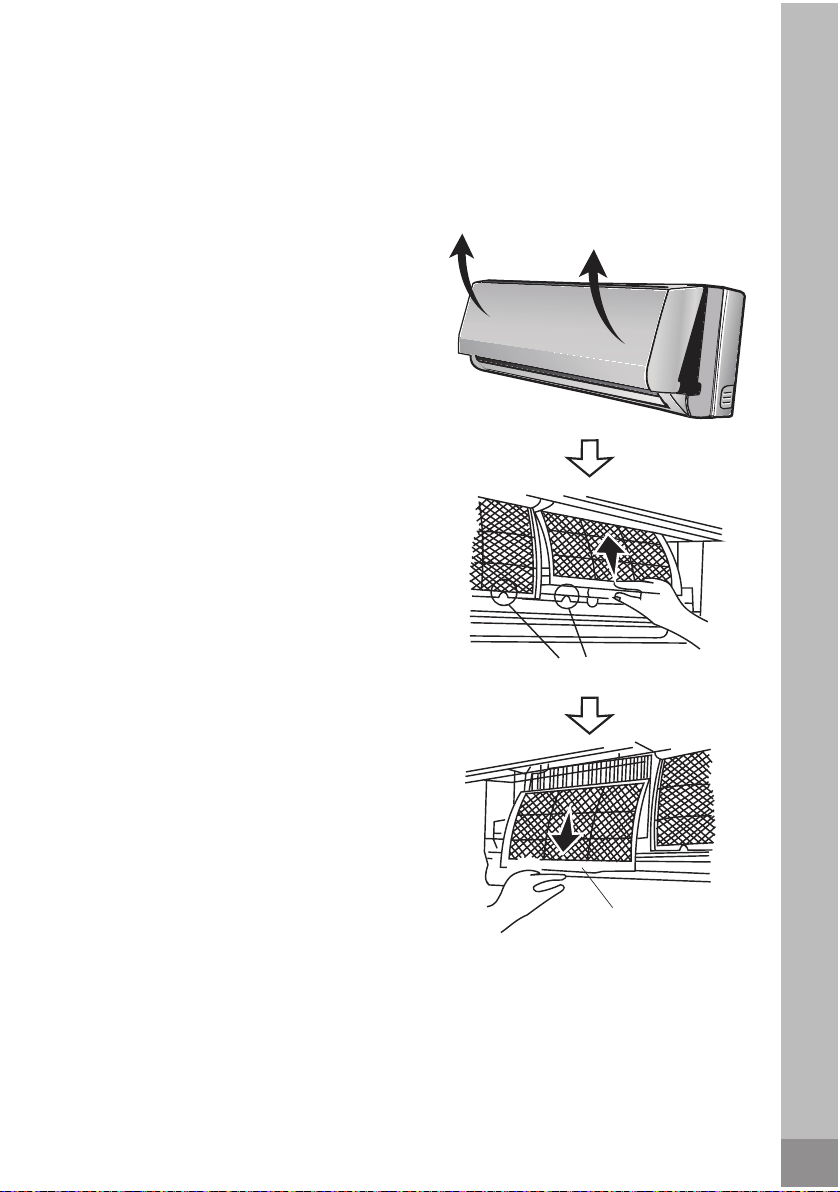

06. Maintenance.....................................................................................20

07. Operation tips...................................................................................22

08. Solution for problems......................................................................... 24

09. Warranty..........................................................................................26

Contents

Safety precautions

This appliance must be installed by a qualified licensed HVAC technician in accordance with all applicable codes. All electrical connections should be performed by a licensed electrician. Manufacturer's warranty will be voided with failure to comply.

Incorrect Handling could result in Serious Injury or Death!

1. Do not attempt to install the split air conditioner by yourself.

2. This air conditioner contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.

3. When moving the air conditioner, always call an authorized Frigidaire servicer for disconnection and reinstallation.

4. Do not insert fingers or place objects into the discharge area in the front of the indoor unit.

5. Do not insert fingers or place objects into the discharge area in the front of the outdoor unit.

6. Do not start or stop the air conditioner by turning off the power at the electrical box.

7. In the event of a malfunction (sparks, burning smell, etc.) immediately power off unit and call an authorized Frigidaire servicer.

8. Do not operate the air conditioner with wet hands.

9. Do not drink any water or condensation that is drained from the air conditioner.

.Provide occasional ventilation

during use. Do not direct airflow at fire places or other heat related sources as this could cause flare ups or make units run excessively.

11. Do not climb on or place objects on the outdoor unit.

12. Do not hang objects off the indoor unit.

13. Do not place objects containing water on the indoor and/or outdoor units.

14. Turn off the air conditioner at the power source when it will not be used for an extended period of time.

15. Periodically check the condition of the outdoor unit’s installation base for any damage.

16. Do not apply heavy pressure to the coil fins of the indoor and/or outdoor units.

17. Operate the indoor unit with air filters in place.

18. Do not block or cover the intake grille, discharge area and outlet ports.

19. Ensure that any electrical/ electronic equipment is 36” away from the indoor unit and outdoor unit.

20. Do not use or store flammable gases near the indoor and/or outdoor units.

Satety precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications.

1. Connect with the power properly (confirm voltage upon installation). Otherwise, it may cause electric shock or fire due to excess heat generation.

2. Always ensure effective grounding. No grounding may cause electric shock.

3. Disconnect the power if strange sounds, smell, or smoke comes from it. It may cause fire and electric shock.

4. Do not operate or stop the unit by switching the power off and on. It may cause electric shock or fire due to heat generation.

5. Do not operate with wet hands or in damp environment. It may cause electric shock.

6. Do not allow water to run into electric parts. It may cause component failure, electric shock or fire.

7. Do not use the power cord near flammable gas or combustibles, such as gasoline, benzene, thinner,etc. It may cause an explosion or fire.

8. Do not use the power cord close to heating appliances. It may cause fire and electric shock.

9. Do not damage or use an unspecified power cord. It may cause electric shock or fire.

10.Do not place heavy objects on the power cord and ensure that the cord will not be compressed. There is danger of fire or electric shock.

Safety precautions

11. Do not open the unit during operation. It may cause electric shock or injury.

12. Do not drink water drained from air conditioner. It may contain contaminates that could make you sick.

13. Do not disassemble or modify unit. It may cause failure of appliance, electric shock and void the warranty.

14. When the air filter is to be removed, do not touch the metal parts of the unit. It may cause an injury.

15. When the unit is to be cleaned, power off, and turn off the circuit breaker. Do not clean unit when power is on as it may cause fire, electric shock or injury.

16. Avoid direct exposure of occupants to air flow.

17. Turn off the main power switch when not using the unit for a long time.

18. The air conditioner may be dusted with an oil free cloth or washed with a cloth dampened in a solution of warm water and mild dishwashing detergent. Rinse thoroughly and wipe dry. Wring excess water from cloth before wiping around controls.

19. Always insert the filters securely. Clean filter once every two weeks. Operation without filters may cause failure.

20. Always install circuit breaker and a dedicated power circuit. No installation may cause fire and electric shock.

21. Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure of appliance or accident.

Safety precautions

Preparing the device for operation

1. Contact a licensed specialist to install the device.

2. Guarantee that the unit is appropriately fastened and complies with all of the aforementioned safety norms.

3. Before operating the air conditioner, ensure that the air filter is installed correctly.

4. If the unit has been out of use for a long period of time, it is recommended that the air filter be cleaned before use. During continuous use, clean the air filter every two weeks.

5. This air conditioner was designed for use under the following conditions:

MODE

Cool

Temperature Temperature Temperature

Indoor Indoor Outdoor Indoor Outdoor

61°F~86°F 61°F~86°F 61°F~86°F 0°F~115°F

* only for models with heating function

Outdoor

0°F~110°F -5°F~75°F

Heat

Dehumidifier

Attention!!

If air conditioner is used outside of the above conditions, certain safety protection features may come into operation and cause the unit to function abnormally. Room relative humidity should be less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. Please set the horizontal louver to its maximum angle (vertically to the floor), and set HIGH fan mode. Optimum performance will be achieved within these operating temperature.

Preparing the device for operation

Product description

3 4

5 678

Air Outlet

Air inlet (side)

Air inlet

Air inlet (rear)

1 Front panel 2 Digital display 3 Air ﬁlter 4 Pre-dust ﬁlter 5 Horizontal air ﬂow grille 6 Vertical air ﬂow louver (inside) 7 Manual control button

Air outlet

8 Cold plasma generator (if applicable)

9 Remote controller 10 Refregerant pipe 11 Drain hose 12 Power cable 13 Mounting plate 14 Connecting cable

Attention!!

All the pictures in this manual are for explanation purpose only. They maybe slightly different from the airconditioner you purchased.

Product description

Display panel (indoor unit)

I Feel indicator:

Lights up when I Feel feature is activated.

Turbo indicator:

Lights up when Turbo feature is activated.

DIGITAL SCREEN:

• Displays the temperature

settings when the air conditioner is operational.

• Displays the malfunction code

when fault occurs.

ECO indicator:

Lights up when Eco feature is activated.

15 16 1817

Attention!!

The description of the control is based on a typical model.The functions are the same in your air conditioner, even if there are some differences in the appearance.

Product description
