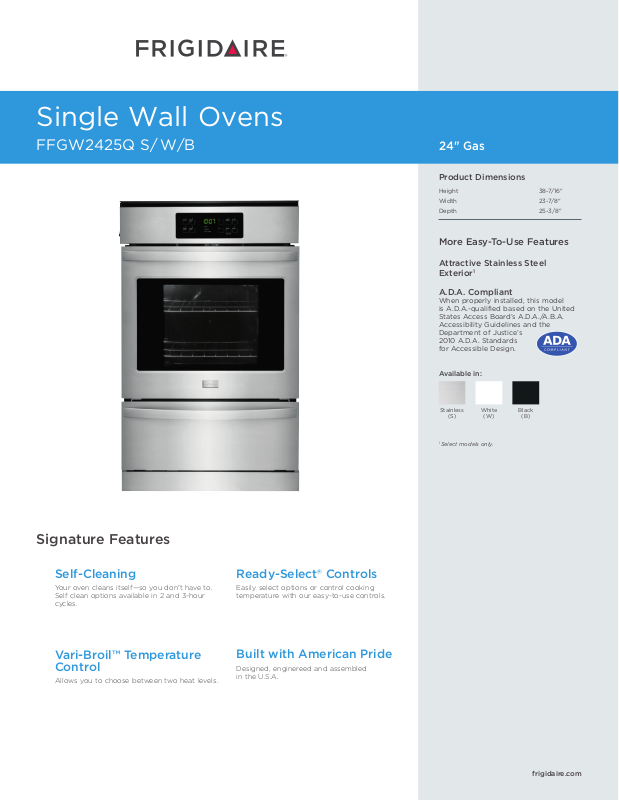

Drop-In Cooktop
Single Wall Ovens
FPEC3085K S
FFGW2425Q S/ W/B
30" Electric
24" Gas
Product Dimensions
Height 38-7/16"
Width 23-7/8"
Depth 25-3/8"
More Easy-To-Use Features
Attractive Stainless Steel
Exterior
A.D.A. Compliant
When properly installed, this model
is A.D.A.-qualified based on the United
States Access Board’s A.D.A./A.B.A.
Accessibility Guidelines and the
Department of Justice’s
2010 A.D.A. Standards
for Accessible Design.
Available in:
Stainless
(S)
1
White
(W)
Black
(B)
Signature Features
Self-Cleaning
Your oven cleans itself —so you don’t have to.
Self clean options available in 2 and 3-hour
cycles.
Vari-Broil™ Temperature
Control
Allows you to choose between two heat levels.
Ready-Select® Controls
Easily select options or control cooking
temperature with our easy-to-use controls.
Built with American Pride
Designed, enginereed and assembled
in the U.S.A.
1
Select models only.
frigidaire.com
Page 2
Features
Oven Control / Timing System
Window
Exterior Door Finish
Handle Design
Oven Cleaning System
Drawer Functionality
Ready-Select®
Large
Stainless Steel (S),
Color-Coordinated (W/B)
Stainless Steel (S),
Color-Coordinated (W/B)
Self-Clean
Storage Drawer
Oven Controls
Bake / Broil
Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
PowerPlus® / Quick Preheat
Keep Warm
Add-a-Minute
Delay Start
Self-Clean
Rapid / Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Control Lock
Auto Oven Shut-O
Oven Lock-Out
Yes / Variable (Hi - Lo)
2, 3 Hours
2, 3 Hours
Yes
Yes
Yes
Oven Features
Capacity (Cu. Ft.)
Convection System
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake / Broil Element (BTU)
3.3
1 Halogen
2 Standard
Vari-Broil™ High/Low
14,000 / 14,000
Certifications
A.D.A. Compliant
1
Yes
Optional Accessories
LP Gas Conversion Kit
Included
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Under-Counter
Installation
Shipping Weight (Approx.)
1
When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
2
16" x 17" x 18-1/2"
Right Bottom Rear
Right Bottom Rear
120V / 60Hz
.60
5.0
15
170 Lbs.
Single Wall Ovens
FFGW2425Q S/W/B 24" Gas
B
A
NOTE: For planning purposes only. Always consult local and national electric and gas codes. Refer
to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
D - Height (Wrapper)
E - Width (Wrapper)
Depth with Door Open 90˚
38-7/16"
23-7/8"
25-3/8"
37-3/8"
21-11/16"
46-5/8"
E
D
Height
adjuster
C
Cutout Dimensions
Height (Min.)
Height (Max.)
Width (Min.)
Depth (Min.)
37-1/2"
38"
22"
23-1/2"
•
USA
10200 David Taylor Drive
•
CANADA
FFGW2425Q 01/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
Page 3
11/16"
7
23
/8"
21
37
3/8"
Power
38
7/16"
supply
location
(left
bottom
Height
rear)
adjuster
Allow at
1
/4"
least 21
clearance for door
233/8"
253/8"
depth when open
Alternate Installation
Oven can also be installed into an existing two-cavity oven cutout
opening measuring 42
1/8" H x 22
1/2" W. To accommodate opening
for smaller oven, filler strips need to be installed vertically on each
side of opening along with two standard 2 x 4s (22" minimum length),
installed upright on each side beneath oven’s side rails, flush with
cabinet front. Two height adjusters, located on bottom sides of oven
wrapper, must also be lowered to raise oven by 1". Oven’s bottom trim
with then overlap cabinet face 1/4" min. to hide opening at bottom.
To accommodate existing 37
adjusters can be lowered to raise oven by 1" in addition to bottom
1
trim’s
/2" overhang allowing for a 1
1/2" to 39" cutout height, oven’s height
1/2" total height adjustment.
1
min.
37
min.
38"
max.
10
min.
27
max.
1/2"
1/2"
1/2"
Single Wall Ovens
FFGW2425Q S/W/B 24" Gas
24"
min.
23
22"
Hole for
electrical
cord
"
1/2" min.
11/2" Dia.
hole for gas
hookup
C
L
20"
2"min.
Bottom cutout
edge must be
finish cut
Full base
required to
support
150 lbs.
7
5/8"
Electrical
outlet
location
10"
min.
27
1/2"
max.
Single Wall Oven Specifications
•
Product Shipping Weight (approx.) – 170 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = .60 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120V = 5 Amps
•
Always consult local and national electric and gas codes.
•
Oven ships with 3/4" factory regulator.
•
LP Gas convertible.
•
Do not obstruct flow of combustion air at oven vent nor around base
or beneath lower front panel of appliance. Oven requires fresh air for
proper burner combustion.
•
Oven vent location should be a minimum 36" height above floor.
•
Minimum 21-1/4" clearance for oven door depth when open.
•
Full oven base of solid plywood or similar material required, capable
of supporting 150 Lbs.
•
Base must be level and cabinet front must be square.
•
Single Wall Oven is NOT approved to be used in side-by-side
installation.
•
Single Wall Oven is NOT approved to be used alone in under-counter
installation or in combination with any Frigidaire® Warmer Drawer or
Built-In Microwave Oven.
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FFGW2425Q 01/16 © 2016 Electrolux Home Products, Inc.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Alternate Installations
•
Oven can also be installed into an existing two-cavity oven cutout
opening measuring 42-1/8" H x 22-1/2" W. To accommodate opening
for smaller oven, filler strips need to be installed vertically on each
side of opening along with two standard 2 x 4s (22" minimum length),
installed upright on each side beneath oven’s side rails, flush with
cabinet front. Two height adjusters, located on bottom sides of oven
wrapper, must also be lowered to raise oven by 1". Oven’s bottom
trim will then overlap cabinet face 1/4" minimum to hide opening at
bottom.
•
To accommodate existing 37-1/2" to 39" cutout height, oven’s height
adjusters must be lowered to raise oven by 1" in addition to bottom
trim’s 1/2" overhang allowing for a 1-1/2" total height adjustment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
