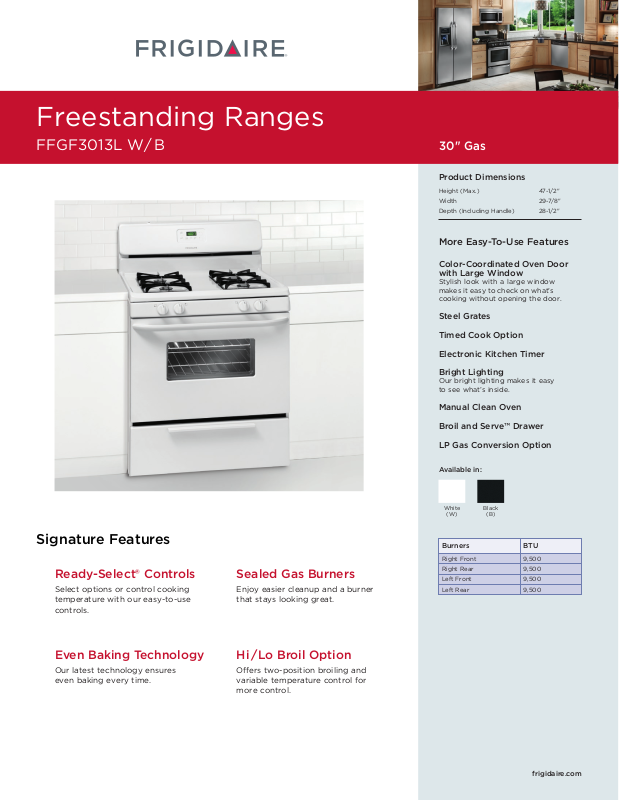

Frigidaire FFGF3013LB, FFGF3013LW Specification Sheet
Drop-In Cooktop
Freestanding Ranges
FPEC3085K S
FFGF3013L W/ B
30" Electric30" Gas
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Color-Coordinated Oven Door
with Large Window
Stylish look with a large window
makes it easy to check on what’s
cooking without opening the door.
Steel Grates
Timed Cook Option
Electronic Kitchen Timer
Bright Lighting
Our bright lighting makes it easy
to see what’s inside.
Manual Clean Oven
Broil and Serve™ Drawer
Signature Features
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Even Baking Technology
Our latest technology ensures
even baking every time.
Sealed Gas Burners
Enjoy easier cleanup and a burner
that stays looking great.
Hi /Lo Broil Option
Offers two-position broiling and
variable temperature control for
more control.
LP Gas Conversion Option
Available in:
White
(W)
Burners
Right Front
Right Rear
Left Front
Left Rear
Black
(B)
BTU
9,500
9,500
9,500
9,500
frigidaire.com
Features
C
A
36"
(Adjustable)
B
Oven Control / Timing System
Surface Type
Sealed Gas Burners
Grates
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Ready-Select® Controls
Color-Coordinated Porcelain
Yes
Black Square Steel
Large
Color-Coordinated
Color-Coordinated
Color-Coordinated
Manual Clean
Broil
Oven Controls
Bake
Broil
Add-a-Minute
Delay Bake
Self-Clean
Quick Clean Option
Delay Clean
Kitchen Timer
Timed Cook Option
Auto Oven Shut-O
Yes
Low and High
Yes
Yes
Cooktop Features
Right Front Burner (BTU)
Right Rear Burner (BTU)
Left Front Burner (BTU)
Left Rear Burner (BTU)
Center Extra Zone Burner (BTU)
9,500
9,500
9,500
9,500
Oven Features
Capacity (Cu. Ft.)
Oven Light
Rack Configuration
Even Baking System
Broiling System
Bake Burner / Broil Burner (BTU)
4.2
1
2 Standard
Yes
Vari-Broil™ Hi / Lo
18,000 / 18,000
Optional Accessories
LP Gas Conversion Kit
PN # GRLP3
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Gas Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having
2-wire service with a separate ground wire. Appliance must be
grounded for safe operation.
1
17-5/8" x 24-3/8" x 19-3/4"
Left Bottom Rear
Right Bottom Rear
120V / 60 Hz / 15A
1.8
15
150 Lbs.
Freestanding Ranges
FFGF3013L W/ B 30" Gas
NOTE: For planning purposes only. Always consult local and national electric and gas codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.

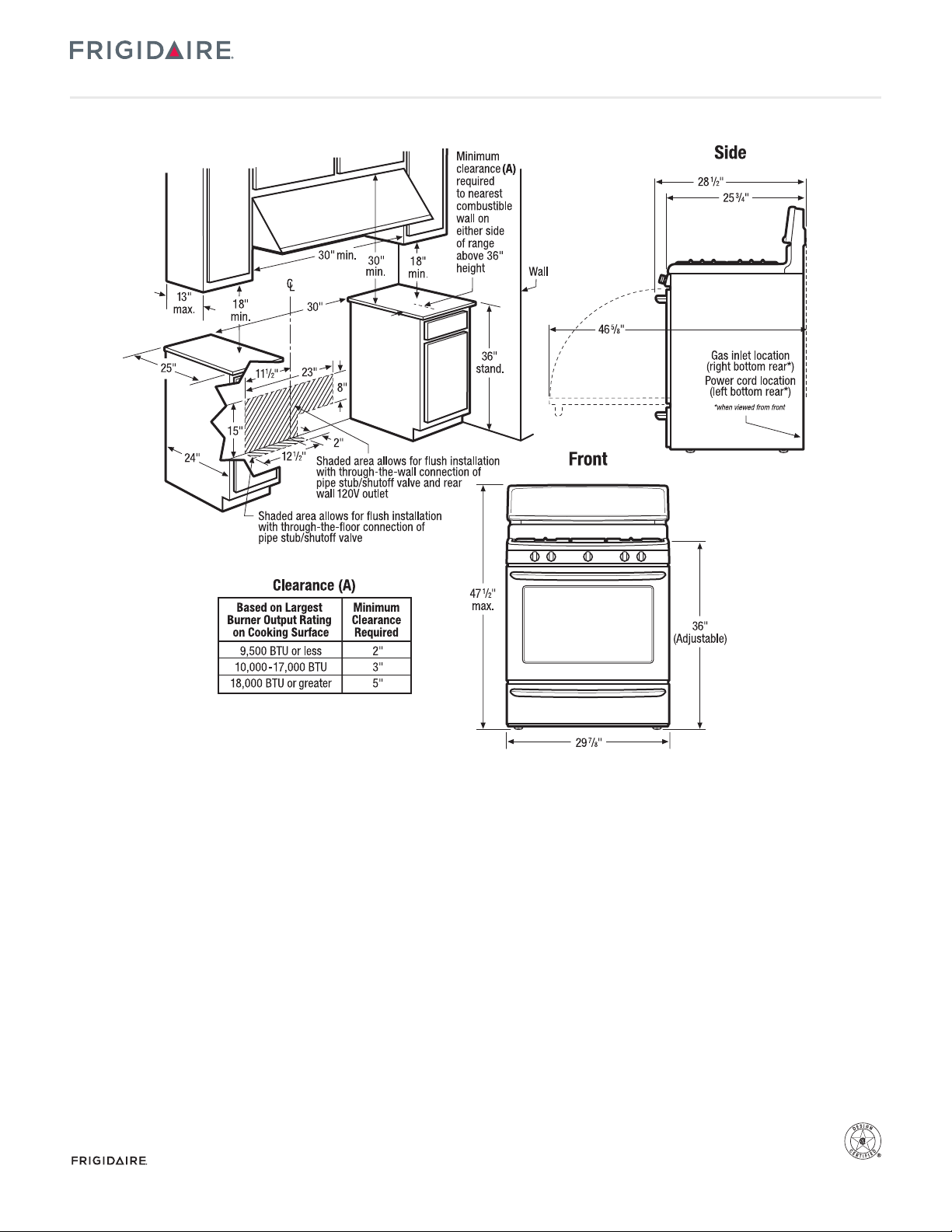

Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
46-5/8"
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
com.
36"
30"
24"
•
USA
10200 David Taylor Drive
•
CANADA
FFGF3013L 10/11 © 2011 Electrolux Home Products, Inc.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Accessories information available
on the web at frigidaire.com
Specifications
subject to change.
