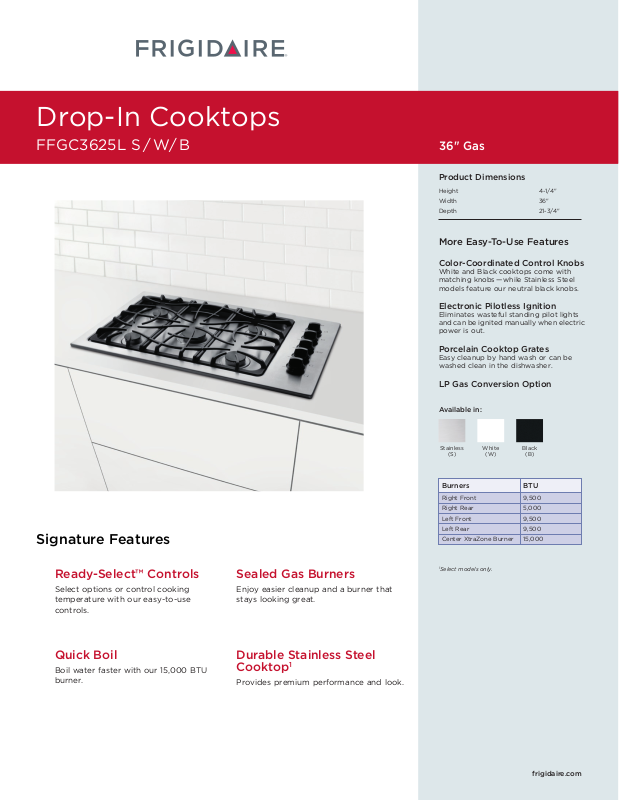

Frigidaire FFGC3625L DATASHEET
Drop-In Cooktop
Drop-In Cooktops
FPEC3085K S
FFGC3625L S / W/ B
30" Electric
36" Gas
Product Dimensions
Height 4-1/4"
Width 36"
Depth 21-3/4"
More Easy-To-Use Features
Color-Coordinated Control Knobs
White and Black cooktops come with
matching knobs — while Stainless Steel
models feature our neutral black knobs.
Electronic Pilotless Ignition
Eliminates wasteful standing pilot lights
and can be ignited manually when electric
power is out.
Porcelain Cooktop Grates
Easy cleanup by hand wash or can be
washed clean in the dishwasher.
LP Gas Conversion Option
Available in:
Signature Features
Ready-Select™ Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Quick Boil
Boil water faster with our 15,000 BTU
burner.
Sealed Gas Burners
Enjoy easier cleanup and a burner that
stays looking great.
Durable Stainless Steel
Cooktop
Provides premium performance and look.
1
Stainless
(S)
Burners
Right Front
Right Rear
Left Front
Left Rear
Center XtraZone Burner
1
Select models only.
White
(W)
Black
(B)
BTU
9,500
5,000
9,500
9,500
15,000
frigidaire.com
B
C
A
Drop-In Cooktops
FFGC3625L S / W/ B 36" Gas
Features
Controls
Surface Type
Grates
Right Front Element (BTU)
Right Rear Element (BTU)
Left Front Element (BTU)
Left Rear Element (BTU)
Center XtraZone Burner (BTU)
Control Location
Knob Color
Knob Type
Bowl Type
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
1
Ready-Select™
Deep-Drawn Stainless
Steel ( S ), Deep-Drawn
Porcelain ( W/ B )
Black Matte
9,500
5,000
9,500
9,500
15,000
Right Side
Black ( S ),
Color Coordinated
( W/ B )
Plastic
Black ( S ),
Color Coordinated
( W/ B )
Right Rear
Right Rear
Included
120V / 60V / 15A
.001
1.0
15
No
60 Lbs.
NOTE: Always consult local and national electric and gas codes. Refer to Product
Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Height
B - Width
C - Depth
4-1/4"
36"
21-3/4"
Cutout Dimensions
Height
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
8"
33-7/8"
34-1/4"
19-1/4"
19-3/4"
Granite Countertop
Installation Kit available.
•
USA
250 Bobby Jones Expressway
•
CANADA
FFGC3625L 03/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Martinez, GA 30907
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
