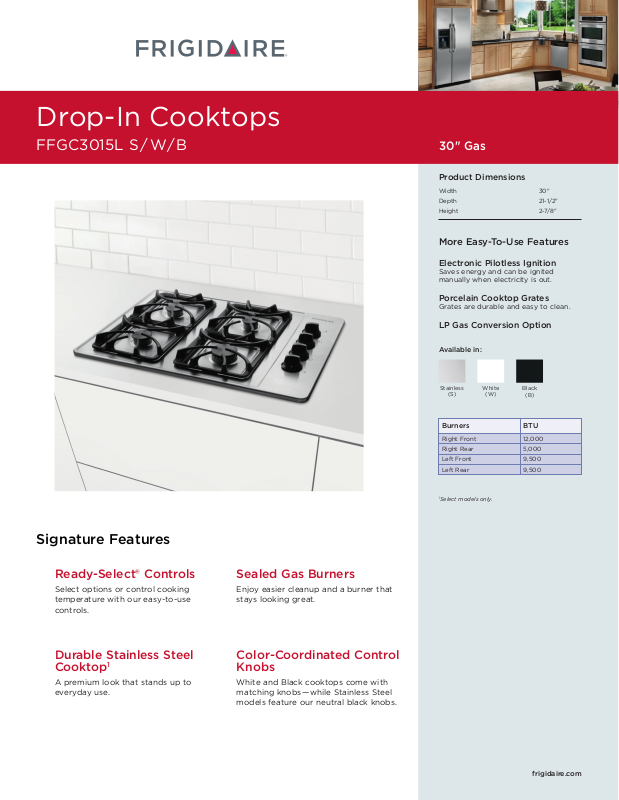

Drop-In Cooktop
Drop-In Cooktops
FPEC3085K S
FFGC3015L S / W/ B
30" Electric
30" Gas
Product Dimensions
Width 30"
Depth 21-1/2"
Height 2-7/8"
More Easy-To-Use Features
Electronic Pilotless Ignition
Saves energy and can be ignited
manually when electricity is out.
Porcelain Cooktop Grates
Grates are durable and easy to clean.
LP Gas Conversion Option
Available in:
Stainless
(S)
Burners
Right Front
Right Rear
Left Front
Left Rear
White
(W)
Black
(B)
BTU
12,000
5,000
9,500
9,500
Signature Features
Ready-Select® Controls
Select options or control cooking
temperature with our easy-to-use
controls.
Durable Stainless Steel
Cooktop
A premium look that stands up to
everyday use.
1
Sealed Gas Burners
Enjoy easier cleanup and a burner that
stays looking great.
Color-Coordinated Control
Knobs
White and Black cooktops come with
matching knobs — while Stainless Steel
models feature our neutral black knobs.
1
Select models only.
frigidaire.com
Page 2
A
B
C
Drop-In Cooktops
FFGC3015L S / W/ B 30" Gas
Features
Controls
Surface Type
Sealed Gas Burners
Grates
Right Front Element (BTU)
Right Rear Element (BTU)
Left Front Element (BTU)
Left Rear Element (BTU)
Control Location
Knob Color
Knob Type
Bowl Type
Specifications
Power Supply Connection Location
Gas Supply Connection Location
LP Gas Conversion Kit
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Approved for Electric Single Wall Oven
Combination Installation
Shipping Weight (Approx.)
1
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.
1
Ready-Select®
Stainless Steel ( S ),
Color-Coordinated
Porcelain ( W/ B )
Yes
Cast Iron with Black
Matte Finish
12,000
5,000
9,500
9,500
Right Side
Black ( S ),
Color-Coordinated
( W/ B )
Plastic
Right Rear
Right Rear
Included
120V / 60V / 15A
.8
1.0
15
50 Lbs.
NOTE: Always consult local and national electric and gas codes. Refer to Product
Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions
A - Width
B - Depth
C - Height
30"
21-1/2"
2-7/8"
Cutout Dimensions
Width (Min.)
Width (Max.)
Depth (Min.)
Depth (Max.)
Height
27-1/4"
28-1/2"
19"
19-3/8"
6-1/2"
Granite Countertop
Installation Kit available.
Accessories information available
on the web at frigidaire.com
•
USA
10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FFGC3015L 08/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Specifications
subject to change.
Page 3
Drop-In Gas Cooktops (Version 1)
(Callouts MUST be charted per individual model).
Professional / Gallery / Baseline
BASED ON INSTALL GUIDE
VERBIAGE (VERSION 1)
(G) min. between
rear
edge of cooktop and adjacent
combustible surface
(or backsplash)
Drop-In Cooktops
FFGC3015L S / W/ B 30" Gas
A - Width B - Depth C - Height G (min.) H (min.) I (min.) J (min.)
30" 21-1/2" 2-7/8" 1-3/4" 6" 4" –
D - Width (min. - max.) E - Depth (min. - max.) F - Height (min.)* Power Supply Gas Supply
27-1/4" - 28-1/2" 19" - 19-3/8"
Drop-In Cooktop Specifications
•
Product Shipping Weight (approx.) – 50 Lbs.
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.
•
Amps @ 120 Volts = 1.0 Amps
•
Always consult local and national electric and gas codes.
•
Cooktop cutout height includes clearance needed beneath cooktop
to allow for gas supply connection. Recommended location for
grounded 120V outlet is on rear wall in an 8"-wide by 10"-high area,
positioned 22" above floor surface and 4" from right side of cooktop
centerline. Access to underside of cooktop and junction box must
be provided for inspection and service.
•
Cooktop ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30".
•
Allow 30" minimum clearance between top of cooktop platform and
bottom of unprotected wood or metal overhead cabinet.
•
Allow 1-3/4" minimum distance between rear edge of cooktop and
adjacent combustible surface (or backsplash).
Product Dimensions

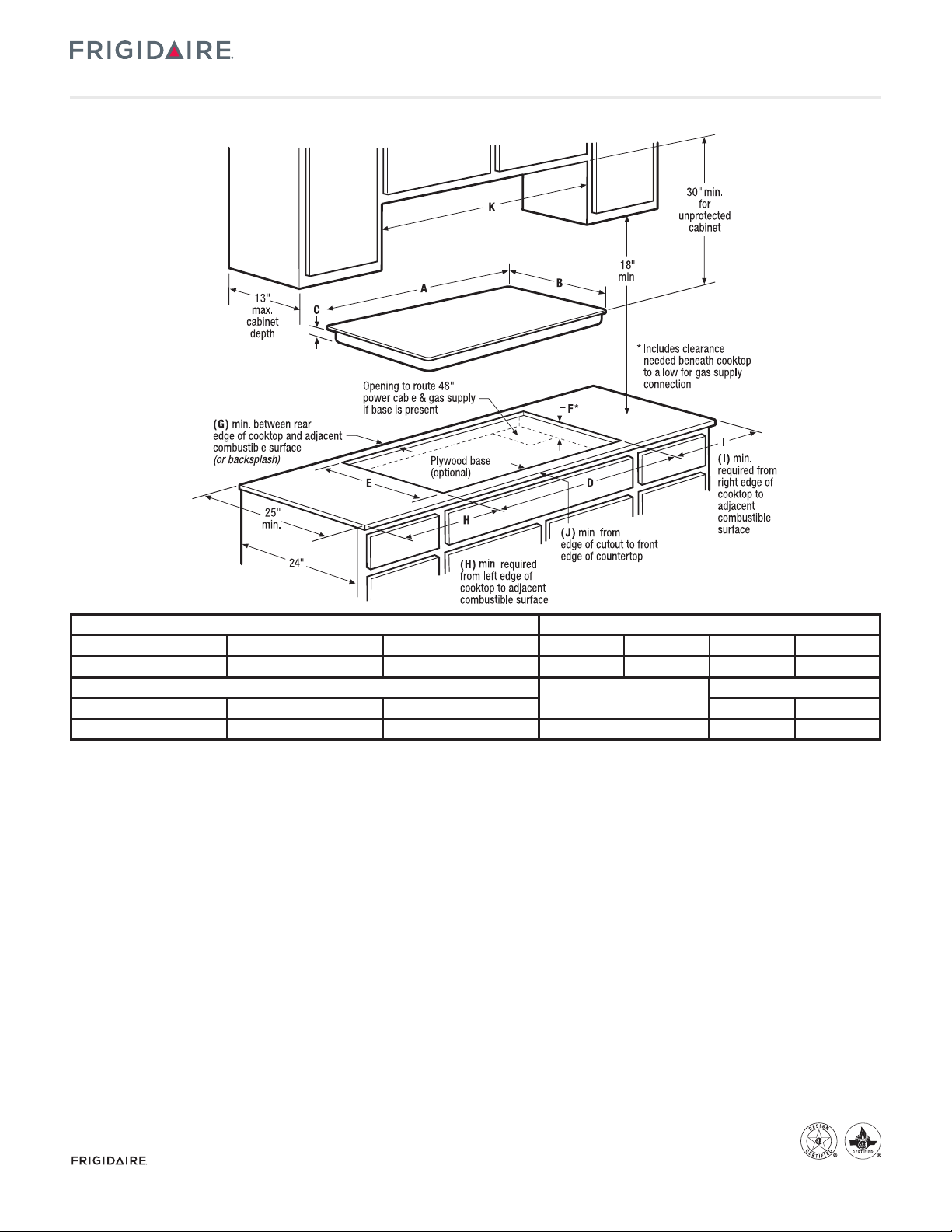

Product Cutout Dimensions
6-1/2" 30" Right Rear Right Rear
Required Clearances
K - Cabinet Opening Width
•
Allow 6" minimum required clearance from left edge of cooktop to
adjacent combustible surface and 4" minimum from right edge of
cooktop to adjacent combustible surface.
•
Drawer can NOT be installed beneath cooktop.
•
To reduce risk of fire when using overhead cabinetry, install range
hood that projects horizontally a recommended minimum of 5"
beyond bottom of cabinets.
•
Gas Drop-In Cooktop model FFGC3015L is approved to be used over
any Frigidaire® Single Wall Oven.
•
Gas Drop-In Cooktop model FFGC3015L is approved to be used in
combination with Frigidaire® 30" Downdraft Vent PL30DD50EC.
(Refer to model-specific Downdraft Vent product page on web for
detailed countertop preparation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
(min.)
Utility Connection Locations
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903103-9010).
Accessories information available
on the web at frigidaire.com
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com
•
CANADA
FFGC3015L 08/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca
Specifications
subject to change.
Page 4
Top

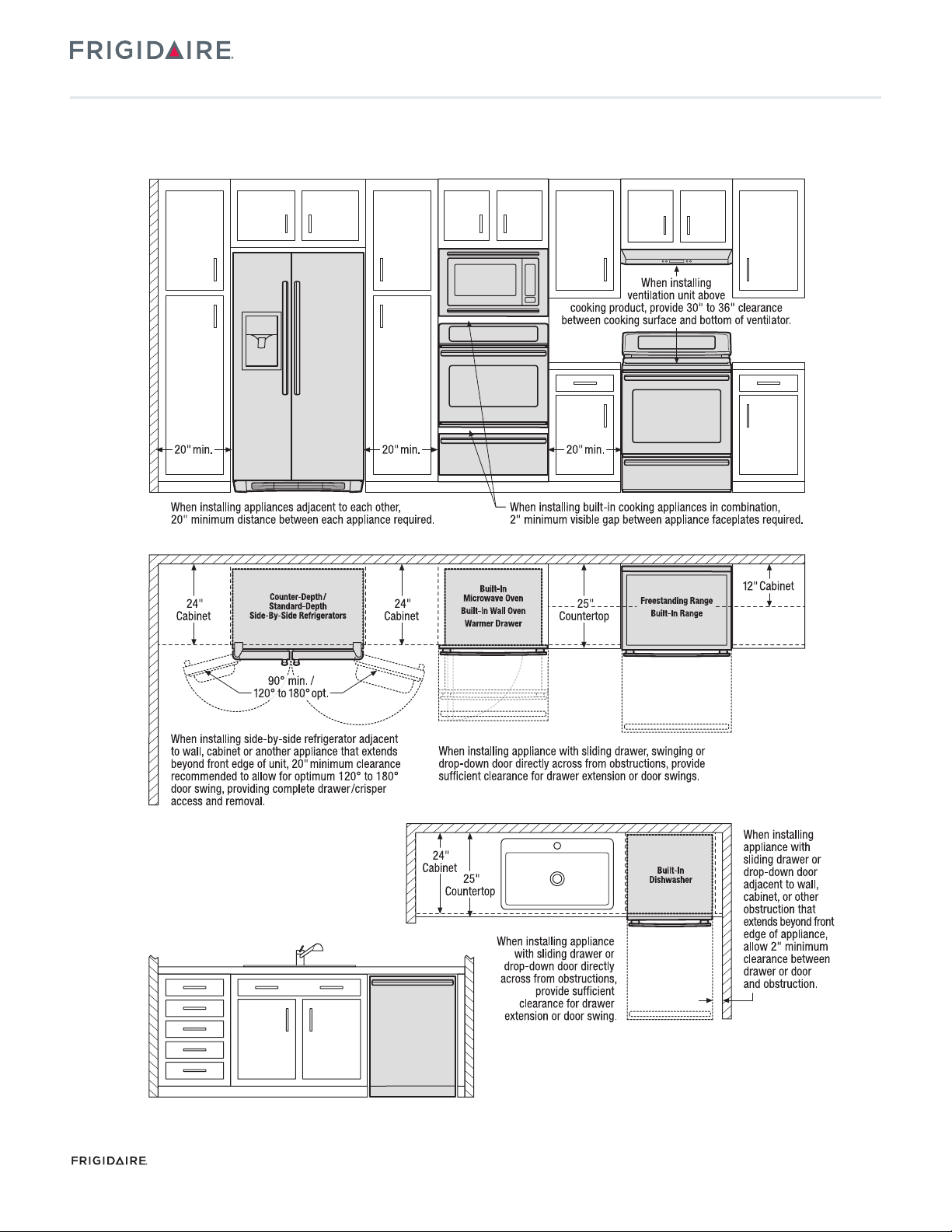

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
General Installation Guidelines
with Side-by-Side Refrigerator
•
USA
10200 David Taylor Drive
•
CANADA
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
5855 Terry Fox Way
•
Charlotte, NC 28262
•
Mississauga, ON L5V 3E4
•
1-800-FRIGIDAIRE
•
1-800-265-8352
•
frigidaire.com
•
frigidaire.ca
Specifications
subject to change.
Page 5

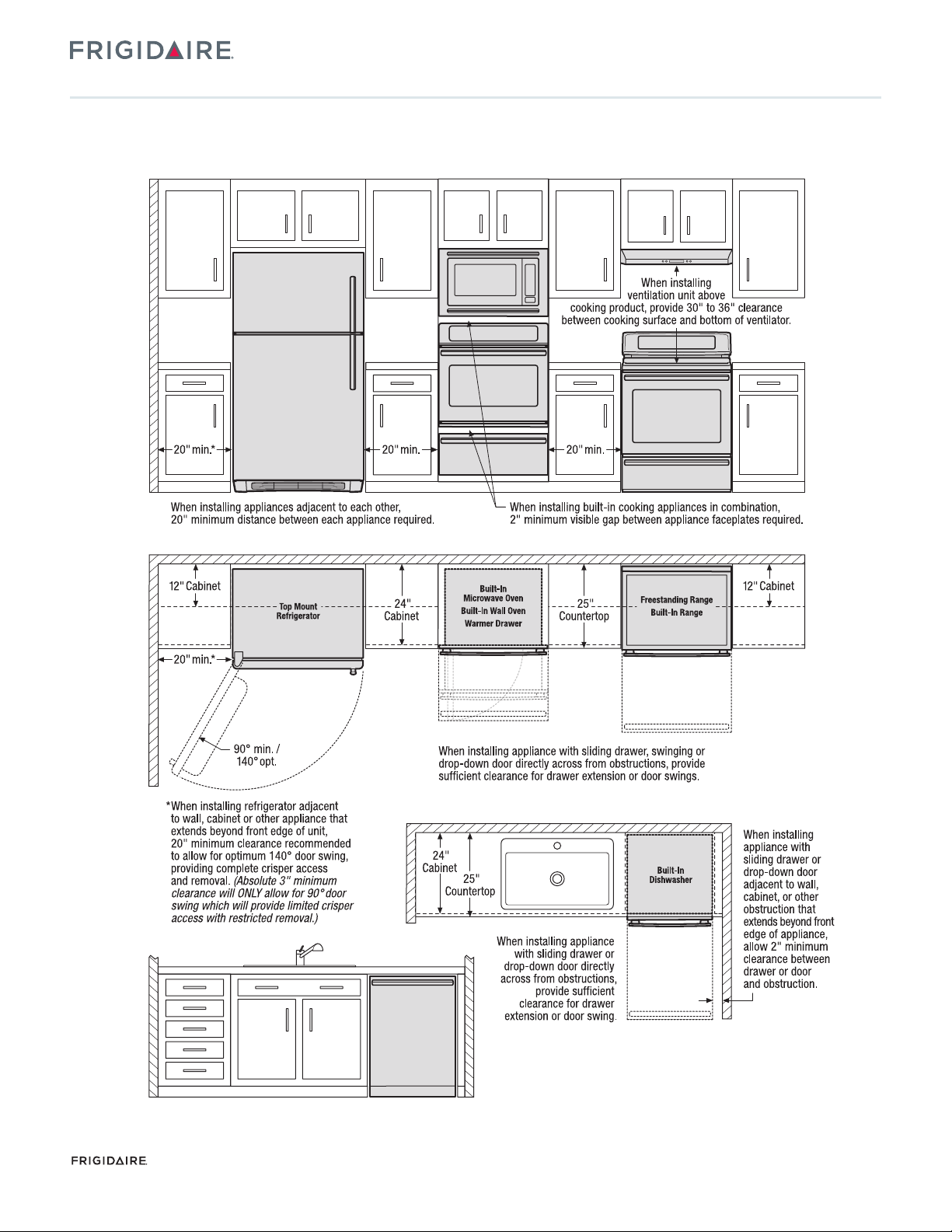

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
