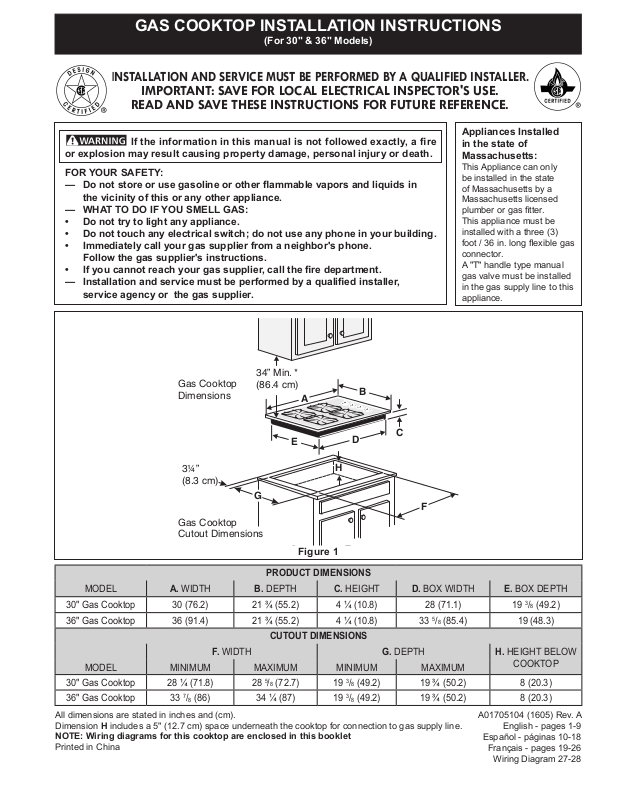

Frigidaire FFGC3012TBA, FFGC3012TSA, FFGC3012TWA, FFGC3612TSA, FFGC3612TWA Installation Guide

...

GAS COOKTOP INSTALLATION INSTRUCTIONS

(For 30" & 36" Models)

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.

IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

If the information in this manual is not followed exactly, a re

or explosion may result causing property damage, personal injury or death.

FOR YOUR SAFETY:

— Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the re department. — Installation and service must be performed by a qualied installer, service agency or the gas supplier.

Appliances Installed in the state of Massachusetts:

This Appliance can only be installed in the state of Massachusetts by a Massachusetts licensed

plumber or gas tter.

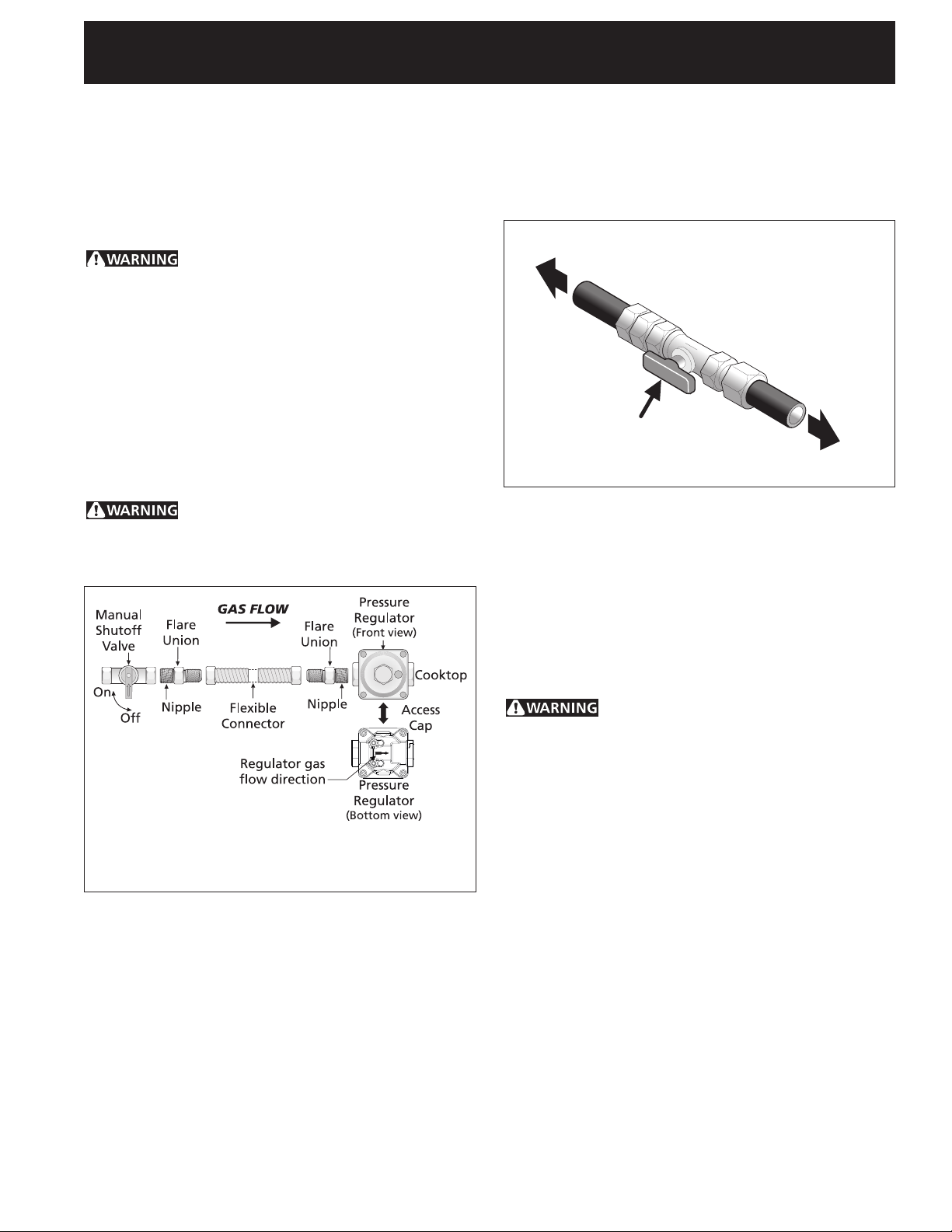

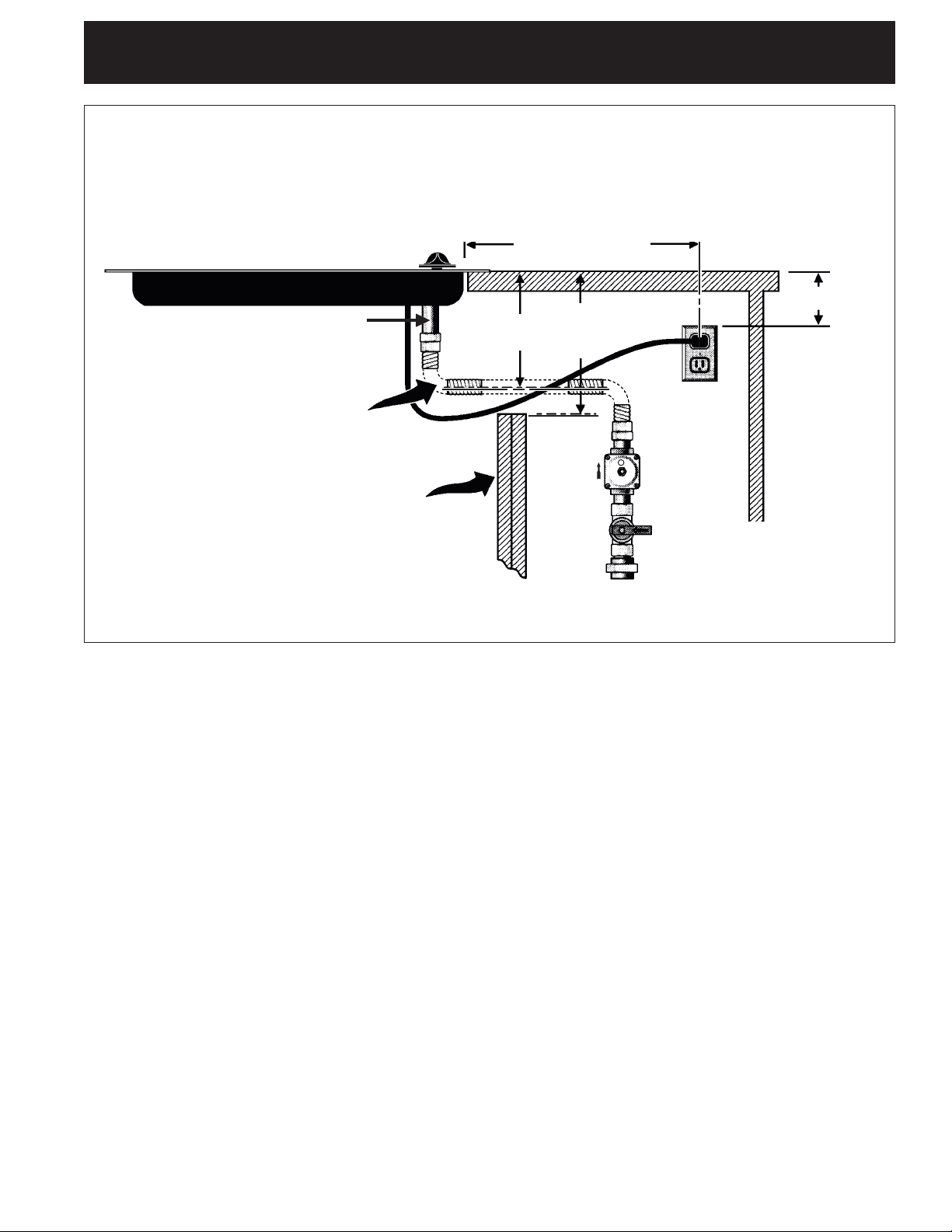

This appliance must be installed with a three (3)

foot / 36 in. long exible gas

connector. A "T" handle type manual gas valve must be installed in the gas supply line to this appliance.

34” Min. * Gas Cooktop Dimensions

3¼”

(86.4 cm)

(8.3 cm)

Gas Cooktop Cutout Dimensions

Figure 1

PRODUCT DIMENSIONS

MODEL A. WIDTH B. DEPTH C. HEIGHT D. BOX WIDTH E. BOX DEPTH

30" Gas Cooktop 30 (76.2) 21 ¾ (55.2) 4 ¼ (10.8) 28 (71.1) 19 36" Gas Cooktop 36 (91.4) 21 ¾ (55.2) 4 ¼ (10.8) 33

/8 (85.4) 19 (48.3)

CUTOUT DIMENSIONS

F. WIDTH G. DEPTH H. HEIGHT BELOW

MODEL MINIMUM MAXIMUM MINIMUM MAXIMUM 30" Gas Cooktop 28 ¼ (71.8) 28 36" Gas Cooktop 33

All dimensions are stated in inches and (cm). Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas supply line.

NOTE: Wiring diagrams for this cooktop are enclosed in this booklet

Printed in China

/8 (86) 34 ¼ (87) 19 3/8 (49.2) 19 ¾ (50.2) 8 (20.3)

/8 (72.7) 19 3/8 (49.2) 19 ¾ (50.2) 8 (20.3)

A01705104 (1605) Rev. A

Español - páginas 10-18

Français - pages 19-26

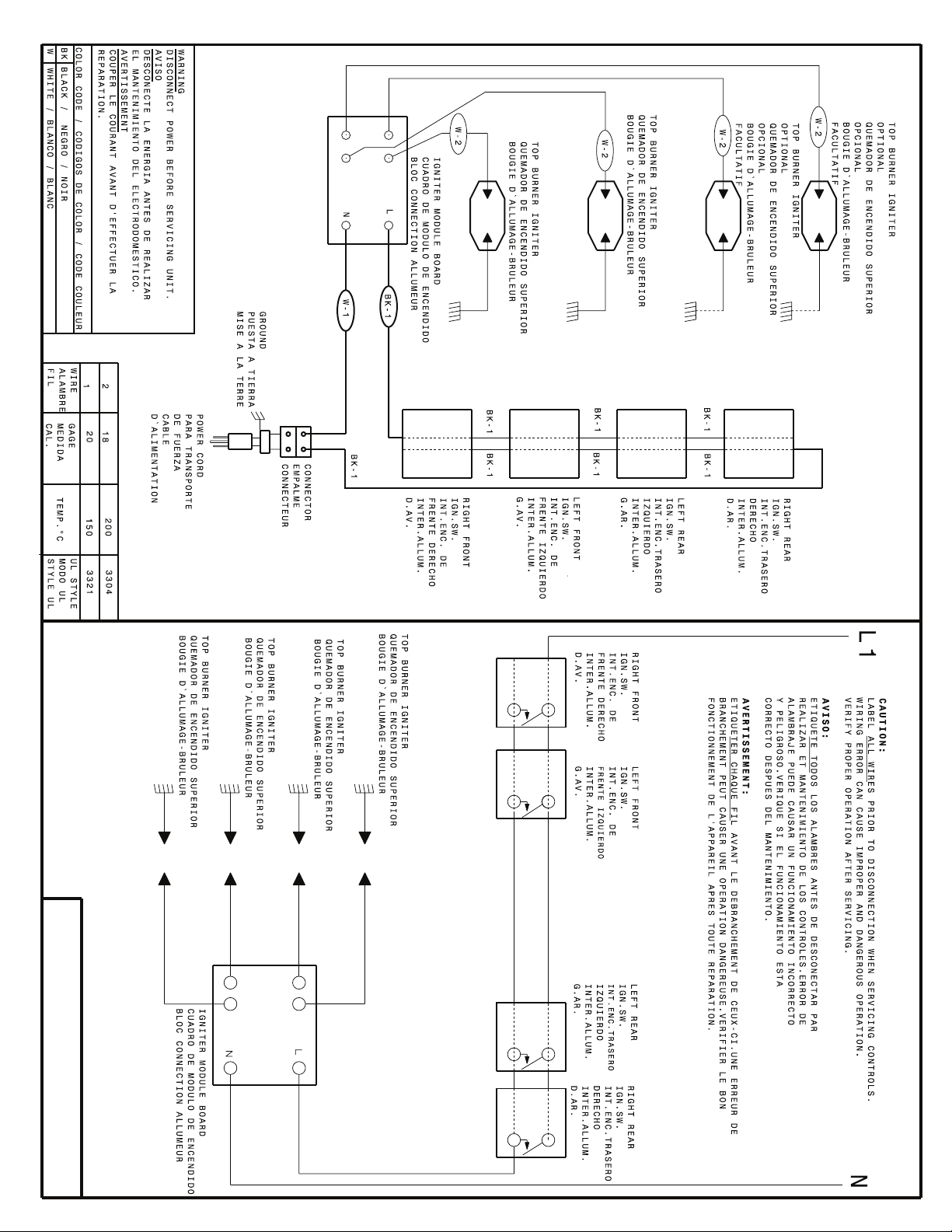

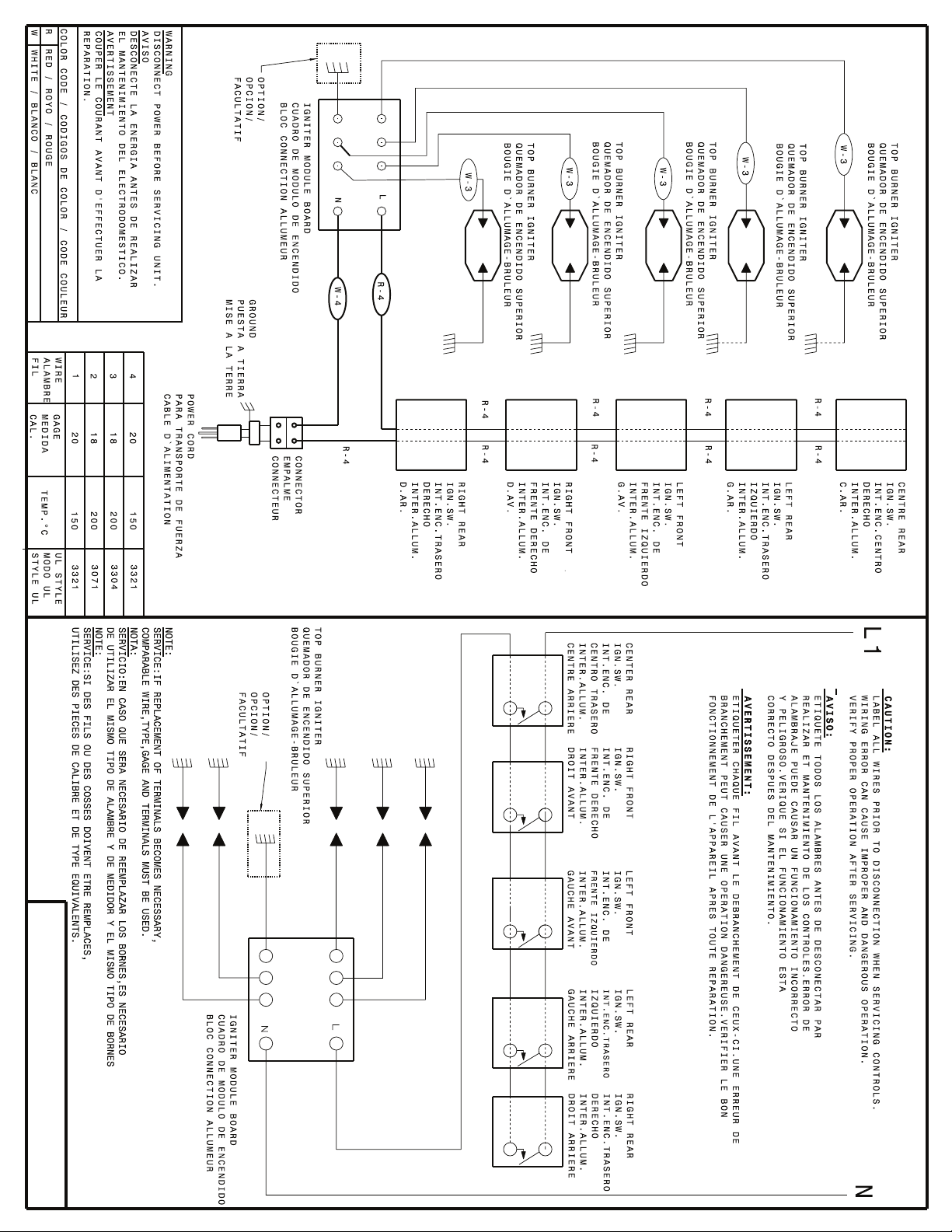

Wiring Diagram 27-28

/8 (49.2)

COOKTOP

English - pages 1-9

GAS COOKTOP INSTALLATION INSTRUCTIONS

(For 30" & 36" Models)

Important Notes to the Installer

1. Read all instructions contained in these installation instructions before installing the cooktop.

2. Remove all packing material before connecting the electrical supply to the cooktop.

3. Observe all governing codes and ordinances.

4. Be sure to leave these instructions with the consumer.

5. Note: For operation at 2000 ft. elevations above see level, appliance rating shall be reduced by 4 percent for each additional 1000 ft.

Important Note to the Consumer

Keep these instructions with your Use and Care Guide for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Installation of this cooktop must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA 54 in the United States, or in Canada, with the Canadian Fuel Gas Code, CAN/CGA B149 and CAN/CGA B149.2.

• When installed in a manufactured (mobile) home

installation must conform with the Manufactured Home Construction and Safety Standard, title 24 CFR, part 3280 [Formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD (part 280)] or, when such standard is not applicable, the Standard for Manufactured Home Installation, ANSI/NCSBCS A225.1 or with local codes where applicable.

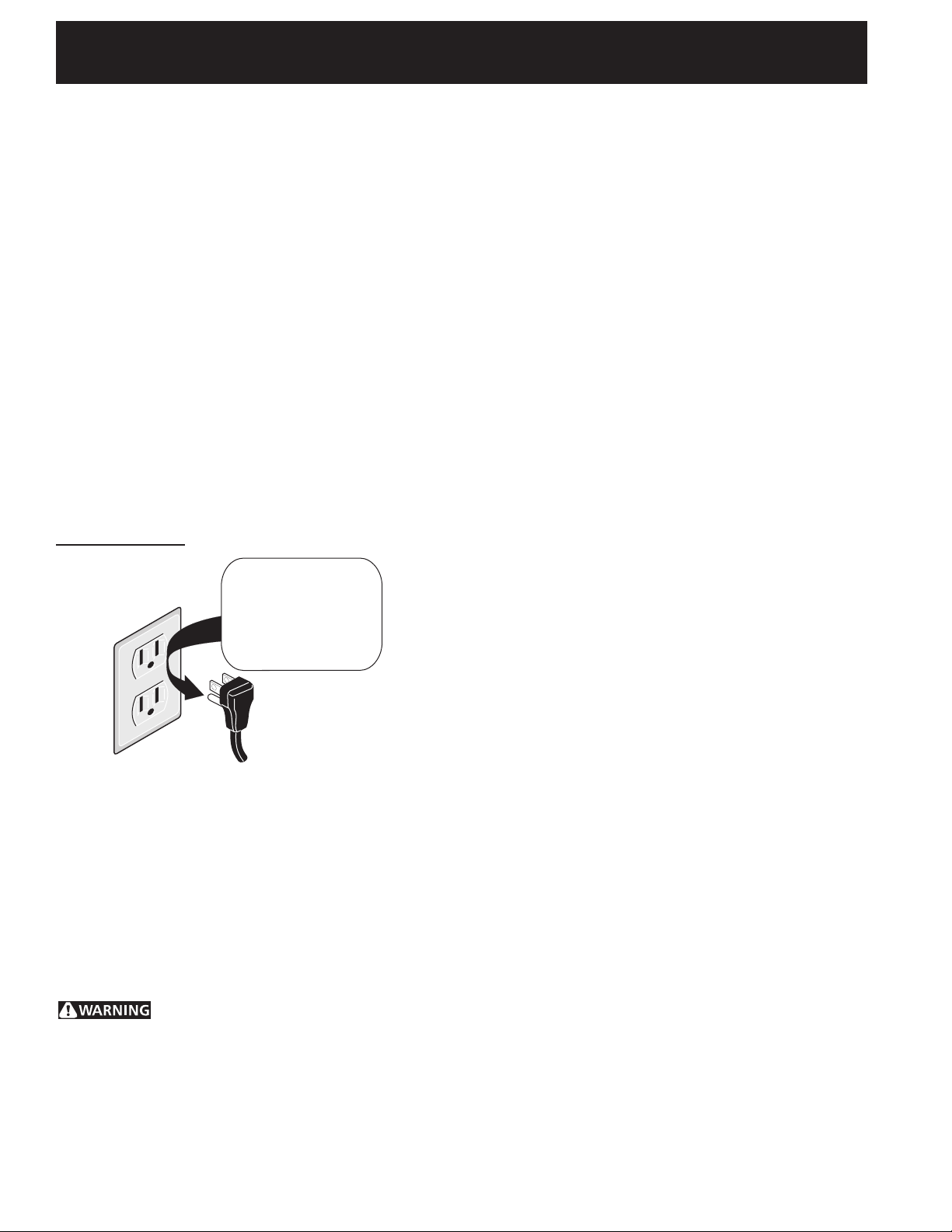

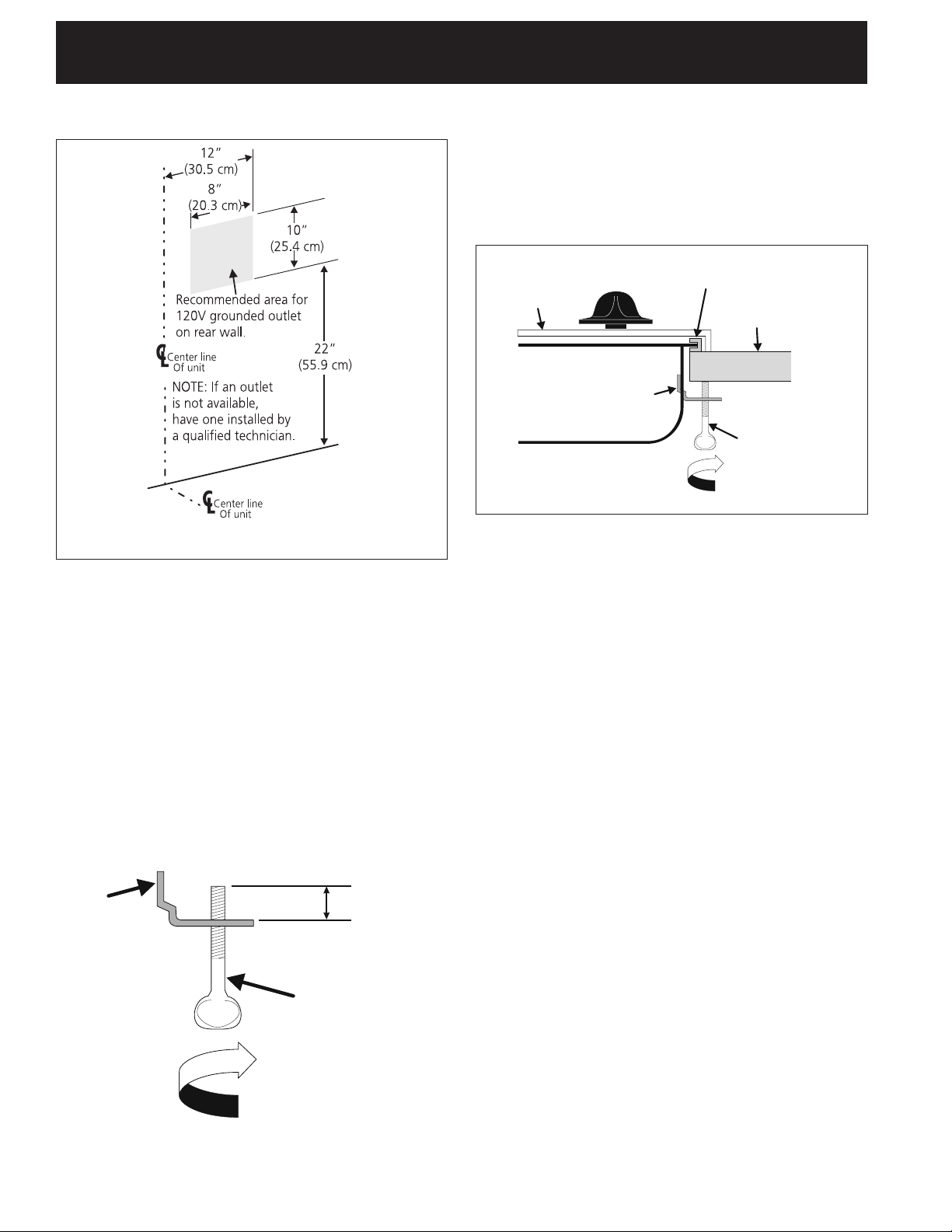

• Be sure your cooktop is installed and grounded

properly by a qualied installer or service

technician.

• This cooktop must be electrically grounded in accordance with local codes or, in their absence,

with the National Electrical Code ANSI/NFPA No. 70—latest edition in the United States, or in Canada, with the Canadian Electrical Code, CSA C22.1 Part 1.

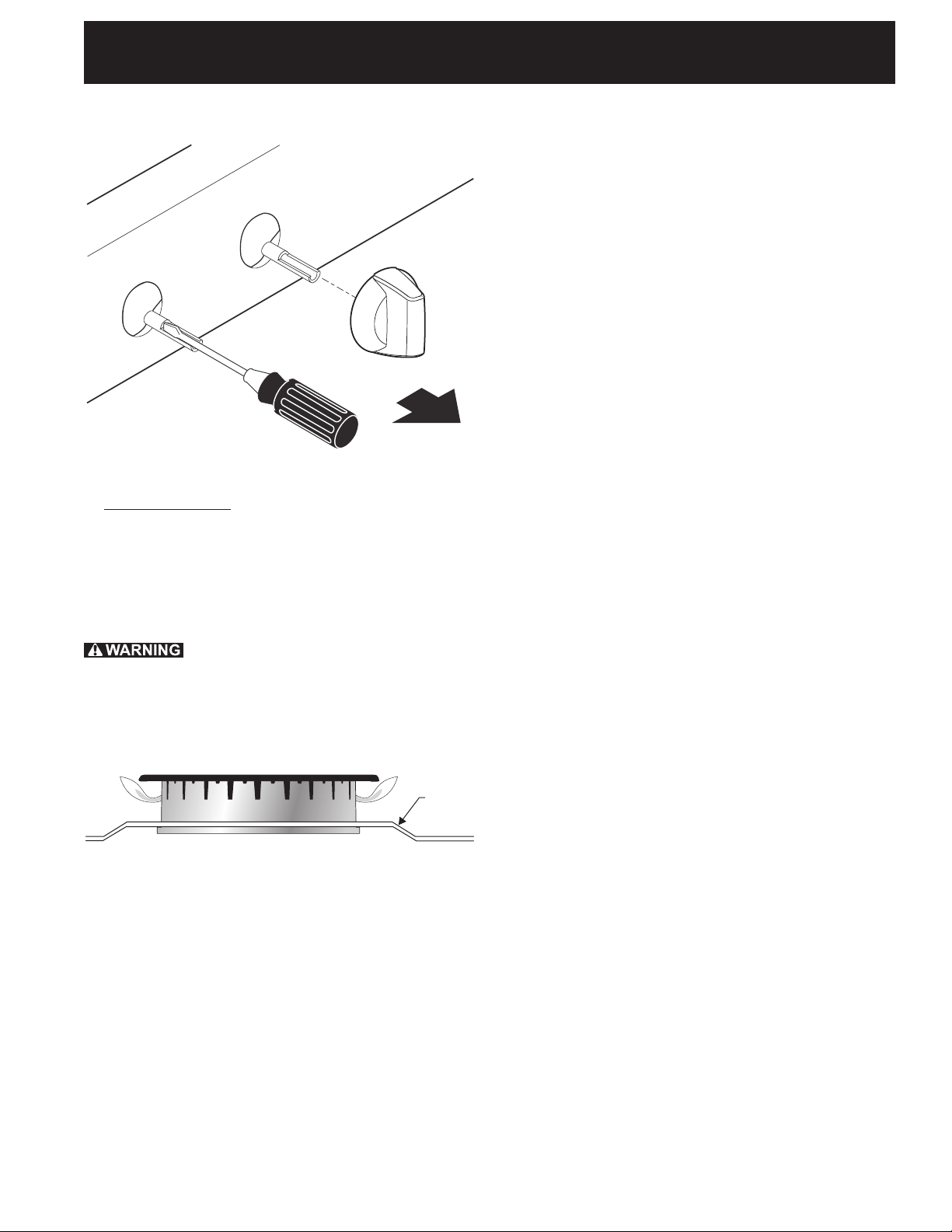

• The burners can be lit manually during an electrical power outage. To light a burner, hold a lit match to the burner head, then slowly turn the Surface Control knob to LITE. Use caution when lighting burners manually.

• Do not store items of interest to children in

cabinets above the cooktop. Children could be seriously burned climbing on the cooktop to reach items.

• To eliminate the need to reach over the surface burners, cabinet storage space above the burners should be avoided.

• Adjust surface burner ame size so it does not extend beyond the edge of the cooking utensil.

Excessive ame is hazardous.

• Never use your cooktop for warming or heating

the room. Prolonged use of the cooktop without

adequate ventilation can be hazardous.

• Do not store or use gasoline or other ammable

vapors and liquids near this or any other

appliance. Explosions or res could result.

The electrical power to the cooktop

must be shut off while gas line connections are being made. Failure to do so could result in serious

injury or death.

This cooktop has been design certied by CSA

International. As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will nd them in the Use and Care Guide, read it carefully.

13" (33 cm)

Max. Depth

For Cabinet Installed Above Cooktop.

GAS COOKTOP INSTALLATION INSTRUCTIONS

(For 30" & 36" Models)

34" (86.4 cm) Min. Clearance Between the Top of the Cooking Platform and Unprotected Wood or Metal Cabinet

18” Min.

(45.7 cm)

Clearance

2" (5.1 cm) Minimum Distance Between Rear Edge of Cutout and Nearest Combustible Surface Above Countertop.

24” Min.

(61 cm)

To eliminate the risk of

burns or re from reaching over heated

surfaces, cabinet storage space located above the cooktop should be avoided. If cabinet storage is provided, risk can be reduced by installing a

range hood that projects horizontally

a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.

If a drawer is present underneath, allow at least 6½" (16.5 cm) of clearance below the counter top. Make sure there will be no interference with gas or electrical connection.

CAUTION

products in the drawer.

MODEL A B. Minimum

30" Cooktop 30" (76.2 cm) 12" (30.5 cm) 12" (30.5 cm) 36" Cooktop 36" (91.4 cm) 12" (30.5 cm) 12" (30.5 cm)

Never store ammable

Clearance

from Left Side

C. Minimum

Clearance

from Right

Side

Figure 2 – CABINET DESIGN

GAS COOKTOP INSTALLATION INSTRUCTIONS

(For 30" & 36" Models)

Typical Under Counter Installation of an Electric Built-in Oven

with a Cooktop Mounted Above

Only certain cooktop models may be installed over certain built-in electric oven models. Approved cooktops and built-in ovens are listed by the MFG ID number and product code (see the insert sheet included in the literature package and cooktop installation instructions for the dimensions).

To reduce the risk of personal injury and tipping of the wall

oven, the wall oven must be secured to the cabinet (s) by mounting brackets.

208/240 Volt junction box

for built-in oven.

Approx. 3”

(7.5 cm)

Cabinet side ller panels

are necessary to isolate the unit from adjoining cabinets.

Cabinet side ller height

should allow for installation of approved cooktop models

36” Min. (91.4 cm) Min.

Use 3/4” (1.9 cm) plywood, installed

on two runners, ush with toe plate.

Base must be capable of supporting 150 pounds (68 kg) for 27" models and 200 pounds (90 kg) for 30" models.

Cut an opening in wood base minimum 9” x 9” (23 X 23 cm), 2” (5 cm) from left side ller panel, to route armoured cable to junction box.

* If no cooktop is installed

directly over the oven unit,

5” (12.7 cm) maximum is allowed above the oor.

4 1/2” (11.5 cm) Max.*

CUTOUT DIMENSIONS (INCHES (CM))

OVEN SIZE F. WIDTH G. DEPTH H. HEIGHT

Min. Max. Min. Min. Max.

27" (68.6) 24

30" (76.2) 28½" (72.4) 29" (73.7) 23½"

/8" (63.1) 25¼" (64.1) 23½"

(59.7)

Figure 3

27¼"

(69.2)

27¼"

(69.2)

28½"

(72.4)

28½"

(72.4)
